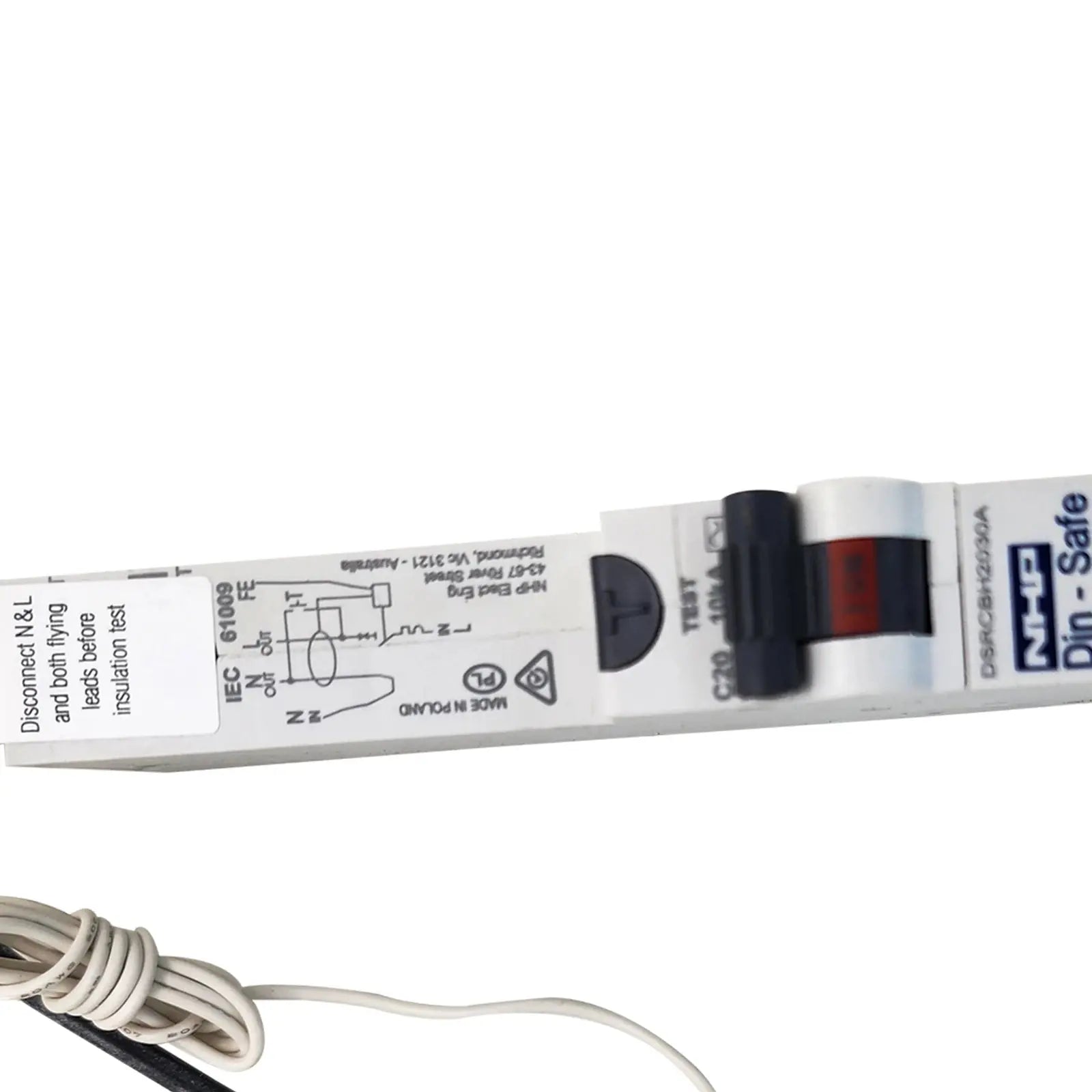

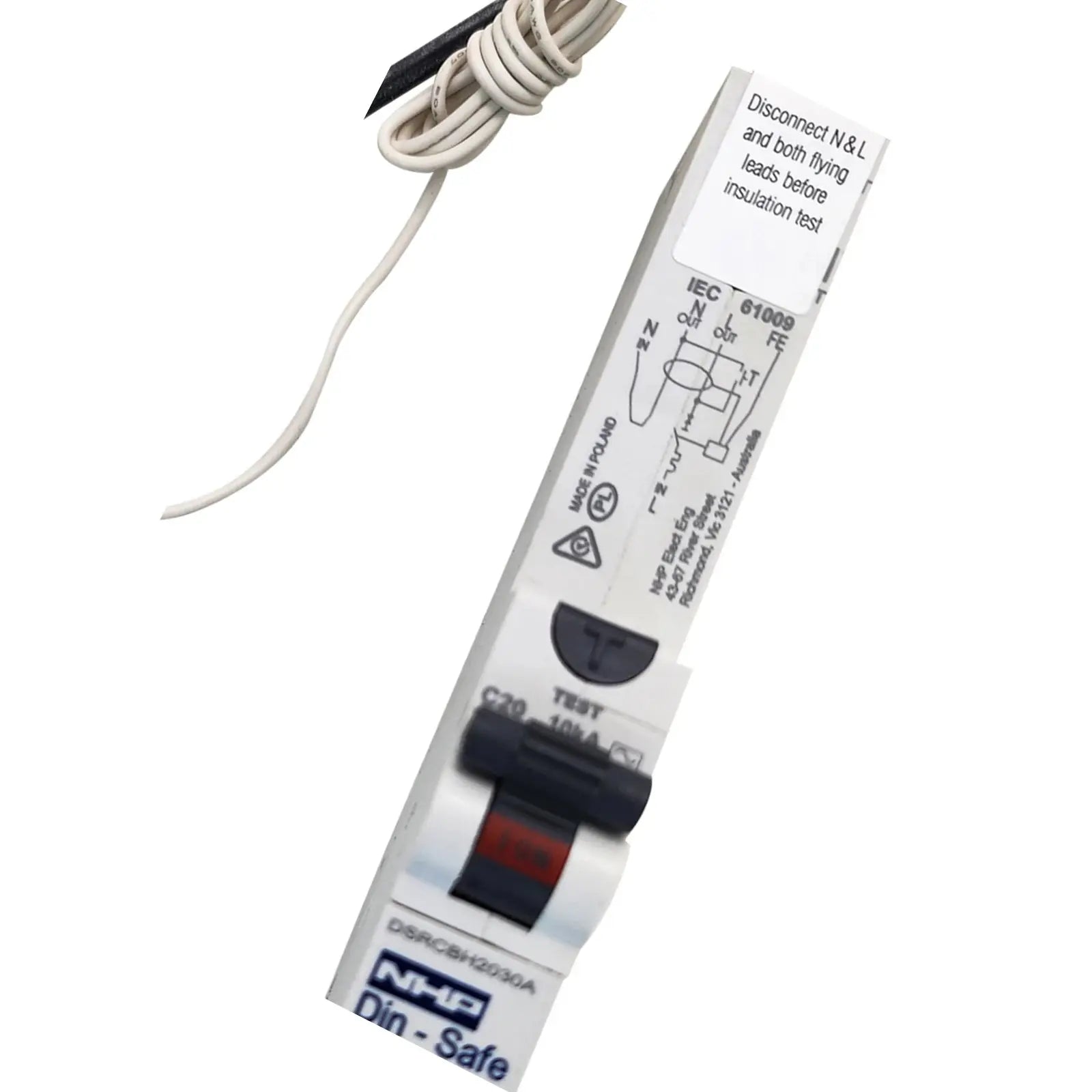

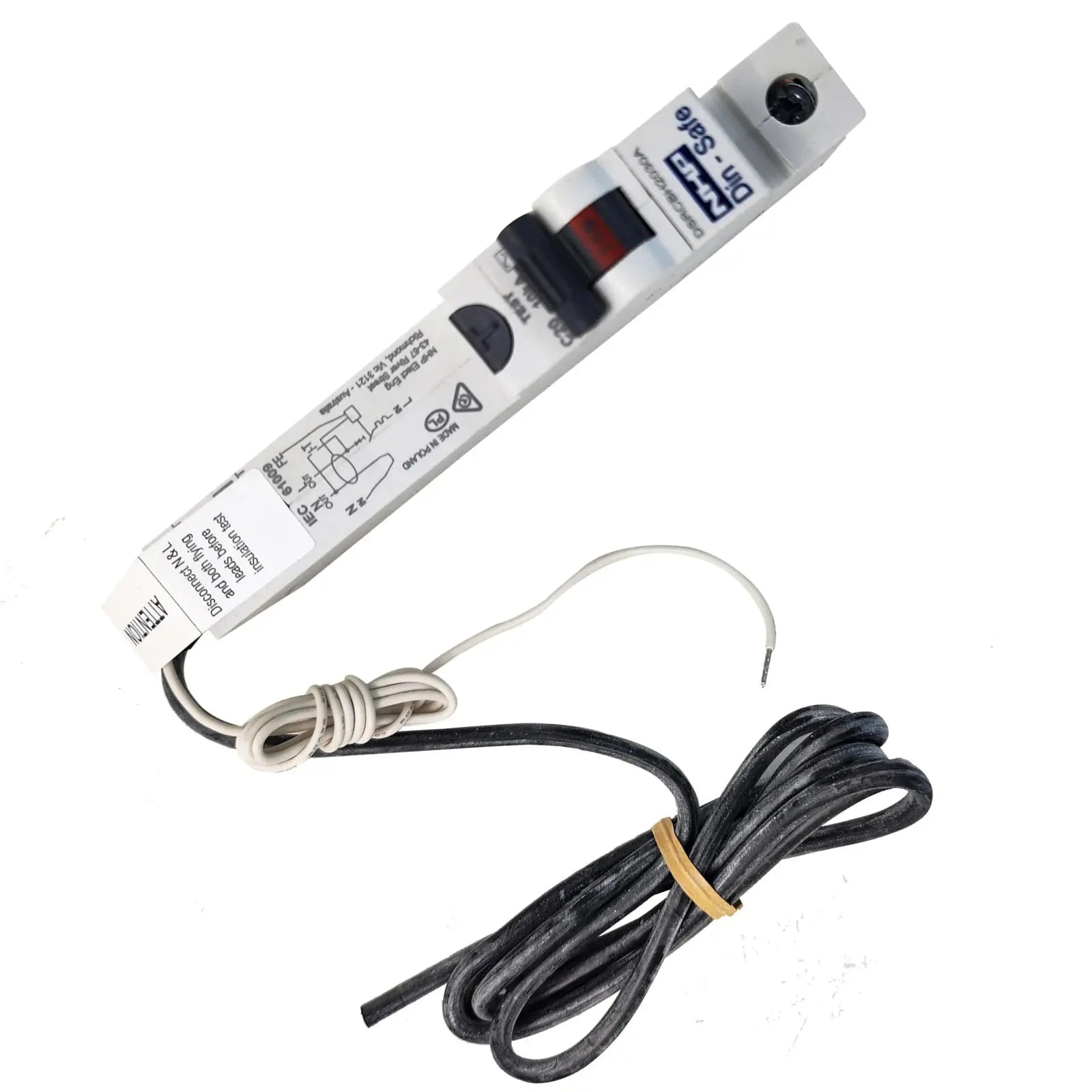

NHP Din-Safe RCBO 10KA C CURVE 1P+N 20A 30mA TYPE A DSRCBH2030A


Condition and Packaging: NEW - Manufacturer
Precio:
Precio de venta$61.00 USD
Stock:
Solo queda 1 unidad
  • Free Standard Shipping Worldwide NO Minimum Spend
  • Free Express Shipping Worldwide on Orders over $200 USD
  • Every item you choose is carefully handpicked and packed by our dedicated team in-house
  • 30 Days Return policy

Descripción

The NHP Din-Safe RCBO 10KA C CURVE 1P+N 20A 30mA TYPE A DSRCBH2030A is an advanced electrical protection device designed for industrial applications. With a 10kA breaking capacity, this RCBO ensures reliable performance and robust protection against overcurrents and short circuits. The C CURVE characteristic makes it suitable for industrial environments where moderate inrush currents are common. This single-pole plus neutral (1P+N) configuration, rated at 20A, is well-suited for a variety of electrical systems, providing precise and efficient circuit protection.

Engineered to meet the highest standards, the DSRCBH2030A features a 30mA sensitivity and Type A tripping characteristics, making it ideal for safeguarding personnel and equipment from both direct and alternating current faults. Its DIN rail mount design facilitates easy installation in industrial control panels and switchgear. The NHP Din-Safe RCBO combines cutting-edge technology with a compact form factor, ensuring seamless integration into diverse industrial electrical setups, making it a reliable and essential component for enhancing safety and performance in industrial settings.

NHP Din-Safe RCBO 10KA C CURVE 1P+N 20A 30mA TYPE A DSRCBH2030A Features:

  • High speed and rapid arc quenching technology ensuring the highest level of protection is provided
  • DIN rail mounting
  • Free tripping mechanism even if toggle is locked or sealed ON or OFF
  • Brand Name: NHP Din-T
  • Certifications: CE, RCM
  • Add-On Devices (side add-on): Panelboard Switch
  • Component Type Power Distribution & Protection: RCBO
  • Number of Poles versus Modules: 1
  • Approval(s): N17482
  • Busbar System, Bottom: Fork, Pin
  • Selectivity Class (IEC 60898): A
  • Icn, Rated Short-Circuit Capacity, 1P, 230/400V AC: 10 kA
  • Im, Rated Make/Break Capacity: 200 A
  • In, Rated Current at 30°C: 20 A @30°C
  • Icn, Rated Short Circuit Capacity: 10 kA
  • Inc, Rated Conditional Short Circuit Current: 10 kA
  • Depth: 76 mm
  • Dielectric Strength: 2500V V AC
  • Rated Frequency: 50 / 60 Hz
  • Height: 125 mm
  • Relative Humidity, Max: 95 %RH
  • IP Rating, Inside: IP40
  • IP Rating, Outside:IP20
  • Mounting: DIN-35 Rail Mount
  • Poles: 1P + N
  • Insulation Resistance: 1000 MΩ
  • Width: 18 mm
