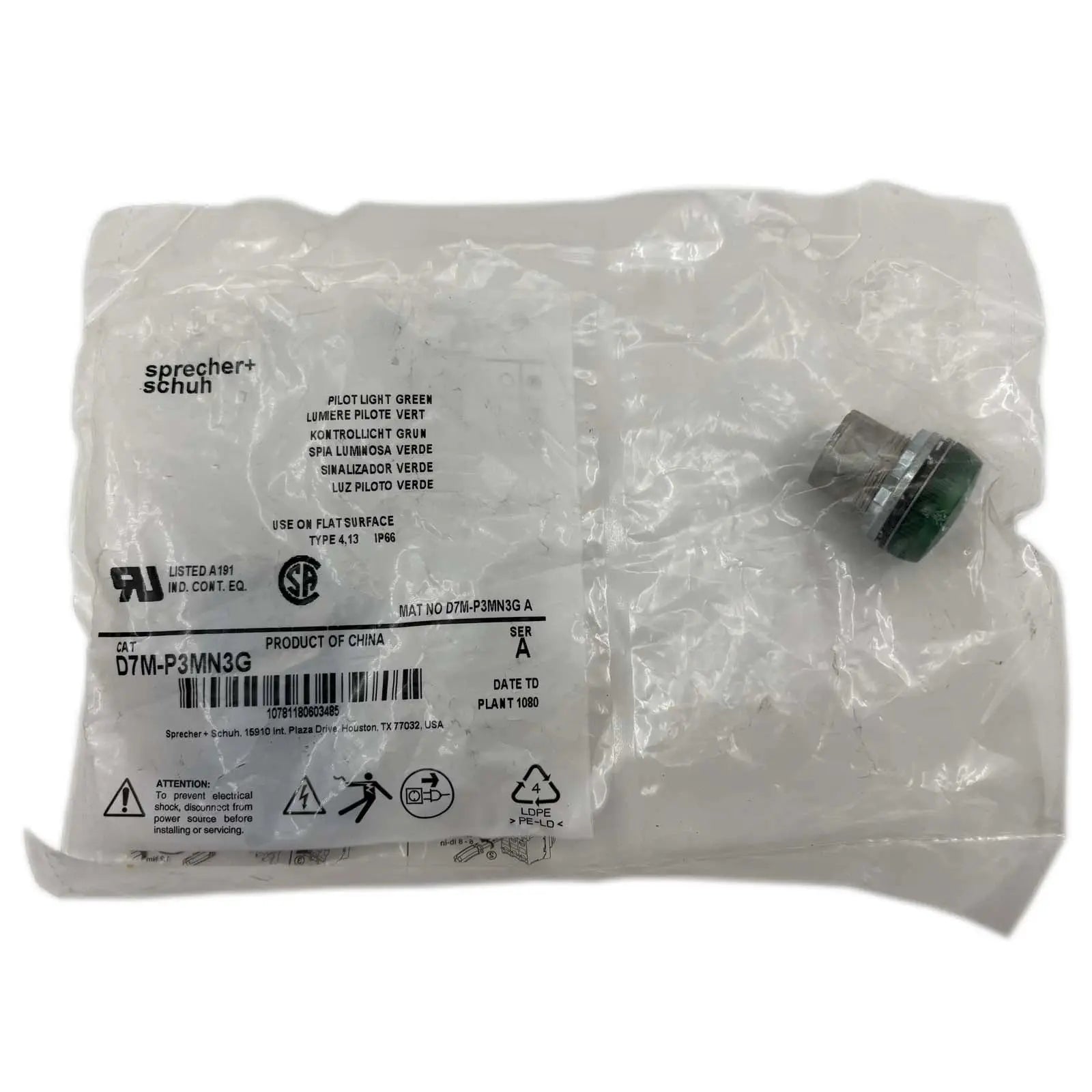

The Sprecher + Schuh NHP Pilot Light, model D7M-P3MN3G, is a 22.5mm metal indicator designed for signaling and indicating purposes in industrial control panels and machinery. With a green LED and a voltage rating of 24VAC/DC, this pilot light provides a visual indication of the operational status or conditions of an electrical circuit.
The 22.5mm size is a standard diameter for panel-mounted controls, and the metal construction enhances durability, making it suitable for use in demanding industrial environments. The green LED color is commonly associated with indicating normal or ready status in industrial applications. Professionals use pilot lights like the Sprecher + Schuh D7M-P3MN3G to enhance the visibility and monitoring capabilities of control panels, providing operators and maintenance personnel with clear visual feedback about the status of specific functions within the electrical system.
Sprecher + Schuh NHP Pilot Light Metal 22.5mm 24VAC/DC LED Green D7M-P3MN3G Features:
- D7 Operator Control Device (22.5mm) offer maximum flexibility and are suitable for a range of applications
- The range includes e-stops, selector switches, pushbuttons, pilot lights in various configurations
- Component Type Push Button and Pilot Lights: Pilot Light
- Color, Lamp: Green (525nm) colour
- Color, Lens: Green colour
- Compatible Product Series: D7 22.5mm Control & Indication compatible
- Terminal Type: Screw Terminal(s)
- In, Rated Current: 0.031 A
- Diameter, lens: 29.6 mm
- Diameter, Mounting Hole(s): 22.5 mm
- Dielectric Strength: 2.5kV for 1 minute V AC
- Rated Frequency: 50/60 Hz
- Relative Humidity, Max: 95 %RH
- Relative Humidity, Min: 50 %RH
- IP Rating: IP65, IP66

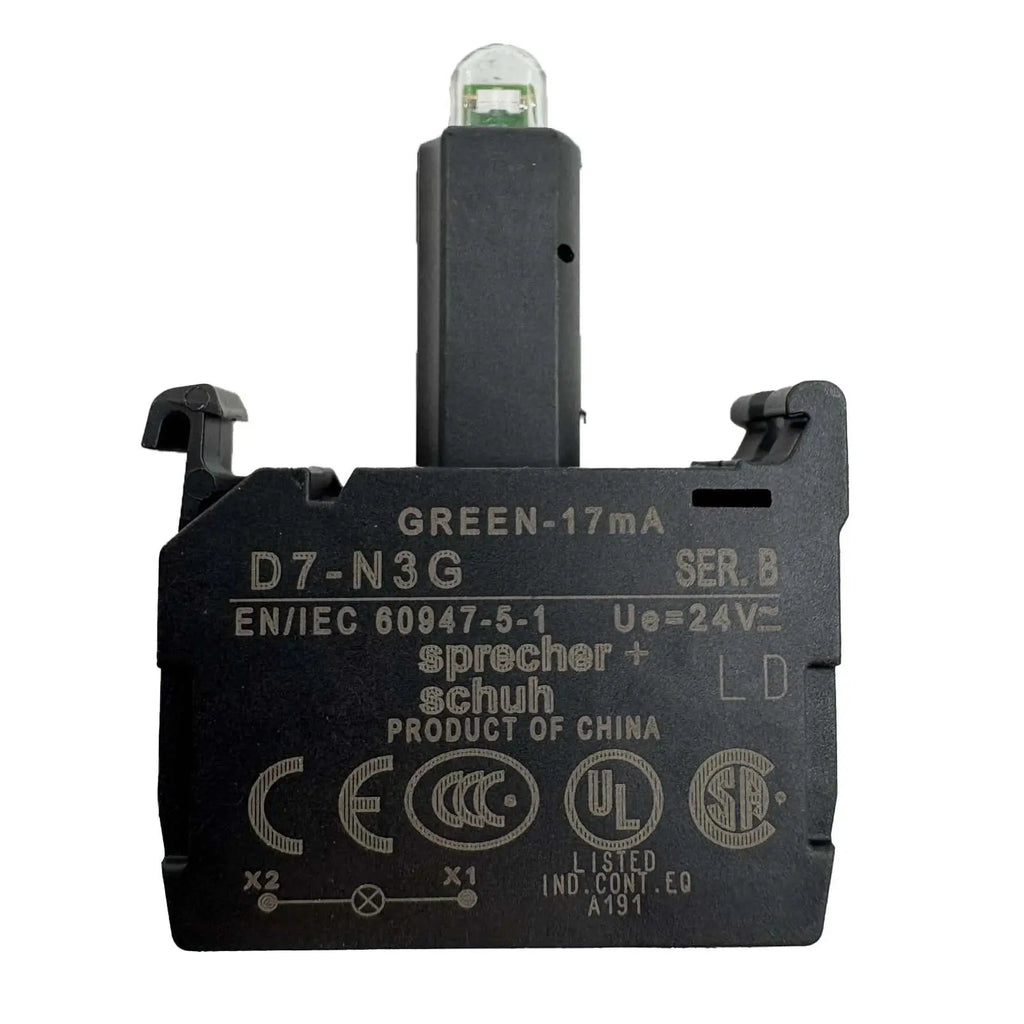

- Lamp Holder: Integrated Lamp Module
- Lamp Type: LED type
- Lamp Power, Max: 1 W max
- Luminous Intensity: 890 mcd
- Material, Bezel: Zinc
- Material, Body/Housing: Chromated Zinc & Stainless Steel material
- Material, Contacts: Silver Nickel (AgNi) material
- Material, Lens: POM/Acetal/Polyacetal/Polyformaldehyde (Polyoxymethylene)
- Material, Terminal: Brass
- Mounting: 22.5mm Mounting
- Electrical Service Life at Un, In: 500000 cycles
- Shock Acceleration (Max.): 100 g
- Shock Duration (Max.): 11 ms
- Operating Temperature, Max: 70 °C max
- Operating Temperature, Min: -25 °C min
- Storage Temperature, Max: 85 °C max
- Storage Temperature, Min: -25 °C min
- Tightening torque, Nominal: 4.4 Nm
- Vibration Acceleration (Max.): 10 m/s²
- Vibration Displacement (Peak to Peak Max.): 1.52 mm
- Vibration Duration (Max.): 180 min
- Vibration Frequency, Operational (Max.): 2000 Hz
- Un, Nominal Operational Voltage, AC: 24 V AC
- Un, Nominal Operational Voltage, DC: 24 V DC
- Ubmax, Service Voltage, AC, Max: 29 V AC
- Ubmin, Service Voltage, AC, Min: 10 V AC
- Ubmax, Service Voltage, DC, Max: 132 V DC
- Ubmin, Service Voltage, DC, Min: 20 V DC
- CE Marked: Yes
- Coupling Plate Included: Yes Y/N
- Illuminated: Yes Y/N
- Lamp Module Included: Yes
- RoHS Approved: Yes
