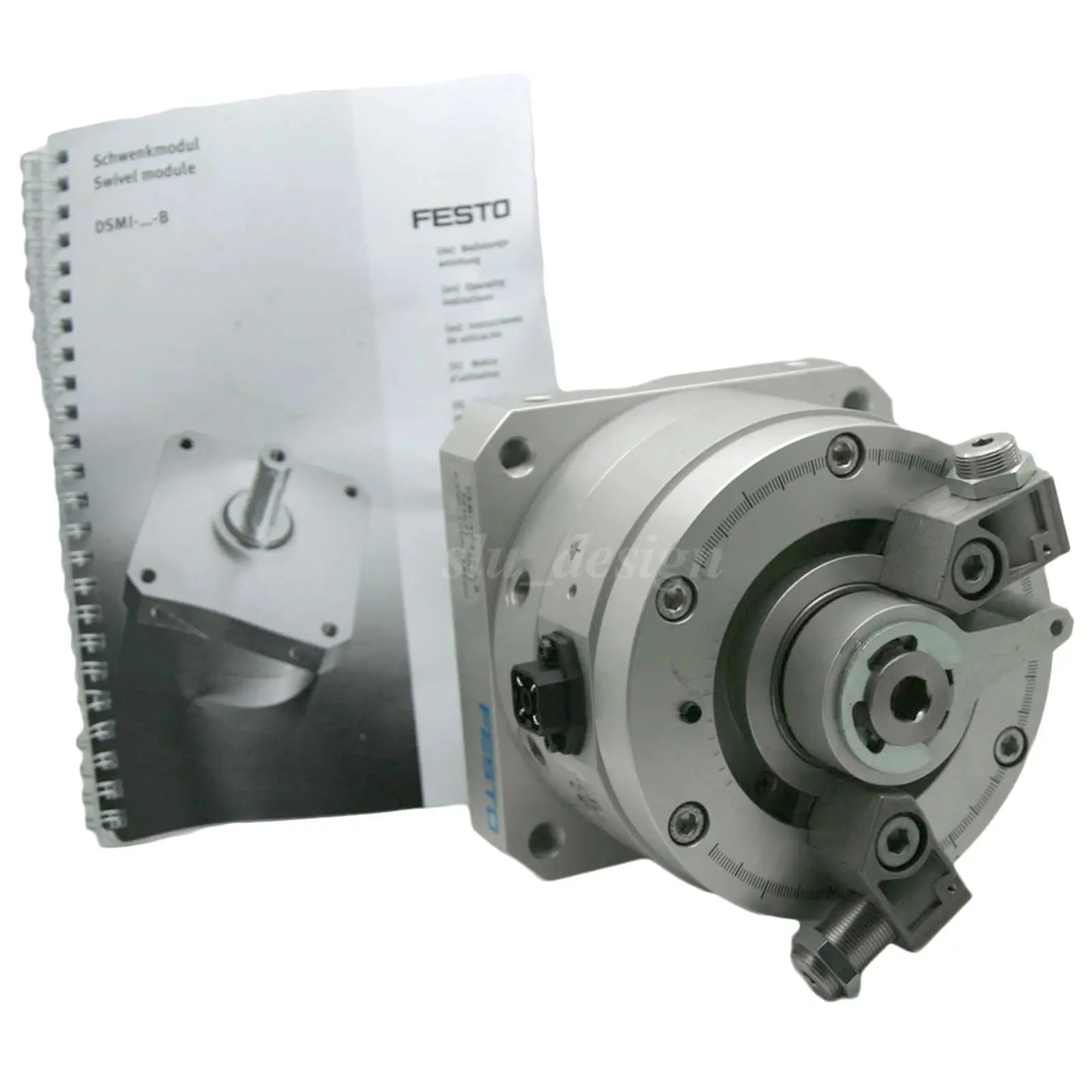

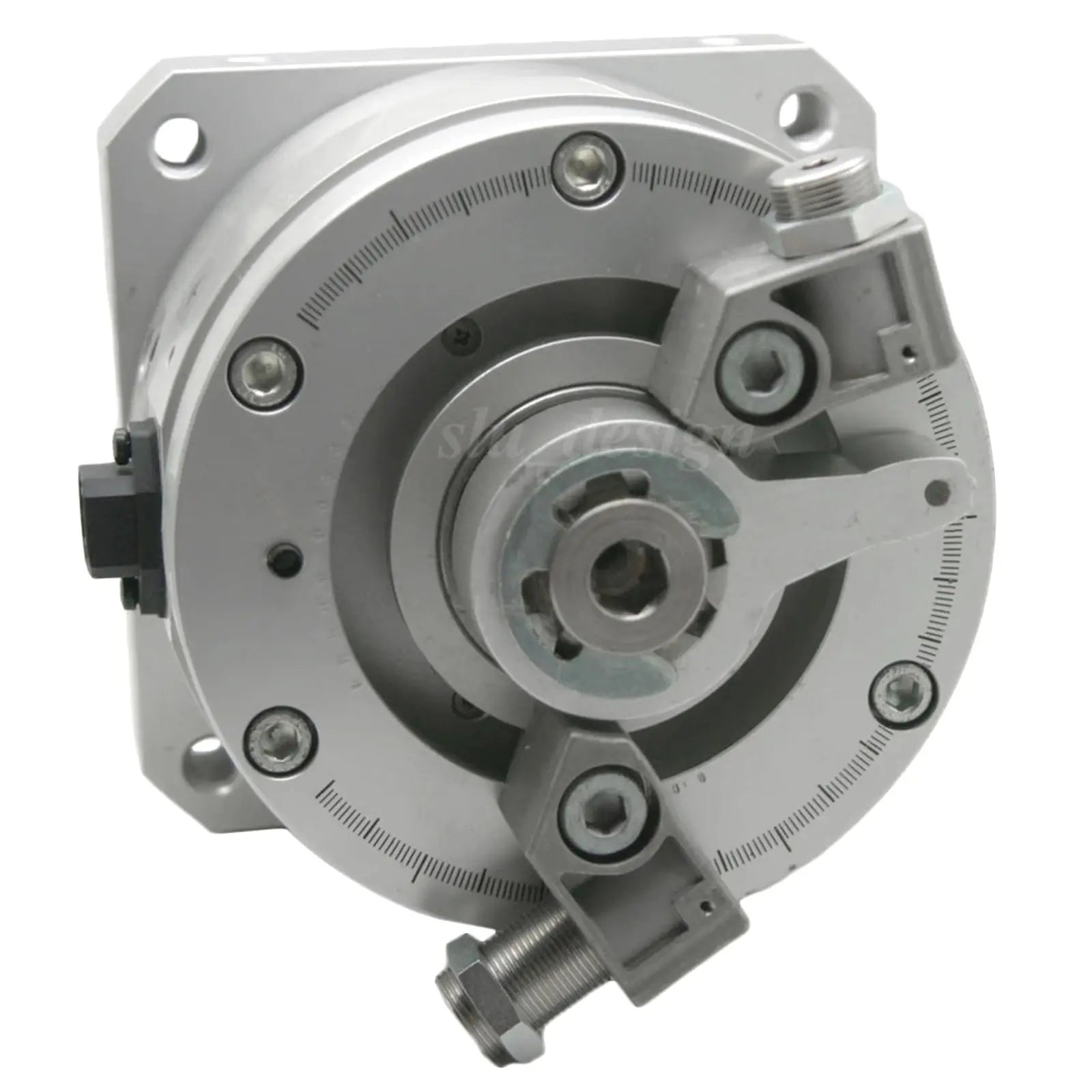

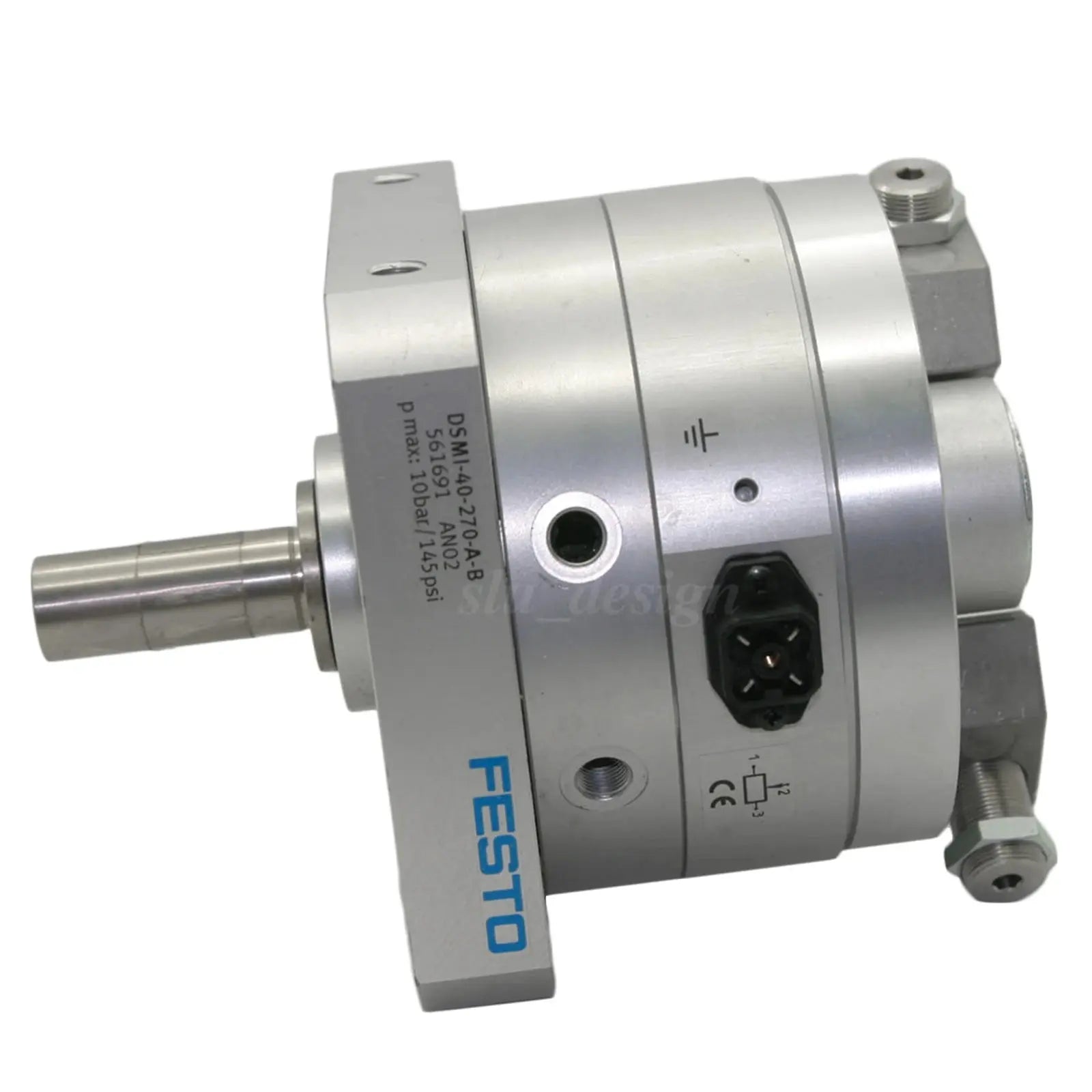

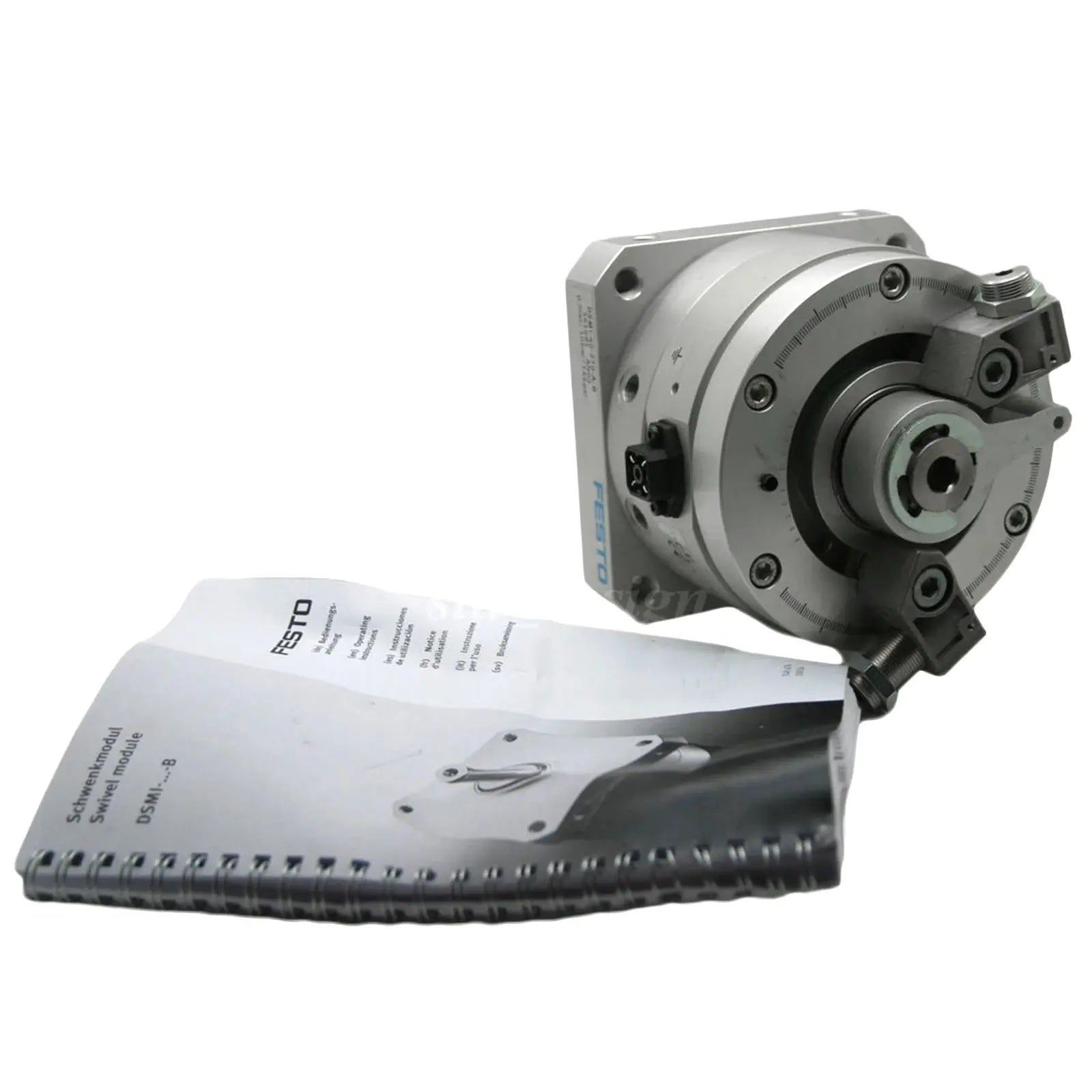

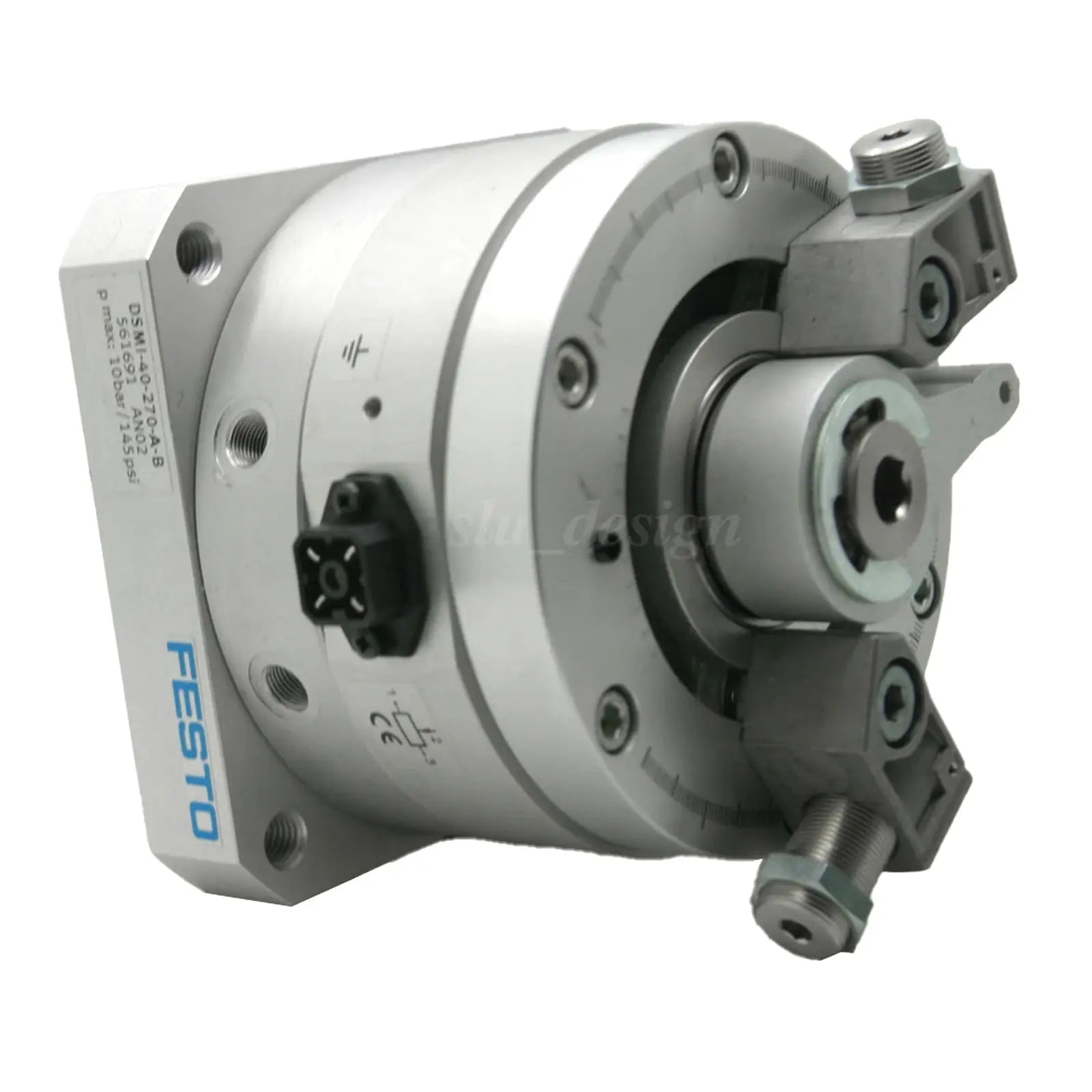

Festo Semi-Rotary Drive 40mm Piston Diameter DSMI-40-270-A-B


Condition and Packaging: NEW - Manufacturer
Price:
Sale Price$1,752.00 USD
Stock:
Only 1 unit left
  • Free Standard Shipping Worldwide NO Minimum Spend
  • Free Express Shipping Worldwide on Orders over $200 USD
  • Every item you choose is carefully handpicked and packed by our dedicated team in-house
  • 30 Days Return policy

Description

Enhance your industrial automation processes with the Festo Semi-Rotary Drive DSMI-40-270-A-B featuring a robust 40mm piston diameter. This precision-engineered drive is designed to meet the demanding requirements of industrial electrical systems. Its advanced design ensures smooth semi-rotary motion, providing precise control and reliability in diverse applications.

Built for durability and efficiency, the Festo Semi-Rotary Drive boasts a 40mm piston diameter, making it a reliable component in industrial settings. The DSMI-40-270-A-B model is crafted to seamlessly integrate into your electrical systems, delivering optimal performance and contributing to the overall efficiency of your operations. Trust in Festo's reputation for excellence in industrial automation as you elevate your machinery's capabilities with this high-quality semi-rotary drive.

Festo Semi-Rotary Drive 40mm Piston Diameter DSMI-40-270-A-B Features:

  • Short type code DSMI
  • Piston diameter 40 mm
  • Swivel angle 272 deg
  • Mounting With internal (female) thread
  • Pneumatic connection G1/8
  • Cushioning P: Flexible cushioning rings/plates at both ends
  • Ambient temp -10 - 60 °C
  • Angle resolution <= 0.1 deg
  • CE mark (see declaration of conformity) to EU directive for EMC
  • Connection resistance 5 kOhm
  • Connection resistance tolerance 20 %
  • Continuous shock resistance per DIN/IEC 68, parts 2 - 82 Tested in accordance with severity level 2
  • Corrosion resistance classification CRC 0
  • Design structure Drive shaft with ball bearing
  • Design structure Rotary vane
  • Electrical connection, displacement encoder 4-pin
  • Impact energy in end positions 0.1 J
  • Independent linearity 0.0025
  • Material information, fixed stop Steel
  • Material information, measuring system housing Anodised
  • Material information, measuring system housing Wrought Aluminium alloy
  • Material information, measuring system interface TPE-U(PU)
  • Material information, plug housing PA-reinforced
  • Material information, rotary vane PET-reinforced
  • Material information, stop lever Anodised
  • Material information, stop lever Wrought Aluminium alloy
  • Material information, woodruff key Steel
  • Materials information for cylinder barrel Wrought Aluminium alloy
  • Materials information for drive shaft Nickel plated
  • Materials information for drive shaft Steel
  • Materials information, housing Anodised
  • Materials information, housing Wrought Aluminium alloy
  • Materials note Free of copper and PTFE
  • Max. axial force 120 N
  • Max. current consumption 4 mA
  • Max. intermittent wiper current 10000 µA
  • Max. mass moment of inertia, horizontal 0.12 kgm2
  • Max. mass moment of inertia, vertical 0.12 kgm2
  • Max. operating voltage, DC 42 V
  • Max. radial force 350 N
  • Max. swivel frequency at 6 bar 2 Hz
  • Max. travel speed 2000 deg/s
  • Measuring method: displacement encoder Analogue
  • Min. mass moment of inertia, horizontal 0.006 kgm2
  • Min. mass moment of inertia, vertical 0.006 kgm2
  • Min. travel speed 50 deg/s
  • Mode of operation double-acting
  • Mounting position, positioning Any
  • Mounting position, soft stop Horizontal
  • Nominal operating voltage DC 10 V
  • Operating medium Filtered, unlubricated compressed air, 5 µm filtration
  • Operating pressure, positioning / soft stop 4 - 8 bar
  • Output signal Analogue
  • Permissible voltage fluctuation < 1 %
  • Position detection For proximity sensor
  • Position detection With integrated angular displacement encoder
  • Product weight 3950 g
  • Protection class IP65
  • Protection class to IEC 60529
  • Recommended wiper current < 1 µA
  • Repetition accuracy, positioning +/- 0.3 deg
  • Repetition accuracy, soft stop end-position < 0.2 deg
  • Repetition accuracy, soft stop intermediate position +/- 2 deg
  • Rotation angle adjustment range 0 - 270 deg
  • Smallest positioning stroke 5° for positioning
  • Smallest positioning stroke 15° with Soft Stop
  • Stroke shortening in the end-positions 5 °
  • torque at 6 bar 20 Nm
  • Typical long stroke positioning time, horizontal 0.30/0.55 s
  • Typical short stroke positioning time, horizontal 0.25/0.25 s
  • Vibration resistance per DIN/IEC 68, parts 2 - 6 Tested in accordance with severity level 2
