Description

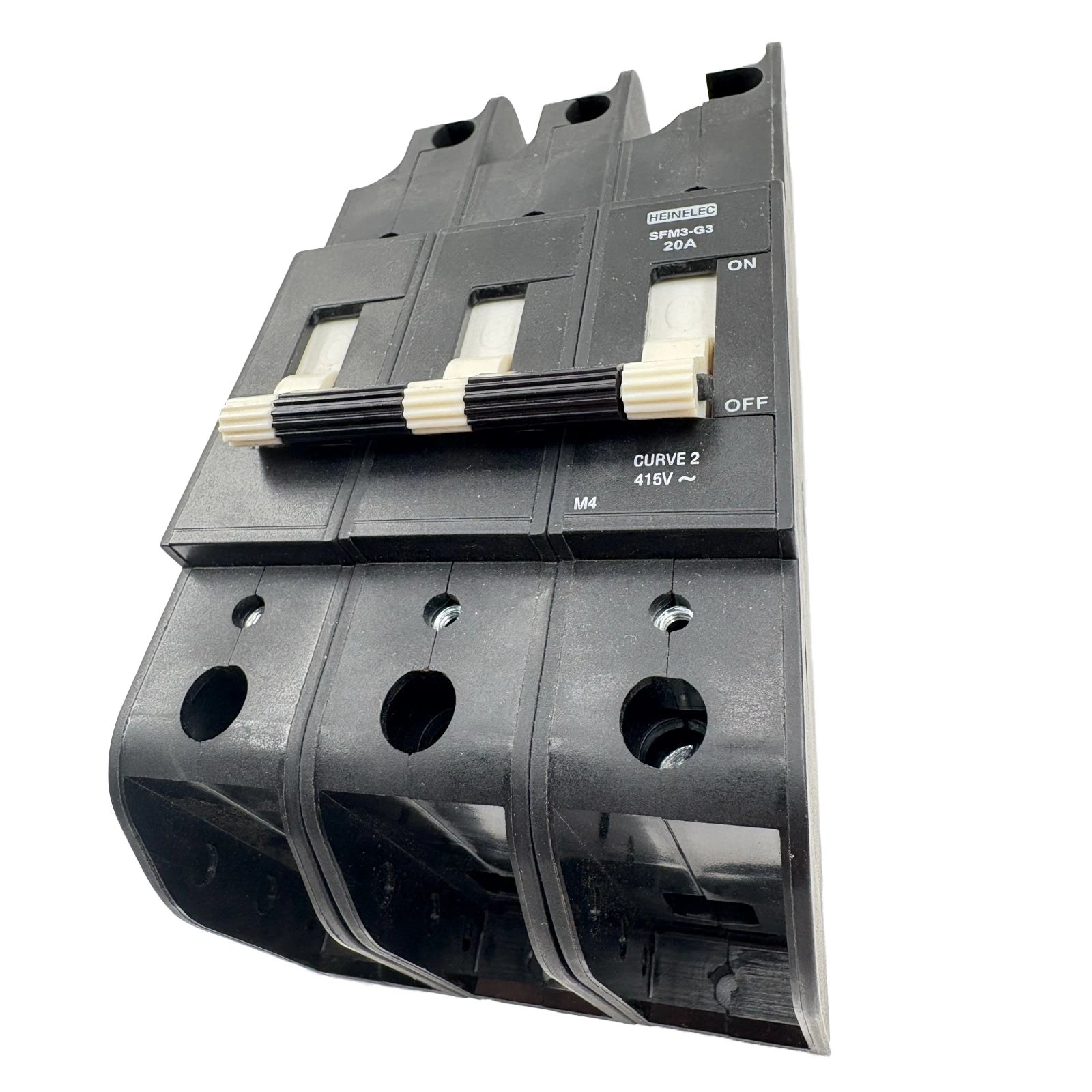

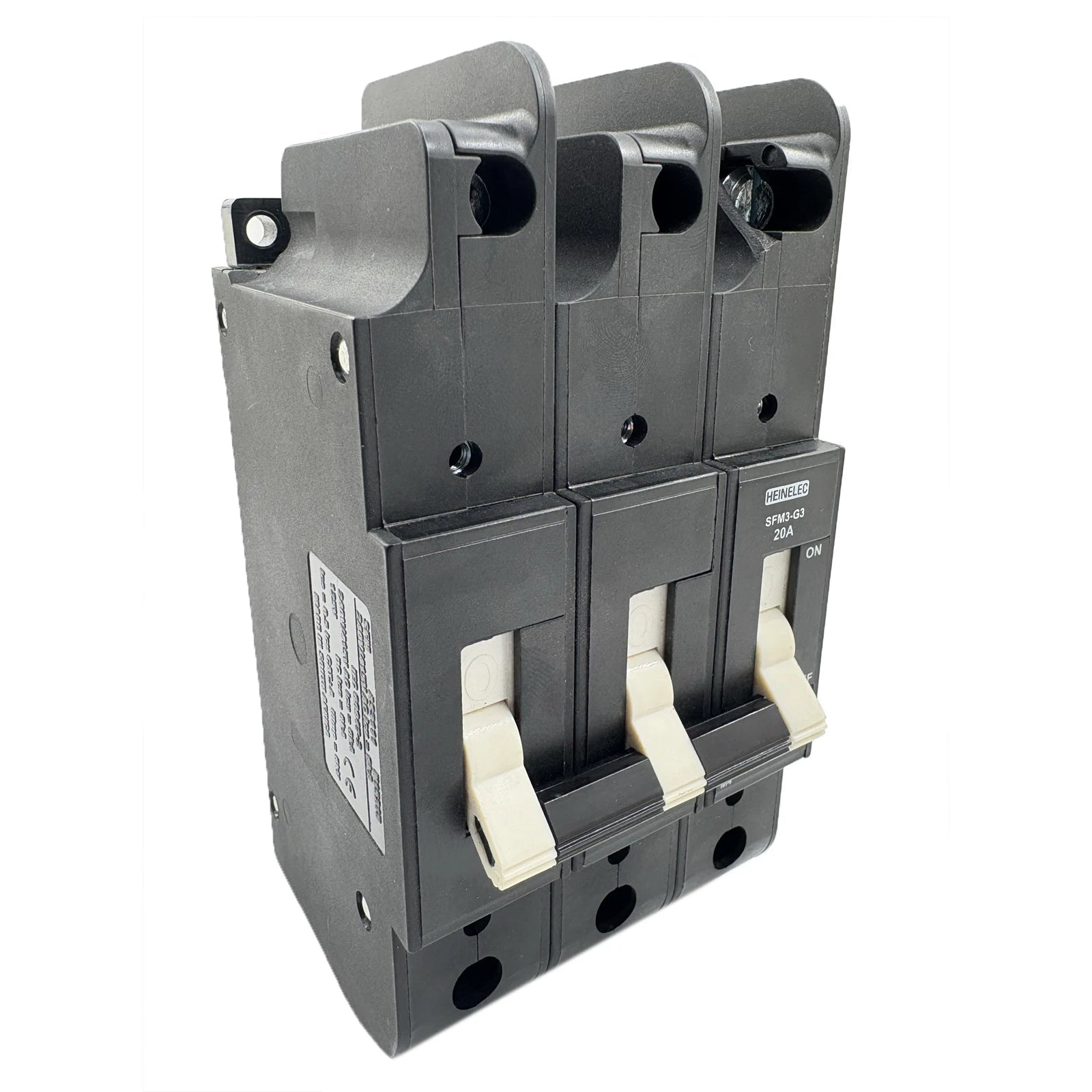

The Heinelec Circuit Breaker 3P 415V 20A SFM3-G3 is a high-performance electrical protection device designed for industrial applications. With a robust three-pole configuration and a voltage rating of 415V, this circuit breaker ensures reliable and efficient power distribution. The 20A current rating makes it suitable for a range of industrial settings, providing effective overcurrent protection. The SFM3-G3 model is engineered with precision to meet the stringent demands of modern industrial electrical systems, offering a dependable solution for safeguarding equipment and preventing electrical faults.
Designed for durability and reliability, the Heinelec Circuit Breaker is a vital component in industrial electrical setups. Its three-pole design enhances stability and ensures efficient circuit interruption in case of overcurrent events. With a 415V rating, this circuit breaker is well-suited for industrial environments where robust electrical protection is paramount. The 20A capacity allows for versatile applications, making the SFM3-G3 an essential choice for professionals seeking a trustworthy solution in industrial electrical installations.
Heinelec Circuit Breaker 3 Pole 415V 20A SFM3-G3 Features:
- AS 3111 approved (Approval No. N15215)
- Available in triple-pole units
- Precision circuit breaker utilizing hydraulic magnetic technology results in accurate temperature independent tripping

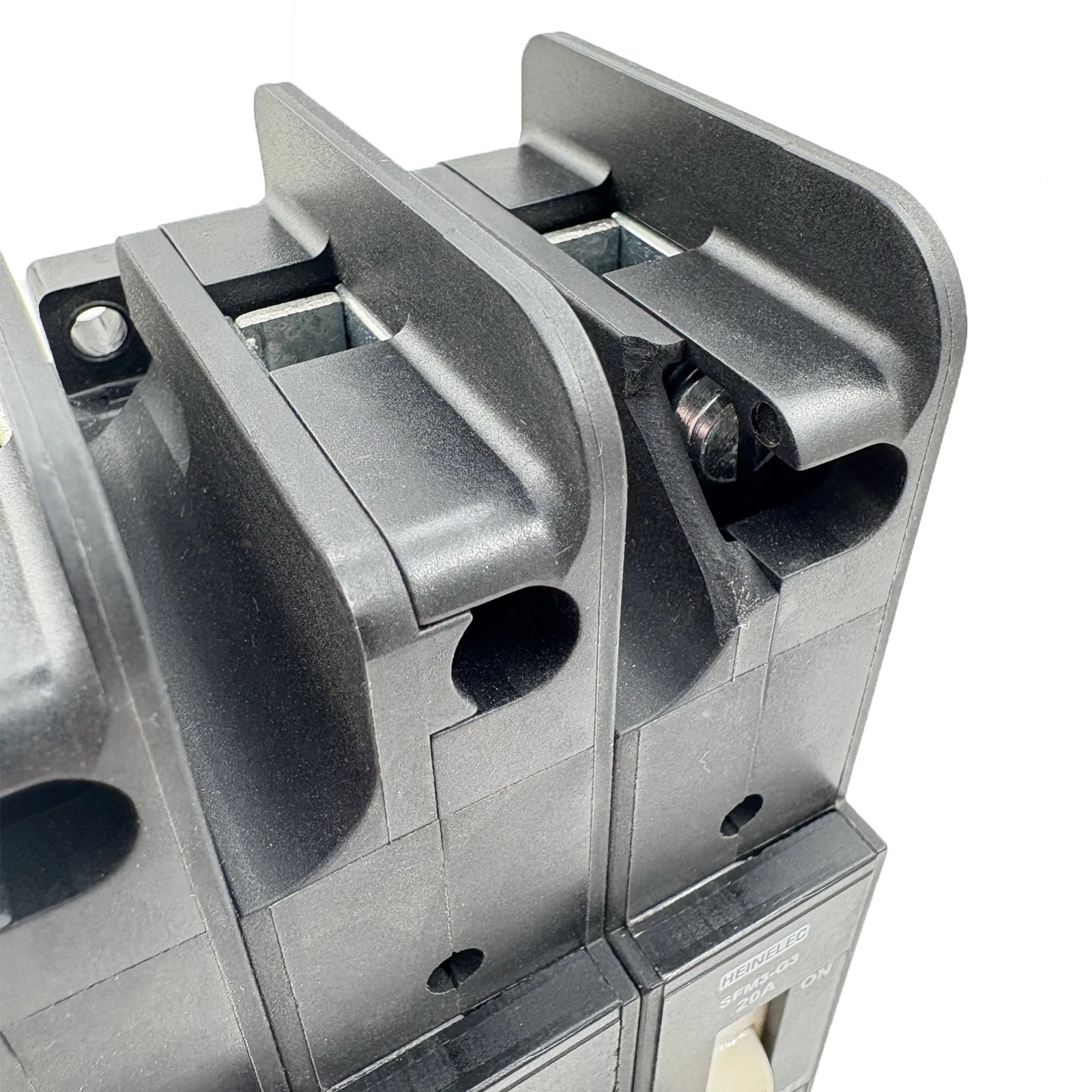

- IP2X “finger proof” line and load box (tunnel) type terminals can accommodate copper cables up to 50mm²
- Clear positive identification for ON/OFF (I/O) provided
- Shunt trip provides for remote tripping
- Auxiliary switch provides for remote indication
- Number of poles: 3 pole.
- Standards: AS 3111
- Approval Number: N15215
- Standard Ampere Rating: 20A
- Rated Voltage (Un): 3 pole 415V
- Frequency: 50/60Hz for AC forms
- Rated Breaking Capacity (kA): 6kA at 415/240V AC
- Rated Impulse Withstand Voltage (Uimp): 6kV
- Time Current Characteristics: Curve 2 (Medium)
- Operating temperature: -10 to +60ºC
- Storage temperature: -20 to +60ºC
- ° of Protection: IP2X terminals
- Rated Service Life (AC): 6000 electrical operations 4000 mechanical operations
- Humidity: to Mil-Std-202G Method 103B test condition A
- Shock: Single pole conforms to 50G shock at 6ms, when tested to Mil-Std-202G Method 213B test condition 1
- Vibration: Single pole conforms to Mil-Std-202G
- Method 204D test condition A
- It also conforms to IEC577, which is applicable to rolling stock Mounting: Surface, cliptray or front screws (M4)
- Terminal connections: Front connected box (tunnel) type main terminal suitable for up to 50mm² copper conductors (4Nm torque)
- Front connected screw type terminal suitable for up to 50mm² lugs (4Nm torque). Back/Rear connected stud type terminal fitted with M6 studs (2.5Nm torque)
- Handle colour: White – curve 2/3 circuit breaker AC
