Description
The ILME Connector Insert with the part number CKF04 MKAV20 CK03CX stands as a versatile and reliable component within the realm of industrial connectors. With a designated current rating of 4A, it is engineered to handle electrical currents with efficiency and precision. The specific configuration, denoted by CKF04 MKAV20 CK03CX, likely encompasses details regarding the type of contacts, housing, and coding, providing a comprehensive understanding of its design and compatibility within electrical systems.
As a product of ILME, a distinguished manufacturer in the field of industrial connectors, this insert reflects the brand's commitment to delivering high-quality and durable solutions for various industrial applications. Connector inserts are essential components in establishing secure and efficient electrical connections, and ILME's emphasis on quality ensures that this connector insert meets the stringent demands of industrial environments. The specified part numbers serve as a precise identifier, aiding in the accurate selection and deployment of ILME Connector Inserts to meet specific connectivity requirements in diverse industrial settings.
ILME Connector Insert 4A CKF04 with Body MKAV20 and Mounting CK03CX Features:

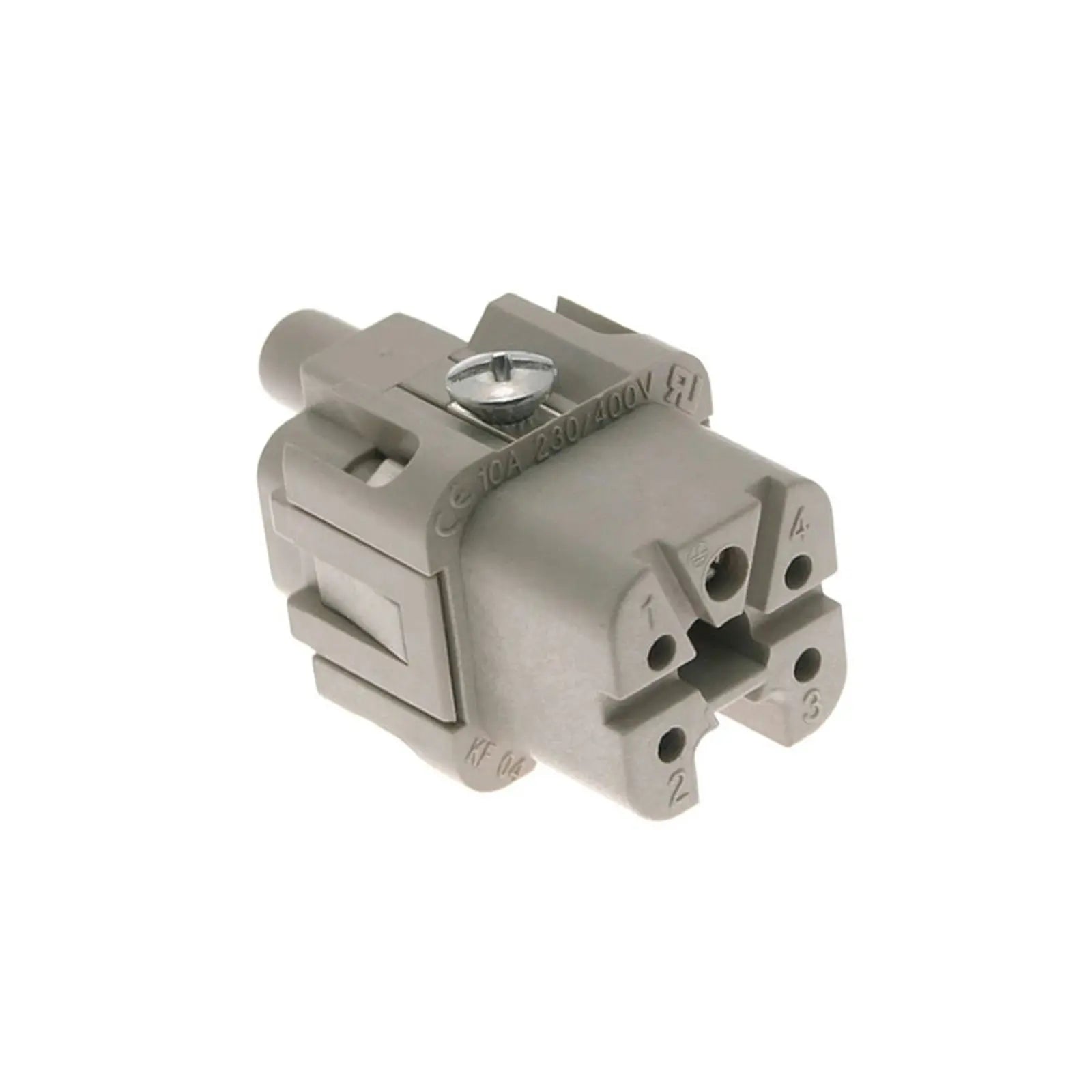

- CKF04 Connector
- Type of connector: HDC
- Kind of connector: Female
- Connector series: CK/MK
- Number of pins: 5
- Type of pin configuration: 4+PE
- Case: Size 21.21
- Current rating: 10A
- Rated voltage: 250V
- Mechanical durability: 500 cycles
- Contact plating: Silver Plated
- Test voltage: 4kV
- Operating temperature: -40...125°C
- Insert mounting: 21x21mm
- Mechanical mounting: for cable
- Electrical mounting: Screw terminal
- Wire cross-section: 0.75...2.5mm²

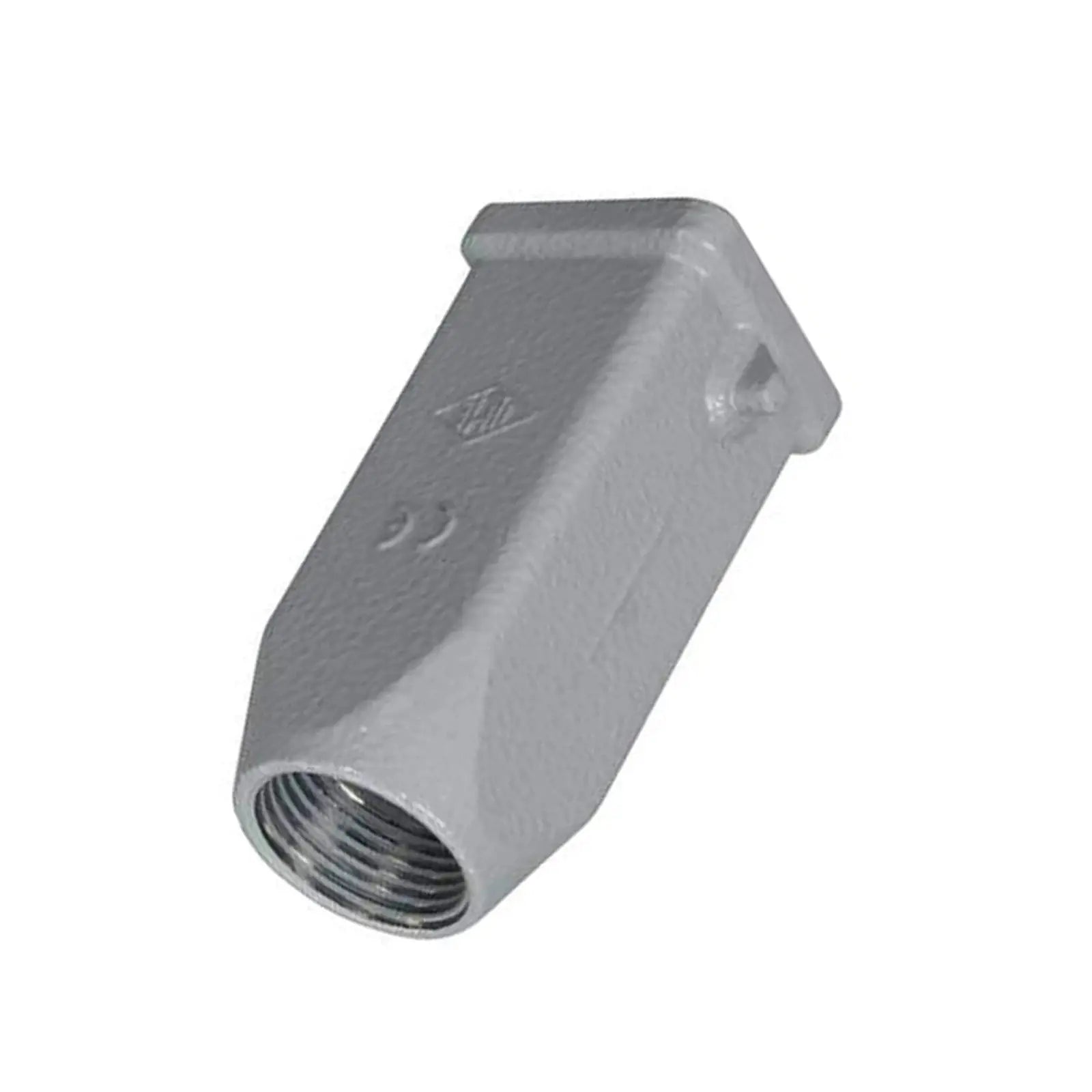

- MKAV20 Enclosure
- Type of enclosure: for HDC connectors
- Connector series: CKA/MKA
- Case: size 21.21
- Enclosure material: Aluminium alloy
- Locking system: for latch
- IP rating: IP44, IP66/IP67 with screw seal
- Gland thread: M20
- Insert mounting: 21x21mm
- Mechanical mounting: for cable
- Spatial orientation: Straight
- Color: Gray

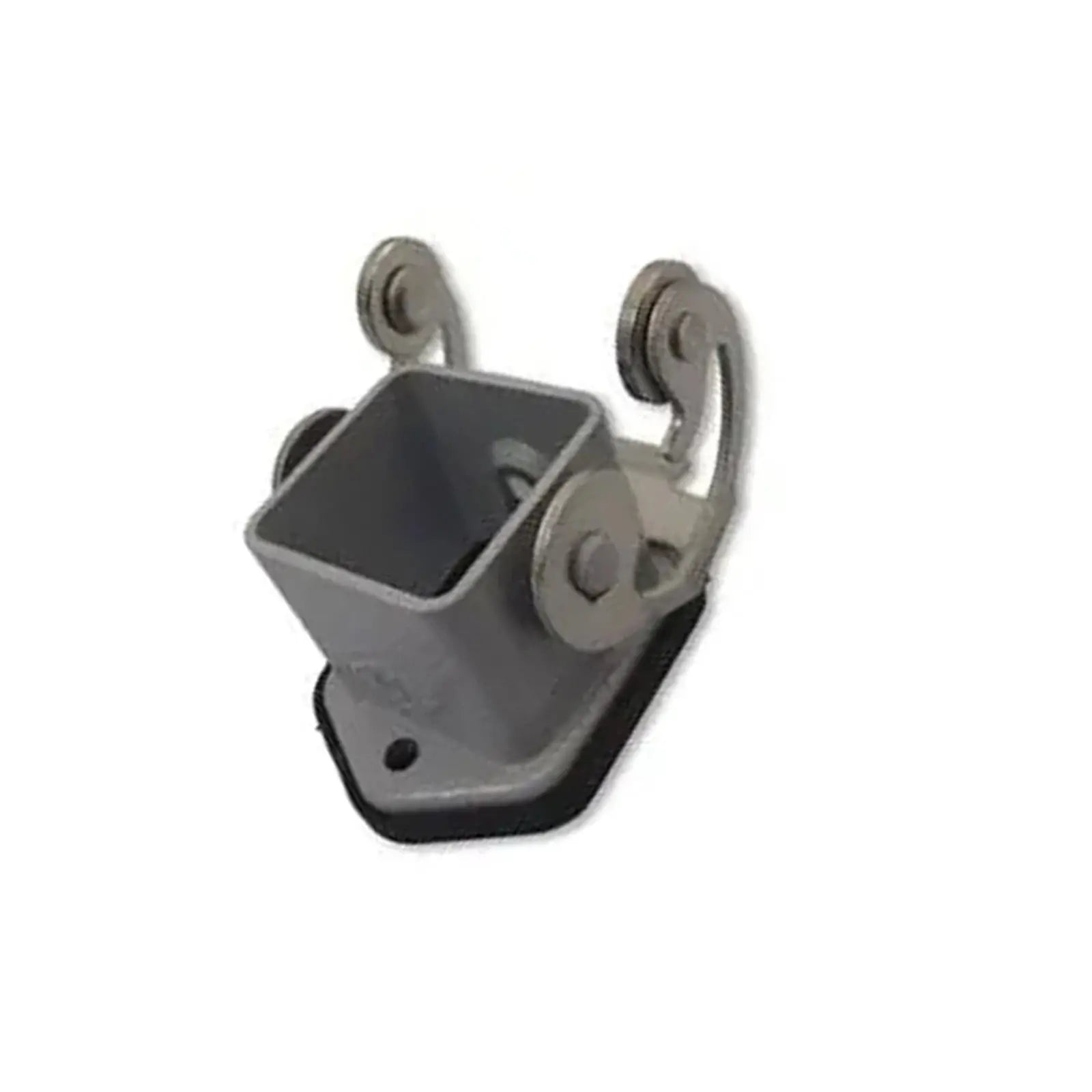

- CK03CX Cover with Lever for Female Insert
