Description

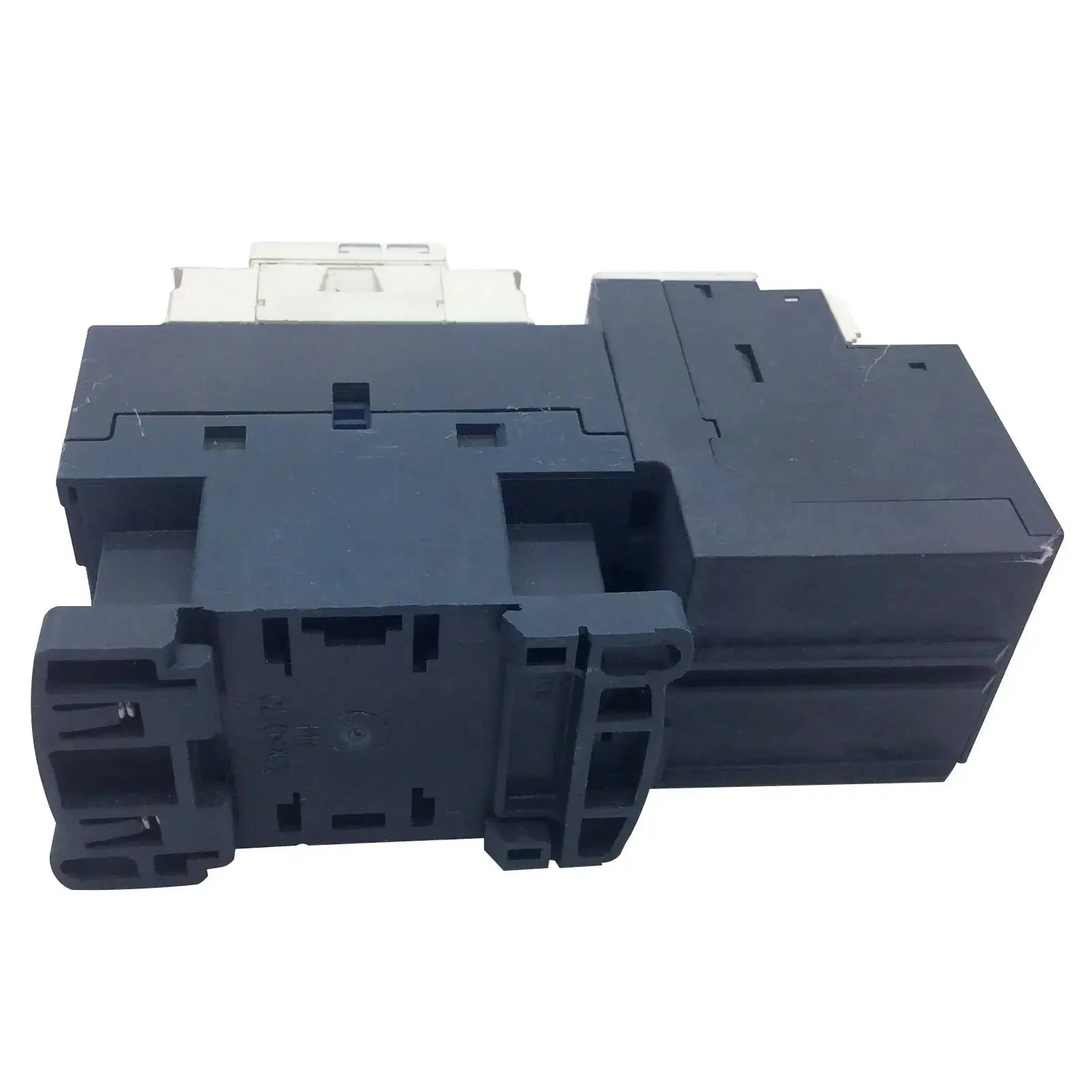

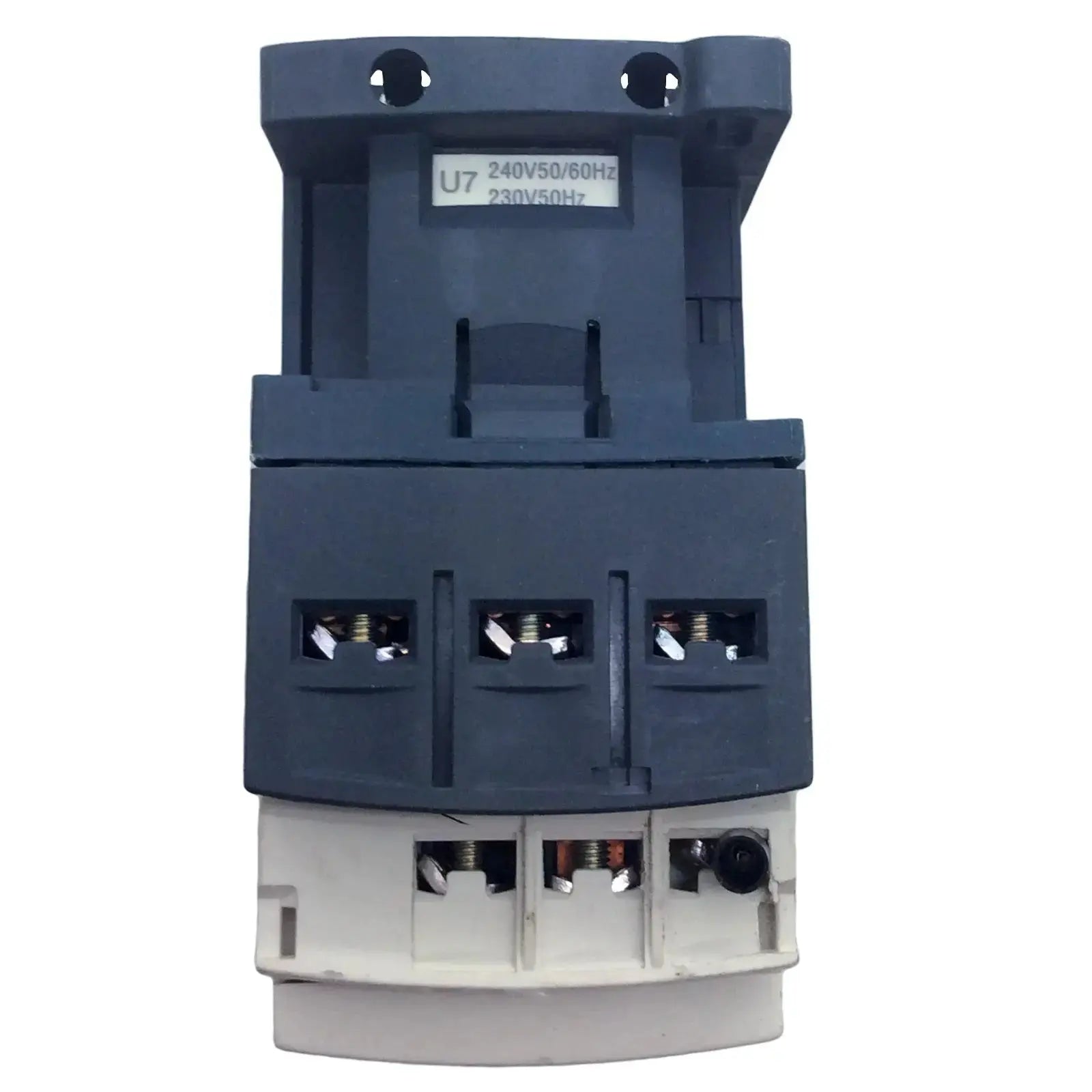

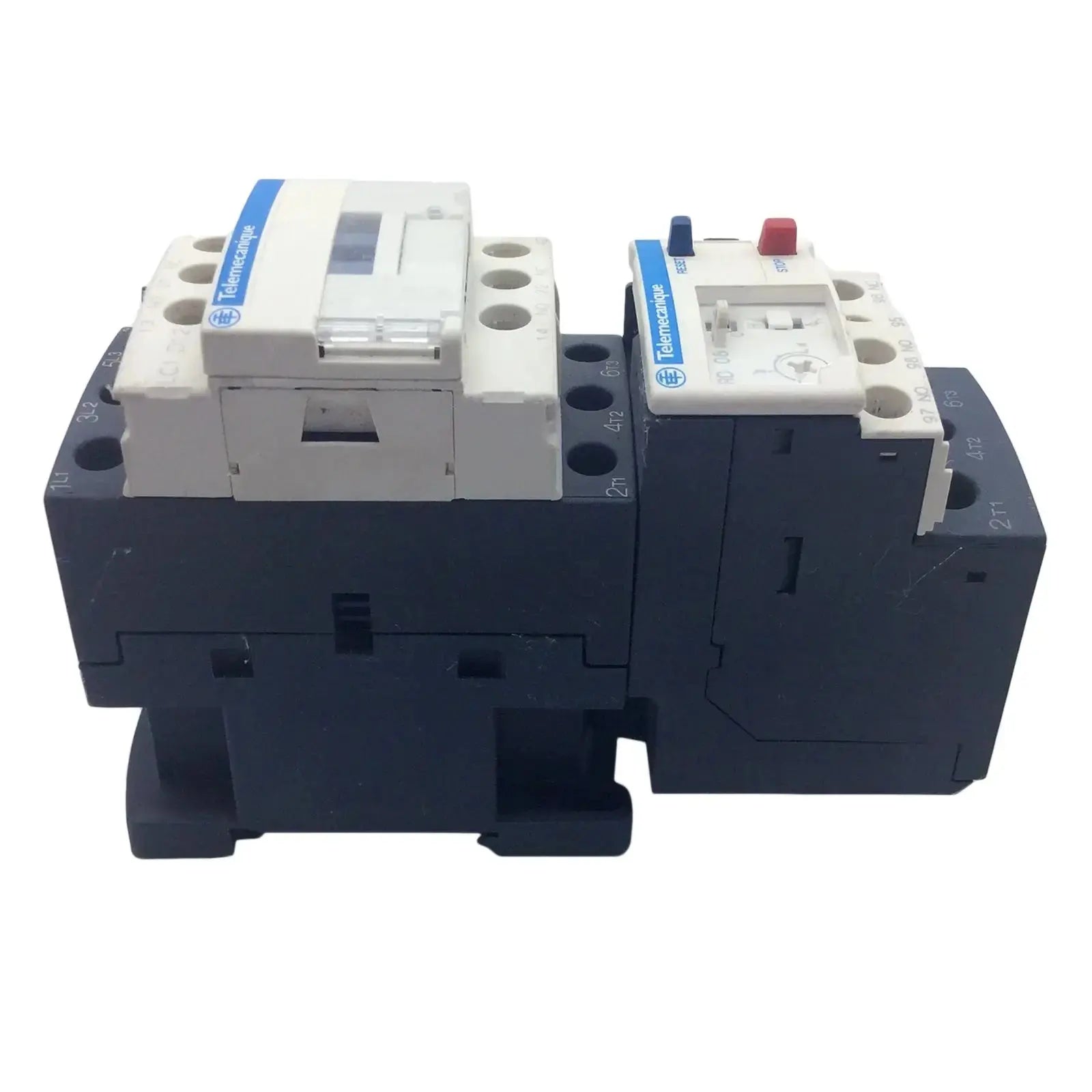

The Schneider Electric / Telemecanique Pole Contactor LC1D12U7, paired with the Overload Relay LRD08, forms a reliable and efficient electrical control system. The LC1D12U7 is a single-pole contactor designed for industrial applications, offering control for electric motors and other electrical loads. It ensures smooth and safe operation by providing a reliable connection or disconnection of the electrical circuit.
The Overload Relay LRD08 is specifically designed to work in conjunction with the contactor, providing protection against overloads in the connected electrical system. It monitors the current passing through the circuit and responds by tripping the circuit if it detects an excessive load. This protective feature prevents damage to the motor or connected equipment, enhancing the overall safety and reliability of the system.
Together, the LC1D12U7 Pole Contactor and LRD08 Overload Relay offer a comprehensive solution for motor control and protection, making them suitable for a range of industrial applications where precise and secure electrical operations are essential.
Schneider Electric / Telemecanique Pole Contactor LC1D12U7 with Overload Relay LRD08 Features:
LC1D12U7:
- Contact Voltage Rating: 690VAC
- Coil Voltage: 230VAC
- Contact Current Rating: 12A
- Power Rating: 5.5kW
- Number of Poles: 3
- Series: LC1D
- Range: TeSys D
- Normal State Configuration: 3NO
- Number of Auxiliary Contacts: 2
- Terminal Type: Screw
- Length: 77mm
- Width: 45mm
- Depth: 84mm
- Better World Product: Yes
- Better World Verification: Green Premium
- Minimum Operating Temperature: -5°C
- Maximum Operating Temperature: +60°C
LRD08:
- FLC Motor Rating: 2.5 → 4A
- Contact Current Rating: 4A
- Range: TeSys
- Pole Configuration: 3P
- Series: LRD
- Mounting Style: Direct Contactor
- Normal State Configuration: NO/NC
- Terminal Type: Screw
- Reset Method: Automatic, Manual
- Width:45mm
- Length: 123mm
- Depth: 66mm
- Number of Auxiliary Contacts: 2
- Maximum Operating Temperature: +60°C
- Minimum Operating Temperature: -20°C
- Better World Product: Yes
- Operating Temperature Range: -20 → +60 °C
- Contact Voltage Rating: 690VAC
- Better World Verification: Green Premium
