Description

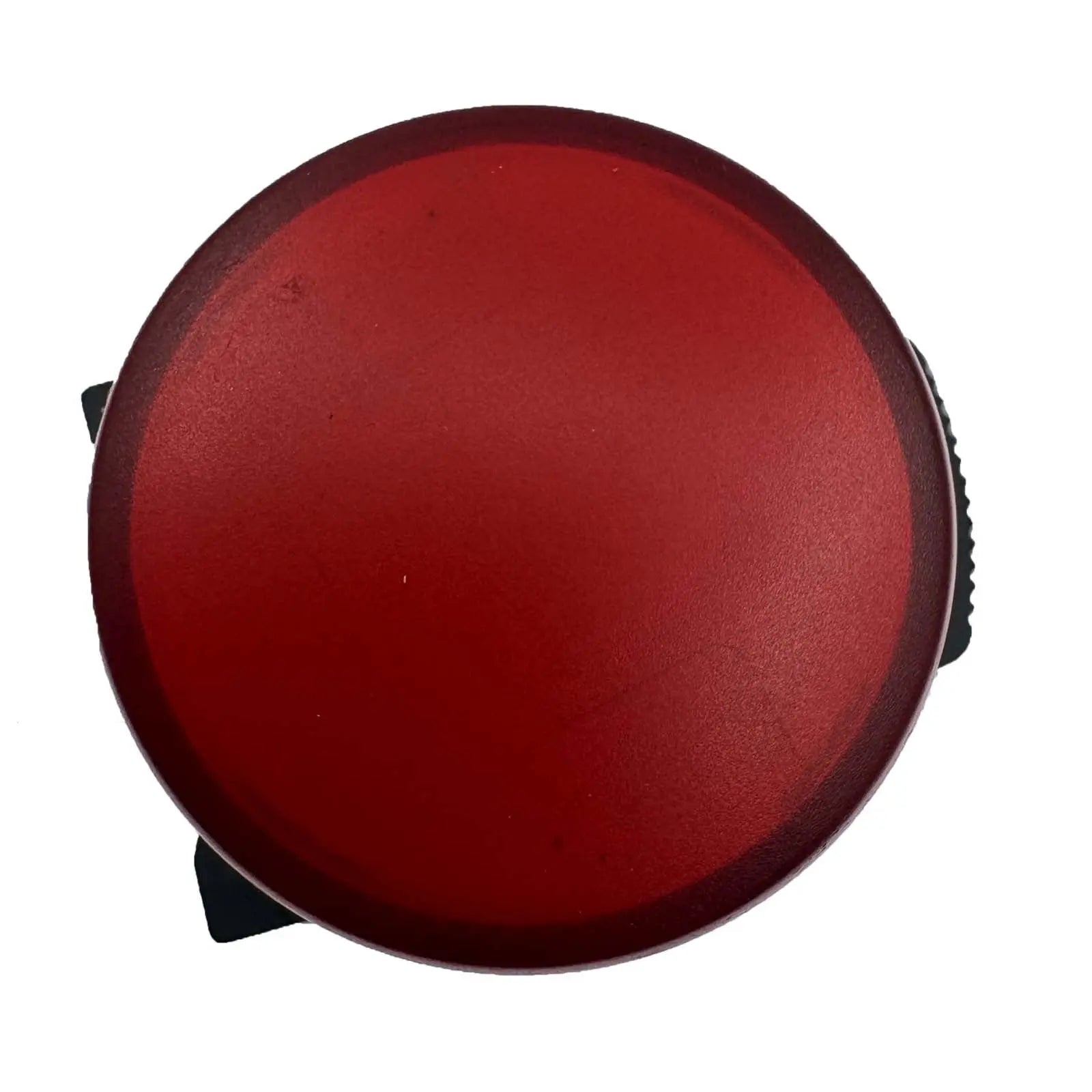

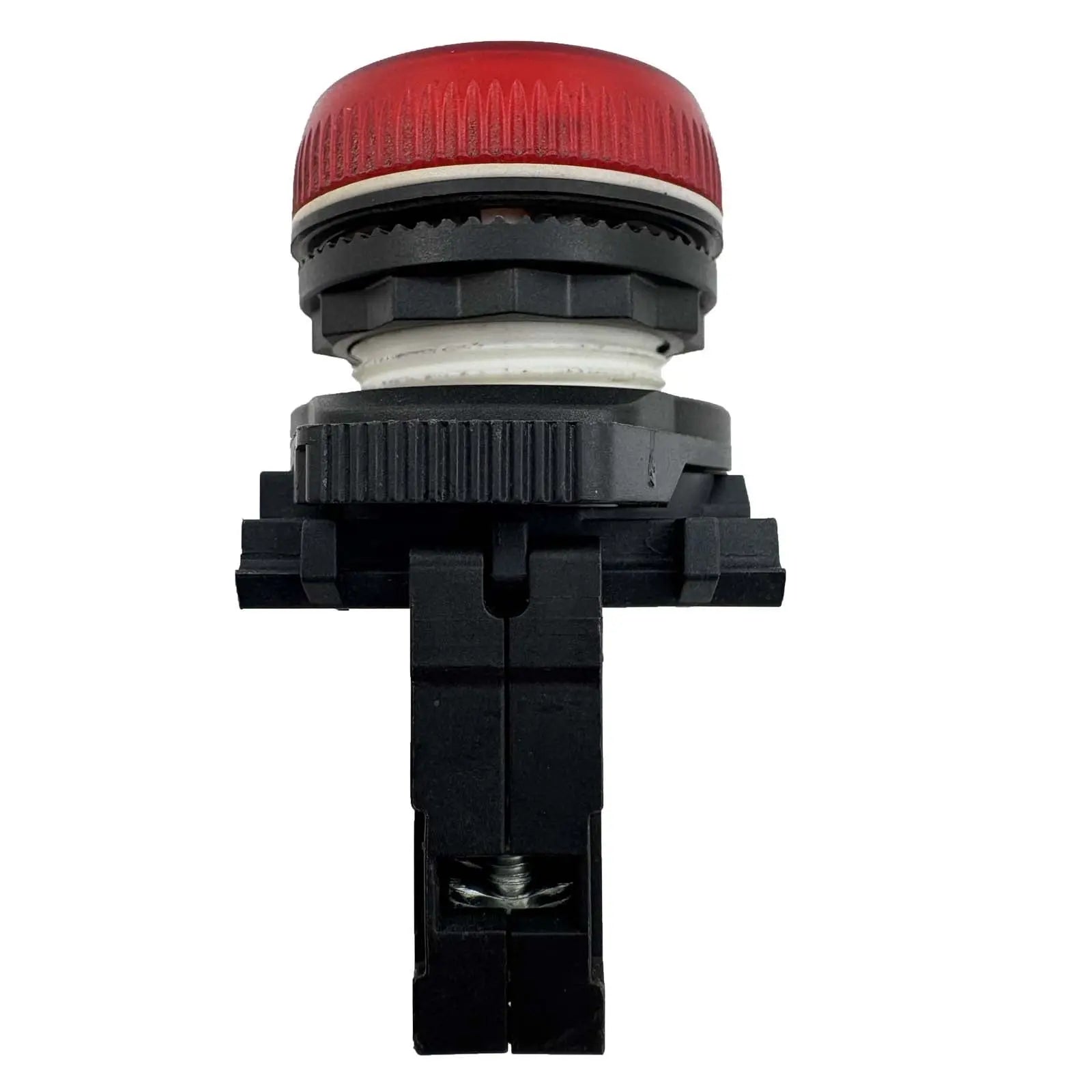

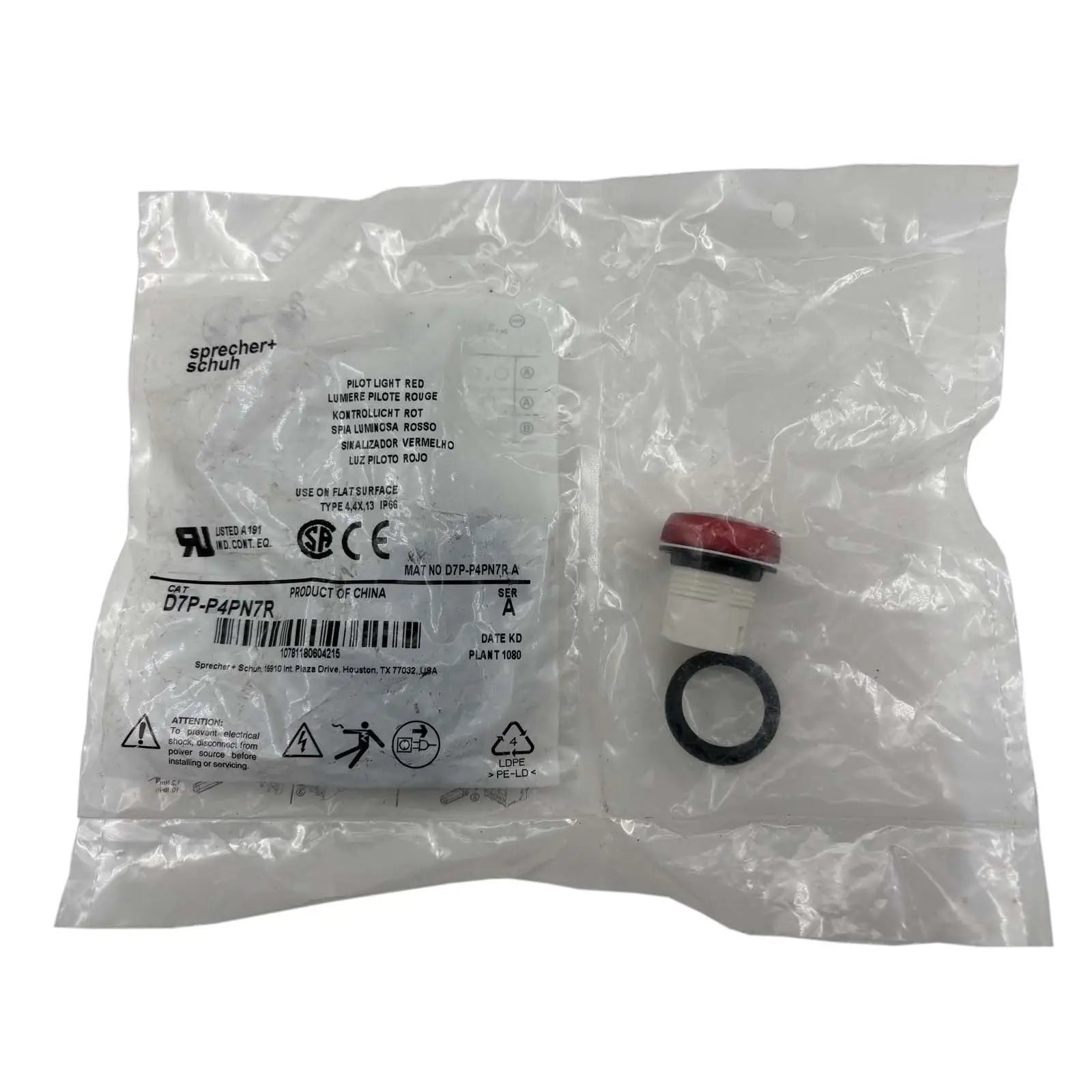

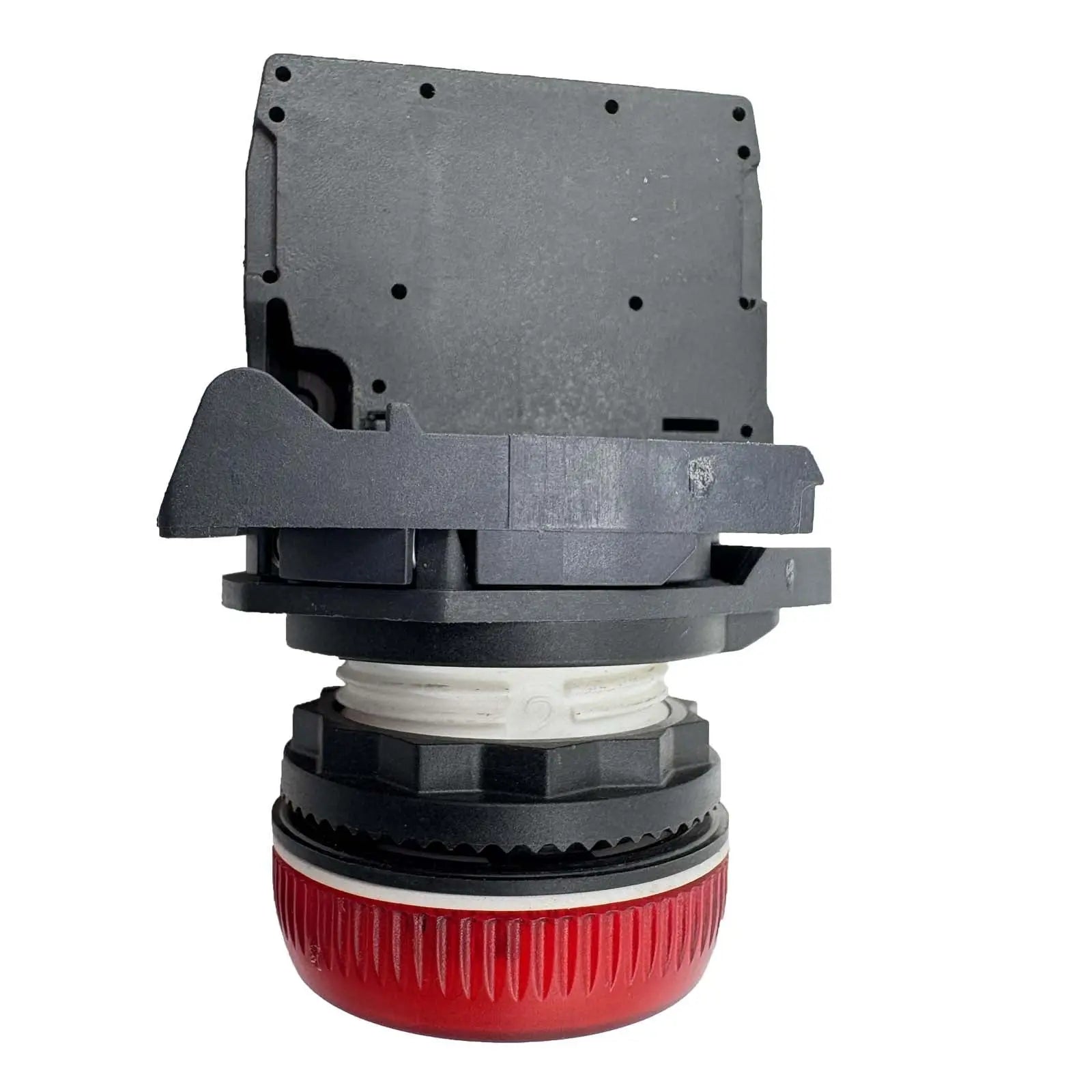

Illuminate your control panels with the Sprecher + Schuh Pilot Light 240V AC Red D7P-P4PN7R, a reliable and efficient indicator light designed for a wide range of industrial applications. This pilot light is an essential component in any electrical control system, providing clear and immediate visual feedback regarding the operational status of machinery, circuits, and processes.
The D7P-P4PN7R model features a vibrant red LED, known for its high visibility and long-lasting brightness, ensuring that it can be easily seen even in well-lit conditions. The light operates at a standard voltage of 240V AC, making it suitable for use in various industrial settings without requiring additional transformers or power sources.
Sprecher + Schuh Pilot Light 240V AC Red D7P-P4PN7R Features:
• Standards Compliance: NEMA ICS-5, UL 508, EN 60947-1, EN 60947-5-1, EN 60947-5-5, EN 418
• Certifications: UL, UR, CSA, CCC, CE
• Shipping Approvals: RINA (Registro Italiano Navale), ABS (American Bureau of Shipping), Lloyd's Register of Shipping
• Component Type Pushbutton and Pilot Lights: Pilot Light
• Colour, Lamp: Red (629nm) colour
• Colour, Lens: Red colour
• Compatible Product Series: D7 22.5mm Control & Indication compatible
• Terminal Type: Screw Terminal(s)
• In, Rated Current: 0.022 A
• Diameter, lens: 29.6 mm
• Diameter, Mounting Hole(s): 22.5 mm
• Dielectric Strength: 2.5kV for 1 minute V AC
• Rated Frequency: 50/60 Hz
• Relative Humidity, Max: 95 %RH
• Relative Humidity, Min: 50 %RH
• IP Rating: IP65, IP66, IP69K
• Lamp Holder: Integrated Lamp Module
• Lamp Type: LED type
• Luminous Intensity: 780 mcd
• Material, Bezel: Glass-Filled Nylon/PA6/PA66 (Polyamide 6)
• Material, Body/Housing: Polycarbonate & PBT Blend material
• Material, Contacts: Silver Nickel (AgNi) material
• Material, Lens: POM/Acetal/Polyacetal/Polyformaldehyde (Polyoxymethylene)
• Material, Terminal: Brass
• Mounting: 22.5mm Mounting
• Electrical Service Life at Un, In: 500000 cycles
• Shock Acceleration (Max.): 100 g
• Shock Duration (Max.): 11 ms
• Operating Temperature, Max: 70 °C max
• Operating Temperature, Min: -25 °C min
• Storage Temperature, Max: 85 °C max
• Storage Temperature, Min: -25 °C min
• Tightening Torque, Nominal: 1.7 Nm
• Vibration Acceleration (Max.): 10 m/s²
• Vibration Displacement (Peak to Peak Max.): 1.52 mm
• Vibration Duration (Max.): 180 min
• Vibration Frequency, Operational (Max.): 2000 Hz
• Un, Nominal Operational Voltage, AC: 240 V AC
• Ubmax, Service Voltage, AC, Max: 264 V AC
• Ubmin, Service Voltage, AC, Min: 180 V AC
• CE Marked: Yes
• Coupling Plate Included: Yes Y/N
• Lamp Module Included: Yes
• RoHS Approved: Yes
