Description

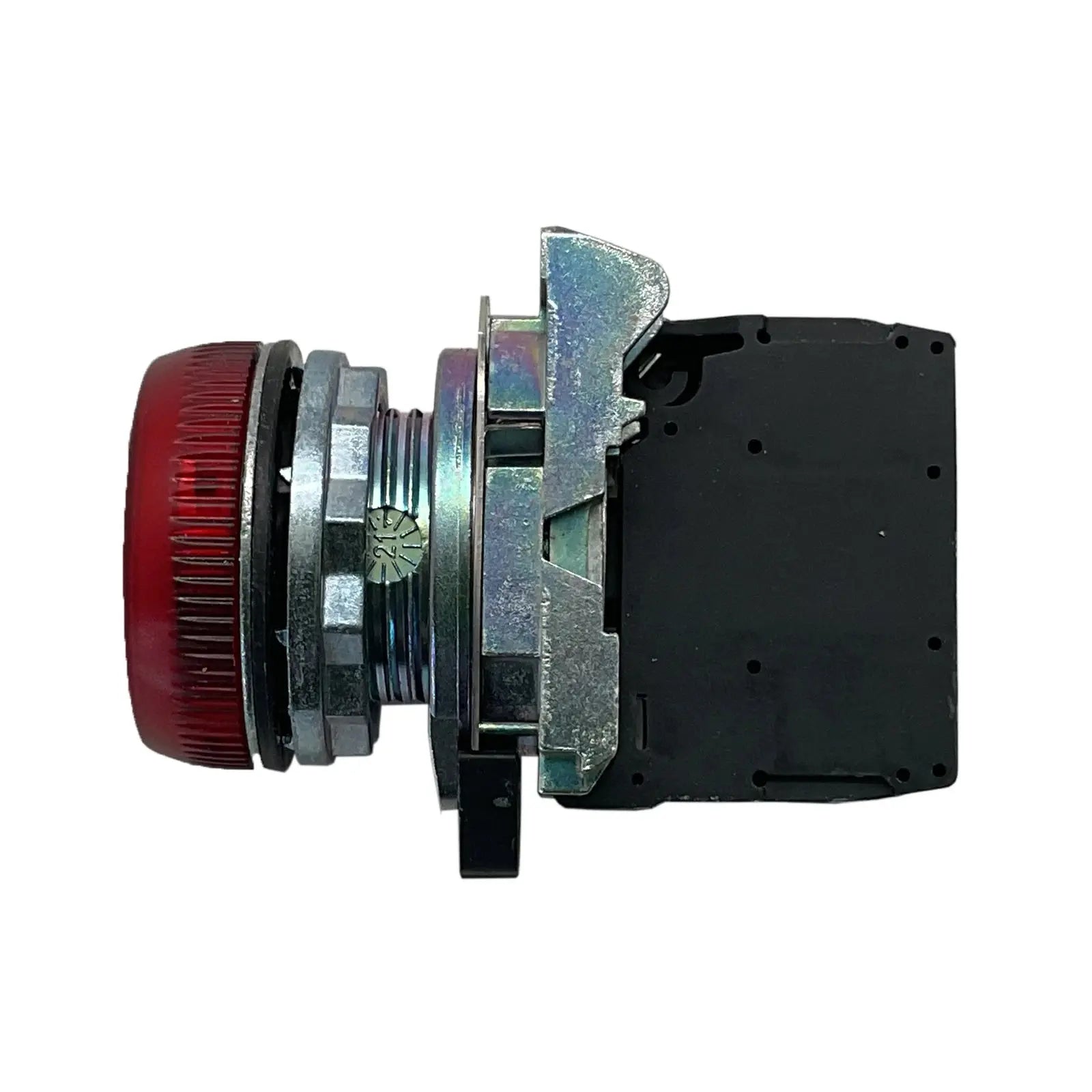

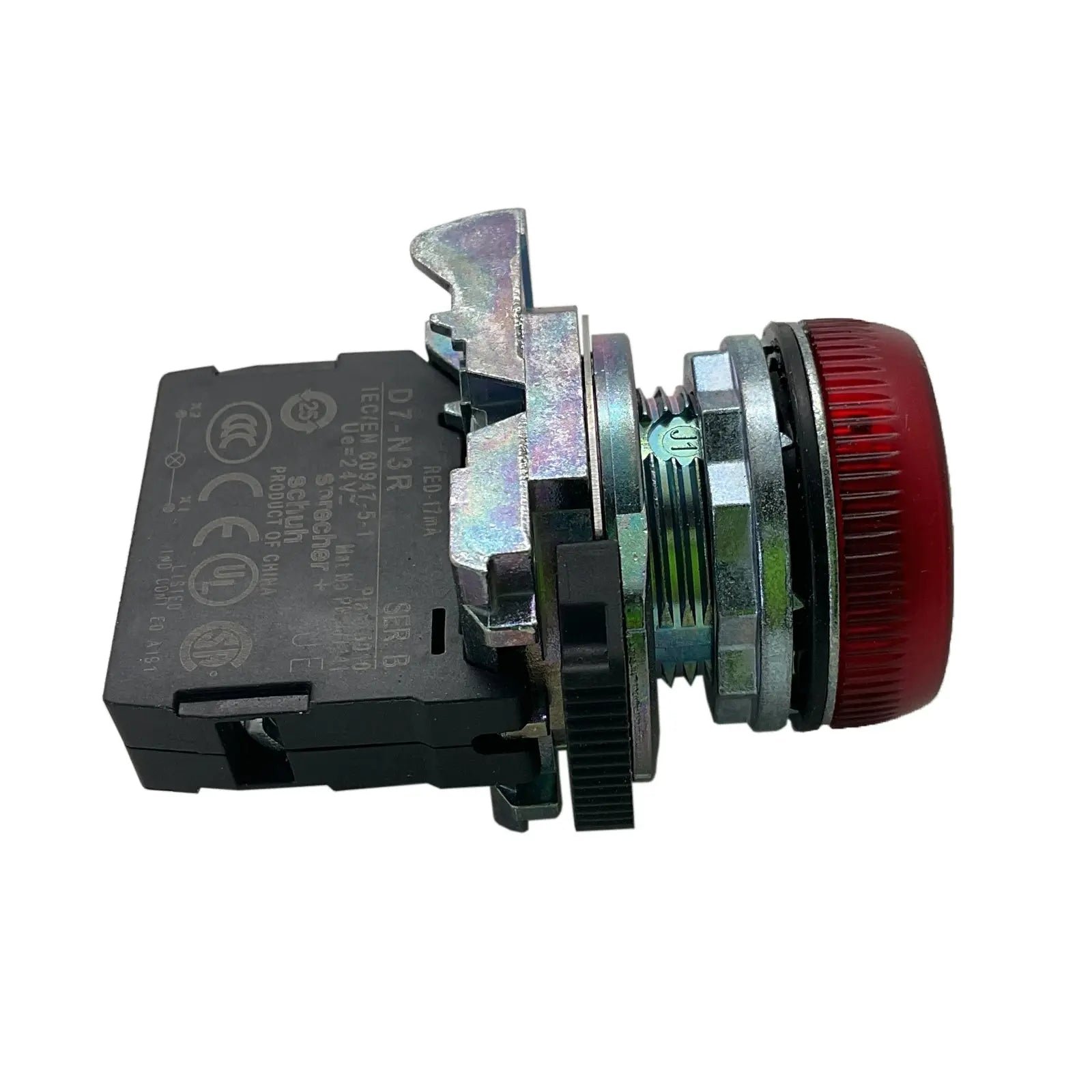

The Sprecher + Schuh Pilot Light, model D7M-P4MN3R, is a high-quality 22.5mm metal indicator designed for industrial applications where clear visual signaling is crucial. Featuring a vibrant red LED and operating on a voltage of 24VAC/DC, this pilot light serves as an effective means of indicating critical conditions or alarms within an electrical circuit. The 22.5mm standard size makes it compatible with panel-mounted controls, and its durable metal construction ensures reliability and longevity, even in demanding industrial environments.
This red LED pilot light is strategically employed in control panels and machinery to provide operators and maintenance personnel with instant and unmistakable visual feedback about the status of specific functions. The red color is conventionally associated with warning or alert conditions, making it an ideal choice for signaling critical states that require immediate attention. With its robust design and eye-catching illumination, the Sprecher + Schuh D7M-P4MN3R enhances safety and operational efficiency in industrial settings where clear and immediate visual indicators are essential for maintaining a secure and well-monitored electrical infrastructure.
Sprecher + Schuh Pilot Light 22.5mm Metal LED 24VAC/DC Red D7M-P4MN3R Features:
- D7 pilot devices offer maximum flexibility and a wide choice for all 225mm operator applications with all type (e-stops, selector switches, pushbuttons, pilot lights and more), colour and contact configurations.
- Aesthetically appealing and modularly designed to make assembly and interchangeability easy
- Operators exhibit low profile and stylish appearance while maintaining the rugged performance necessary for demanding environments.
- D7P is a plastic operator with a captive black plastic front bezel.
- D7M has a die-cast zinc housing and mounting ring for rugged durability.
- Finished with corrosion resistant chrome plating, the D7M also a captive shiny metal bezel for a polished appearance.
- Standards Compliance: NEMA ICS-5 UL 508 EN 60947-1 EN 60947-5-1 EN 60947-5-5 EN 418
- Certifications: UL UR CSA CCC CE
- Component Type Push Button and Pilot Lights: Pilot Light
- Color, Lamp: Red (629nm)
- Color, Lens: Red
- Compatible Product Series: D7 225mm Control & Indication
- Terminal Type: Screw Terminal(s)
- In, Rated Current: 0031
- Diameter, Lens: 296
- Diameter, Mounting Hole(s): 225
- Dielectric Strength: 25kV for 1 minute
- Rated Frequency: 50/60 Hz
- Relative Humidity, Max: 95
- Relative Humidity, Min: 50
- IP Rating: IP66 IP65
- Lamp Holder: Integrated Lamp Module
- Lamp Type: LED
- Lamp Power, Max: 1
- Luminous Intensity: 890
- Material, Bezel: Zinc
- Material, Body/Housing: Chromated Zinc & Stainless Steel
- Material, contacts: Silver Nickel (AgNi)
- Material, Lens: POM/Acetal/Polyacetal/Polyformaldehyde (Polyoxymethylene)
- Material, Terminal: Brass
- Mounting: 225mm Mounting
- Electrical Service Life at Un, In: 500000
- Shock Acceleration (max): 100
- Shock Duration (max): 11
- Operating Temperature, Max: 70
- Operating Temperature, Min: -25
- Storage Temperature, Max: 85
- Storage Temperature, Min: -25
- Tightening torque, Nominal: 44
- Vibration Acceleration (Max): 10
- Vibration Displacement (Peak to Peak Max): 152
- Vibration Duration (Max): 180
- Vibration Frequency, Operational (Max): 2000
- Un, Nominal Operational Voltage, AC: 24
- Un, Nominal Operational Voltage, DC: 24
- Ubmax, Service Voltage, AC, Max: 29
- Ubmin, Service Voltage, AC, Min: 10
- Ubmax, Service Voltage, DC, Max: 132
- Ubmin, Service Voltage, DC, Min: 20
- CE Marked: Yes
- Coupling Plate Included: Yes
- Illuminated: Yes
- Lamp Module Included: Yes
- RoHS Approved: Yes
