Description

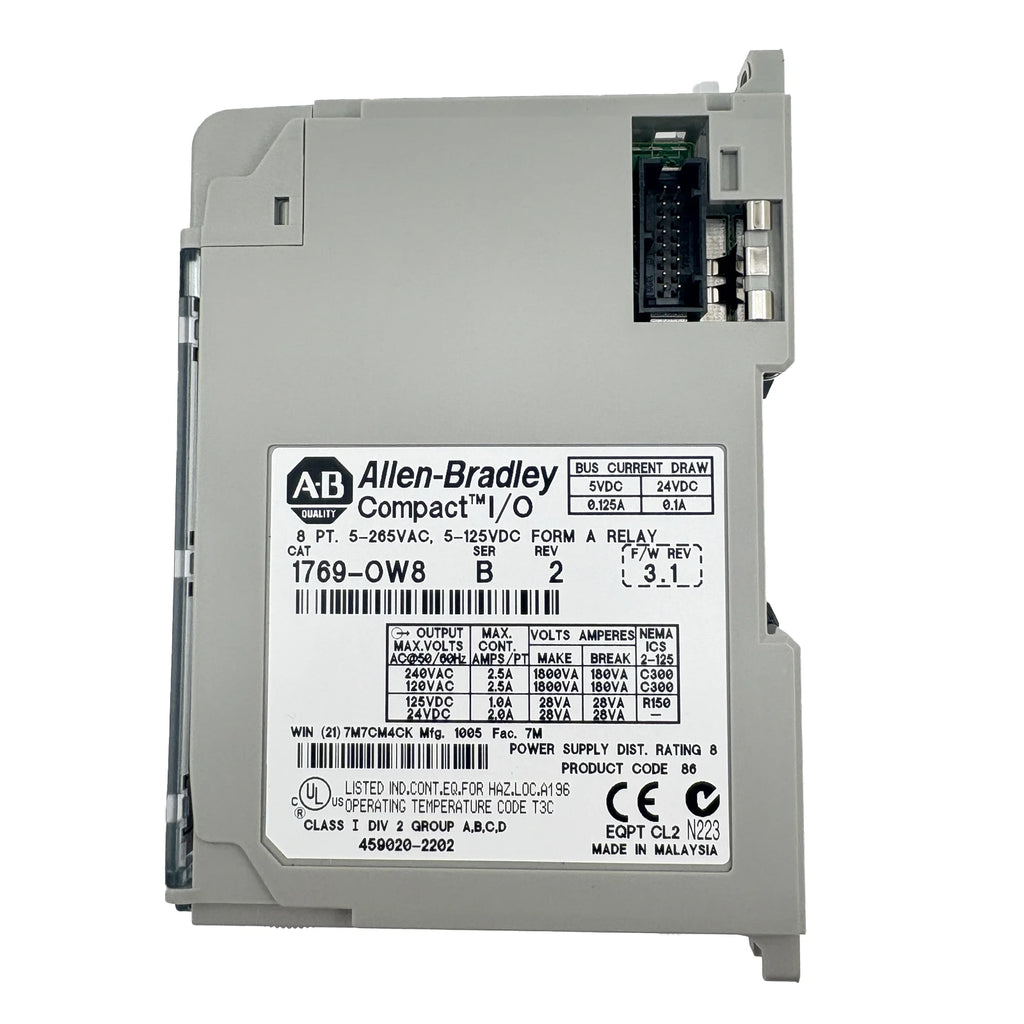

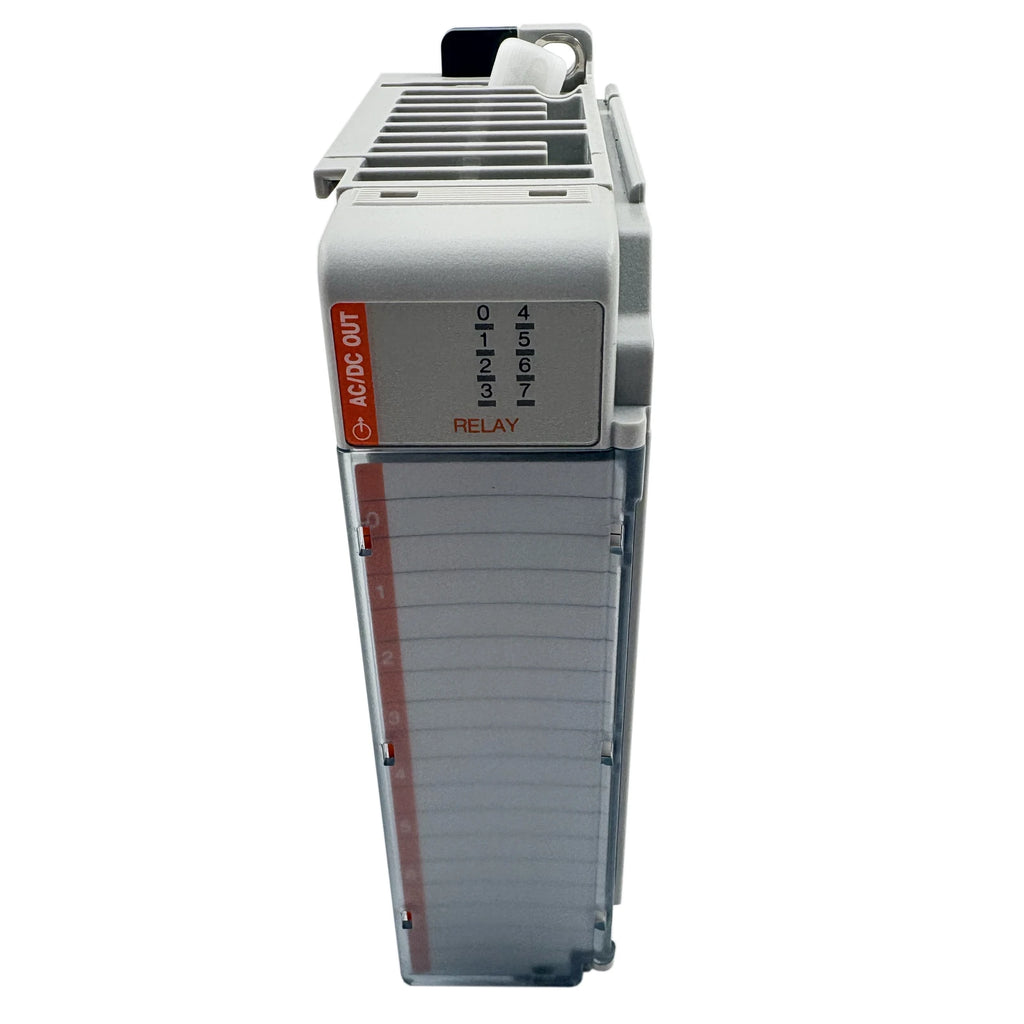

The Allen-Bradley SLC 500 Compact I/O Modules 1769-OW8 stand as a cornerstone in industrial electrical systems, offering seamless integration and reliable control. Designed for precision and efficiency, these compact I/O modules boast cutting-edge technology, ensuring seamless communication and coordination within the industrial network. With a focus on robustness and durability, the 1769-OW8 modules provide a versatile solution for output control, catering to the diverse needs of industrial automation. Whether it's managing electrical signals or optimizing output efficiency, these modules exemplify the Allen-Bradley commitment to excellence in industrial electrical solutions.
Featuring state-of-the-art technology and a compact form factor, the 1769-OW8 modules are engineered to enhance industrial processes with their efficient performance. From monitoring to control, these modules play a vital role in industrial setups, seamlessly connecting various components for a synchronized workflow. With Allen-Bradley's reputation for reliability and innovation, the SLC 500 Compact I/O Modules 1769-OW8 represent a pivotal component in modern industrial electrical systems, ensuring precision and efficiency in every operation.
Allen-Bradley SLC 500 Compact I/O Modules 1769-OW8 Features:

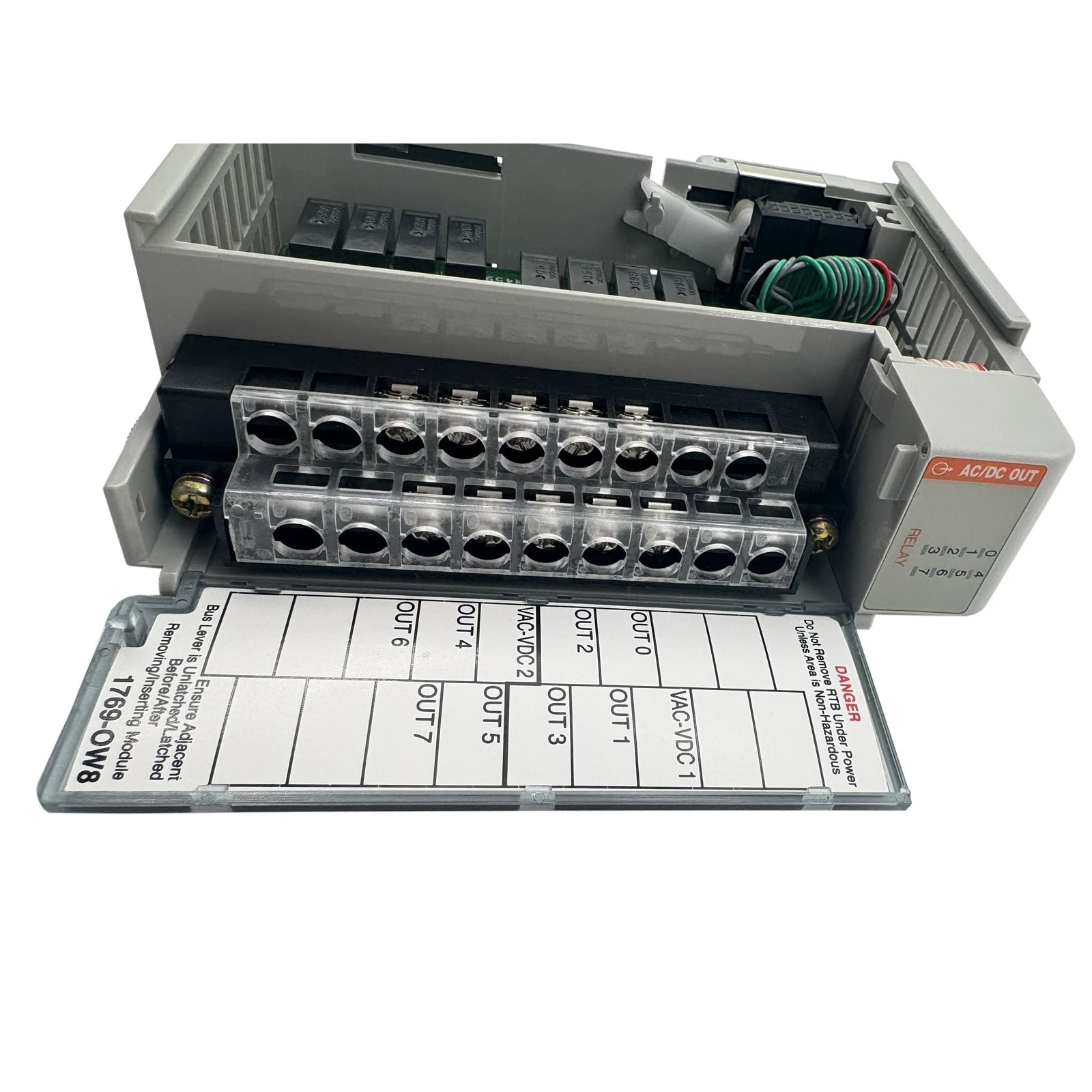

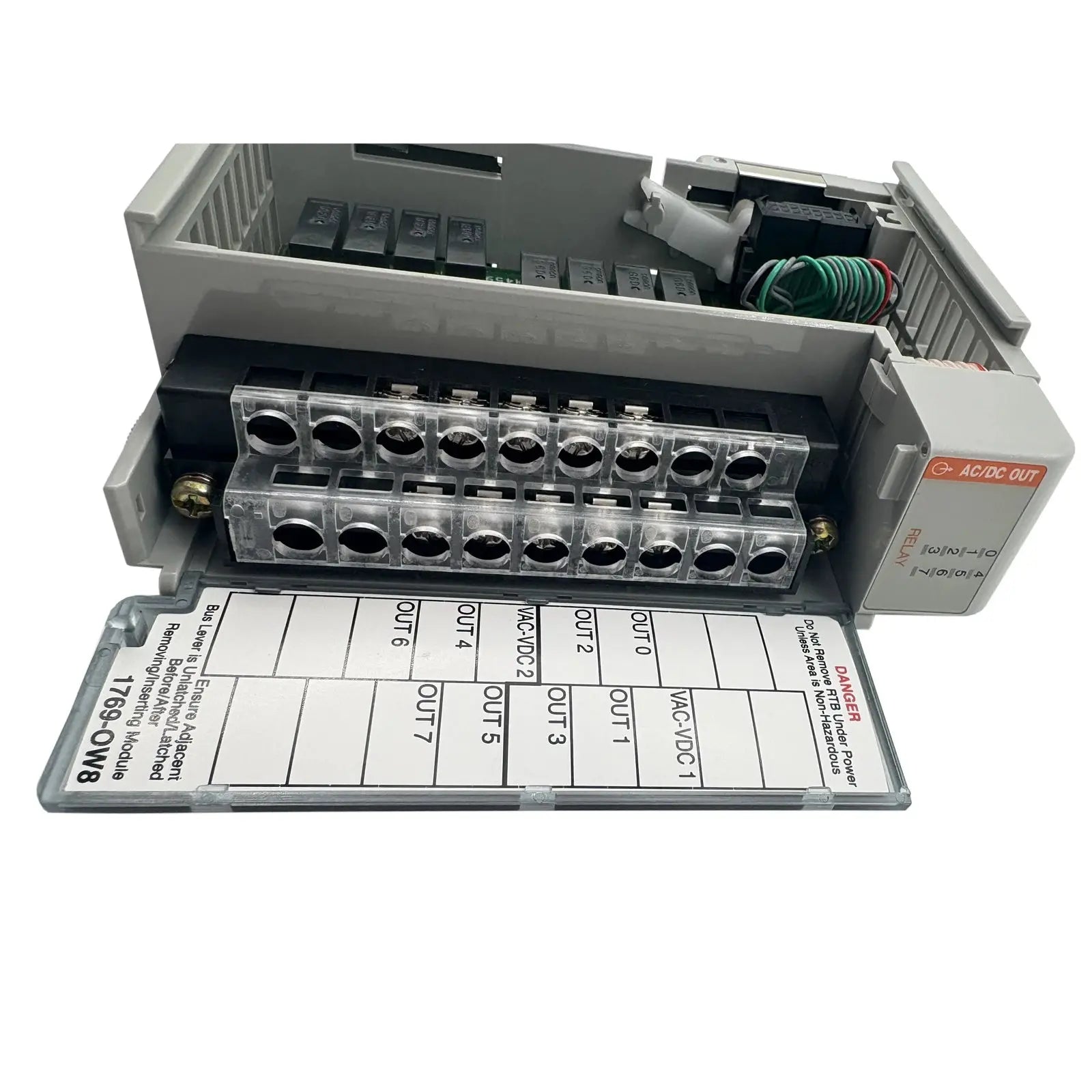

- Outputs: 8 normally open (4 points/group)
- Operating voltage range: 5 265V AC; 5 125V DC
- Input delay, on: 10 ms
- Input delay, off: 10 ms
- Current draw @ 5.1V: 125 mA
- Current draw @ 24V: 100 mA
- Heat dissipation, max: 2.83 W
- off-state leakage, max: 0 mA
- On-state current, min: 2 mA
- Current per point, max: 2.5 A
- Current per module, max: 16 A
- Slot width: 1

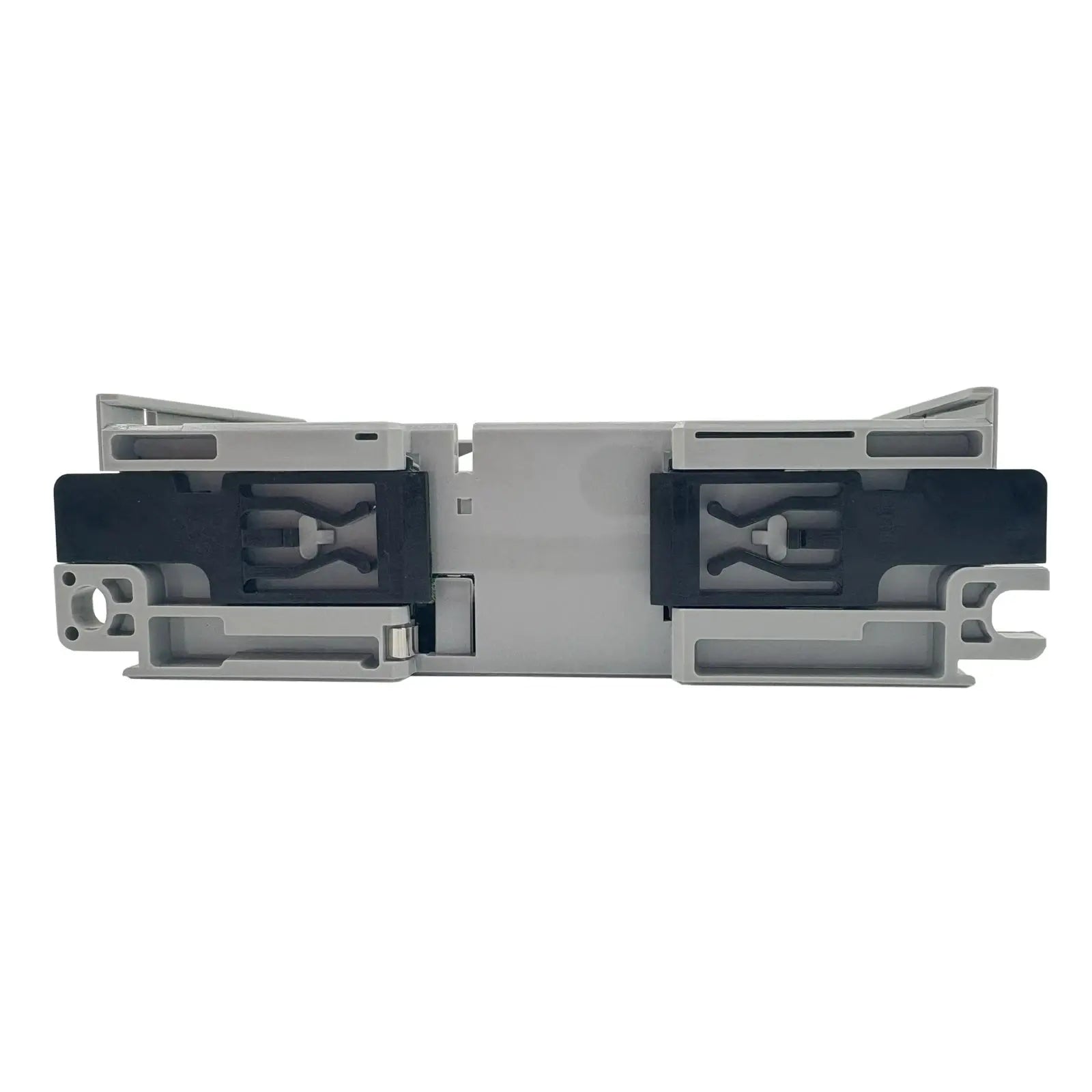

- Module location: DIN rail or panel mount
- Power supply: 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
- Power supply distance rating: 8 modules
Isolation voltage
- Verified by one of the following dielectric tests: 1836V AC for 1 s or 2596V DC for 1 s,
- output point to bus and group to group
- 265V AC working voltage (IEC Class 2 reinforced insulation)
Dimensions (HxWxD), approx
- 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.)
- Height with mounting tabs 138 mm (5.43 in.)
To set the proper expectation, we use different types of packaging for our products.
A. NEW- Manufacturer Packaging
Products with manufacturer's packaging still intact.
We ship these products as is, using the manufacturer's packaging.
B. NEW (New Never Used) – Custom Packaging
New products with malformed or scraped packaging
When the manufacturer's packaging suffers defects or scrapes during shipping to our warehouse, we replace it with customized packaging to ensure the safety of the products. Rest assured that these products are brand-new, never used, and thoroughly tested before being shipped.
C. USED – In-House
The manufacturer's packaging is no longer available
Used products are shipped using in-house packaging. We guarantee that all used products are tested by our licensed electrical engineers before shipping to ensure they are in good condition and fully functional.
We offer a simple 30-day return policy for your added peace of mind. For questions, contact us.
Important Notice for Customers:
All goods sold on our website must be installed by a suitably qualified person in your area. This ensures the safety and compliance of the installation with local electrical codes, regulations, and standards.
Product Description and Condition:
We strive to provide accurate descriptions and images for all listings. However, unless otherwise specified, images are for illustration and reference purposes only. Some packaging may show signs of wear, such as dust or tears, from shelf storage, but the items inside are unaffected. The products themselves may have minor surface marks, scuffs, or scratches due to handling, which are purely cosmetic and do not impact functionality. Additionally, there may be slight variations in color, printed data, and other details, but the overall size, operation and technical information remains consistent.
For any questions or further information, please contact our customer service team.
