Description

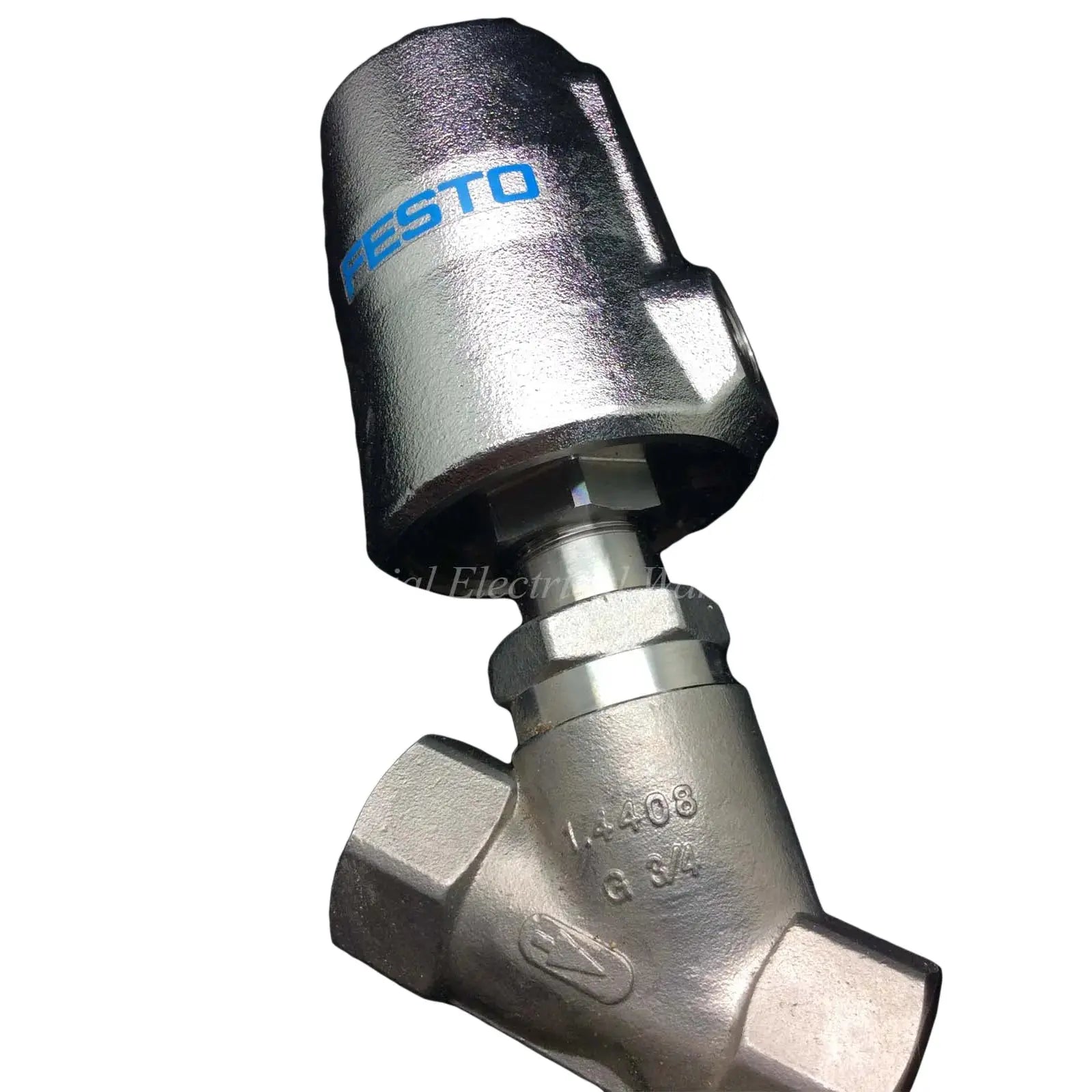

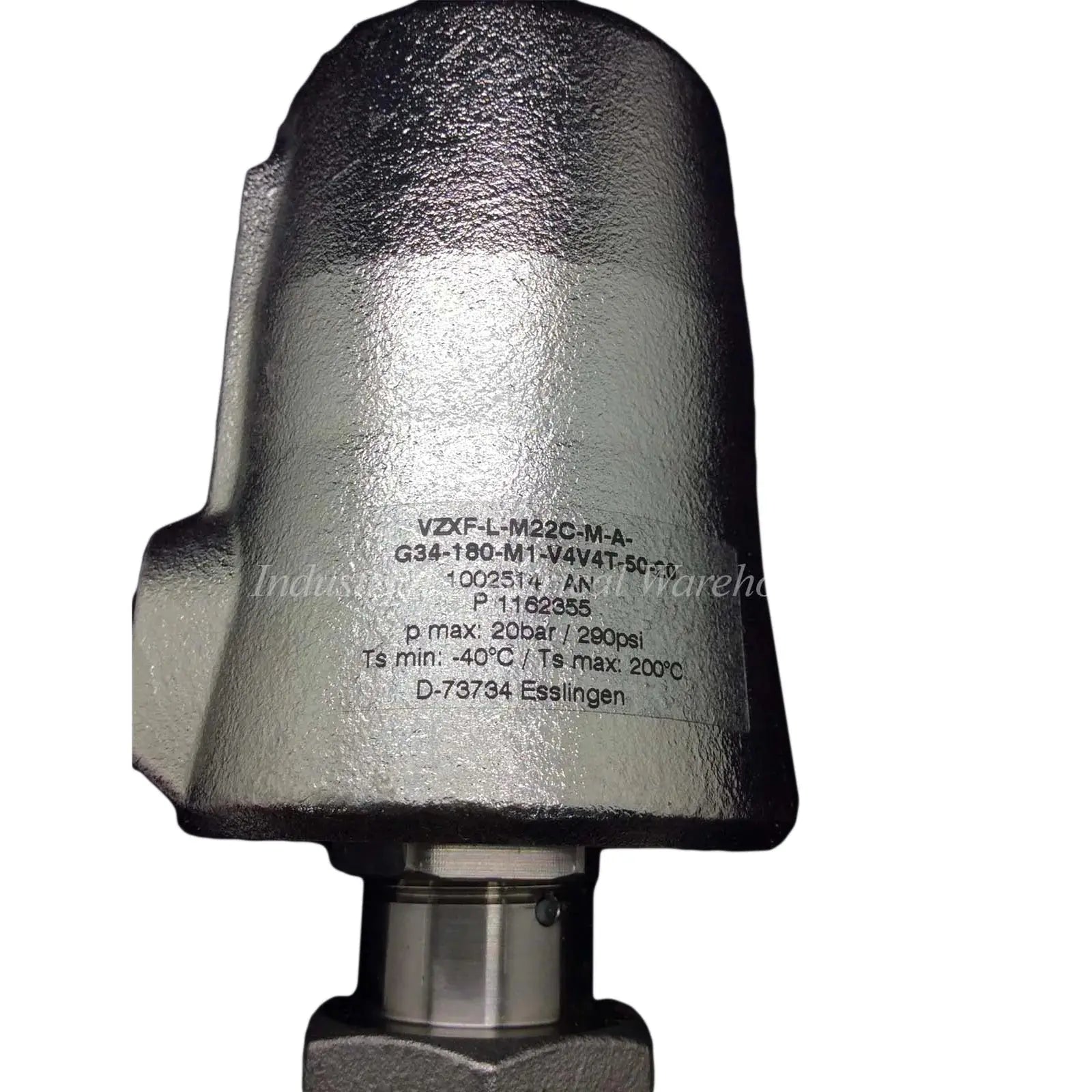

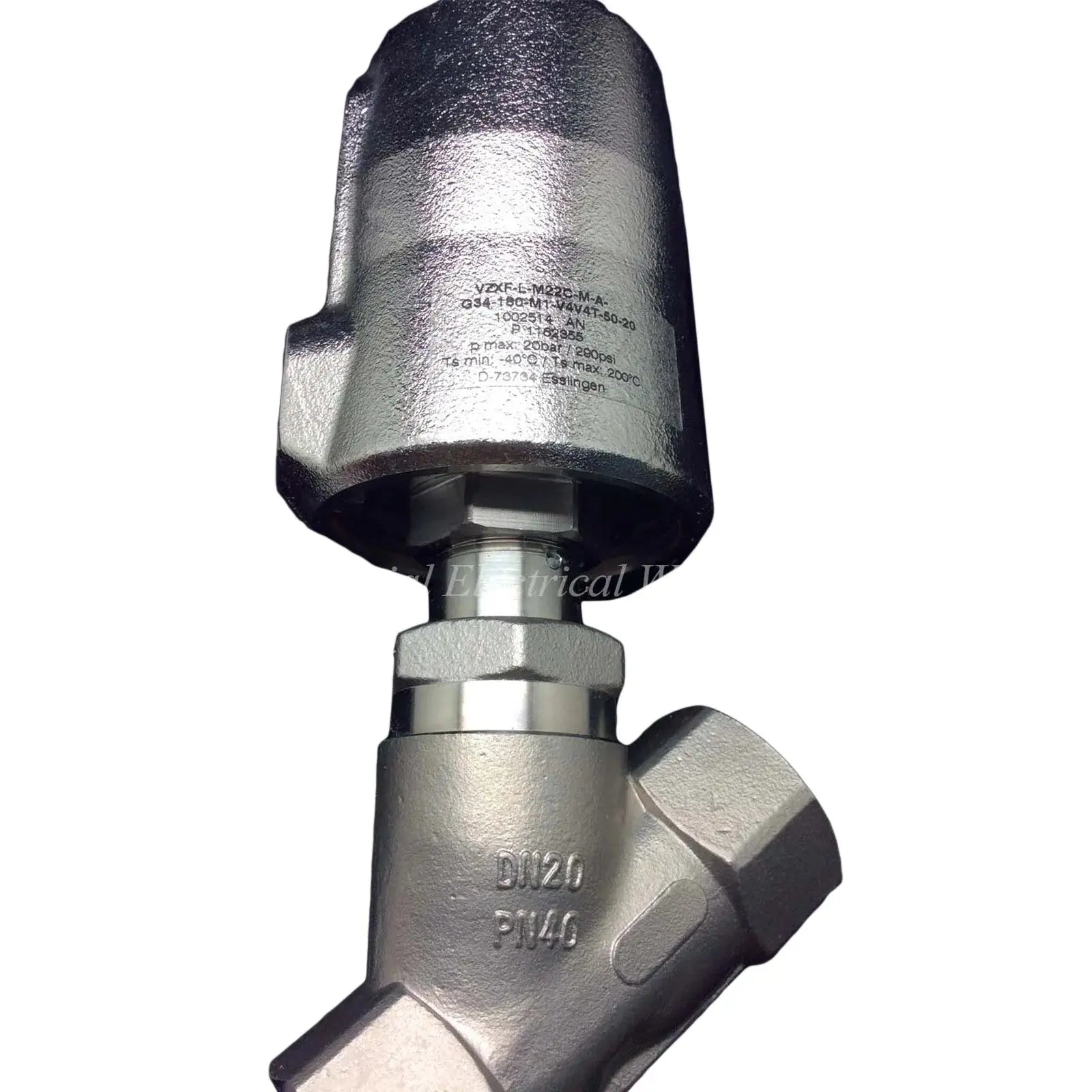

The Festo Angle Seat Valve VZXF-L-M22C-M-A-G34-180-M1-V4V4T-50-20 is a cutting-edge solution for industrial electrical control systems. Designed with precision engineering, this angle seat valve ensures reliable and efficient operation in diverse industrial applications. The valve's M22C thread type and G34 connection size make it versatile for integration into various electrical systems, providing seamless control and regulation.
With a robust 180-degree rotary actuator and M1 control function, this Festo valve offers precise and responsive control over fluid flow in industrial processes. The V4V4T configuration enhances durability and longevity, making it a reliable choice for demanding industrial environments. Trust in the Festo Angle Seat Valve for optimal performance and seamless integration into your industrial electrical systems.
Festo Angle Seat Valve VZXF-L-M22C-M-A-G34-180-M1-V4V4T-50-20 Features:
- Structural design: Poppet valve with piston actuator
- Actuation type: Pneumatic
- Sealing principle: Soft
- Mounting position: Any
- Type of mounting: Line installation
- Cable connection: Threaded sleeve G ¾ as per DIN ISO 228
- Nominal width: 18 mm
- Valve function: 2/2, closed, monostable
- Flow direction: Non-reversible
- Medium pressure: 0 MPa ... 2 MPa
- Medium pressure: 0 bar ... 20 bar

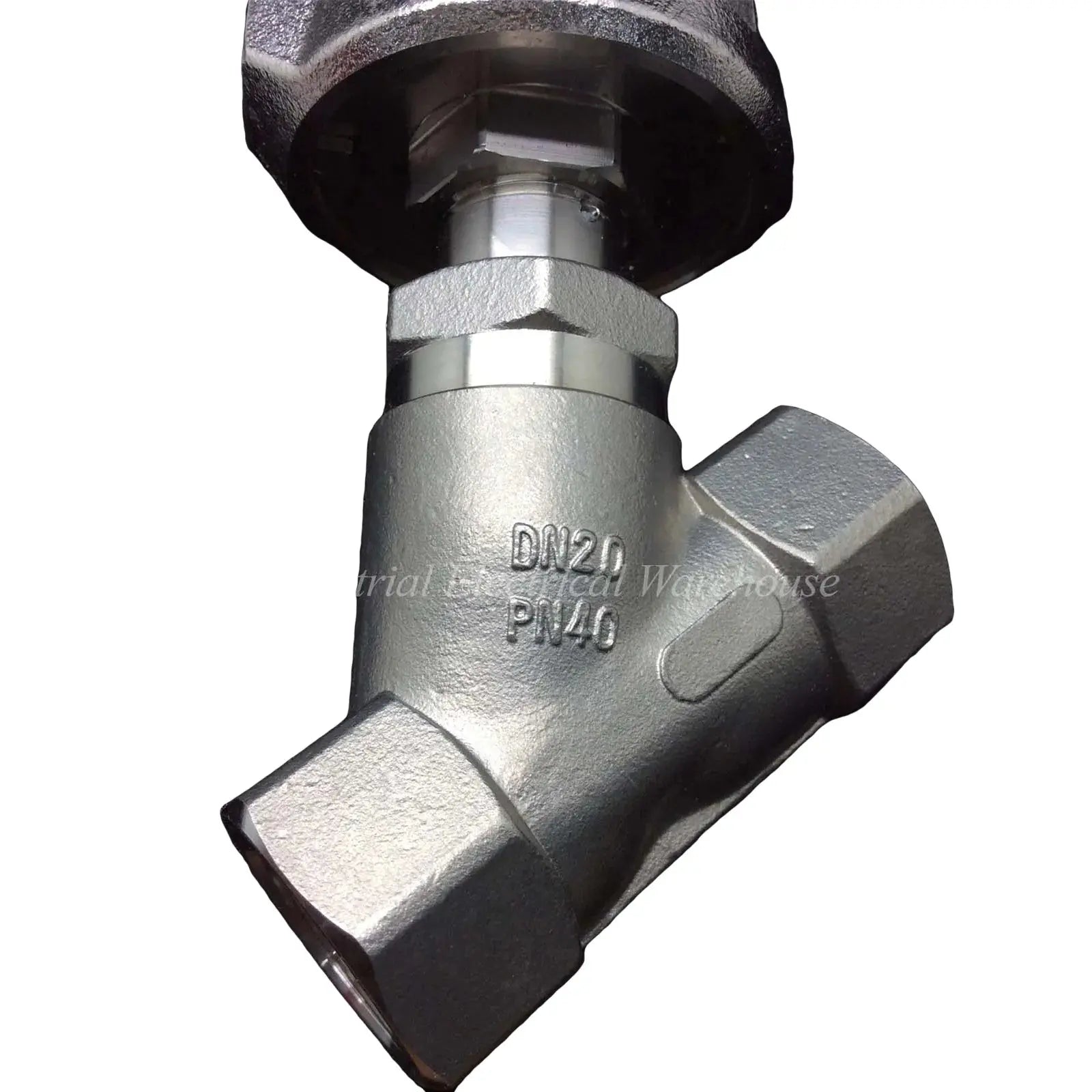

- Nominal pressure of fitting PN: 40
- Exhaust air function: Without flow control option
- Reset method: Mechanical spring
- Type of control: Externally controlled

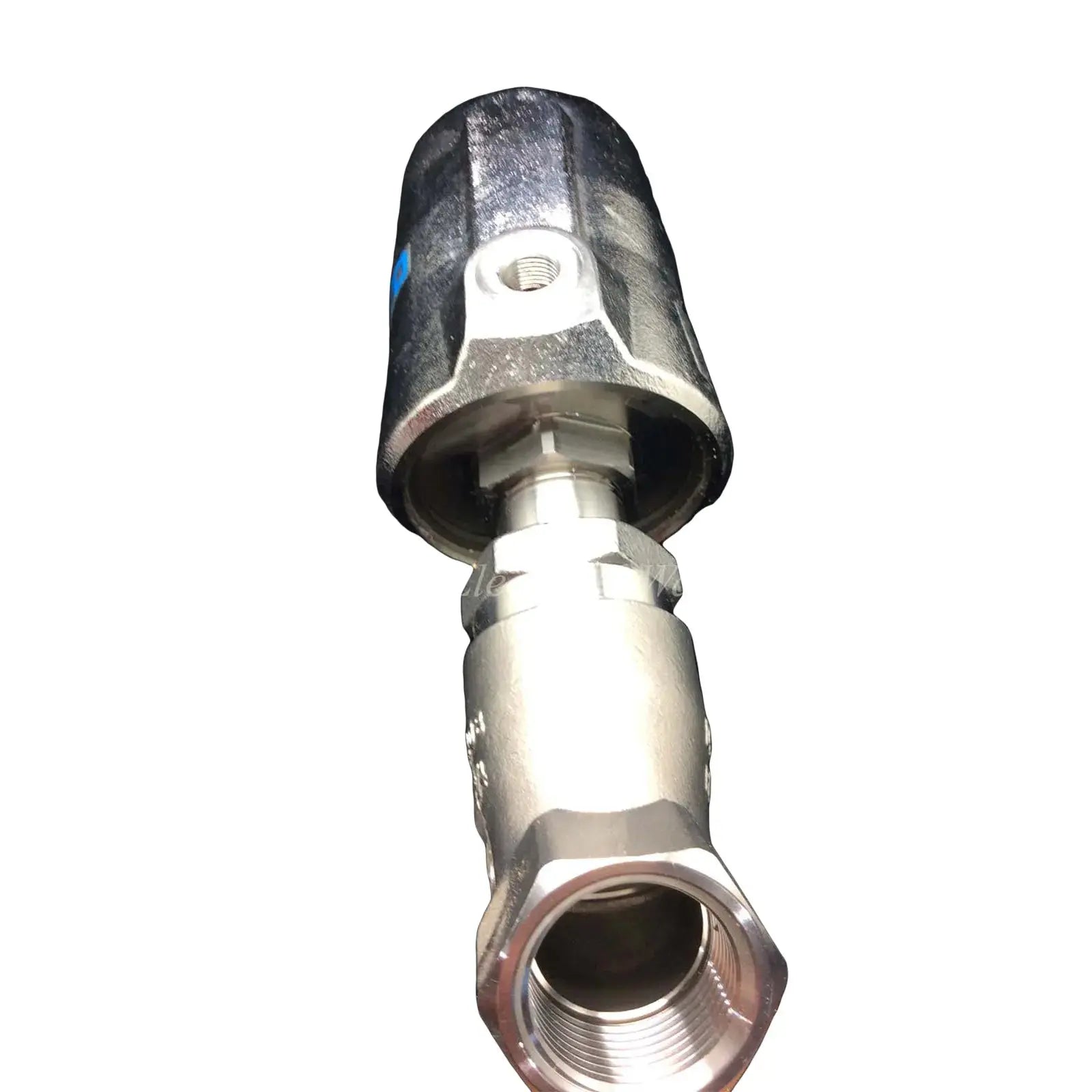

- Pneumatic connection: Internal thread G1/8
- Operating pressure: 0.6 MPa ... 1 MPa
- Operating pressure: 6 bar ... 10 bar
- Operating pressure: 87 psi ... 145 psi
- Symbol: 00991367
- Flow direction: Under valve seat, for gaseous and liquid media
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
- Max. viscosity: 600 mm²/s
- Temperature of medium: -40 °C ... 200 °C
- Ambient temperature: -10 °C ... 60 °C
- Flow rate Kv: 6.5 m³/h
- Valve housing material: Cast stainless steel

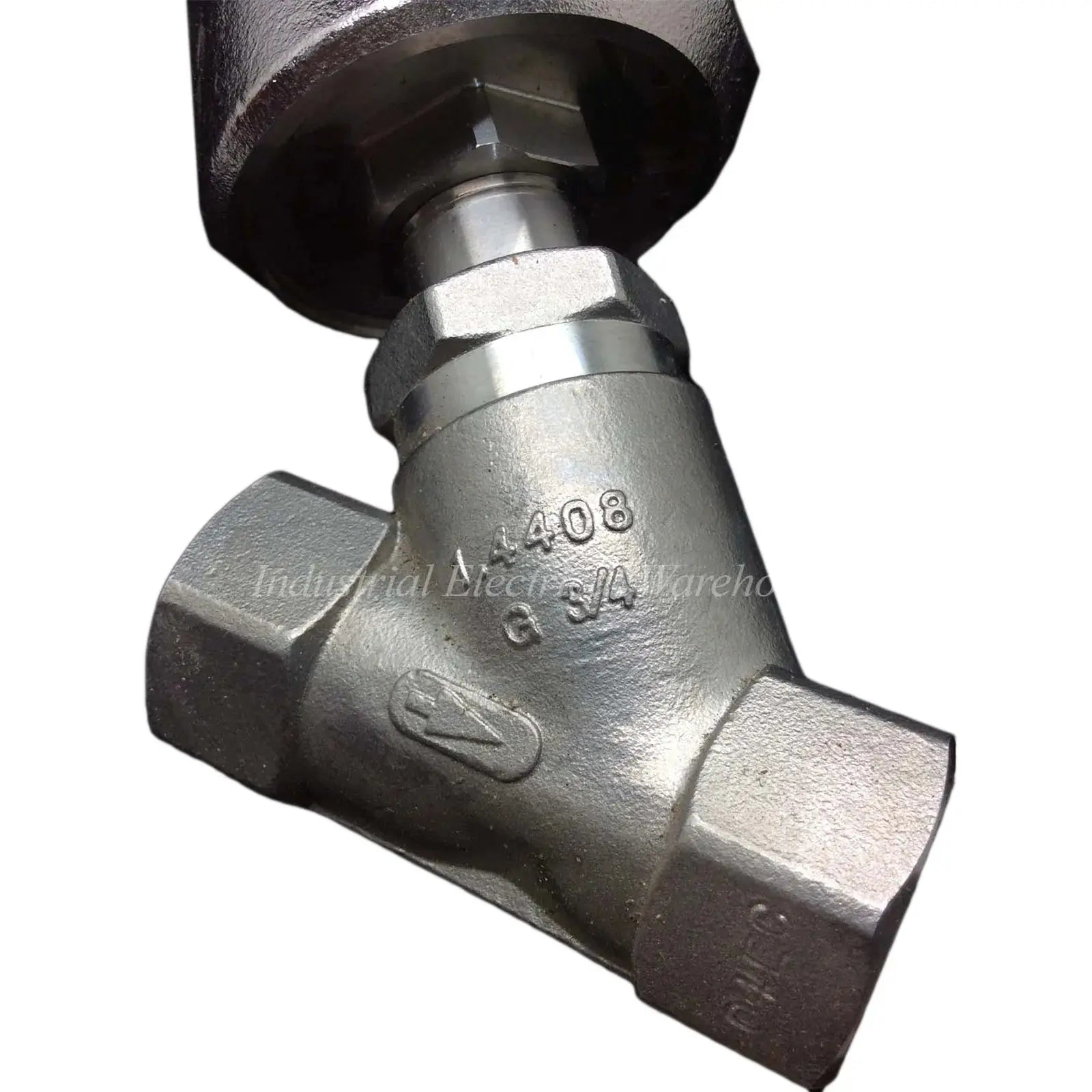

- Material number, fitting housing: 1.4408
- Spindle seal material: PTFE
- Seat seal material: PTFE
- Product weight: 1,400 g
- Corrosion resistance class (CRC): 3 - High corrosion stress
- Drive housing material: High-alloy stainless steel
