Description

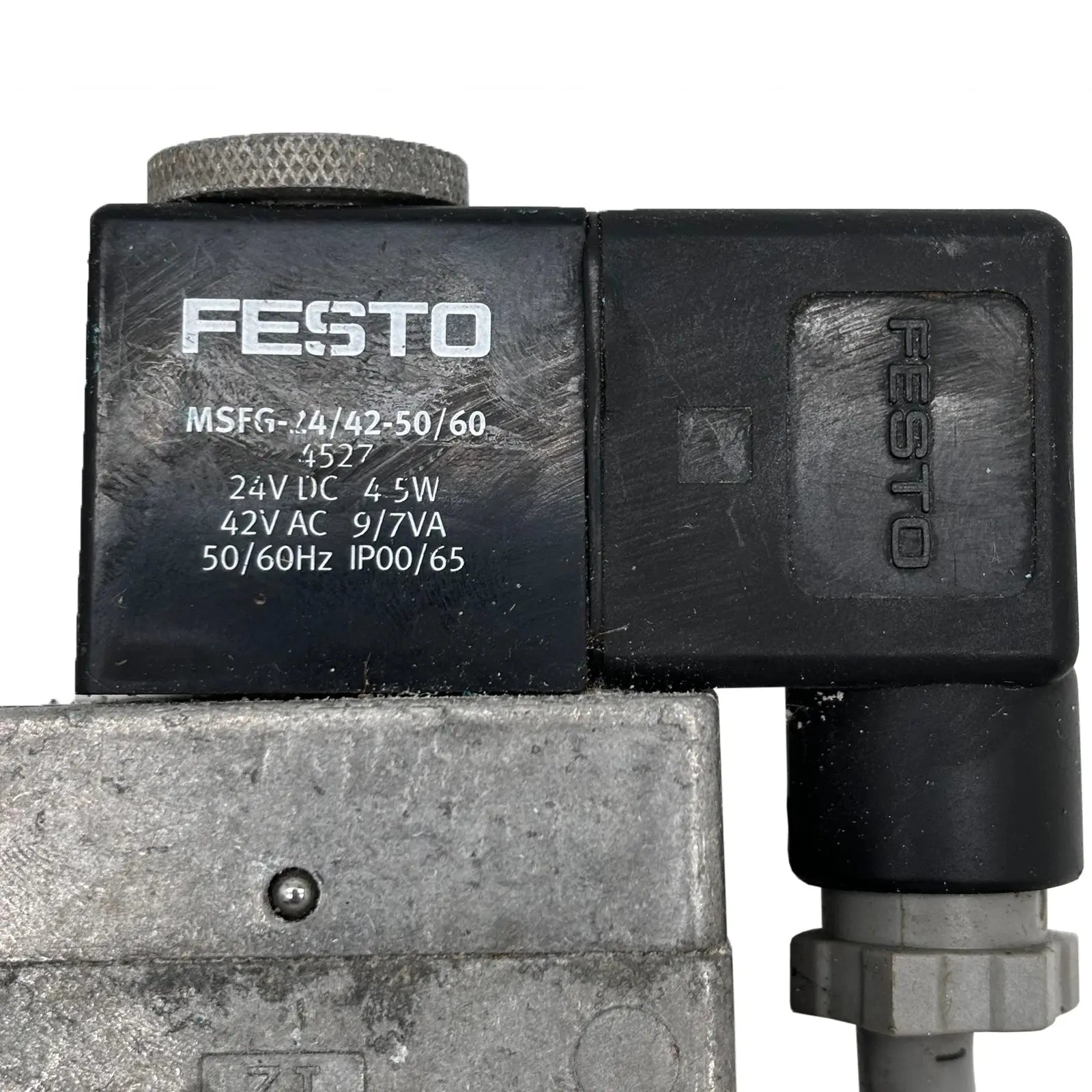

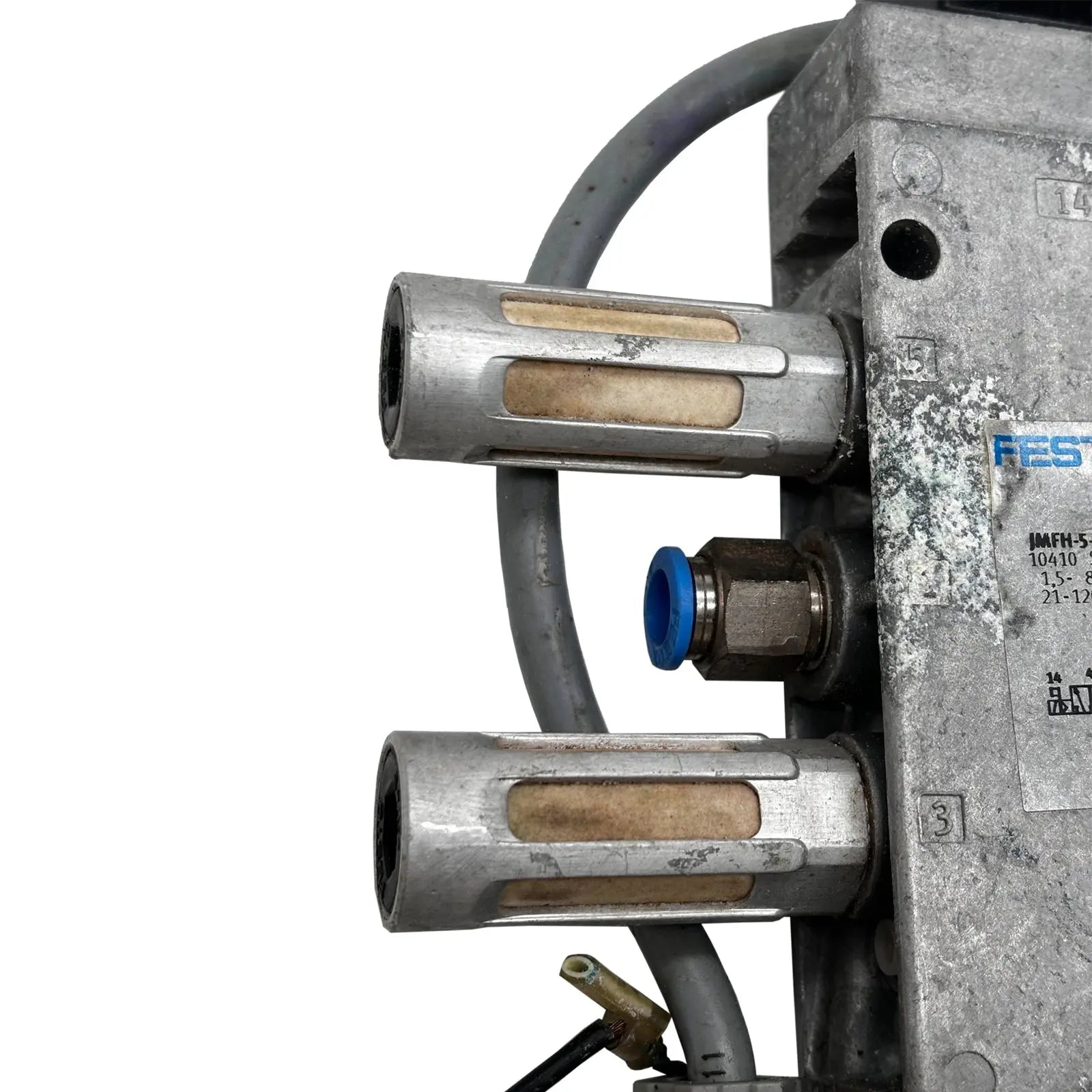

The Festo Pneumatic Solenoid Valve with Coil MSFG-24/42-50/60, model JMFH-5-1/4, is a high-performance valve designed for precise and reliable control in various industrial applications. This solenoid valve operates at 24VDC, ensuring efficient and consistent performance. With its robust construction and advanced engineering, the JMFH-5-1/4 offers exceptional durability and long service life, making it ideal for demanding environments. Its compact design allows for easy integration into existing systems, while the high flow rate ensures optimal operation of pneumatic systems. Whether used in automation, manufacturing, or other industrial settings, the Festo Pneumatic Solenoid Valve with Coil MSFG-24/42-50/60 delivers reliable and efficient performance, enhancing productivity and system reliability.
Festo Pneumatic Solenoid Valve with Coil MSFG-24/42-50/60 24VDC JMFH-5-1/4 Features:
• 24VDC
•Type of actuation electrical
•Standard nominal flow rate 1,100 l/min
•Operating pressure 1.5 ... 8 bar
•Design structure Poppet seat
•Protection class IP65
•Authorisation c UL us - Recognised (OL)
•Nominal size 7 mm
•Grid dimension 32 mm
•Exhaust-air function throttle able
•Sealing principle soft
•Assembly position Any
•Manual override detecting
•Type of piloting Piloted
•Flow direction non reversible
•Freedom from overlap No
•Max. switching frequency 25 Hz
•Switching time reversal 11 ms
•Max. positive test pulse with logic 0 2,200 μs
•Max. negative test pulse with logic 1 3,700 μs
•Characteristic coil data See solenoid coil, to be ordered separately
•Operating medium Compressed air in accordance with ISO8573-1:2010 [7:4:4]
•Note on operating and pilot medium Lubricated operation possible (subsequently required for further operation)
•Corrosion resistance classification CRC 1 - Low corrosion stress
•Storage temperature -20 ... 60 °C
•Medium temperature -10 ... 60 °C
•Ambient temperature -5 ... 40 °C
•Electrical connection Via F coil, must be ordered separately
•Mounting type Optional on manifold rail with through hole
•Material seals NBR TPE-U(PU)
•Pilot exhaust port 82 M5
•Pilot exhaust port 84 M5
•Pneumatic connection, port 1 G1/4
•Pneumatic connection, port 2 G1/4
•Pneumatic connection, port 3 G1/4
•Pneumatic connection, port 4 G1/4
•Pneumatic connection, port 5 G1/4
•Materials note: Conforms to RoHS
•Material Housing: Aluminium die cast
