Description

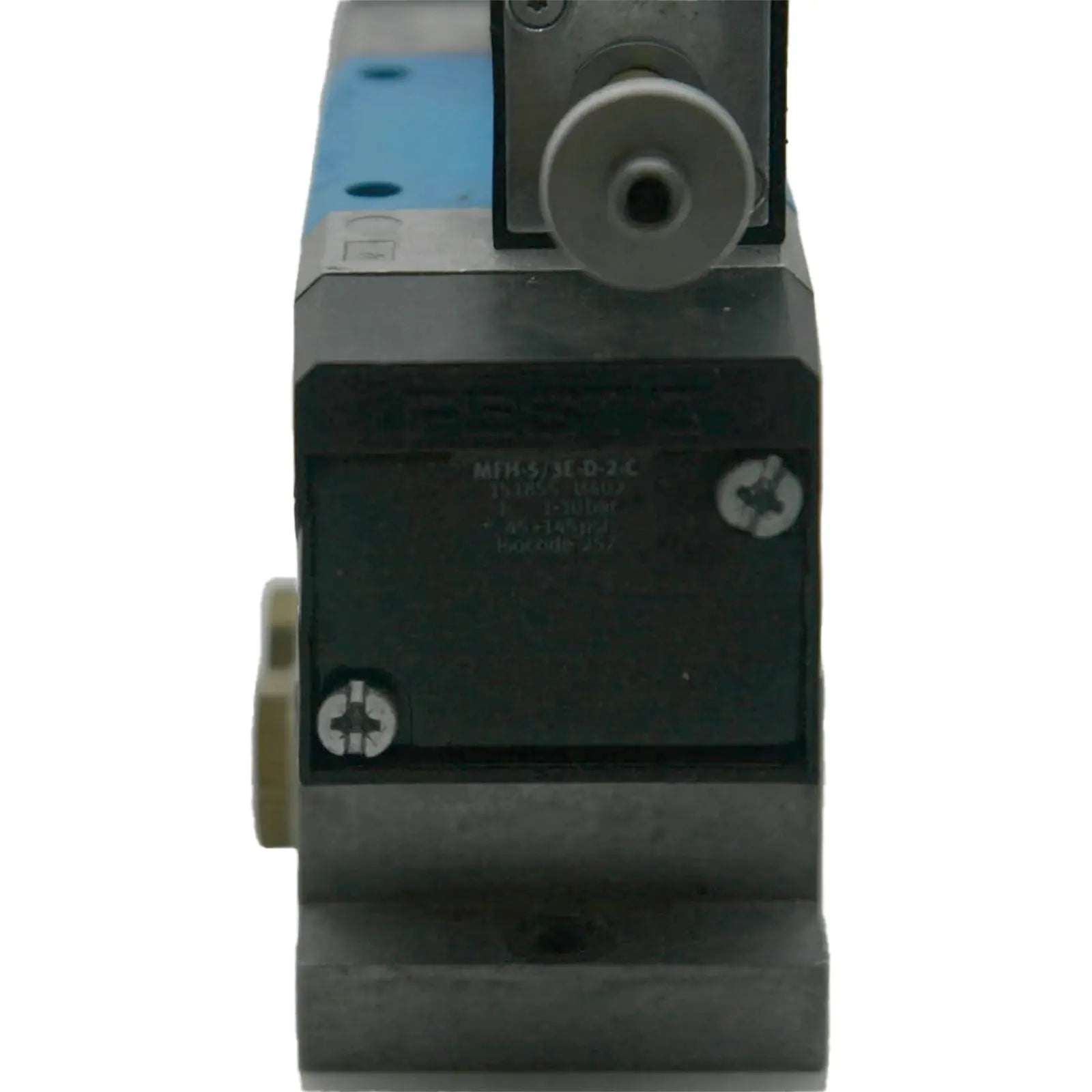

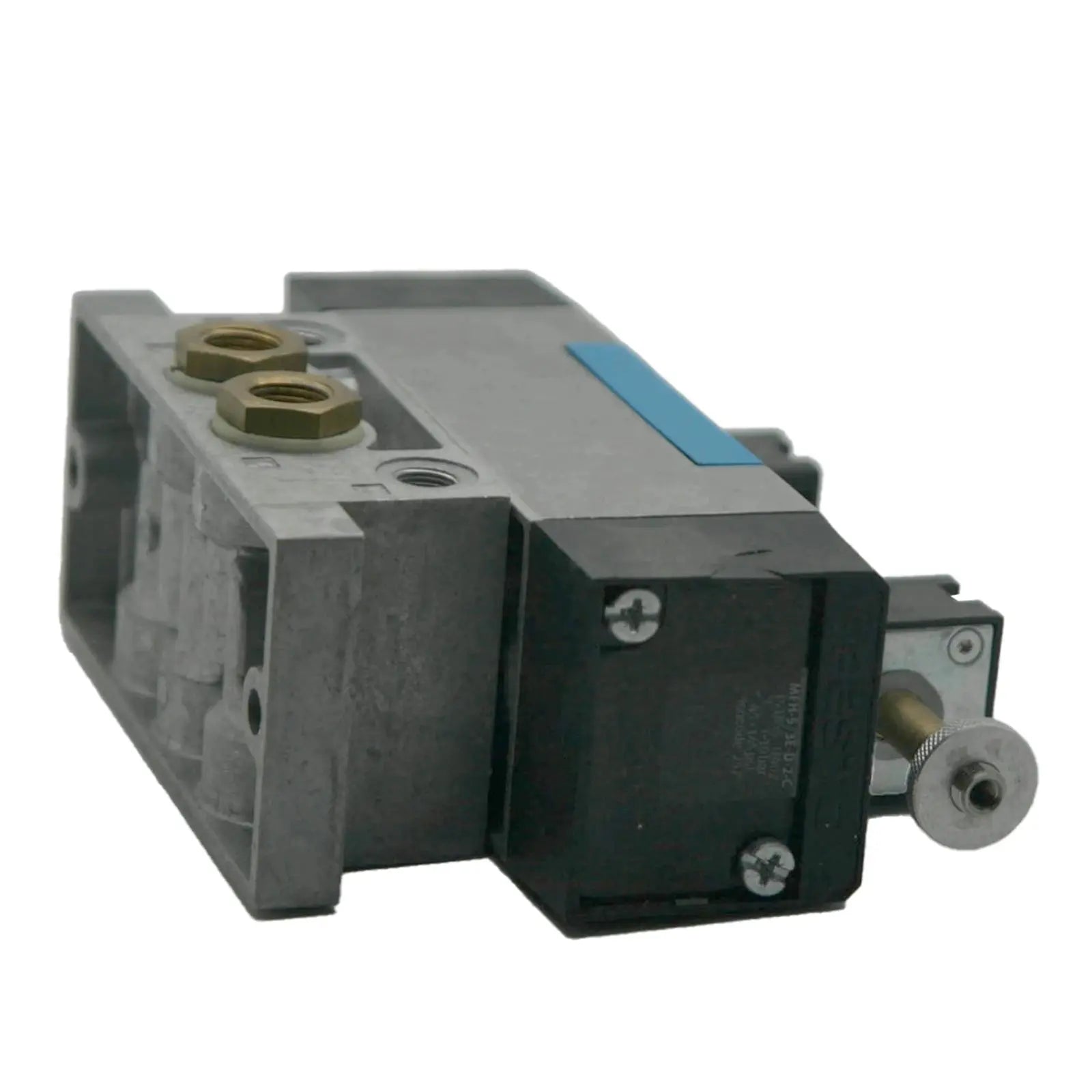

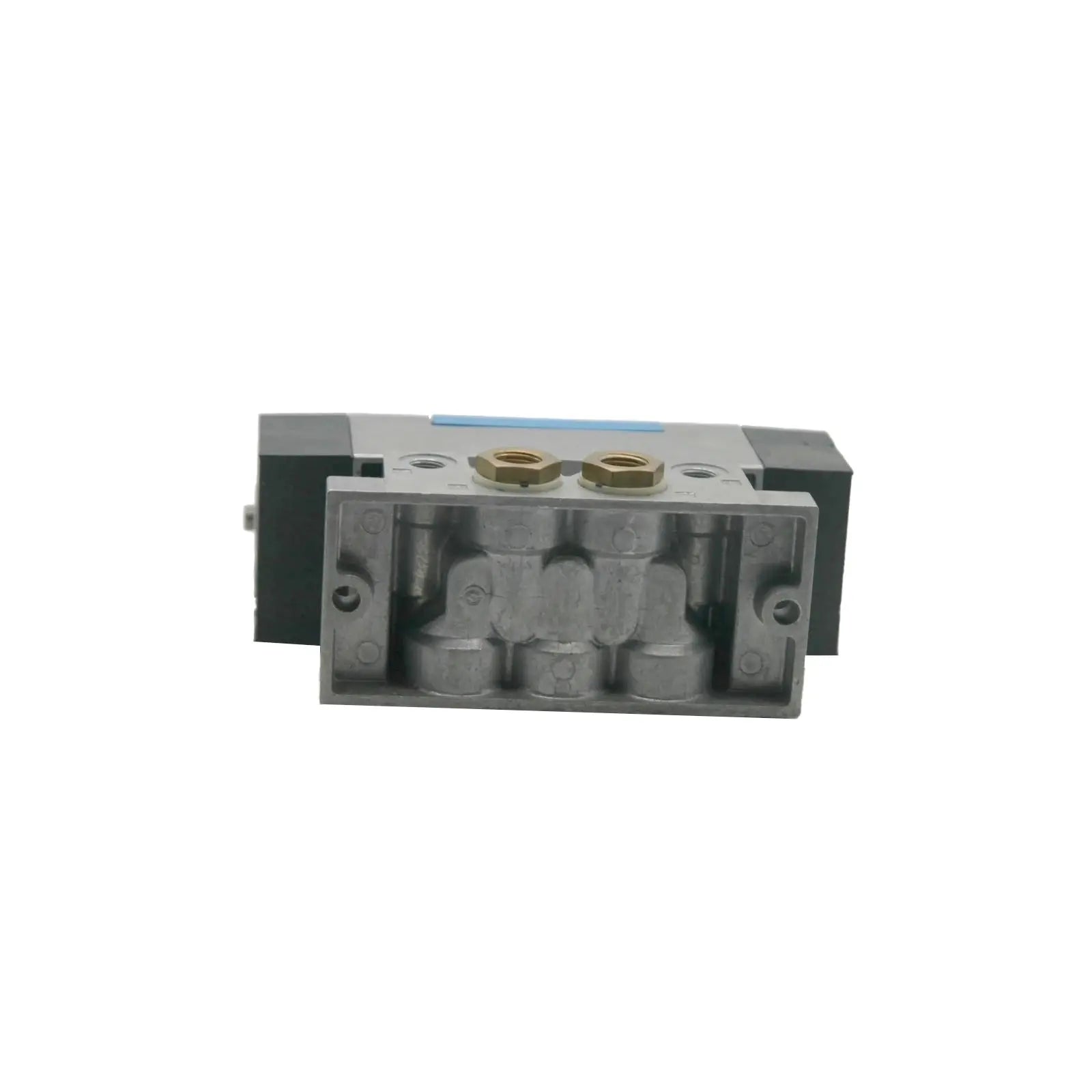

Introducing the Festo Solenoid Valve 3-10 Bar IP65 151855 U402 MFH-5/3E-D-2-C, a robust and reliable component for industrial electrical systems. This solenoid valve is designed to operate seamlessly in demanding environments, offering a pressure range of 3 to 10 Bar and a high level of protection with its IP65 rating. The Festo Solenoid Valve is a key element in controlling the flow of fluids in industrial settings, ensuring precision and efficiency in electrical applications.
With its cutting-edge design and durable construction, the Festo Solenoid Valve is engineered to meet the stringent requirements of industrial automation. Whether used in manufacturing, processing, or other industrial processes, this valve excels in providing precise and consistent performance. Trust in the reliability of Festo technology to optimize your industrial electrical systems and enhance overall operational efficiency.
Festo Solenoid Valve 3-10 Bar IP65 151855 U402 MFH-5/3E-D-2-C Features:
Short type code: MFH
Standard: ISO 5599-1
Standard: Without
Width: 54 mm
Valve Function: 5/3 exhausted
Valve Function: 5/3-way valve, mid-position exhausted
Electrical Connect: Electrical, with armature tube for solenoid coil F
Electrical Connect: Plug
Mounting: On sub-base
Mounting: With through hole
Pneumatic connection: Connection plate size 2 as per ISO 5599-1
Pilot air supply: Internal
Manual override: Pushing
Manual override: with accessories, detenting
Type of reset: Mechanical spring
Ambient temp: -5 - 40 °C
Assembly position: Any
Authorisation: Germanischer Lloyd
Design structure: Piston slide
Exhaust-air function: throttleable
Flow direction: non reversible
Grid dimension: 56 mm
ISO code: 257
Materials information for seals: NBR
Materials information, housing: Aluminium die cast
Medium temperature: -10 - 60 °C
Nominal size: 11.5 mm
Operating medium: filtered compressed air, grade of filtration 40 µm, lubricated or unlubricated
Operating Pressure: 3 - 10 bar
Pilot exhaust port 82: M5
Pilot exhaust port 84: M5
Pneumatic connection, port 1: Connection plate size 2 as per ISO 5599-1
Pneumatic connection, port 2: Connection plate size 2 as per ISO 5599-1
Pneumatic connection, port 3: Connection plate size 2 as per ISO 5599-1
Pneumatic connection, port 4: Connection plate size 2 as per ISO 5599-1
Pneumatic connection, port 5: Connection plate size 2 as per ISO 5599-1
Pneumatic working line: Connection ISO 5599-2 Gr. 1
Pneumatic working line: G3/8
Protection class: IP65
Sealing principle: Soft
Standard nominal flow rate: 2300 l/min
Switching time off: 67 ms
Switching time on: 35 ms
Type of actuation: electrical
Type of piloting: Piloted
Explore our Festo range to discover reliable solutions for all your industrial electrical needs. Click the logo below to view the full collection.
