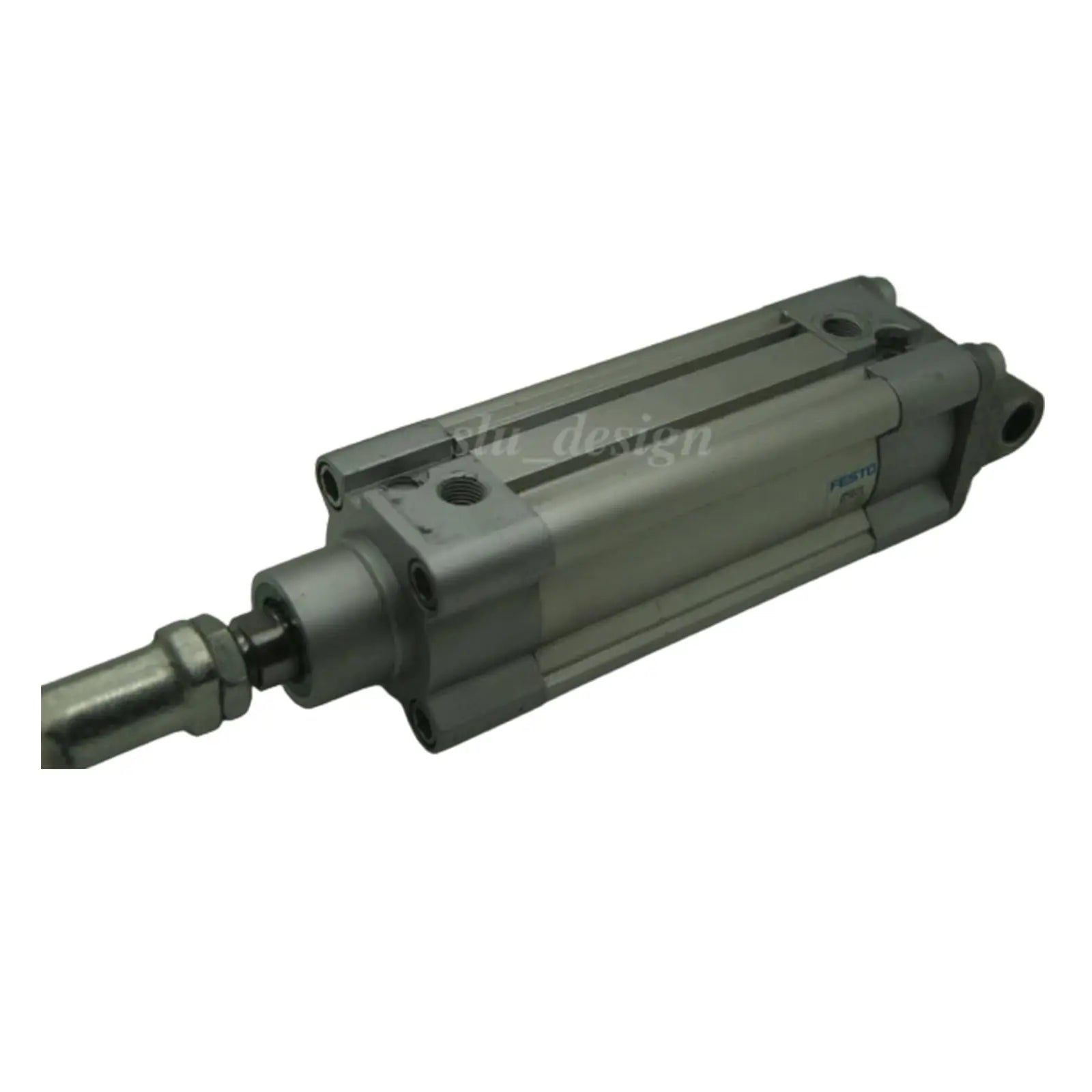

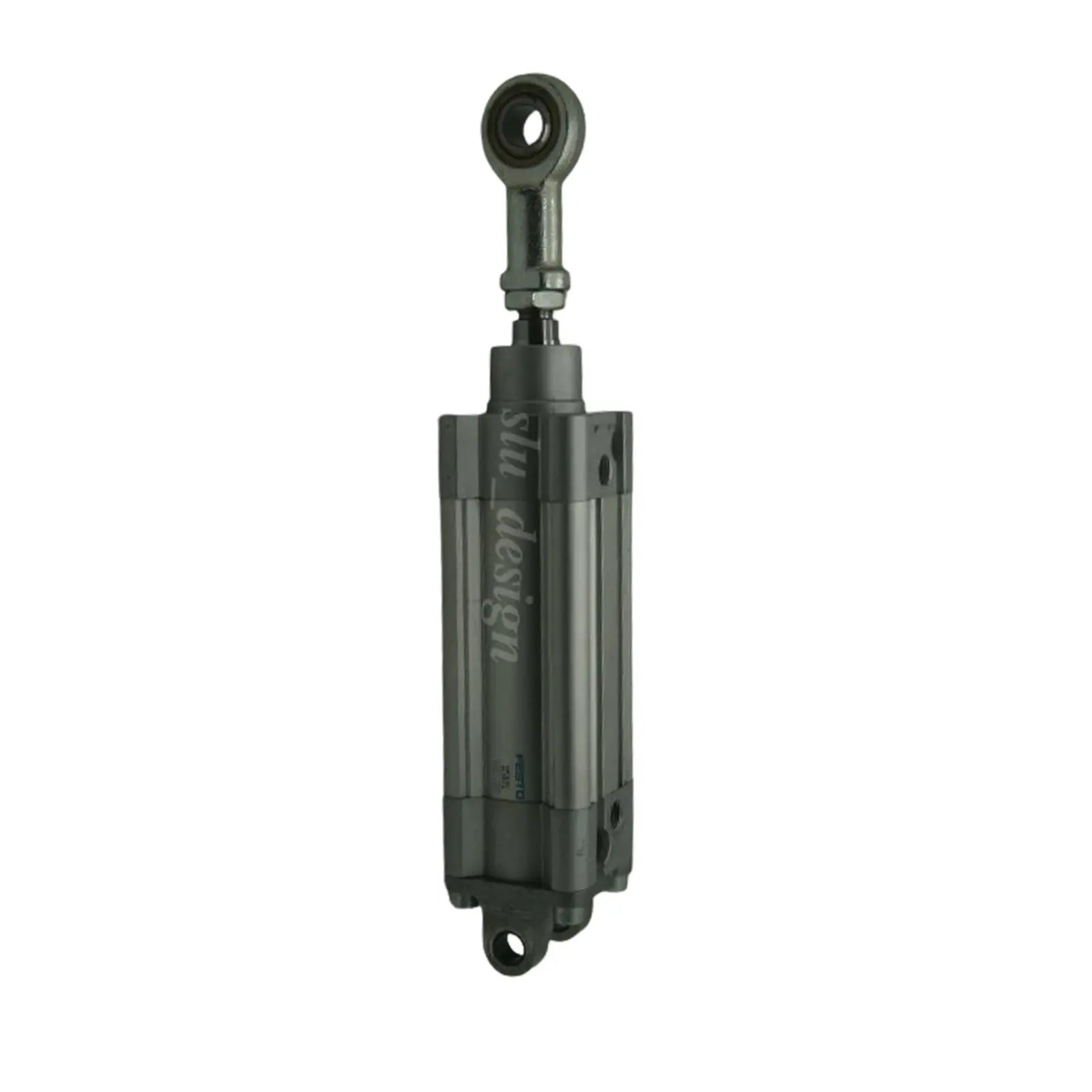

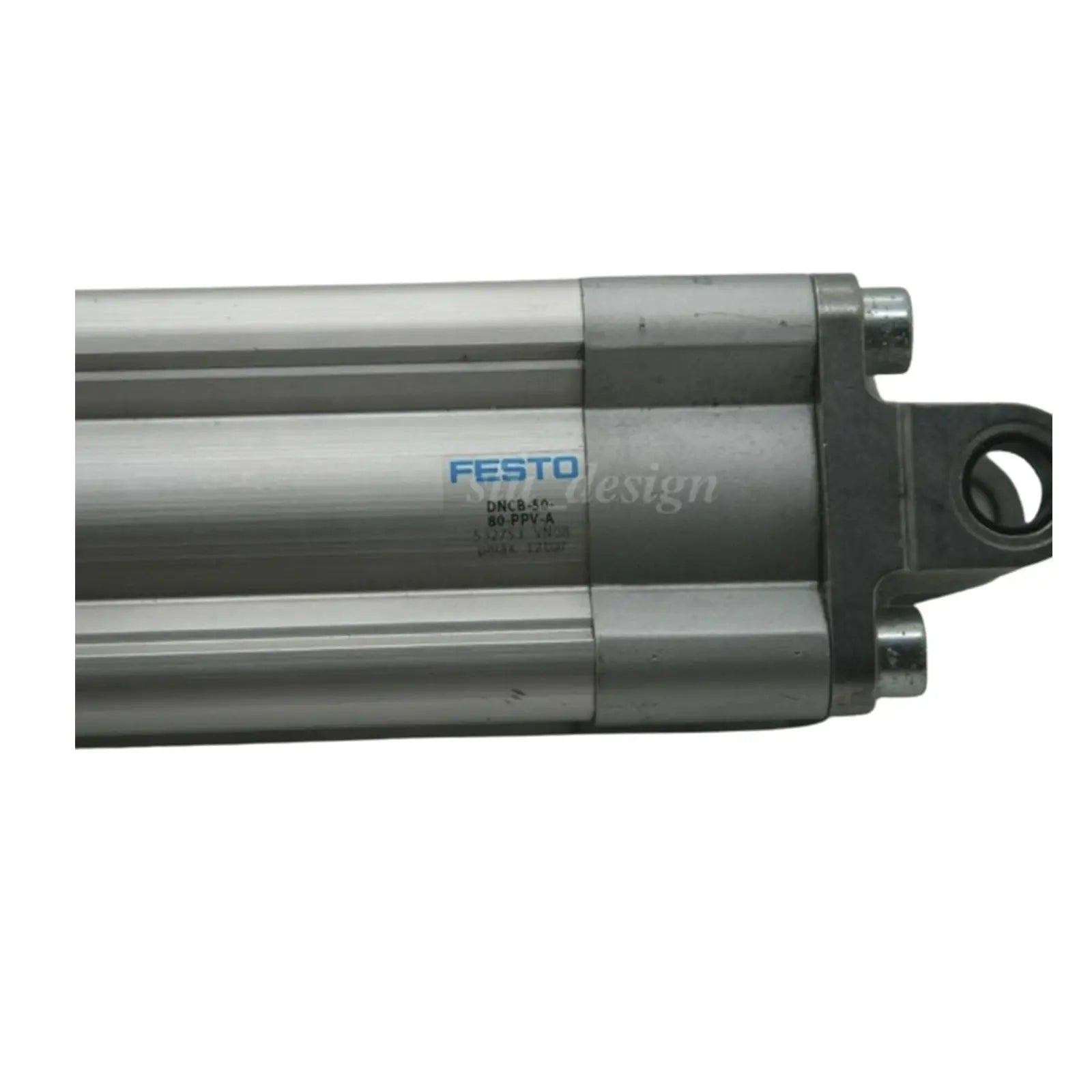

Festo Cylinder 0.6-12 Bar M16 x 1.5 DNCB-50-80-PPV-A


Condition and Packaging: NEW - Custom
Price:
Sale Price$191.00 USD
Stock:
Only 1 unit left
  • Free Standard Shipping Worldwide NO Minimum Spend
  • Free Express Shipping Worldwide on Orders over $200 USD
  • Every item you choose is carefully handpicked and packed by our dedicated team in-house
  • 30 Days Return policy

DNCB-50-80-PPV-A

Description

Introducing the Festo Cylinder 0.6-12 Bar M16 x 1.5 DNCB-50-80-PPV-A, a cutting-edge pneumatic component designed for industrial automation and control systems. This high-quality cylinder operates seamlessly within a pressure range of 0.6 to 12 Bar, ensuring precise and efficient performance in diverse industrial environments. The M16 x 1.5 threading facilitates easy installation and compatibility with a variety of systems. Crafted with precision engineering, the DNCB-50-80-PPV-A exemplifies Festo's commitment to reliability and durability in industrial electrical solutions.

Engineered for optimal functionality, this Festo Cylinder incorporates industrial electrical keywords like precise pressure control, M16 threading, and DNCB-50-80-PPV-A model specifications. The cylinder's robust design ensures longevity and consistent performance in demanding industrial settings. Whether used in manufacturing processes or automated machinery, this Festo Cylinder stands out as a reliable and efficient component for achieving seamless control and automation in industrial electrical applications.

Festo Cylinder 0.6-12 Bar M16 x 1.5 DNCB-50-80-PPV-A Features:

  • Short type code: DNCB
  • Standard: ISO 15552 (previously also VDMA 24652, ISO 6431, NF E49 003.1, UNI 10290)
  • Piston diameter: 50 mm
  • Stroke: 80 mm
  • Mounting: With accessories
  • Mounting: With internal (female) thread
  • Function: Double acting
  • Position sensing: For proximity sensing
  • Pneumatic connection: G¼
  • Piston diameter mm: 50 mm
  • Cushioning: Pneumatic cushioning adjustable at both ends
  • Cushioning: PPV: Pneumatic cushioning adjustable at both ends
  • Piston rod thread: M16 x 1.5
  • Additional mass factor per 10 mm of stroke: 25 g
  • Additional weight per 10 mm stroke: 56 g
  • Ambient temp: -20 - 80 °C
  • Assembly position: Any
  • Basic weight for 0 mm stroke: 1225 g
  • Corrosion resistance classification CRC: 2
  • Cushioning length: 22 mm
  • Design structure: Piston
  • Design structure: Piston rod
  • Design structure: Profile barrel
  • Impact energy in end positions: 1 J
  • Materials information for cover: Aluminium die-cast
  • Materials information for cover: Coated
  • Materials information for cylinder barrel: Wrought Aluminium alloy
  • Materials information for piston rod: High alloy steel
  • Materials information for seals: TPE-U(PU)
  • Mode of operation: double-acting
  • Moving mass with 0 mm stroke: 363 g
  • Operating medium: Dried compressed air, lubricated or unlubricated
  • Operating Pressure: 0.6 - 12 bar
  • Piston-rod end: Male thread
  • Position detection: For proximity sensor
  • Theoretical force at 6 bar, advance stroke: 1178 N
  • Theoretical force at 6 bar, return stroke: 990 N
  • Variants: Single-ended piston rod
