Description

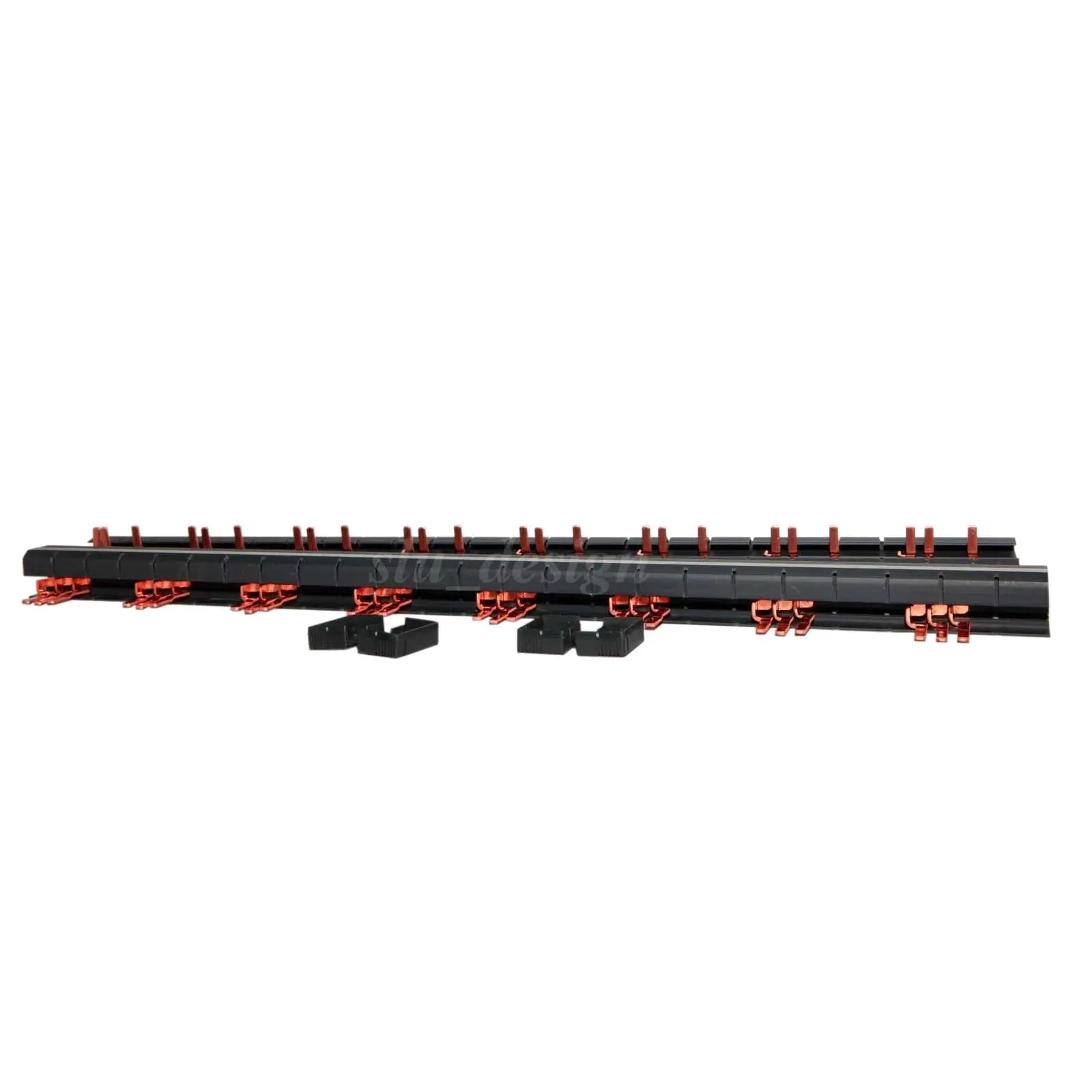

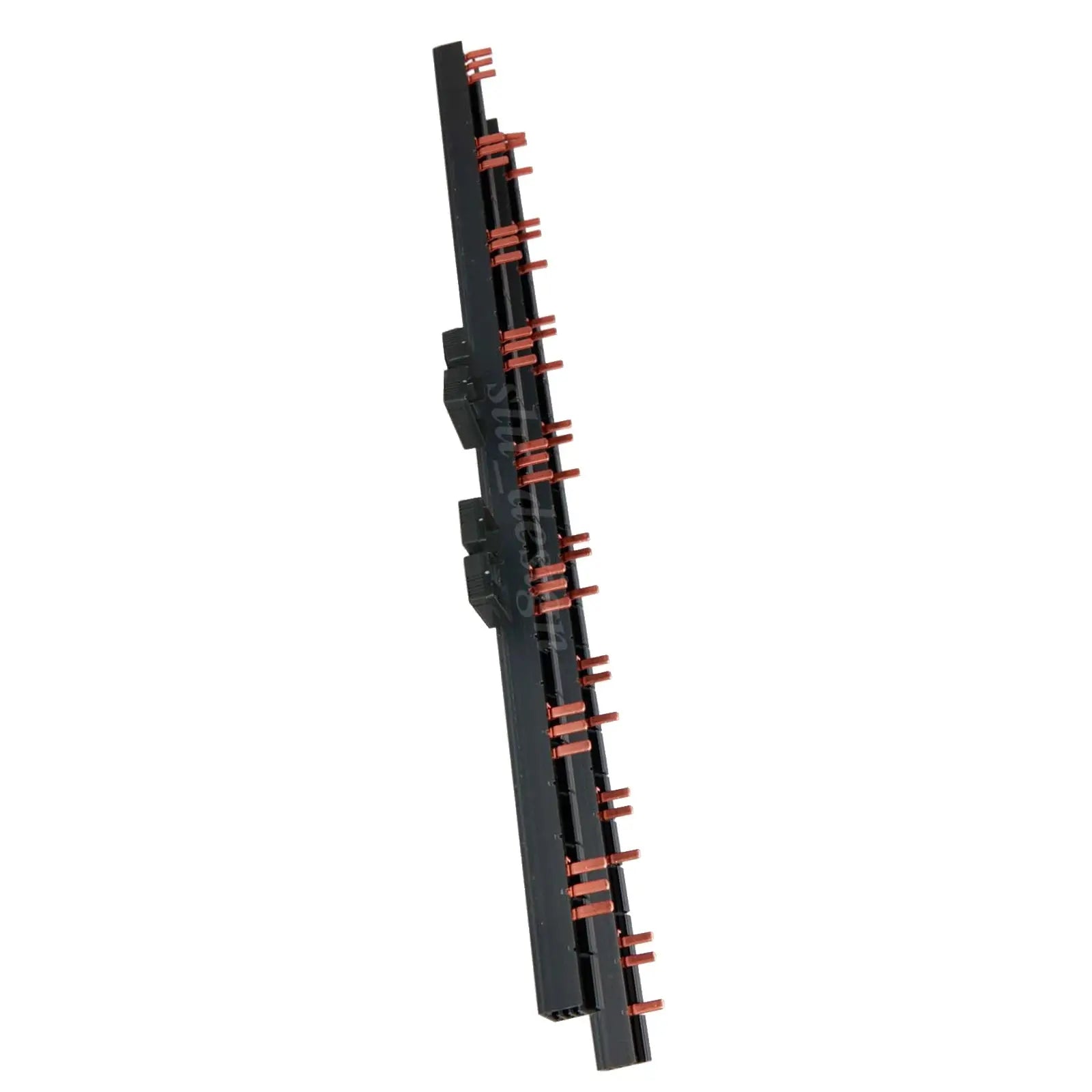

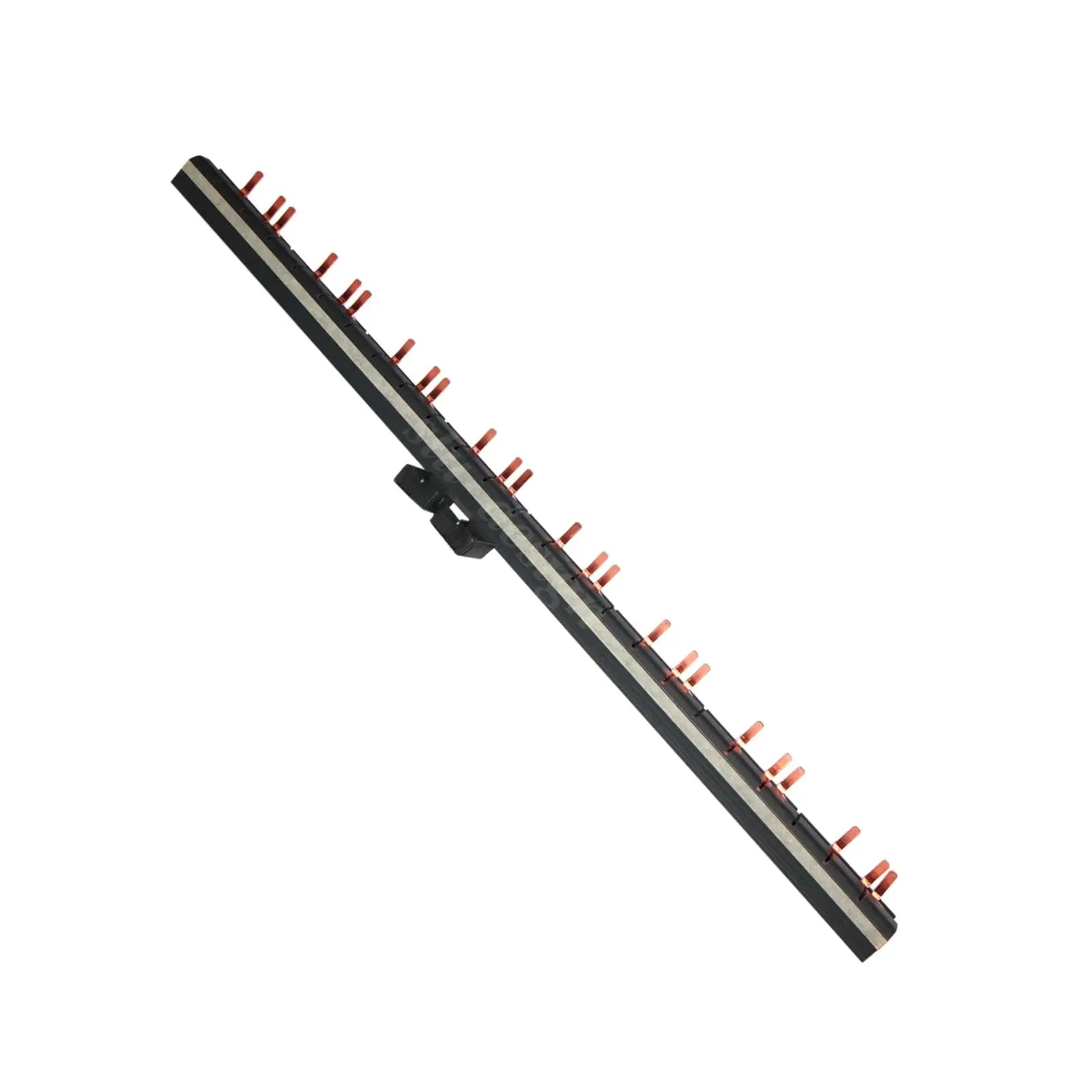

The Merlin Gerin Busbar, model 14893, is a component used in electrical distribution systems to facilitate the connection and distribution of electrical power. In this case, the busbar is configured with 3 poles and 2 rows, providing a total of 24 ways or connection points. Each pole typically represents a phase in a three-phase electrical system, while the rows and ways denote the number of available connection points for devices or circuit breakers.
Busbars play a crucial role in efficiently distributing electrical power within a switchboard or distribution panel. They serve as a common electrical connection for multiple devices, allowing for a neater and more organized installation. The specific configuration of the Merlin Gerin Busbar 14893 with 3 poles and 2 rows makes it suitable for applications where a three-phase distribution is required, and up to 24 circuits or devices need to be connected. This type of busbar is commonly used in industrial and commercial electrical installations to streamline the wiring and enhance the overall reliability of the electrical distribution system.
Merlin Gerlin Busbar 3 Poles 2 Rows 24 Ways 14893 Features:
- Product or Component Type: Comb Busbar
- Accessory / Separate Part Category: Connection Accessory
- Poles Description: 3P
- Number of Ways: 16 Ways 3 L with 18mm Pitch
- Distance Between Way: 54mm
- poles Distribution: L1 L2 L3
- Connector Type: tooth
- Length in 18mm Modules: 24
- [In] Rated Current: Double Feed 100A (40°C), Single Feed 80A (40°C)
- [Ui] Rated Insulation Voltage: 500V Conforming to IEC 664
- Mounting Mode: Horizontal
- 9mm Pitches: 48
