Description

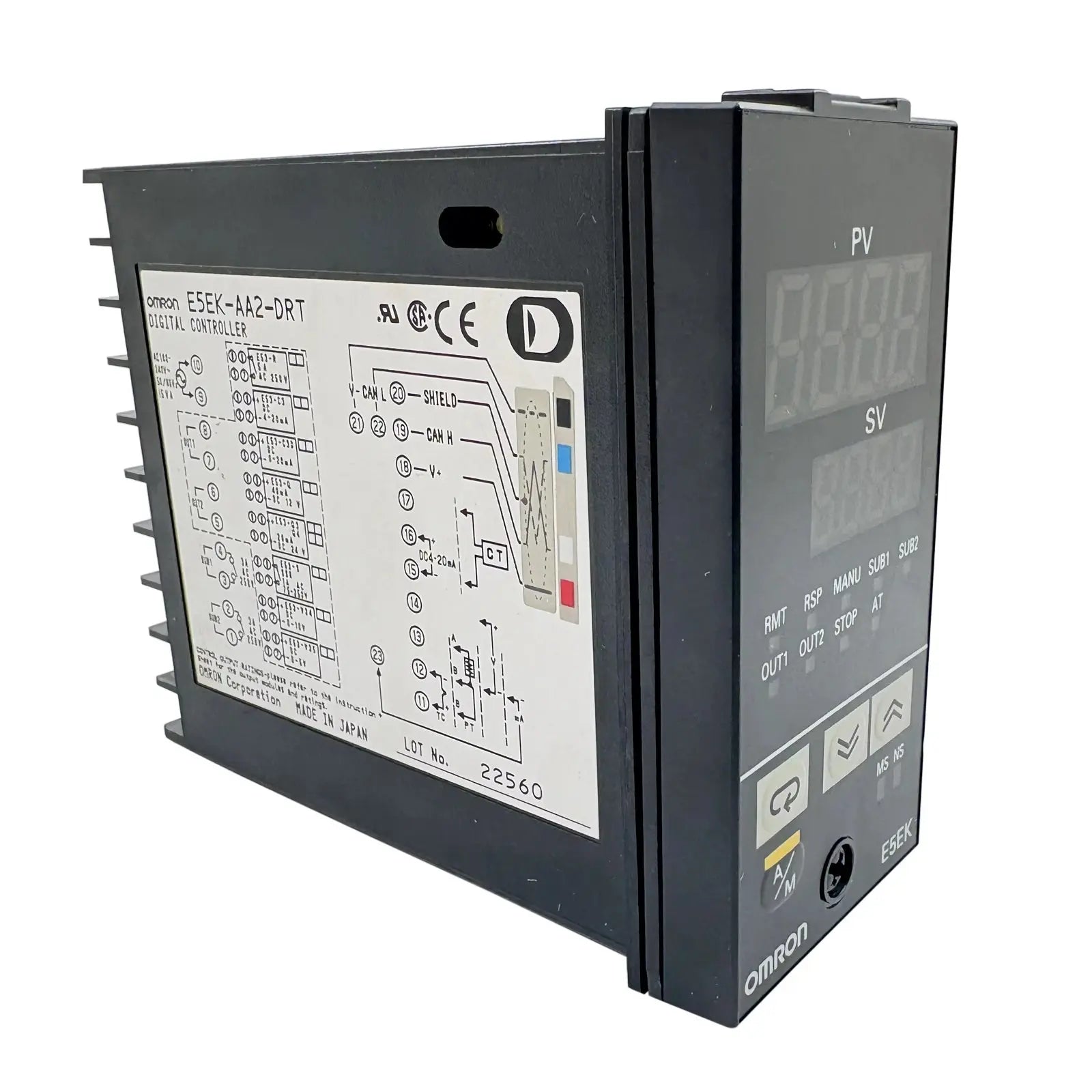

The Omron E5EK-AA2-DRT is a digital temperature controller designed to regulate and control temperature in various industrial processes. Operating on a power supply of 24V AC/DC, this controller provides a versatile solution for applications where precise temperature management is critical. It is equipped with advanced features to ensure accurate temperature control and monitoring.
The E5EK-AA2-DRT temperature controller offers a user-friendly interface for easy programming and monitoring of temperature settings. It can be employed in diverse industrial environments, such as manufacturing, heating systems, or climate control applications. The digital nature of the controller allows for precise temperature adjustments, contributing to the overall efficiency and consistency of industrial processes. With its reliable performance and compatibility with various temperature control systems, the Omron E5EK-AA2-DRT is a trusted solution for applications that demand accurate and stable temperature control.
Omron Digital Temperature Controller 24V ac-dc E5EK-AA2-DRT Features:
- Temperature Controller E5EK-DRT Series
- Size 48 x 96 mm
- Supply voltage - 100 to 240 VAC, 50/60 Hz, 24 VAC/DC
- Operating voltage range - 85% to 110% of rated supply voltage
- Power consumption - 15 VA (100 to 240 VAC), 12 VA (24 VAC), 8 W (24 VDC)
- Input - Thermocouple: K, J, T, E, L, U, N, R, S, B, W, PLII Platinum resistance thermometer: JPt100, Pt100
- Current input: 4 to 20 mA, 0 to 20 mA (Input impedance: 150 Ω)
- Voltage input: 1to5V, 0to5V, 0to10V (Input impedance: 1MΩ)
- Input impedance
- Current input: 150 Ω
- Voltage input: 1 MΩ min.
- Auxiliary output - SPST-NO, 3 A at 250 VAC (resistive load)
- Control method - ON/OFF or advanced PID control (with auto-tuning)
- Setting method - Digital setting using front panel keys
- Indication method - 7-segment digital display and LEDs (Character height: PV: 14 mm, SV: 9.5 mm)
- Control output - According to Output Unit (see Output Unit Ratings and Characteristics) (Attach an Output Unit that is sold separately.)
- Remote SP input - Current input: 4 to 20 mA (Input impedance: 150 Ω)
- Current Transformer input - Connect an exclusive Current Transformer (E54-CT1 or E54-CT3)
- Other functions
- Standard -
- Manual output, heating/cooling control, SP limiter, loop burnout alarm, SP ramp, MV limiter, MV change rate limiter, input digital filter, input shift, run/stop, protect functions
- Option -
- Run/Stop selection, etc.
To set the proper expectation, we use different types of packaging for our products.
A. NEW- Manufacturer Packaging
Products with manufacturer's packaging still intact.
We ship these products as is, using the manufacturer's packaging.
B. NEW (New Never Used) – Custom Packaging
New products with malformed or scraped packaging
When the manufacturer's packaging suffers defects or scrapes during shipping to our warehouse, we replace it with customized packaging to ensure the safety of the products. Rest assured that these products are brand-new, never used, and thoroughly tested before being shipped.
C. USED – In-House
The manufacturer's packaging is no longer available
Used products are shipped using in-house packaging. We guarantee that all used products are tested by our licensed electrical engineers before shipping to ensure they are in good condition and fully functional.
We offer a simple 30-day return policy for your added peace of mind. For questions, contact us.
Important Notice for Customers:
All goods sold on our website must be installed by a suitably qualified person in your area. This ensures the safety and compliance of the installation with local electrical codes, regulations, and standards.
Product Description and Condition:
We strive to provide accurate descriptions and images for all listings. However, unless otherwise specified, images are for illustration and reference purposes only. Some packaging may show signs of wear, such as dust or tears, from shelf storage, but the items inside are unaffected. The products themselves may have minor surface marks, scuffs, or scratches due to handling, which are purely cosmetic and do not impact functionality. Additionally, there may be slight variations in color, printed data, and other details, but the overall size, operation and technical information remains consistent.
For any questions or further information, please contact our customer service team.
