Description

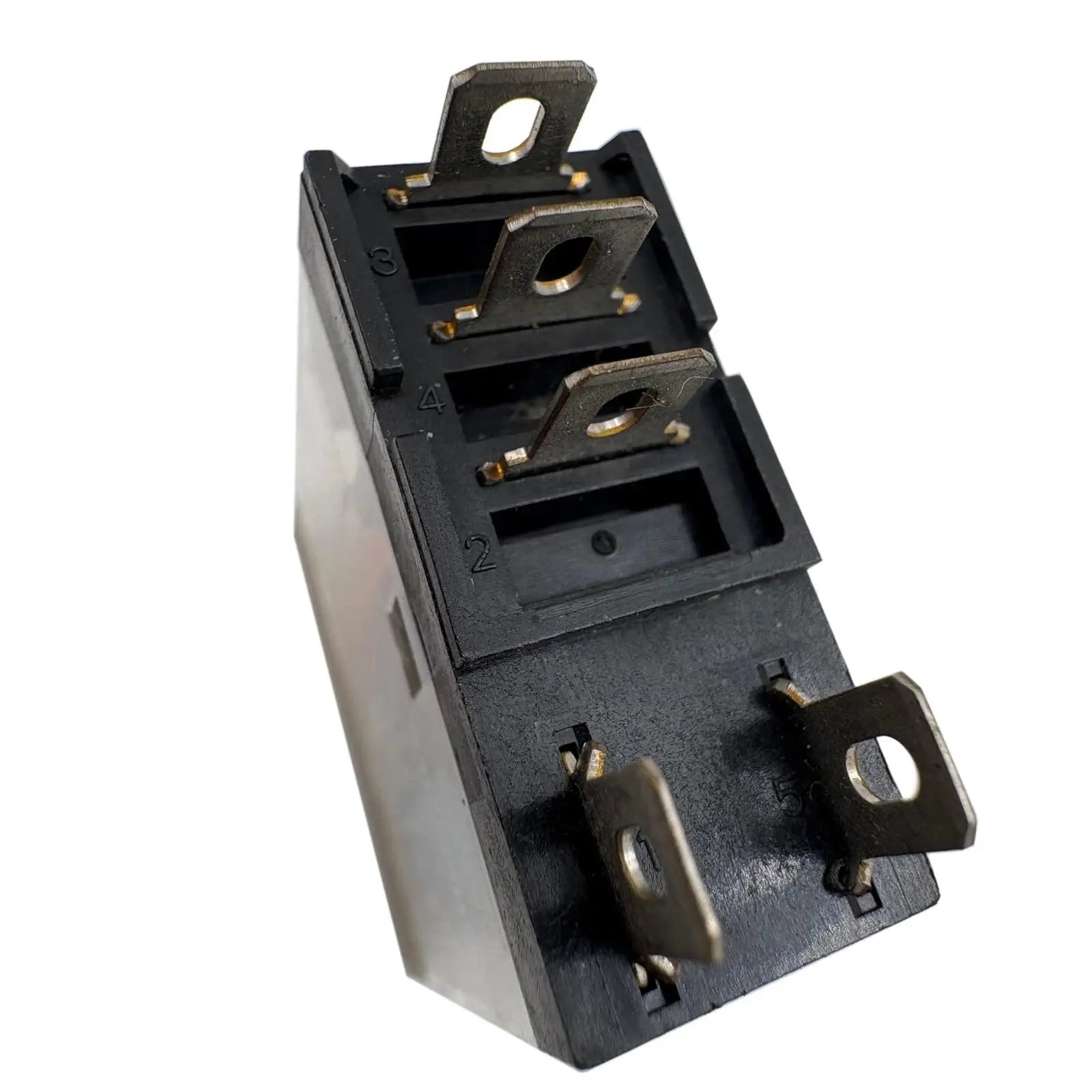

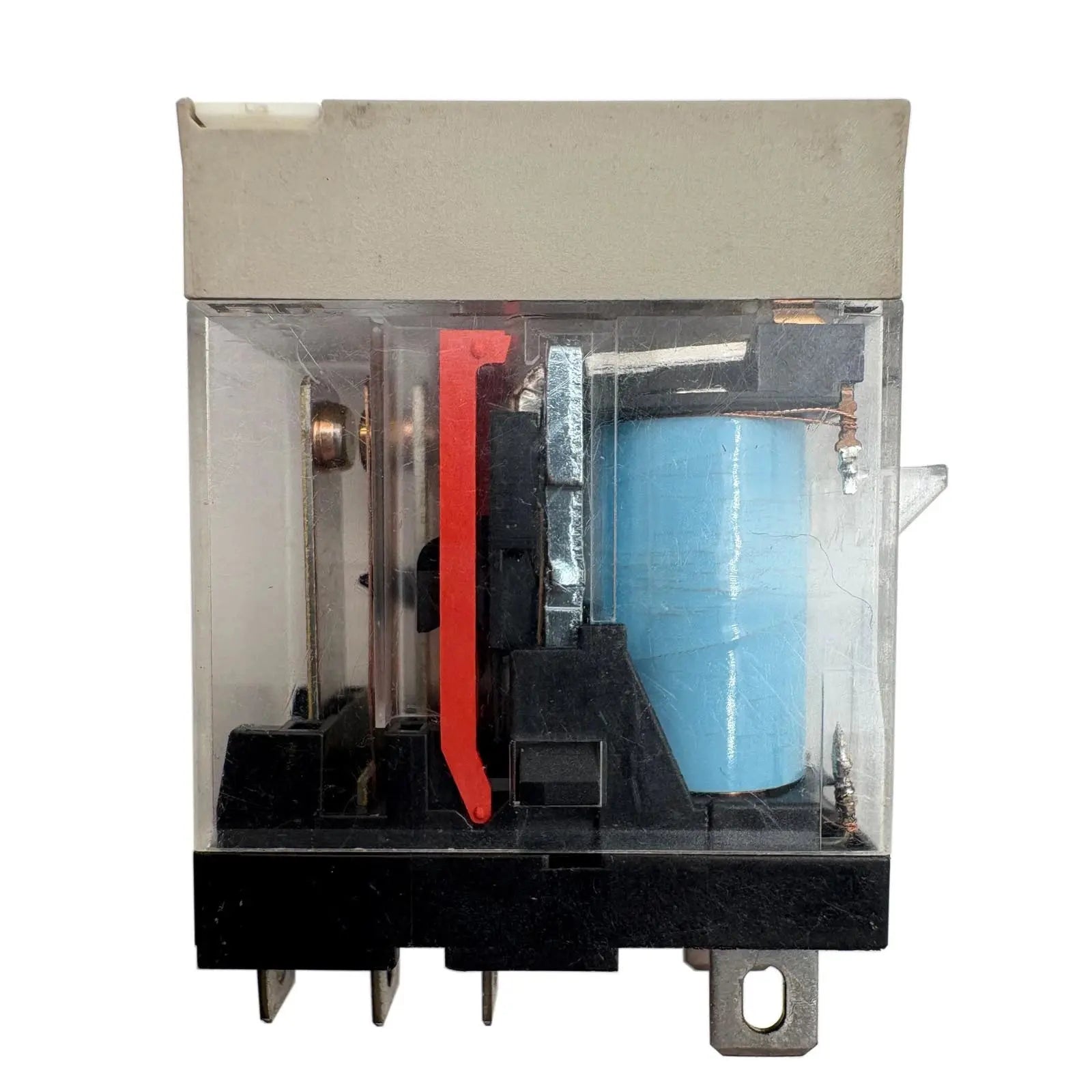

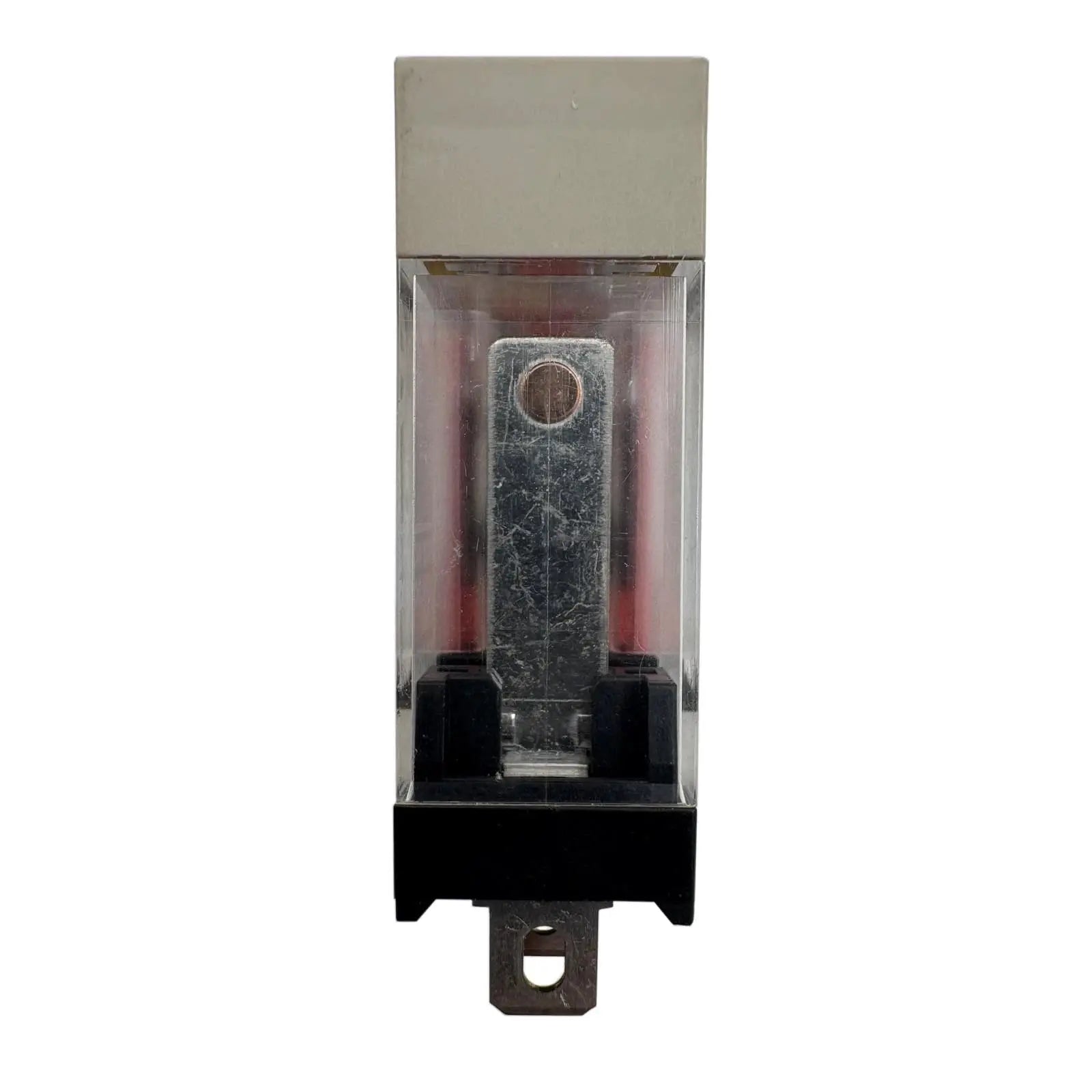

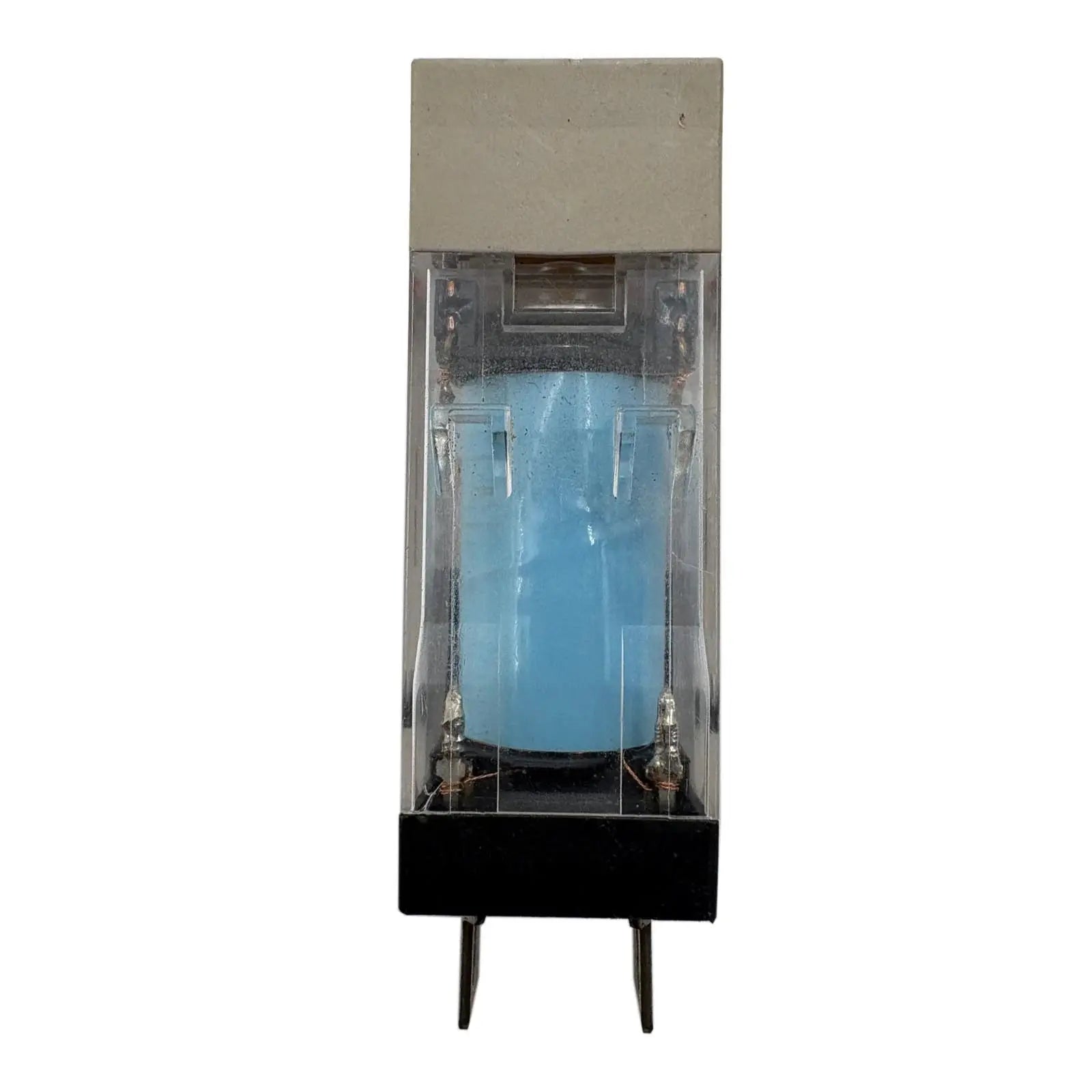

The Omron G2R-1-SN (S) is a non-latching power relay socket designed to accommodate the G2R-1-SN (S) relay, forming a reliable switching solution for industrial control applications. With a single-pole, double-throw (SPDT) configuration and a coil voltage of 24VDC, this relay socket is suitable for circuits operating with this voltage, providing a secure and organized connection within control panels.
The SPDT configuration allows the G2R-1-SN (S) relay socket to control one circuit with two different positions, offering flexibility in various industrial automation scenarios. With a 10A contact rating, the relay socket is capable of handling moderate electrical loads, contributing to its suitability for applications such as motor control, lighting systems, and other control panels requiring dependable switching solutions. The blue color of the G2R-1-SN (S) relay socket aligns with the distinctive color-coding of Omron's relay series, providing visual identification and enhancing the organization within control panels. Together, the G2R-1-SN (S) relay and its matching socket reflect Omron's commitment to providing high-quality and visually identifiable components for industrial control and automation systems.
Omron Power Relay Socket Non Latching Blue SPDT 24VDC 10A G2R-1-SN (S) Features:
- Coil Voltage:24VDC
- Contact Configuration: SPDT
- Mounting Type: Plug In
- Switching Current: 10A
- Latching: No
- Number of Poles: 1
- Terminal Type: Plug In
- Coil Resistance: 26.85 kΩ
- Coil Power: 900mW
- Maximum Switching Voltage AC: 380V ac
- Maximum Switching Voltage DC: 125V dc
- Length: 29mm
- Isolation Coil to Contact: 5kV ac
- Height: 29mm
- Depth: 13mm
- Series: G2R-1
- Application: Power
- Maximum Switching Power DC: 300 W
- Maximum Switching Power AC: 2.5 kVA
