Description

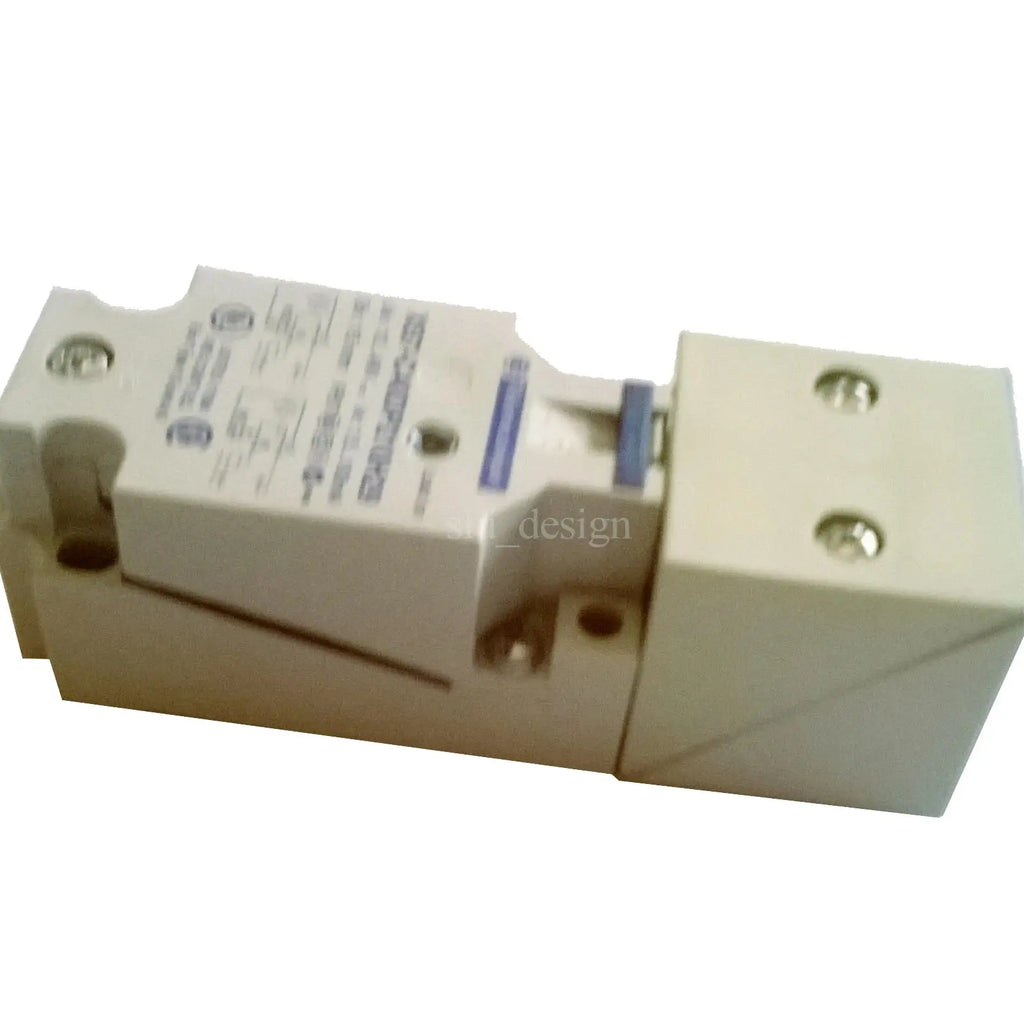

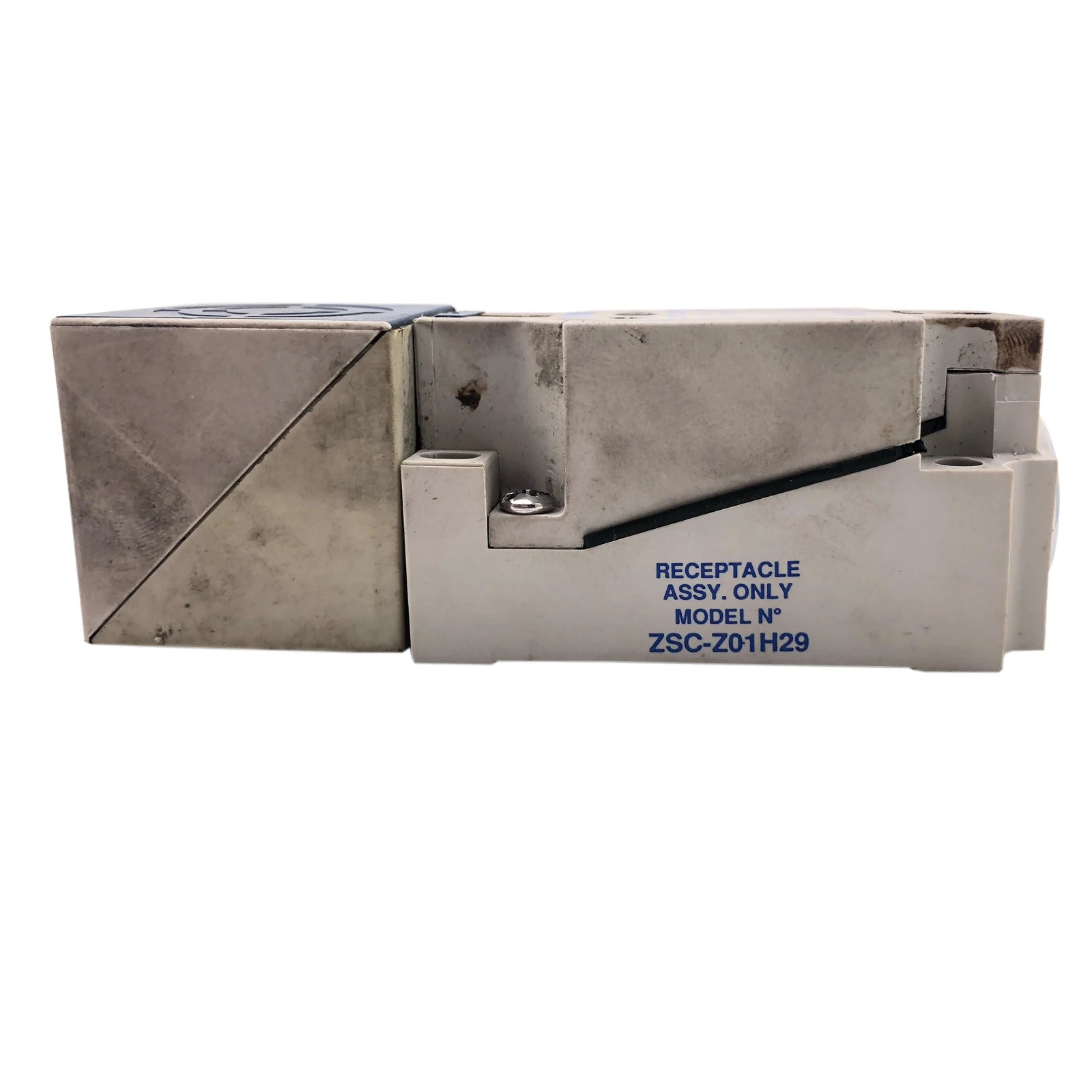

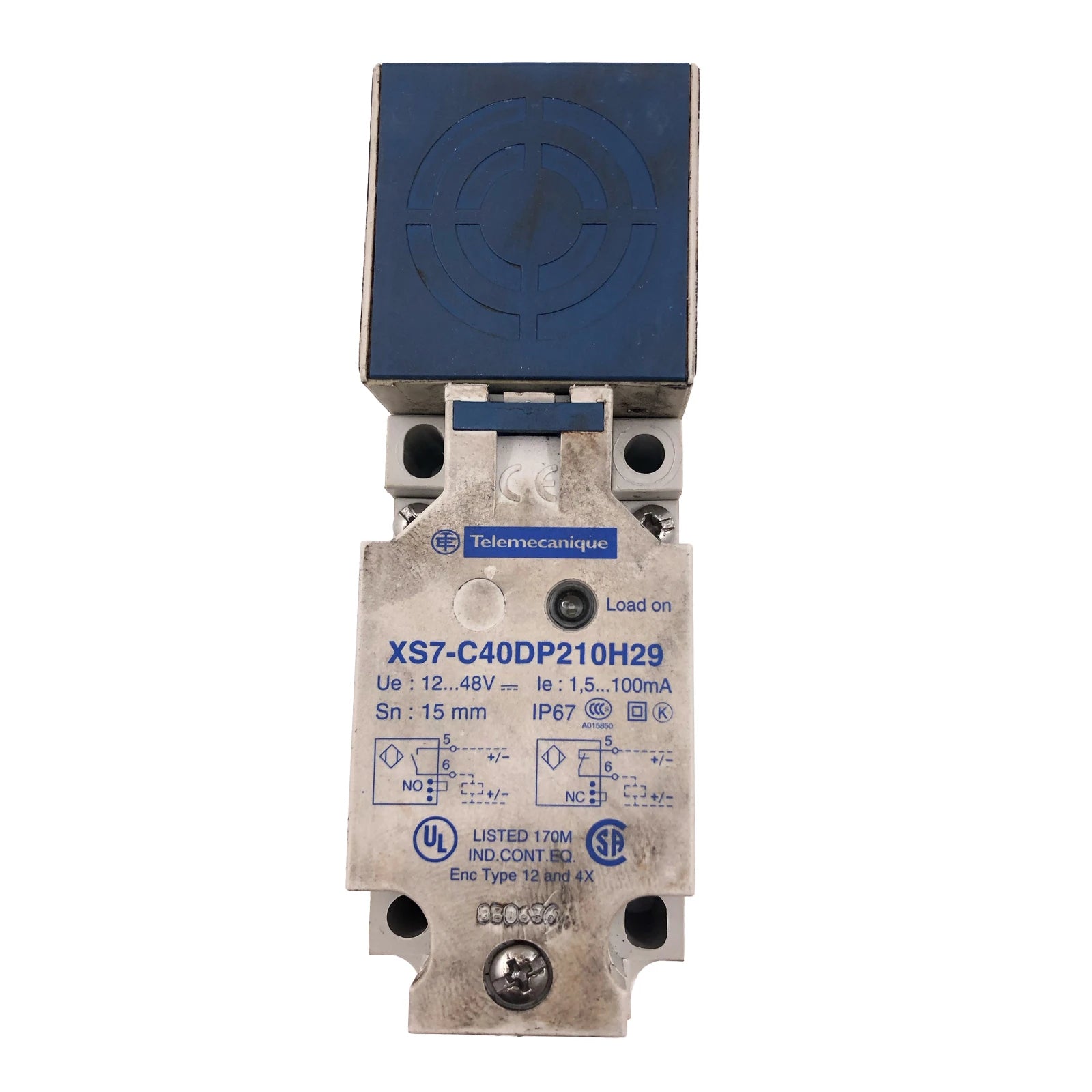

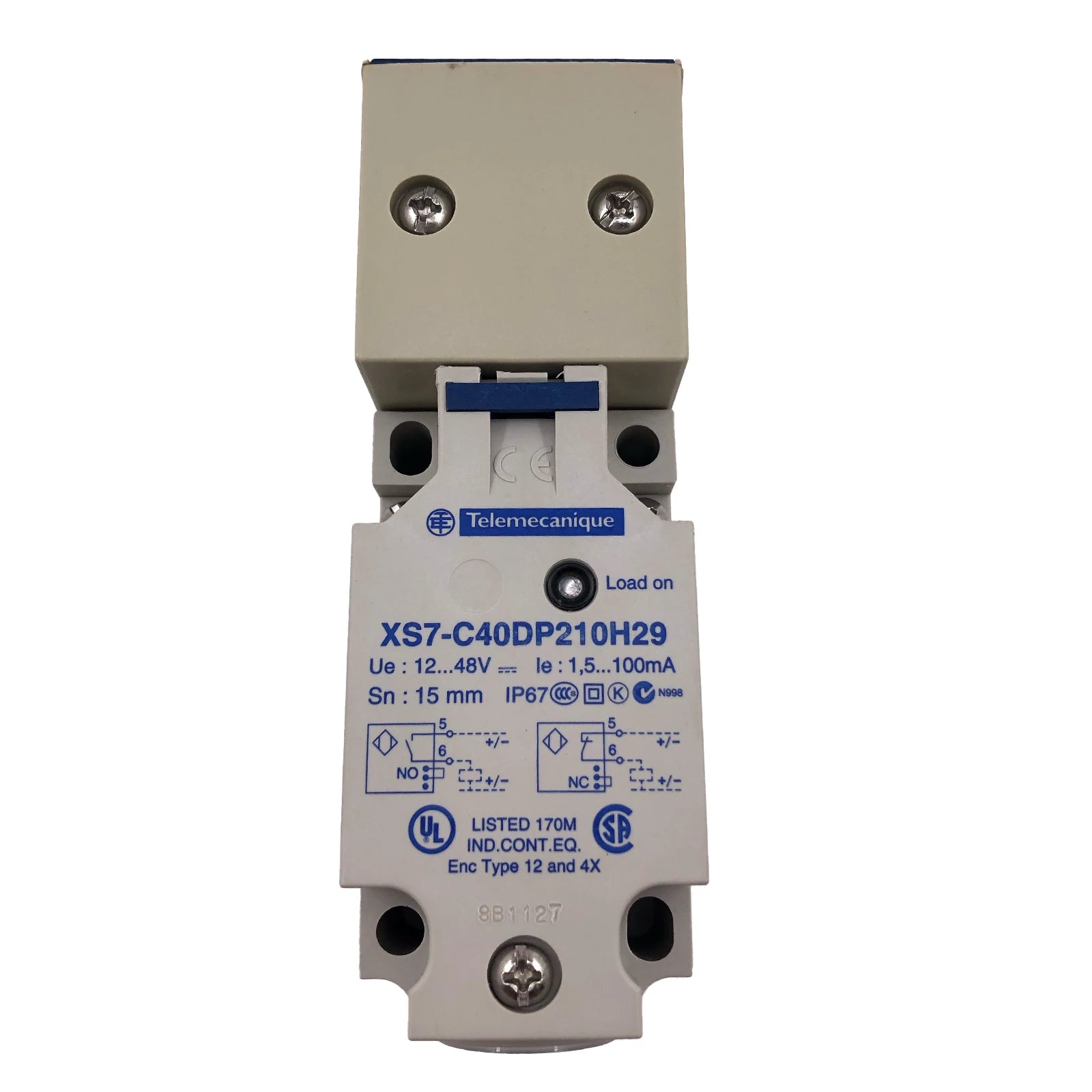

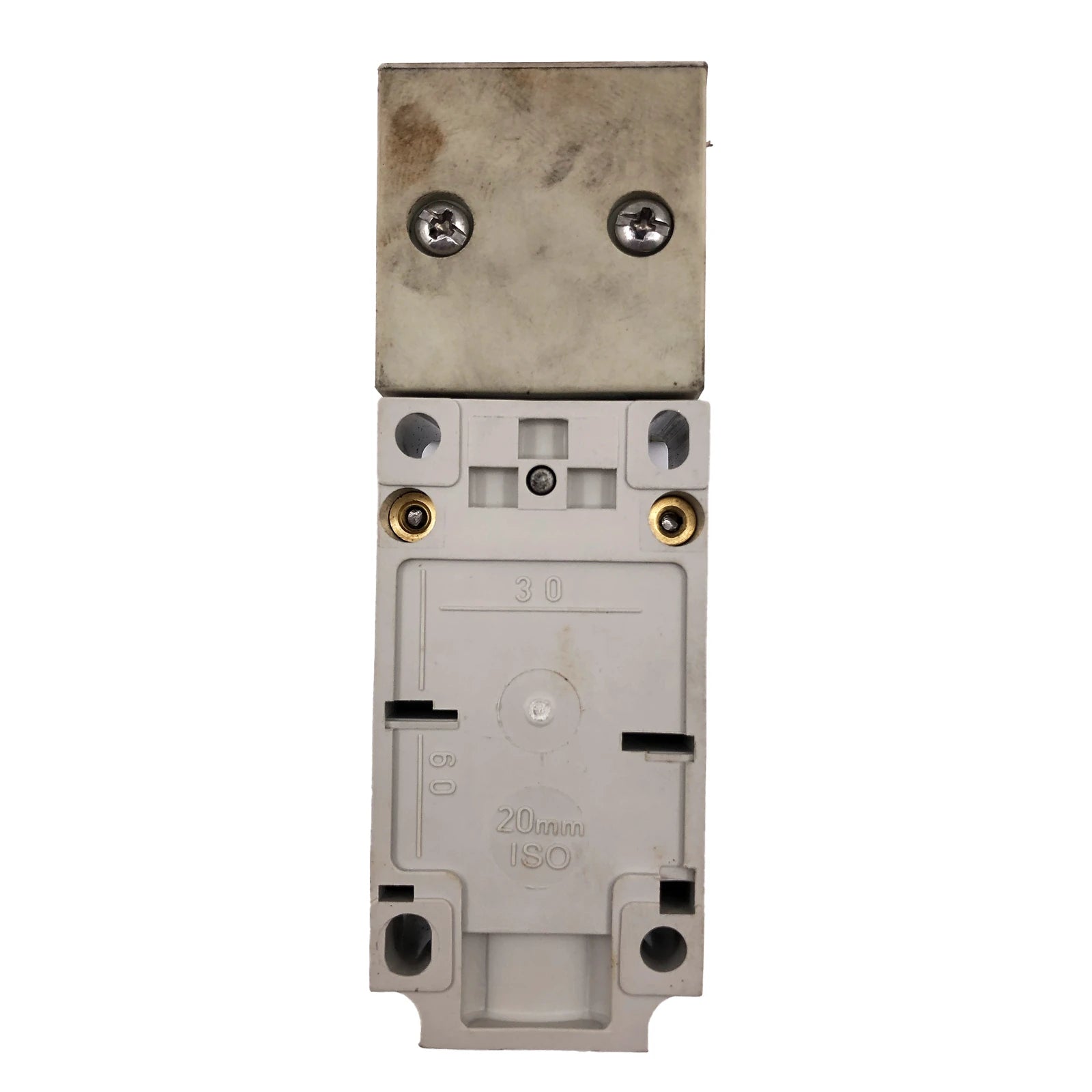

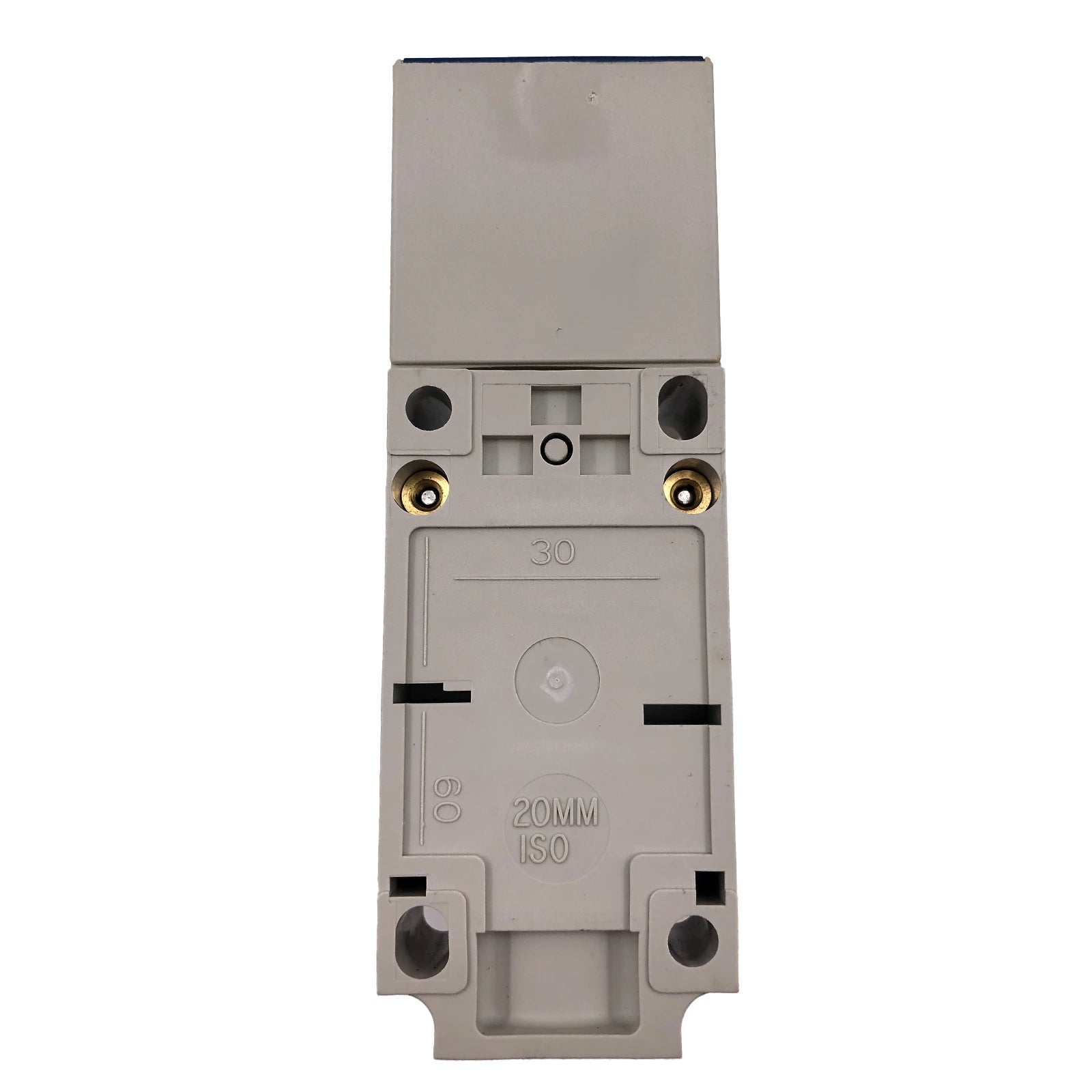

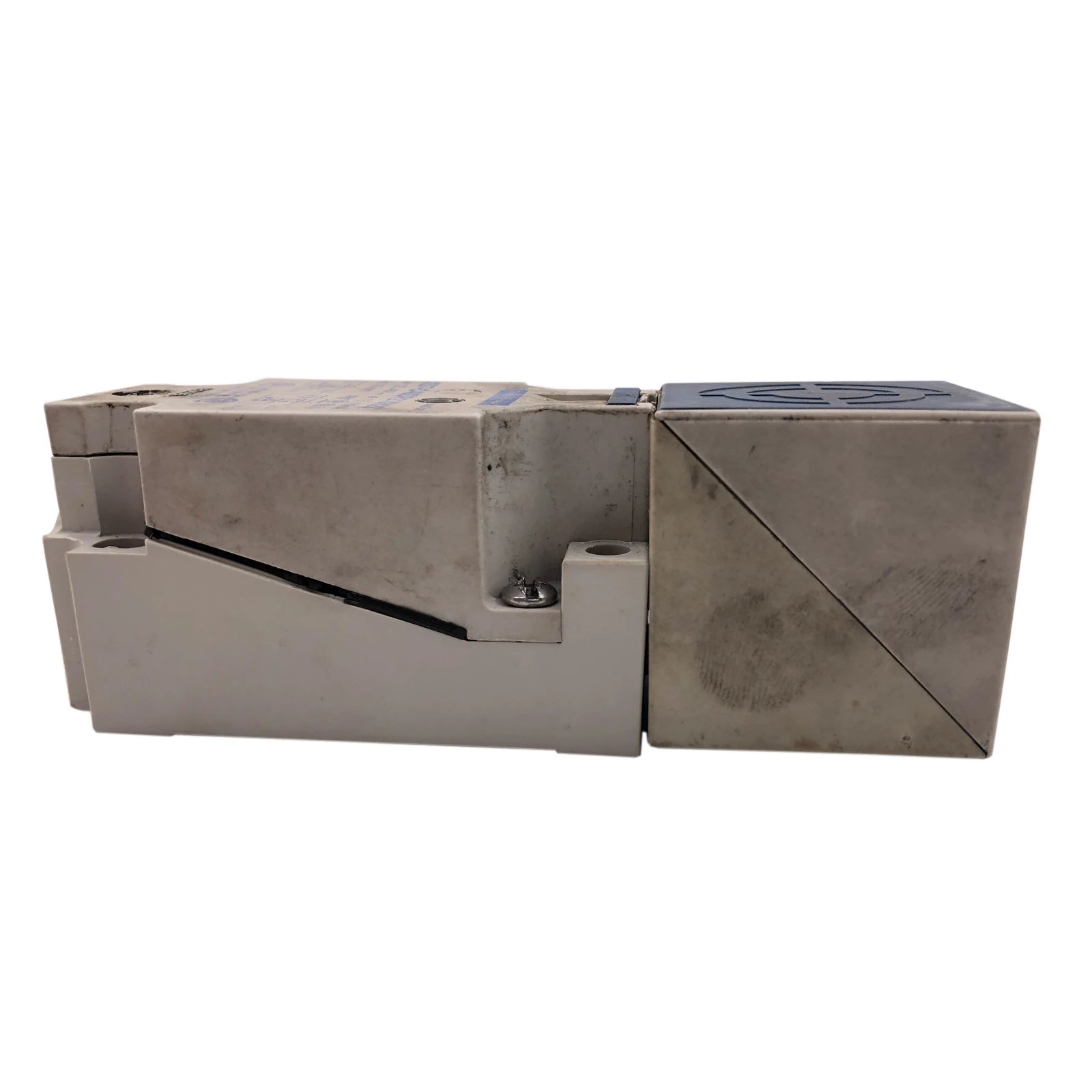

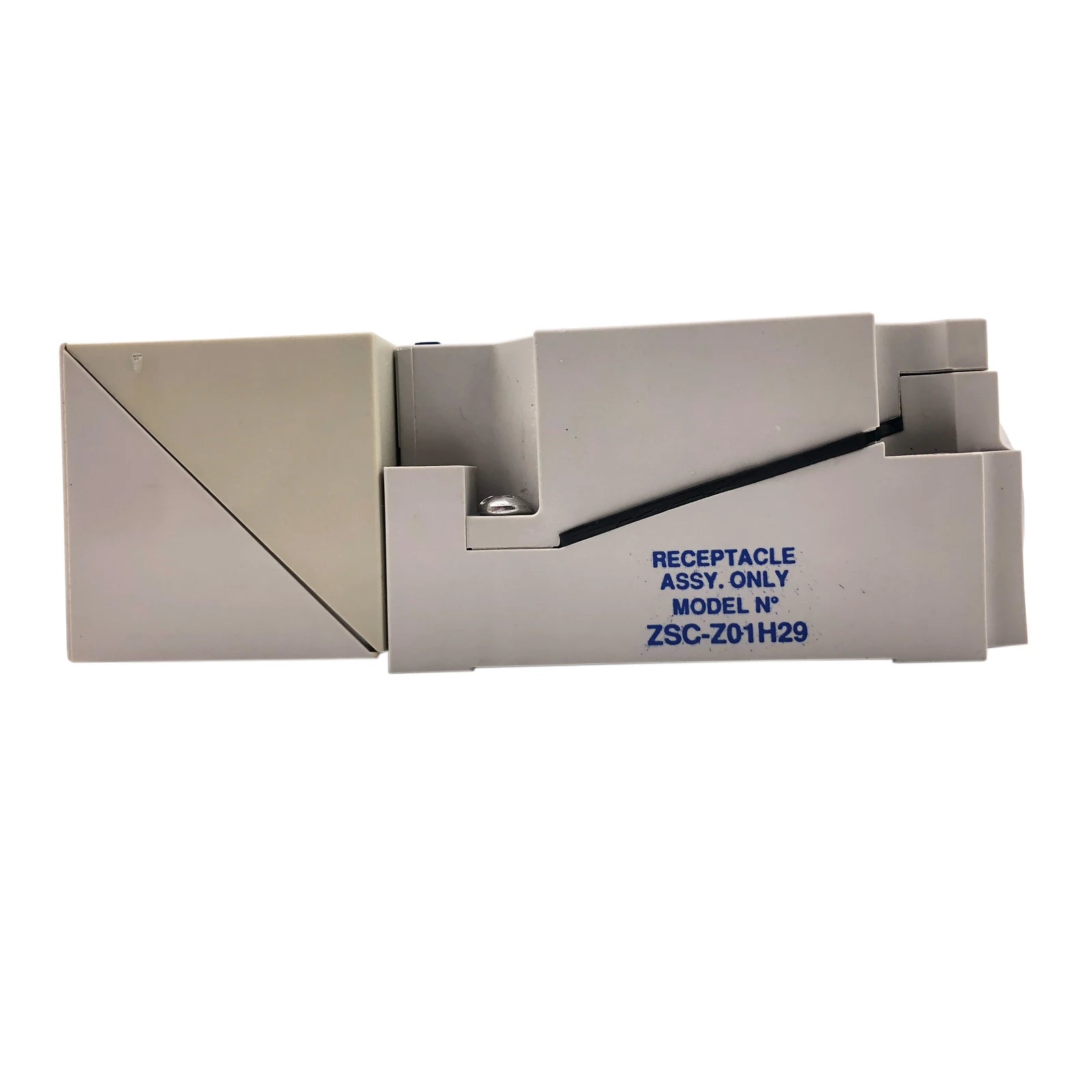

The Schneider Electric / Telemecanique Inductive Sensor is a cutting-edge industrial electrical device designed for precision sensing applications. Operating at 24 Vdc with a current of 200mA, the XS7-C40DP210H29 model offers reliable performance in various industrial settings. Crafted with high-quality materials, including durable plastic, this inductive sensor ensures longevity and resilience in demanding environments.
With additional customizable options, the XS7-C40DP210H29 provides flexibility to meet specific industrial requirements. Its advanced features make it a versatile solution for applications requiring accurate and efficient sensing capabilities. Trust Schneider Electric / Telemecanique for industrial-grade electrical components that deliver superior performance and durability in every application.
Schneider Electric / Telemecanique Inductive Sensor 24 Vdc 200ma XS +Options Plastic XS7-C40DP210H29 Features:
- Range of product: Telemecanique Inductive proximity sensors XS
- Series name: General purpose
- Sensor type: Inductive proximity sensor
- Sensor name: XS7
- Sensor design: Form 40 x 40 x 117
- Size: 117 mm
- Body type: Fixed
- Detector flush mounting acceptance: Flush mountable
- Material: Plastic
- Enclosure material: Plastic
- Type of output signal: Discrete
- Wiring technique: 2-wire
- [Sn] nominal sensing distance: 15 mm
- Discrete output function: 1 NO or 1 NC programmable
- Output circuit type: DC
- Electrical connection: Screw-clamp terminals, 2 x 1.5 mm²
- [Us] rated supply voltage: 12...48 V DC with reverse polarity protection
- Switching capacity in mA: 1.5...100 mA with overload and short-circuit protection
- IP ° of protection: IP67 conforming to IEC 60529
- Detection face: 5 positions turret head
- Front material: Plastic
- Operating zone: 0…12 mm
- Differential travel: 3...20% of Sr
- Repeat accuracy: <= 3% of Sr

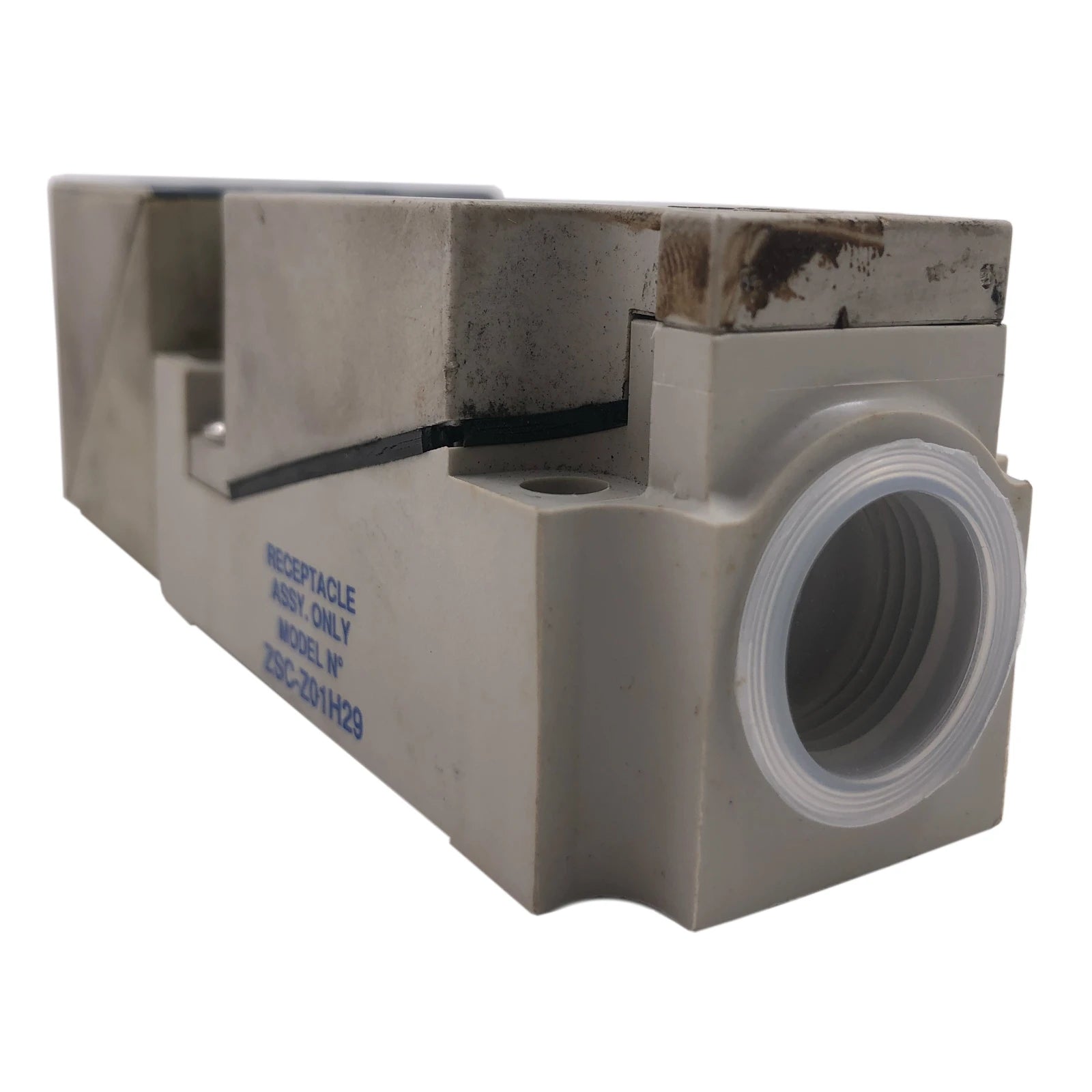

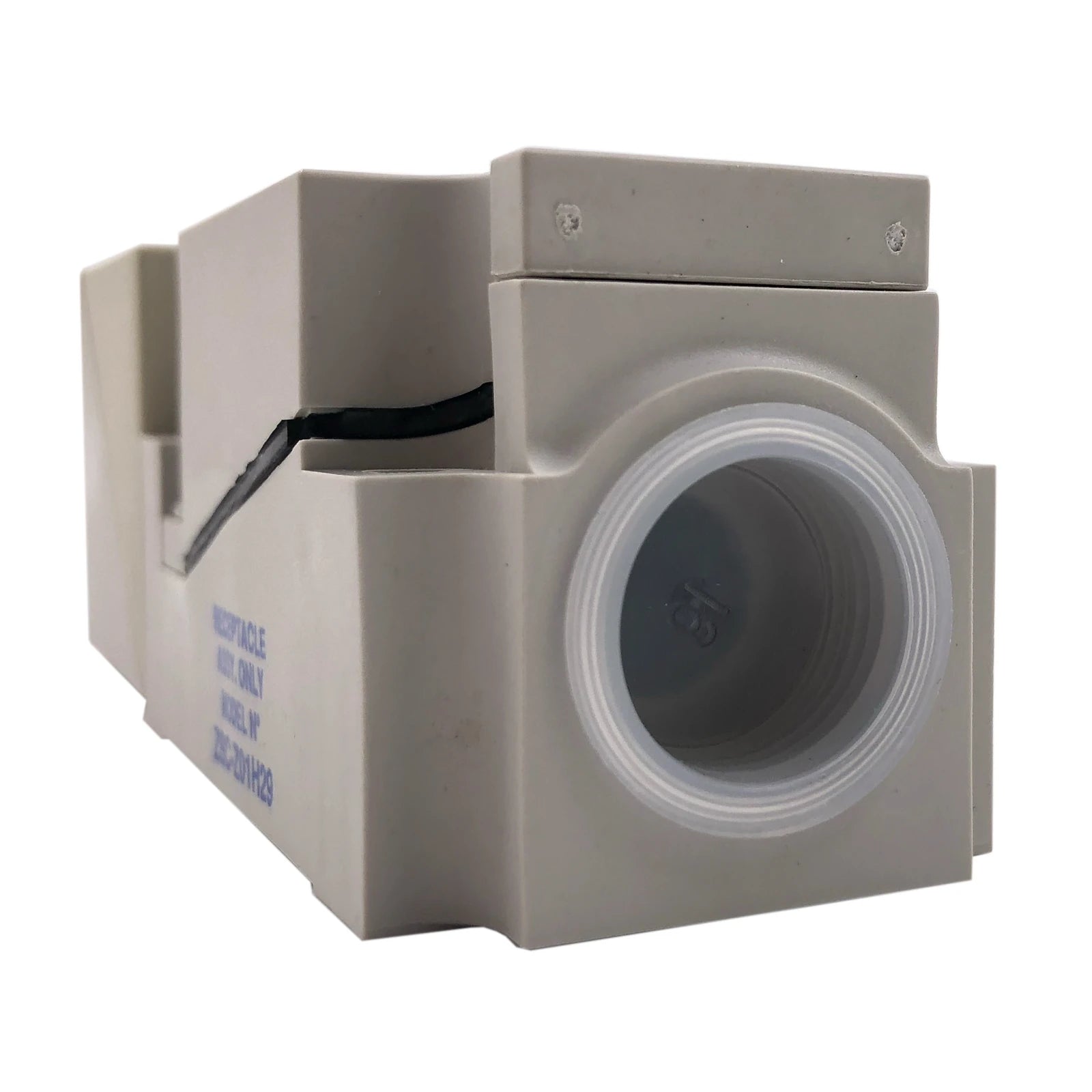

- Cable entry number: 1 tapped entry for M20 x 1.5 cable gland
- Status LED: Output state: 1 LED (yellow)
- Supply voltage limits: 10…58 V DC
- Maximum residual current: 0.5 mA open state
- Switching frequency: <= 1500 Hz
- Maximum voltage drop: <4 V (closed)
- Maximum delay first up: 5 ms
- Maximum delay response: 2 ms
- Maximum delay recovery: 5 ms
- Marking: CE
- Height: 40 mm
- Length: 40 mm
- Width: 117 mm
To set the proper expectation, we use different types of packaging for our products.

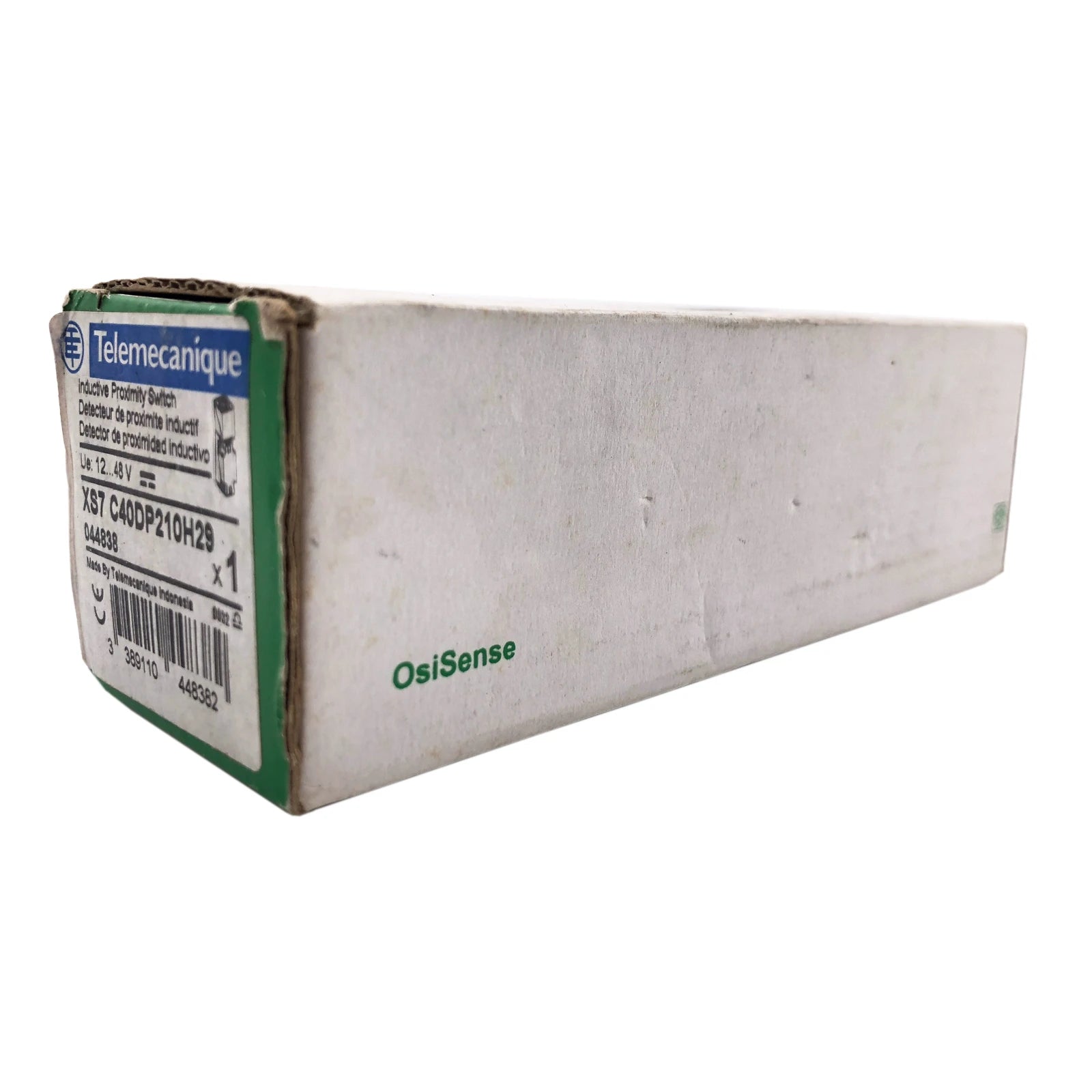

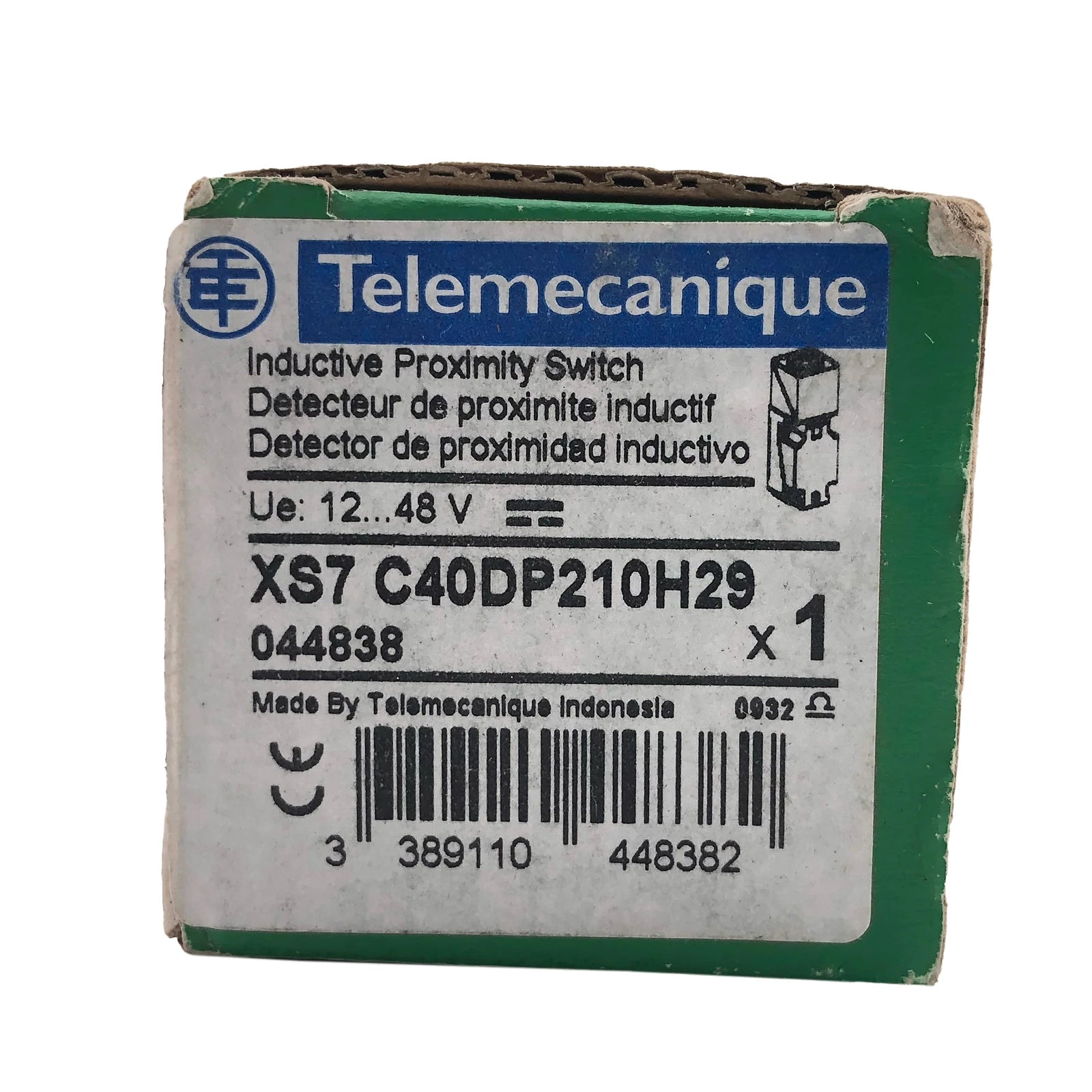

A. NEW- Manufacturer Packaging
Products with manufacturer's packaging still intact.
We ship these products as is, using the manufacturer's packaging.
B. NEW (New Never Used) – Custom Packaging
New products with malformed or scraped packaging
When the manufacturer's packaging suffers defects or scrapes during shipping to our warehouse, we replace it with customized packaging to ensure the safety of the products. Rest assured that these products are brand-new, never used, and thoroughly tested before being shipped.
C. USED – In-House
The manufacturer's packaging is no longer available
Used products are shipped using in-house packaging. We guarantee that all used products are tested by our licensed electrical engineers before shipping to ensure they are in good condition and fully functional.
We offer a simple 30-day return policy for your added peace of mind. For questions, contact us.
Important Notice for Customers:
All goods sold on our website must be installed by a suitably qualified person in your area. This ensures the safety and compliance of the installation with local electrical codes, regulations, and standards.
Product Description and Condition:
We strive to provide accurate descriptions and images for all listings. However, unless otherwise specified, images are for illustration and reference purposes only. Some packaging may show signs of wear, such as dust or tears, from shelf storage, but the items inside are unaffected. The products themselves may have minor surface marks, scuffs, or scratches due to handling, which are purely cosmetic and do not impact functionality. Additionally, there may be slight variations in color, printed data, and other details, but the overall size, operation and technical information remains consistent.
For any questions or further information, please contact our customer service team.
