Description
Introducing the Sprecher + Schuh NHP DOL Motor Starter CAT7N-5.5P with Contactor 3-Pole CA7-12-10, a cutting-edge solution for industrial electrical applications. Engineered with precision and reliability in mind, this motor starter is designed to meet the demanding requirements of industrial settings. The NHP DOL Motor Starter Features: a robust 3-pole CA7-12-10 contactor, ensuring efficient and secure electrical connections for motor control.
Equipped with a CAT7N-5.5P starter, this system delivers optimal performance in motor-driven applications. With advanced Features: such as overload protection and a compact design, the Sprecher + Schuh NHP DOL Motor Starter provides a reliable and efficient solution for industrial electrical control. Trust in the quality and durability of this motor starter to enhance the safety and efficiency of your industrial processes, setting a new standard for excellence in electrical control systems.

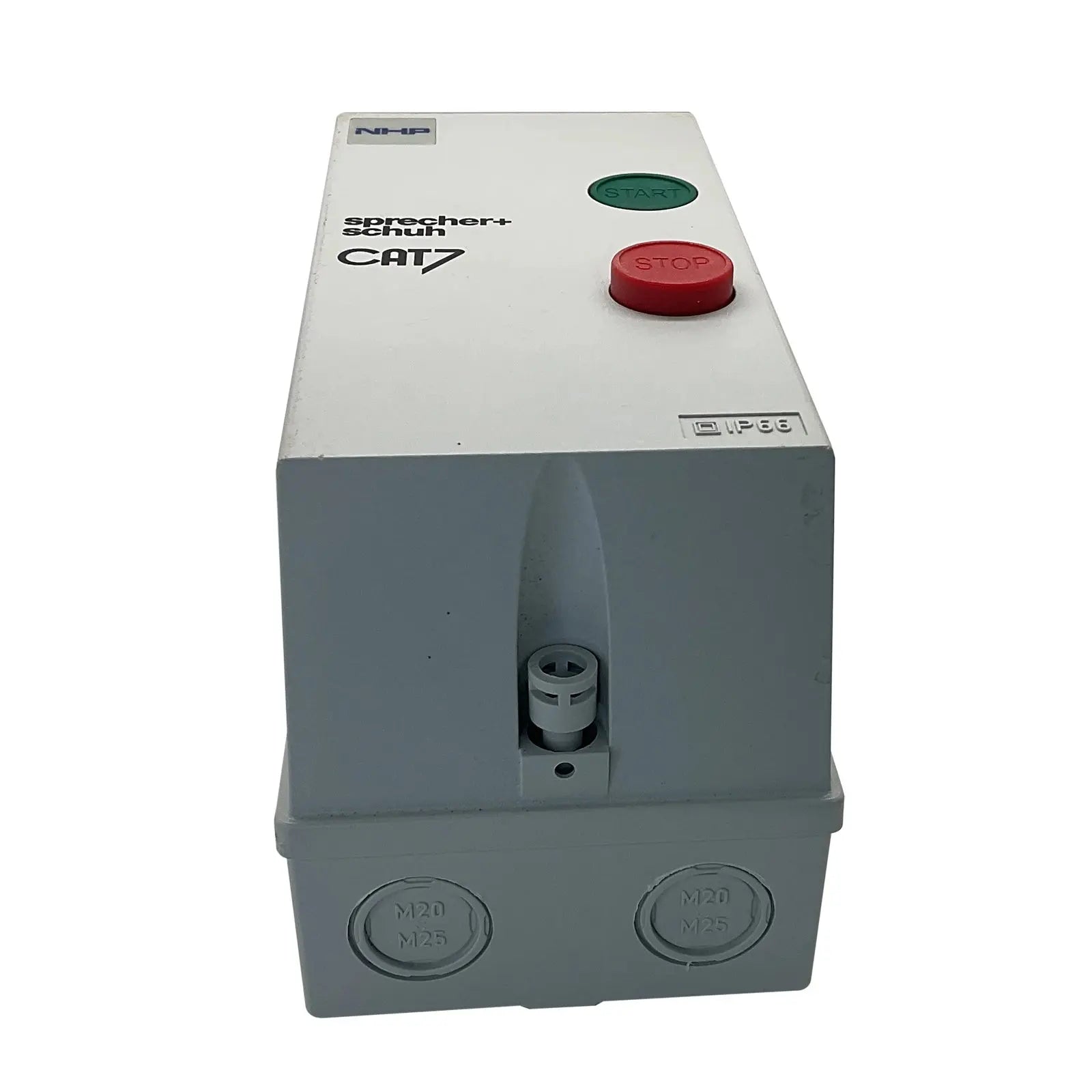

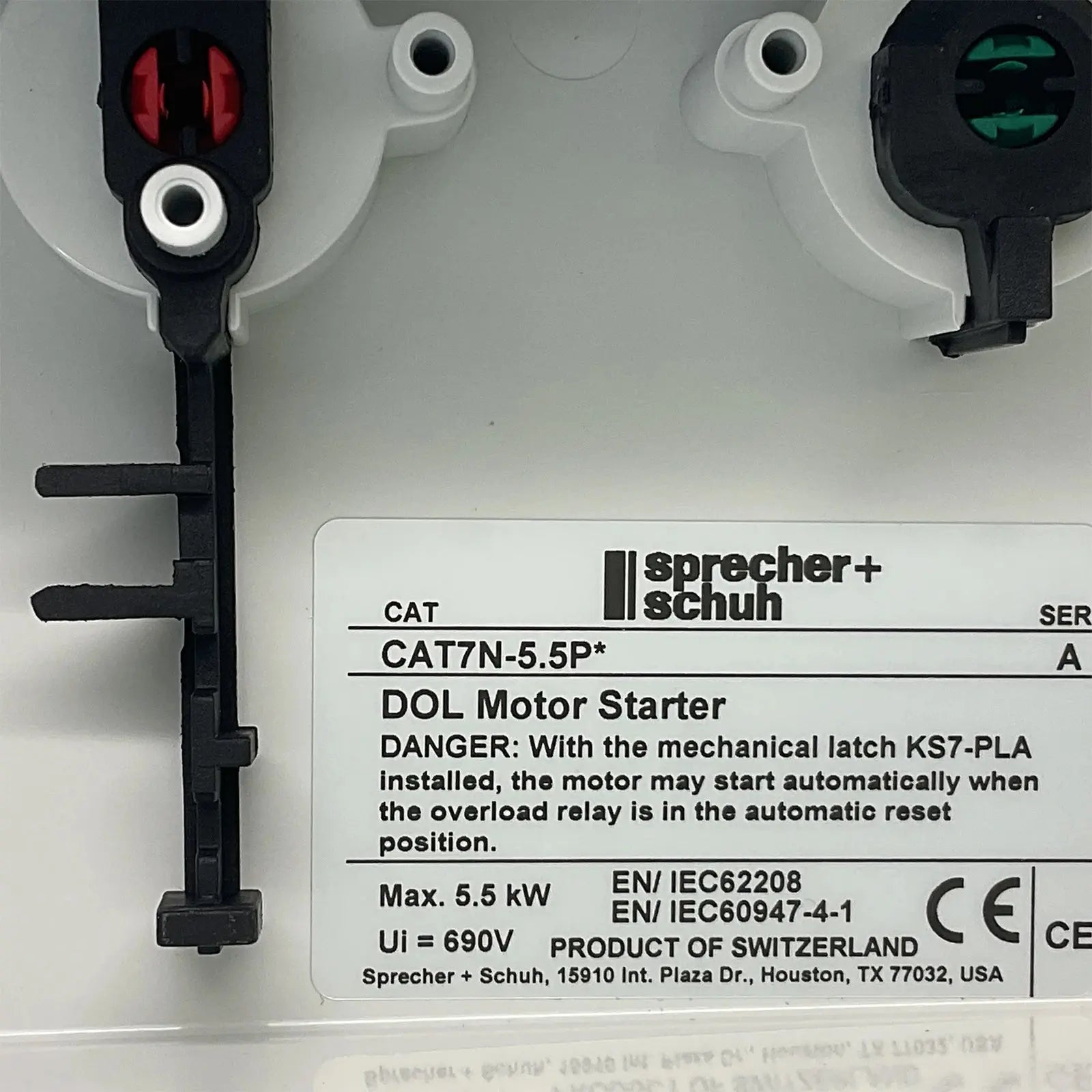

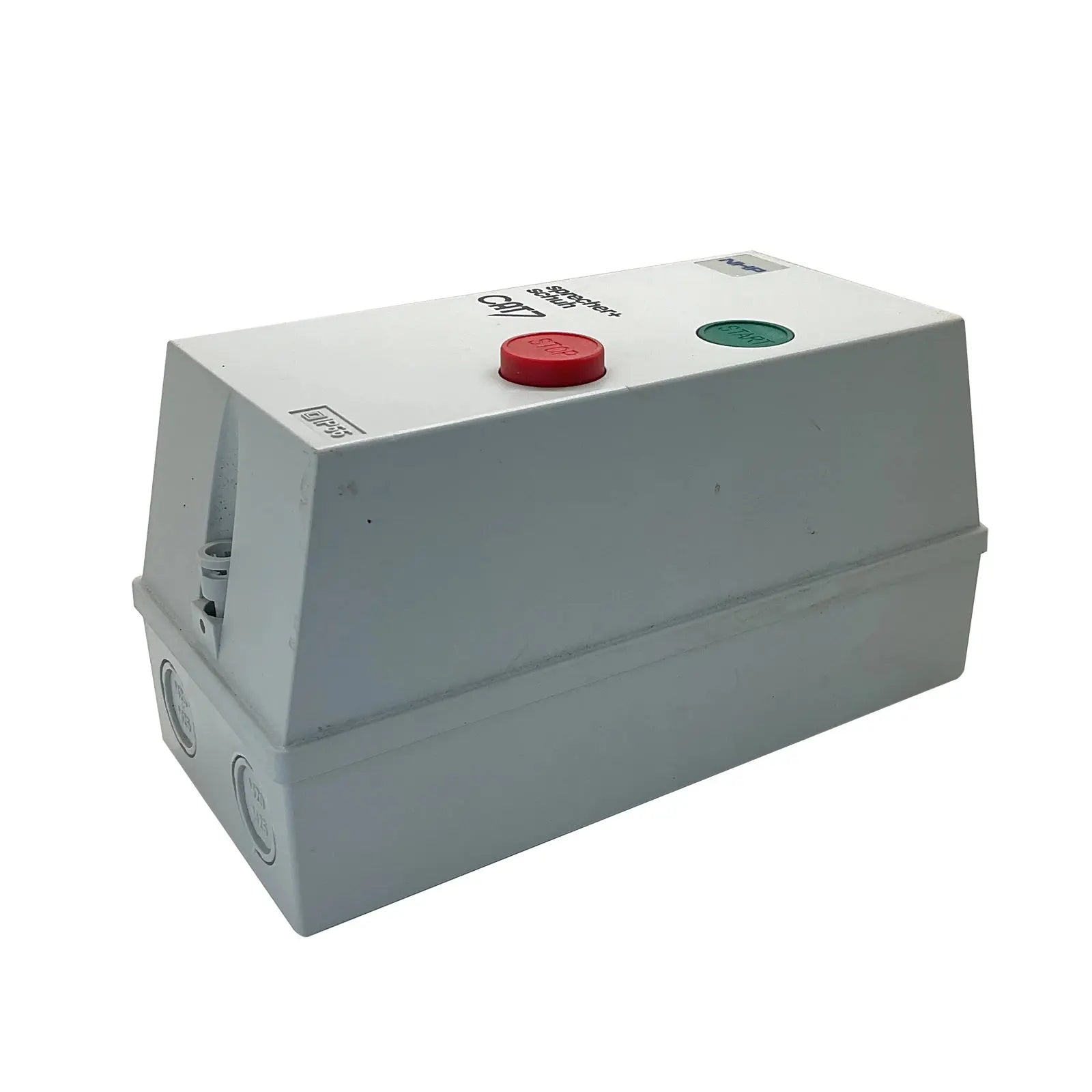

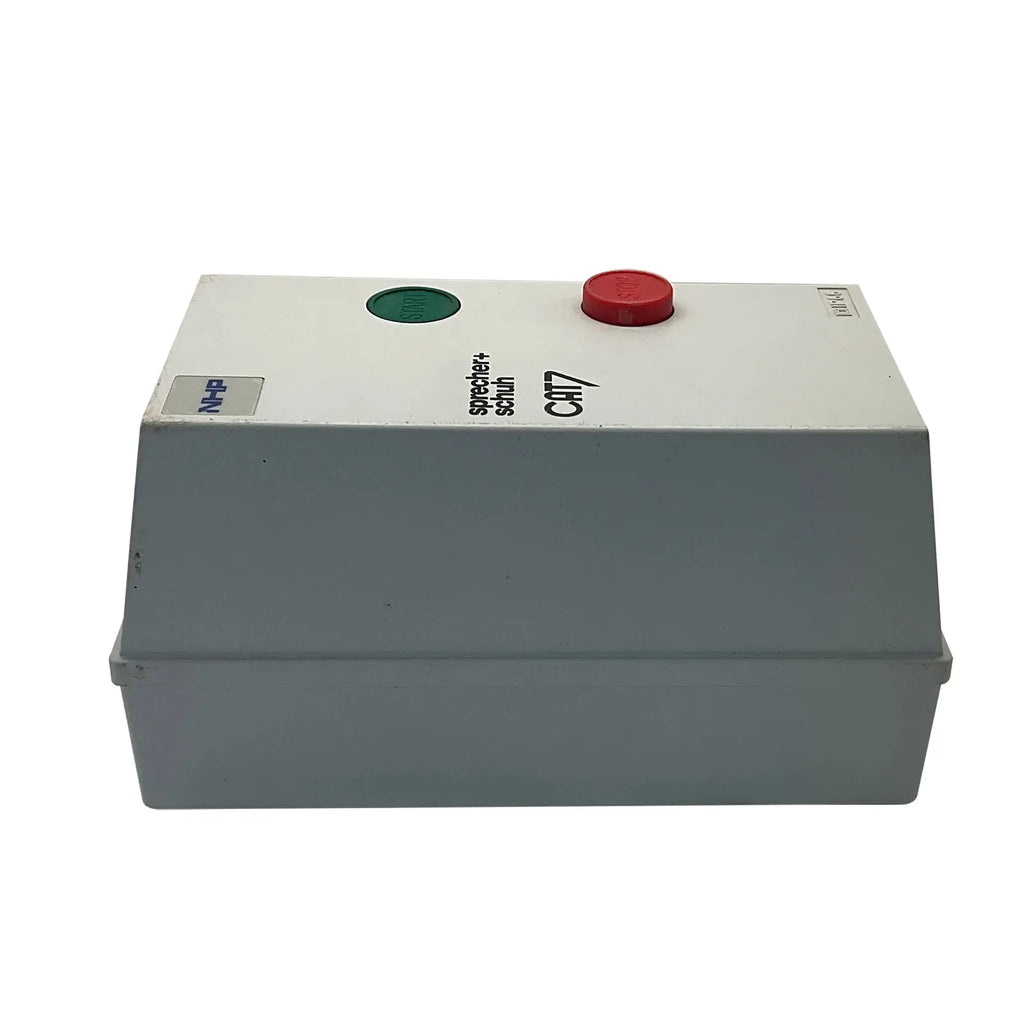

DOL Motor Starter CAT7N-5.5P
Sprecher + Schuh NHP DOL Motor Starter CAT7N-5.5P with Contactor 3-Pole CA7-12-10 Features:
- Insulated IP66 enclosure for high ingress protection.
- Complete with choice of stop, start and reset pushbuttons to match your application requirements.
- 11 to 18.5kW: low heat dissipation from included CEP7 electronic overload for minimum cooling.
- 5.5 to 7.5kW: choice of CT7N thermal overload or CEP7-E electronic overload (ordered separately).
Specifications:
- Product Type: Main Product
- Approx. kW (AC 3, 400/415 V AC): 5.5

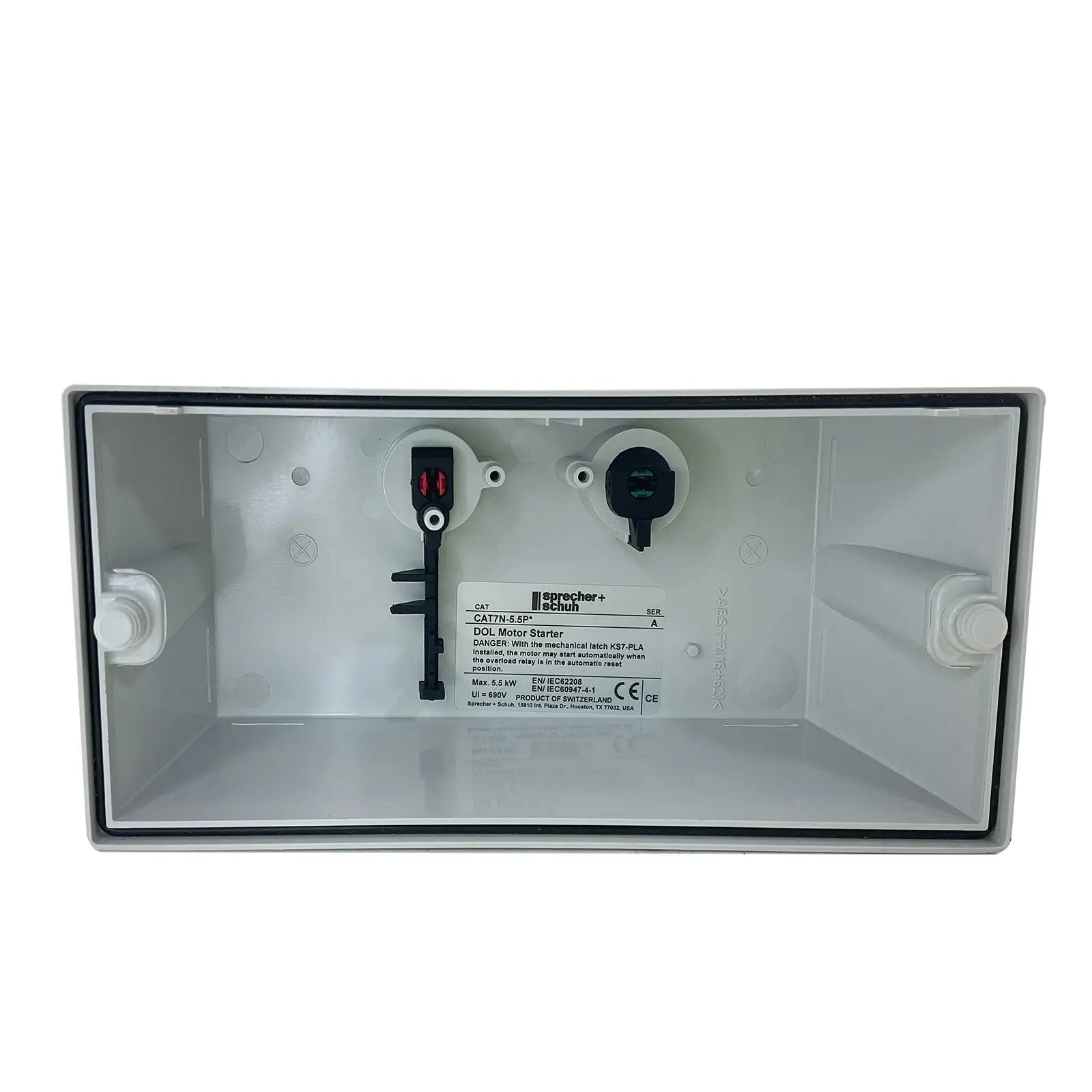

- Enclosure Type: Insulated polycarbonate enclosed (IP 66)
- Setting Range (Amps): 0.1...12.5
- Motor Connection: 3 wire
- Control Voltage: 415 V AC

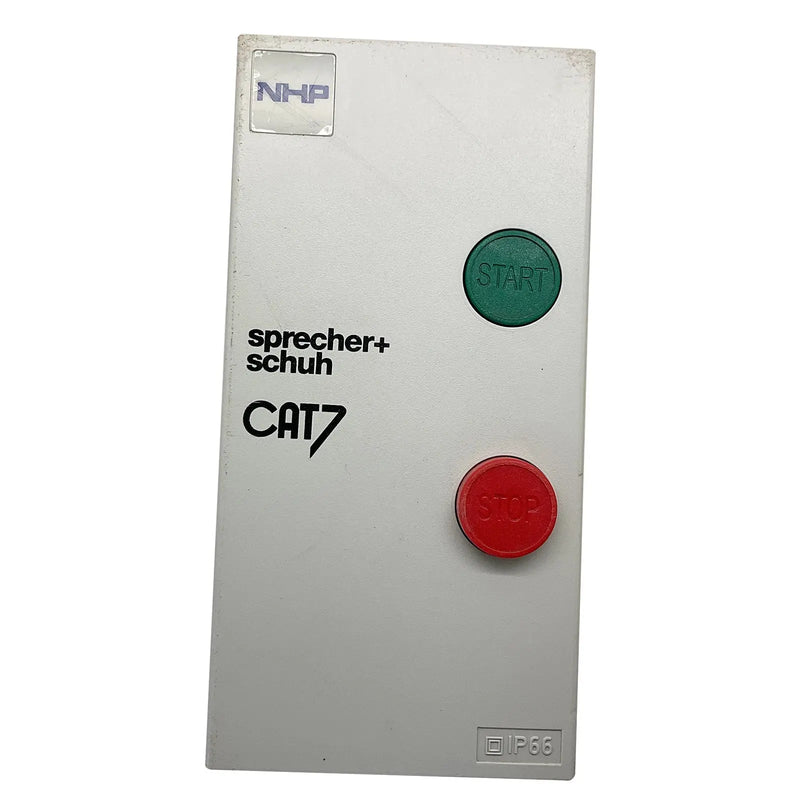

- Button Arrangement: Start / Stop
- IP rating: IP66

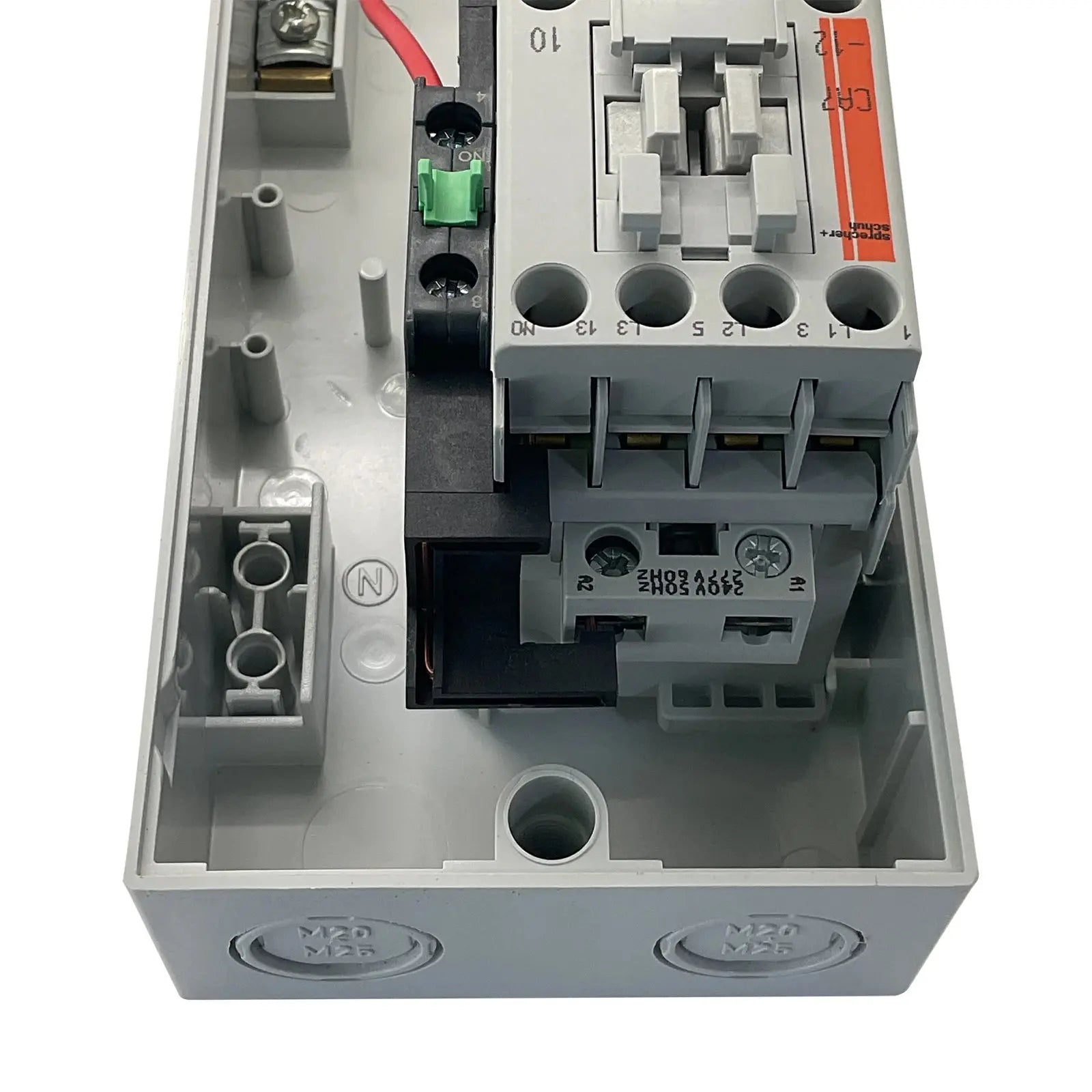

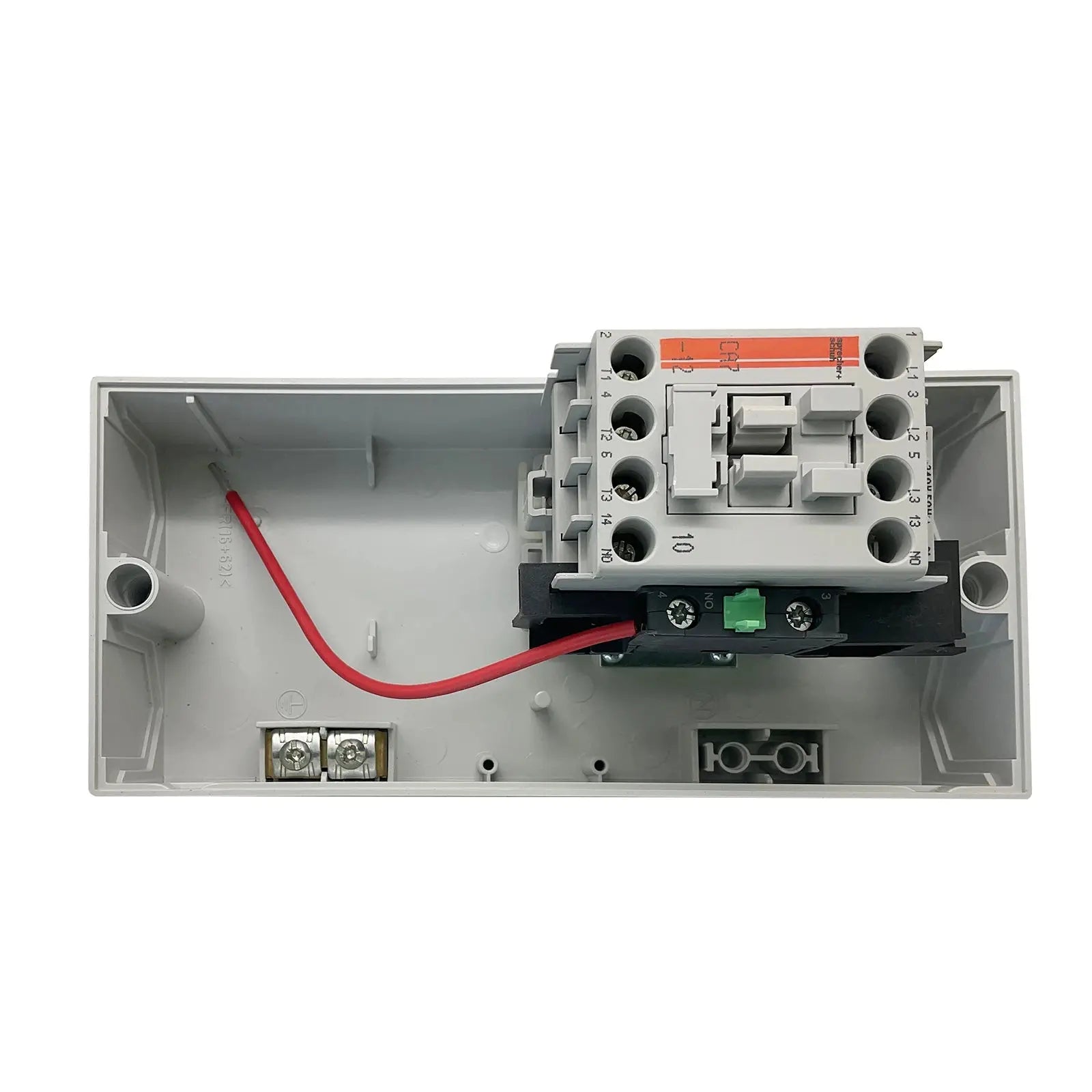

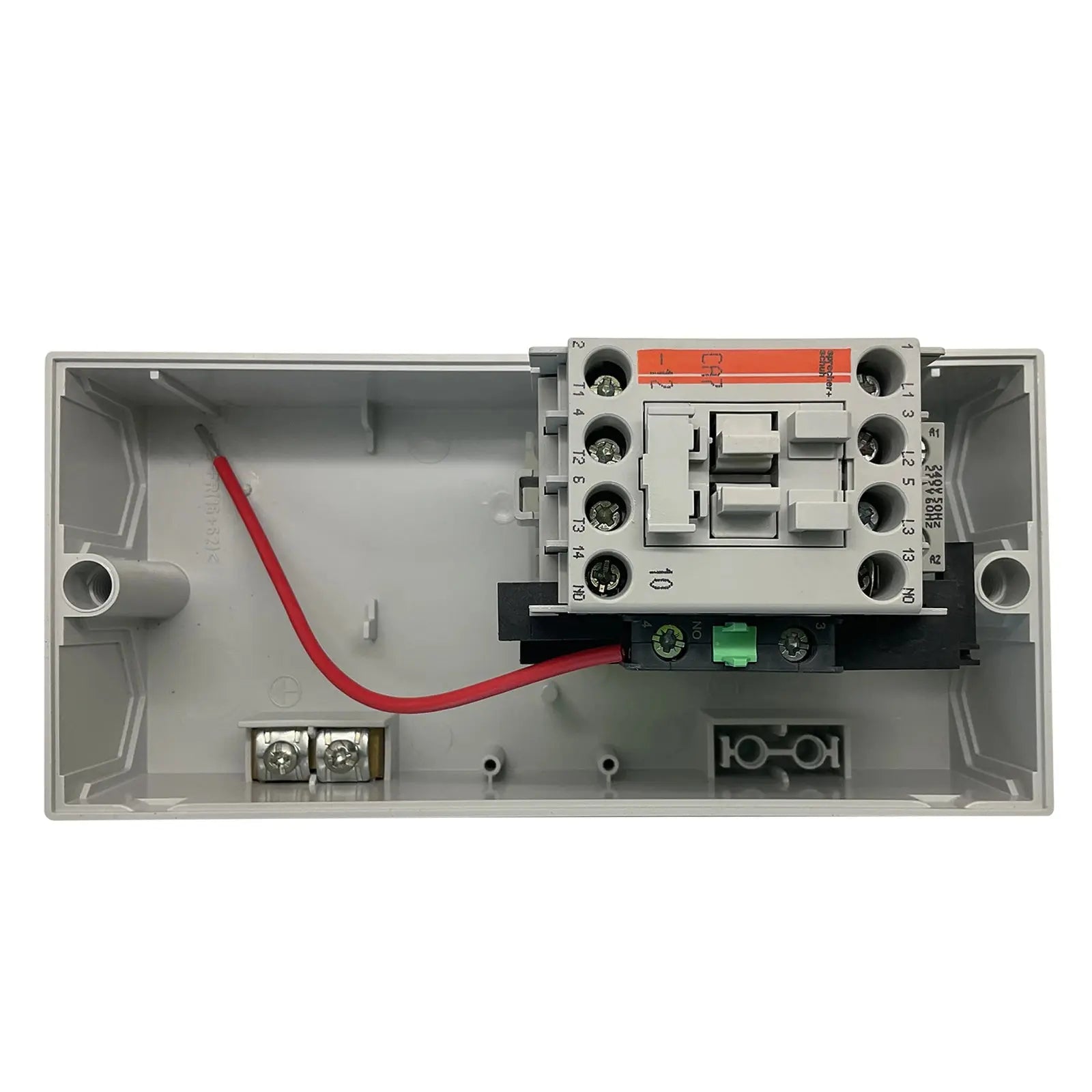

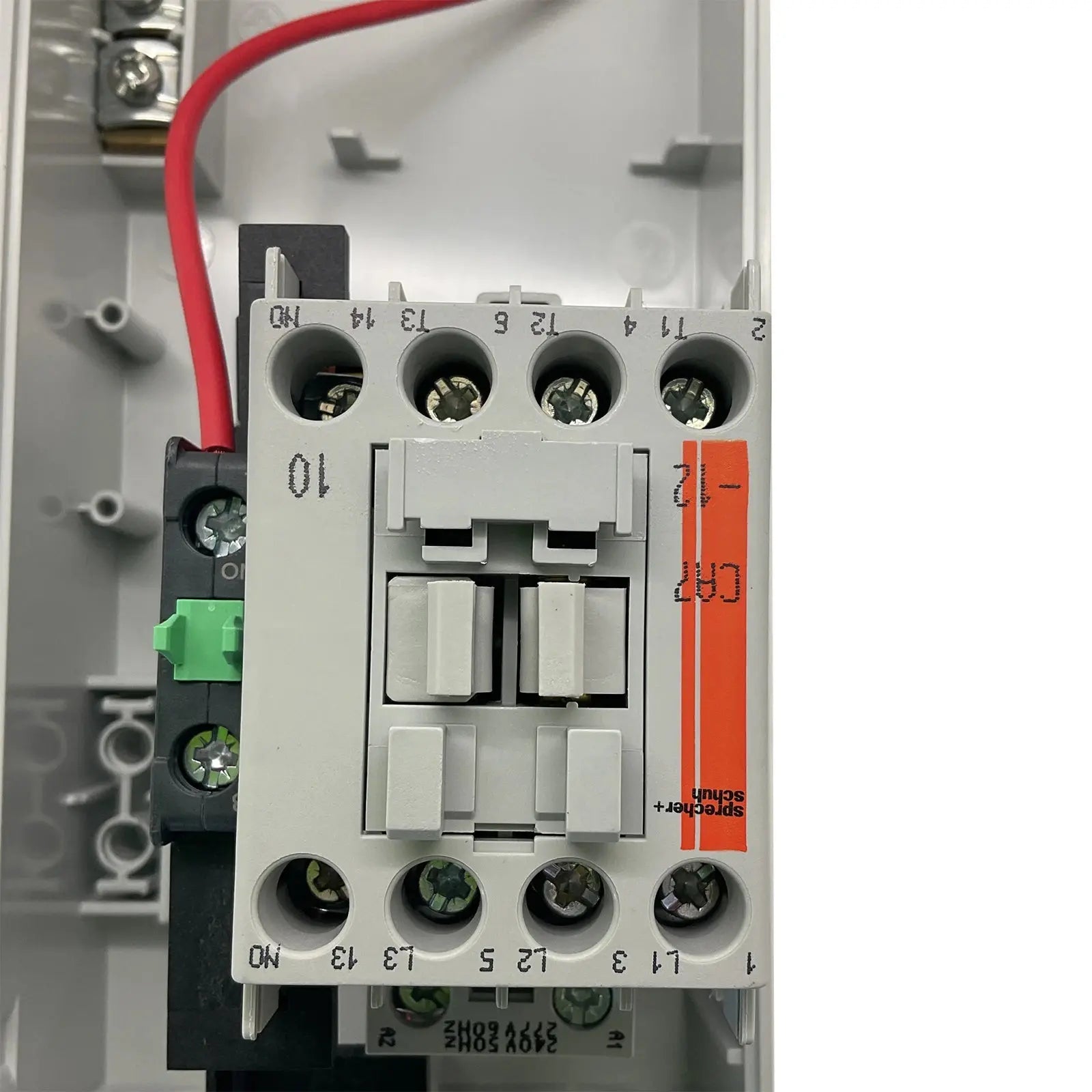

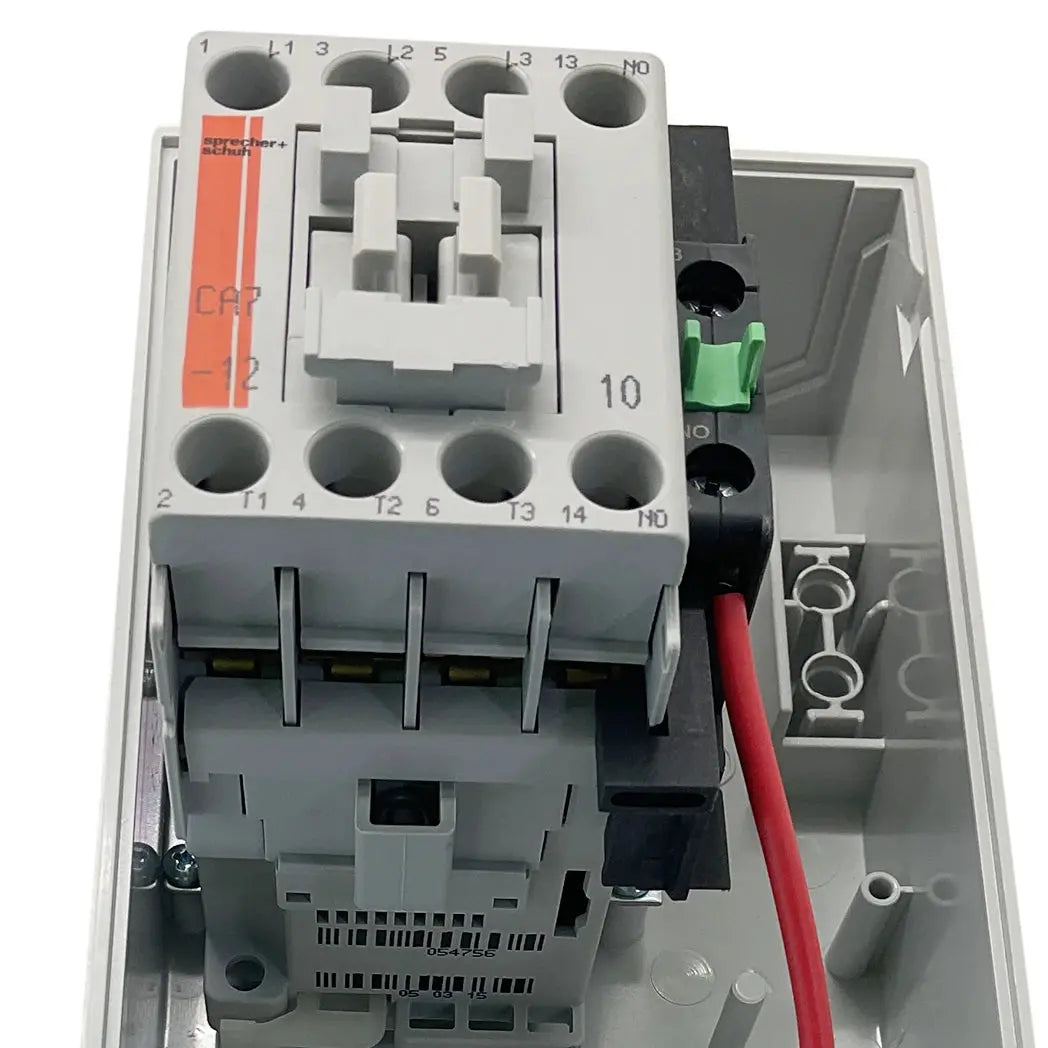

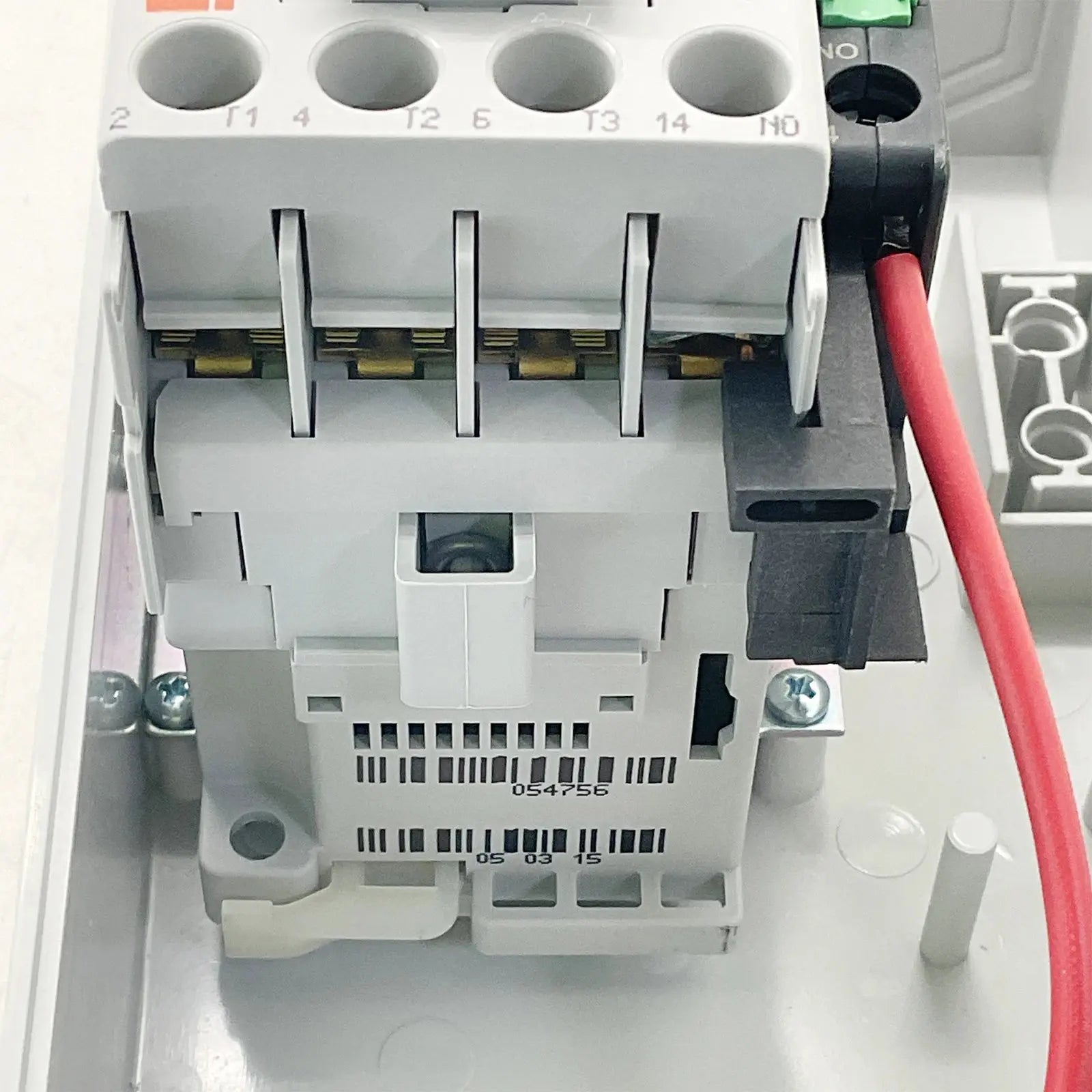

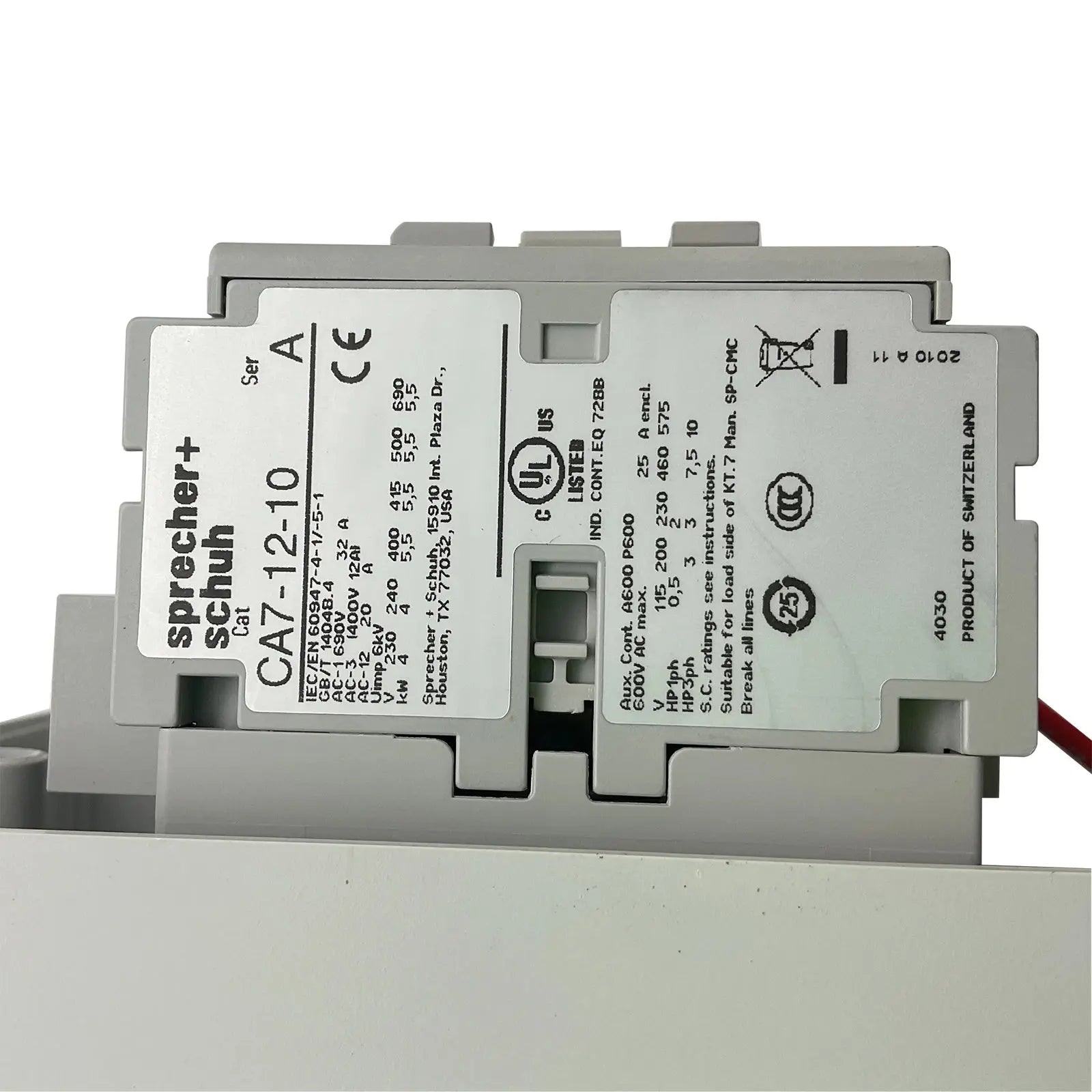

Contactor CA7-12-10
Features:
- Available in AC or DC control coil versions to suit your application requirements.
- Common accessories across CA7 contactors simplifies inventory requirements and maximises usability.
- Reversible (line or load side) coil terminations provides total flexibility.
- DIN rail mountable for easy installation.
Specifications:
- Product Series: CA7-12
- Component Type Motor Control and Drives: Standard Contactor
- Ie, Rated Operational Current, AC-1, 415V, 40°C: 32 A@415V,40°C
- kW Rating, AC-3, 415V, 60°C: 5.5 kW @415V, 60°C
- Ie, Rated Operational Current, AC-3, 415V, 60°C: 12 A@415V,60°C
- kW Rating, AC-3, 690V, 60°C: 5.5 kW @690V, 60°C
- Ie, Rated Operational Current, AC-3, 690V, 60°C: 7 A@690V,60°C
- Number of Poles: 3
- Contact Configuration, Main Poles: 3 NO main poles
- Contact Configuration, Auxiliary: 1 NO auxiliary
- Coil Type: Conventional type
- Integrated Aux: 1 N/O
- Coil Voltage: 240 V AC V
- IP Rating: IP20
