Description

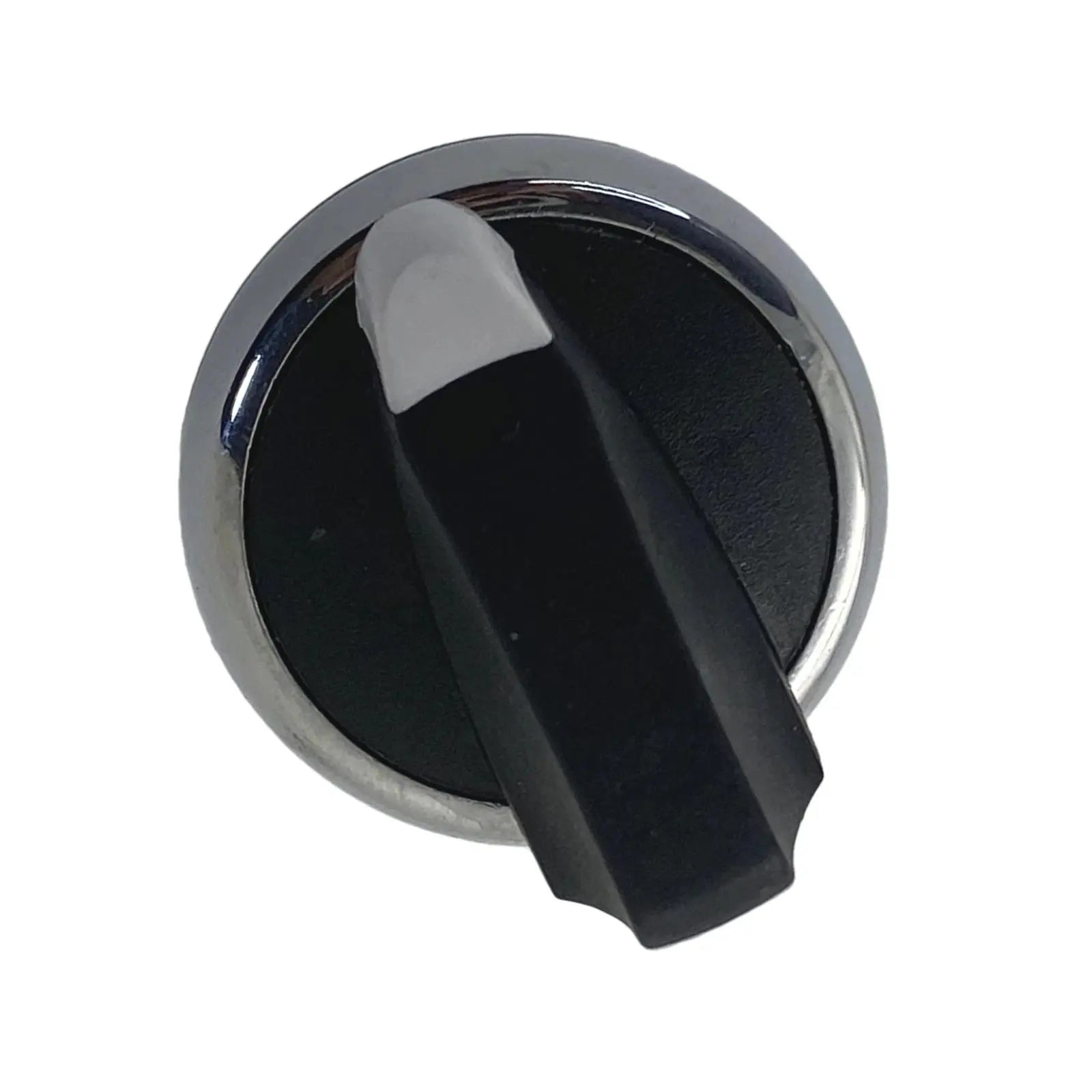

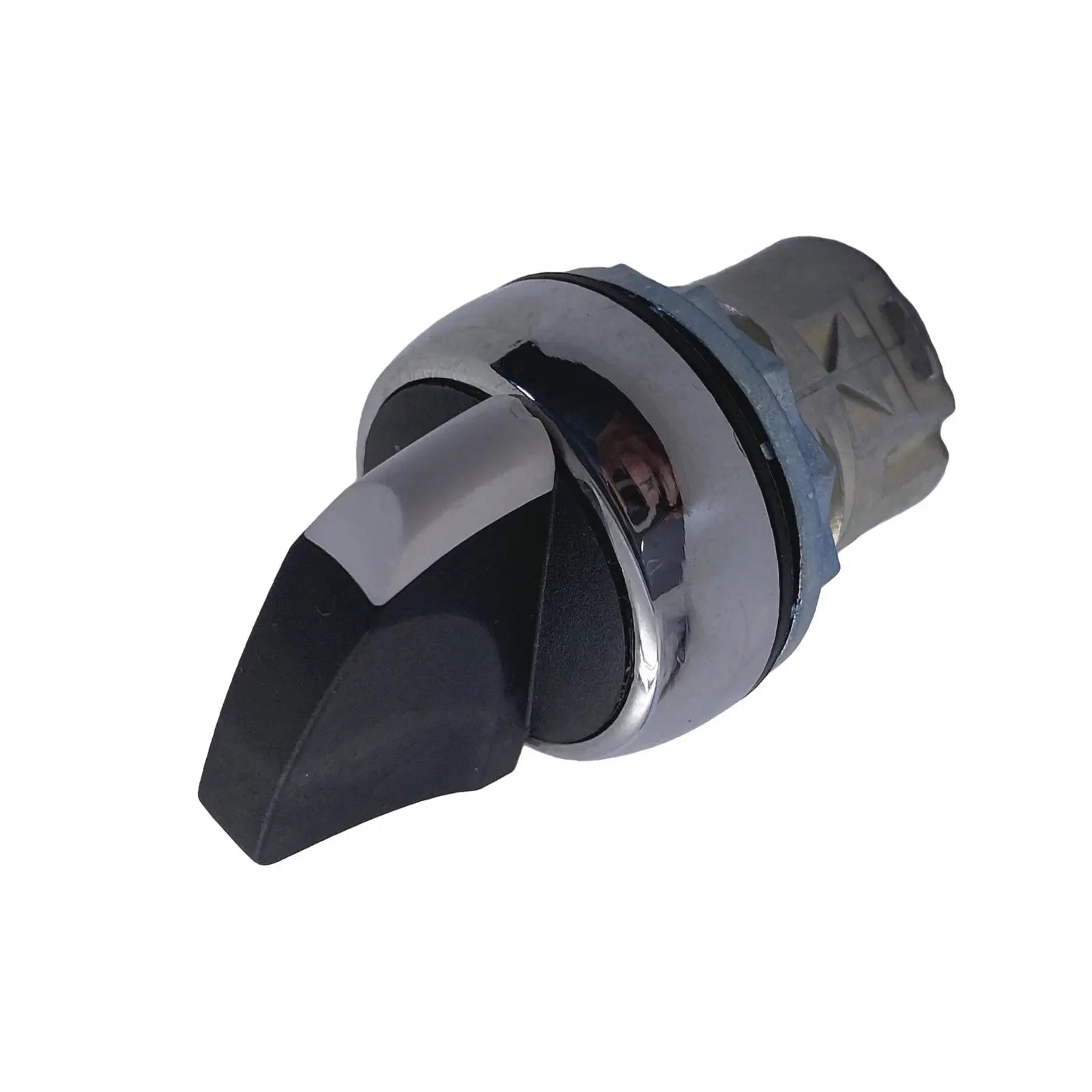

The Sprecher + Schuh Selector Rotary Switch, model D7M-SM22, is a robust 22.5mm metal switch designed for industrial applications. With a sleek black finish and a 2-position configuration, it provides a reliable means of selecting between two different operating states within an electrical circuit. The 22.5mm size conforms to standard panel-mounted controls, ensuring compatibility with common panel cutouts and facilitating seamless integration into control panels or machinery.
Constructed from durable metal, this rotary switch is well-suited for demanding industrial environments where reliability and longevity are paramount. Professionals rely on selector switches like the Sprecher + Schuh D7M-SM22 to deliver precise control, allowing operators to manually choose between different modes or functions within electrical systems. The black color adds a professional aesthetic, and the straightforward 2-position design simplifies operation, making it a practical choice for diverse industrial control applications.
Sprecher + Schuh Selector Rotary Switch 22.5mm Metal 2-Position Black D7M-SM22 Features:
- D7 pilot devices offer maximum flexibility and a wide choice for all 22.5mm operator applications with all type (e-stops, selector switches, pushbuttons, pilot lights and more), colour and contact configurations.
- Aesthetically appealing and modularly designed to make assembly and interchangeability easy.
- Operators exhibit low profile and stylish appearance while maintaining the rugged performance necessary for demanding environments.
- D7P is a plastic operator with a captive black plastic front bezel. Constructed of high-grade thermoplastics, the D7P is suitable for almost all environments and strong chemical resistance.
- D7M has a die-cast zinc housing and mounting ring for rugged durability. Finished with corrosion resistant chrome plating, the D7M also a captive shiny metal bezel for a polished appearance.
- Component Type Push Button and Pilot Lights: Selector Switch
- Operator Type: Selector Switch, Short Handle, 2-Position
- Operator Positions (from Vertical): 30°, -30°
- Operator Action, Left: Latched / Maintained
- Operator Action, Right: Latched / Maintained
- Color, Operator: Black
- Material, Operator: Zinc Alloy, Die-Cast, Chrome-Plated
- Color, Operator Insert: White
- Material, Bezel: Zinc
- Coupling Plate Included: No
- Material, Latches: Glass-Filled Nylon / PA6 / PA66 (Polyamide 6)
- Mounting: 22.5mm Mounting Hole
- Color, Handle: White
- Contact Block Included: No
- Tightening torque, Nominal: 4.4
- Mechanical Service Life: 300000
- RoHS Approved: Yes
- CE Marked: Yes
- Operating Temperature, Max: 70
- Operating Temperature, Min: -25
- Storage Temperature, Max: 85
- Storage Temperature, Min: -40
- Relative Humidity, Min: 50
- Relative Humidity, Max: 95
- IP Rating: IP66, IP65
To set the proper expectation, we use different types of packaging for our products.

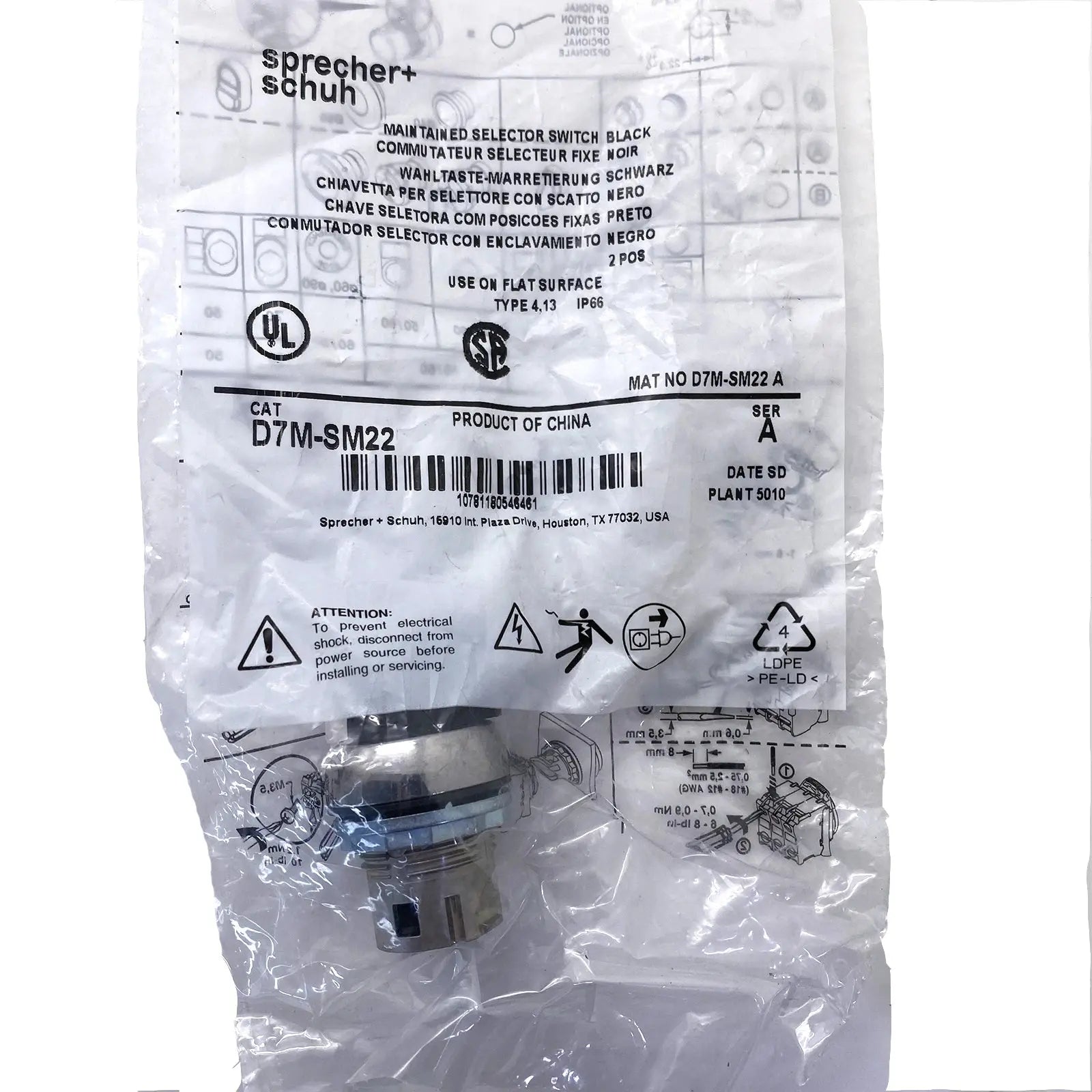

A. NEW- Manufacturer Packaging
