Description

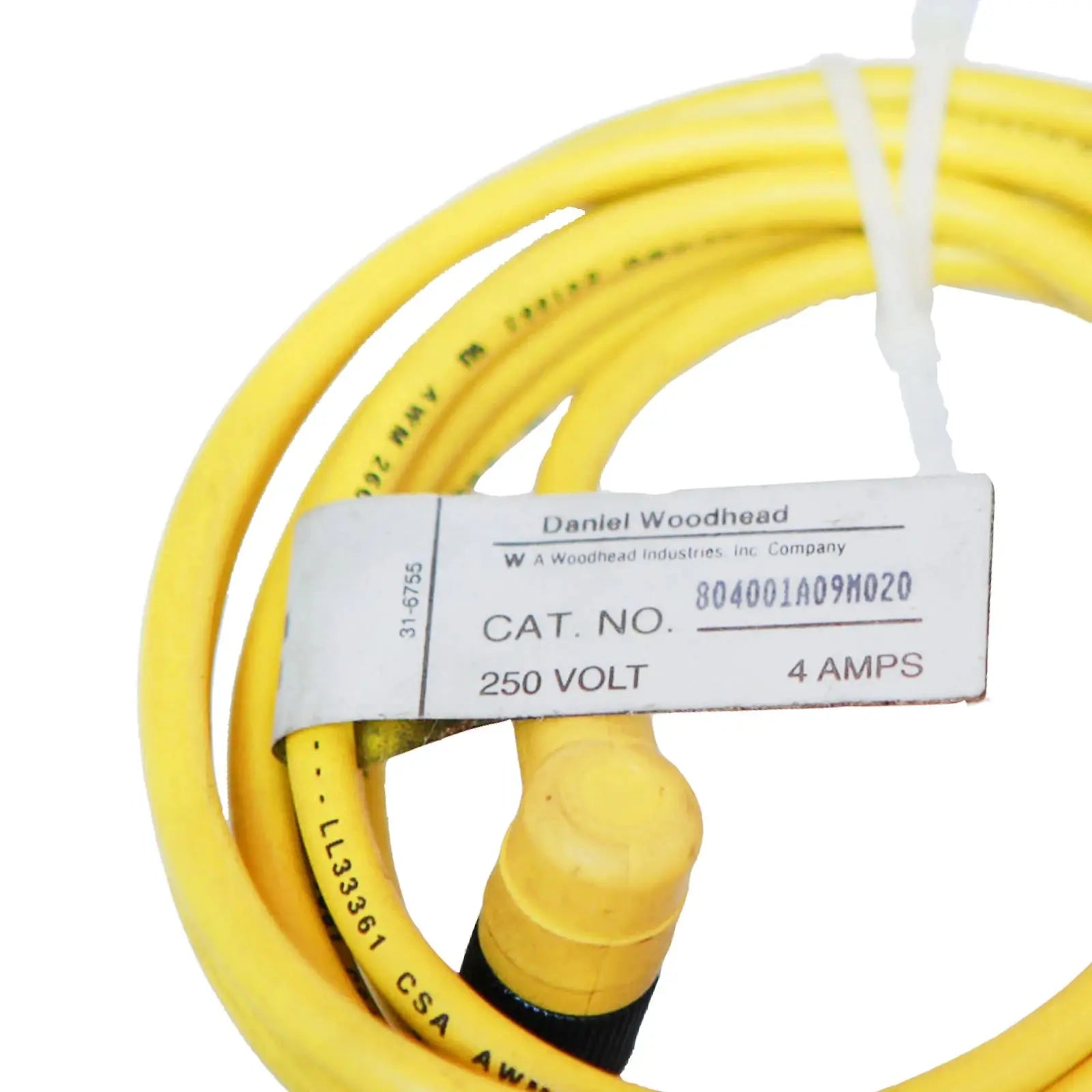

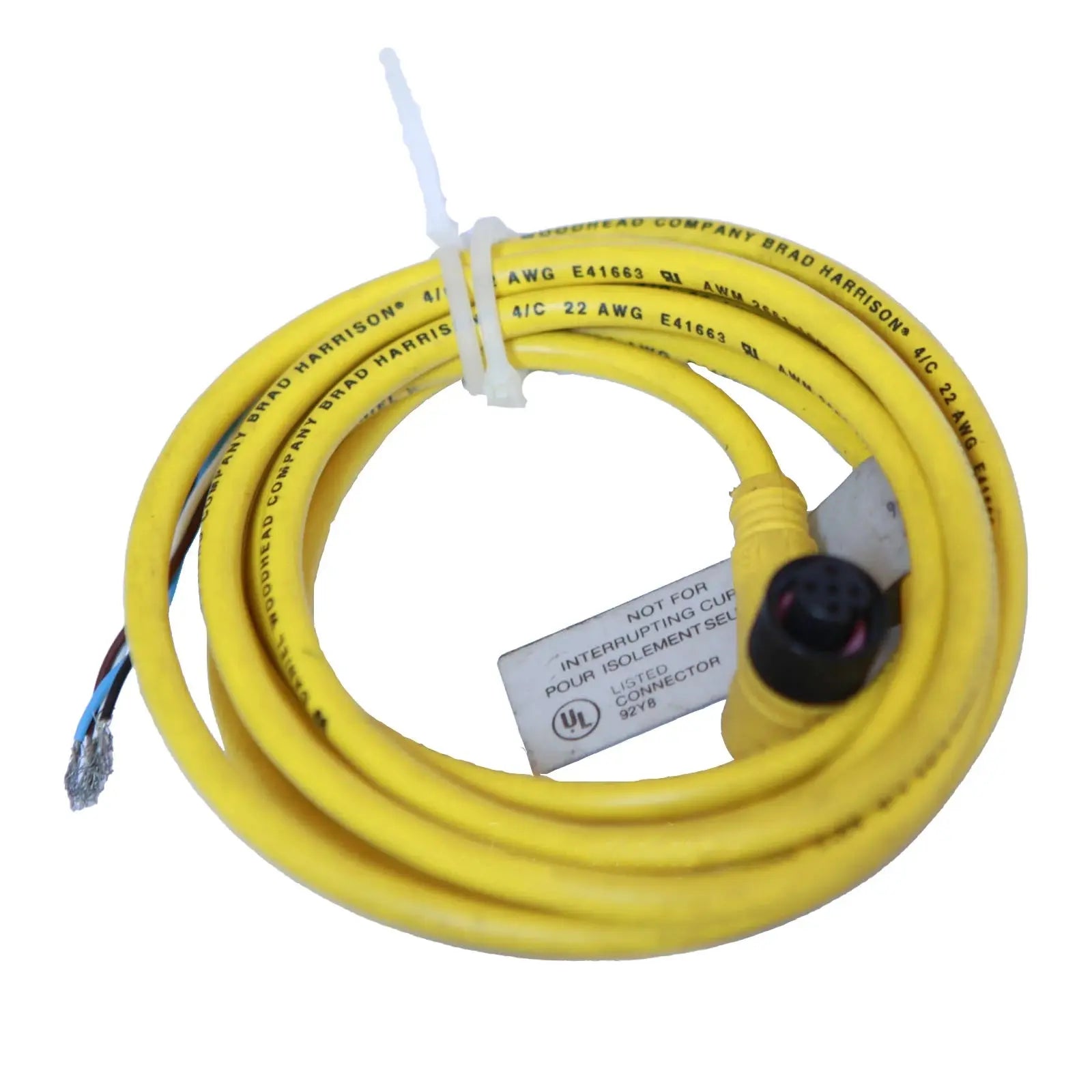

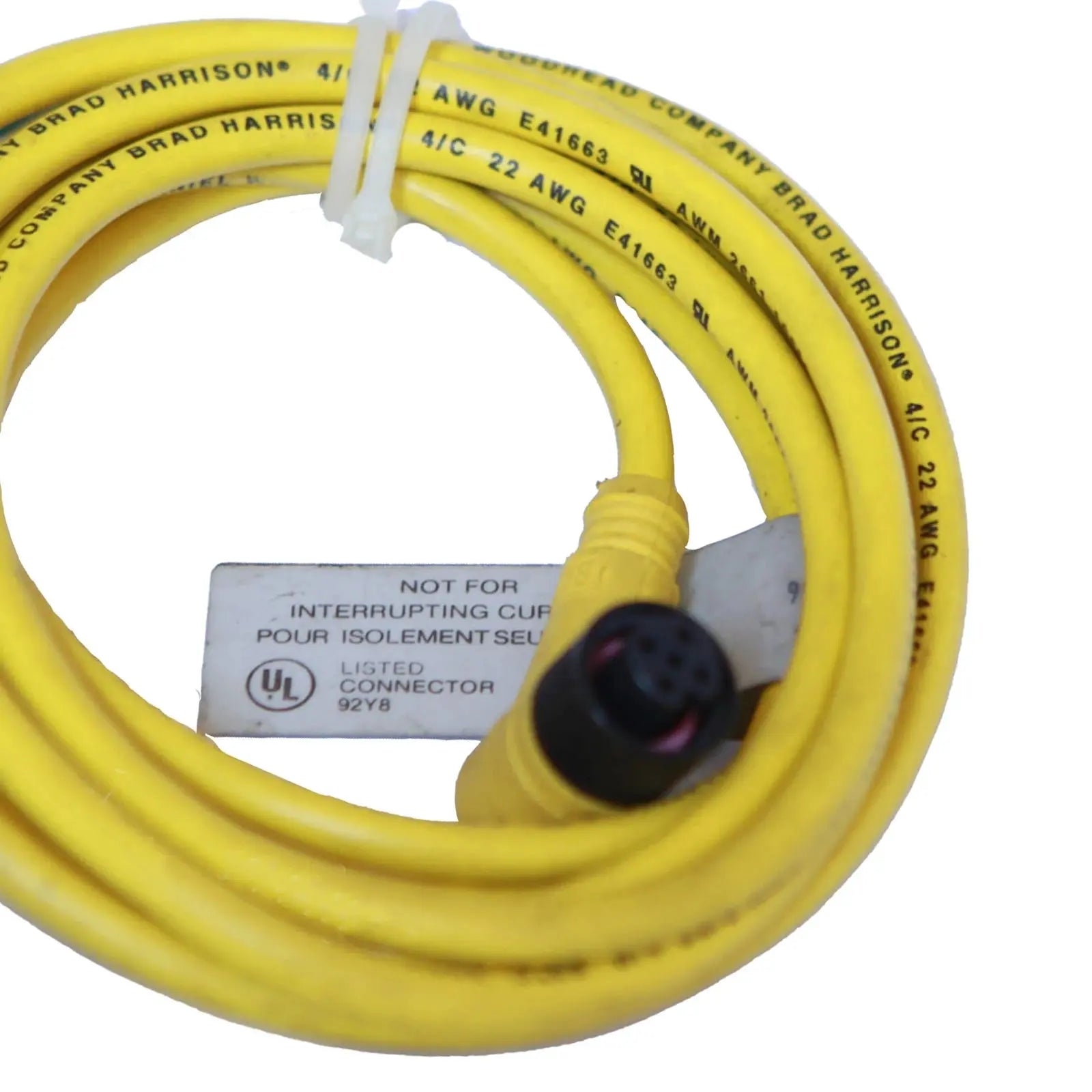

The Woodhead Cable Assembly, specifically the Molex variant identified by the part number 804001A09M020 (also known as 120065-1551), presents a dependable and purposefully designed solution for establishing secure electrical connections across a wide spectrum of applications. This particular cable assembly features a 22AWG wire gauge, a 4A current rating, and a 4-pole (4P) configuration, highlighting its inherent efficiency and robust durability. The inclusion of a vibrant yellow PVC jacket not only provides essential flexibility during installation but also offers a crucial layer of protection against various environmental factors, ensuring long-term reliability in diverse operational settings.
With a practical length of 2 meters, this versatile 804001A09M020 cable assembly offers significant flexibility during installations, readily providing ample reach for effectively connecting devices even across somewhat separated setups. The specified 4A current carrying capacity and the 4-pole configuration clearly indicate its capability to handle both power and signal transmission with notable effectiveness and consistency. This Woodhead Molex Cable Assembly is meticulously engineered to meet stringent high standards of quality and performance, making it exceptionally well-suited for reliable utilization in a diverse array of electrical systems where establishing a consistently dependable and physically robust connection is absolutely essential for seamless operation and long-term system integrity. Whether it's being applied within sophisticated industrial automation systems, complex machinery, or various other critical electronic setups, this high-quality cable assembly stands as a powerful testament to the unwavering commitment to both superior quality and consistent performance upheld by industry-leading manufacturers Woodhead and Molex.
Woodhead Molex Cable Assembly PVC POS Circular M 22AWG 4A 4P 250V 2m Yellow 804001A09M020 (120065-1551) Features:
- Single Ended Cordset
- Type Female
- Keyway Type Single
- Connector Type 90 Deg, Single End
- Wire Code 1-Brown 2-White 3-Blue 4-Black 5-Not Used
- Material Die-Cast Epoxy Coated Zinc Coupling Nut, Gold Over Nickel Plated Contact, Molded PVC Body, Nitrile Rubber O-ring, PVC Conductor Insulator
- Application Indicating Light tower, Safety Light Curtain/Mat, Sensor, Solenoid, Switch, Valve
- Enclosure NEMA 6P, IP67, IP68
- Approval UL, CSA
- Temperature Rating -20 to 105 Deg C
- Epoxy Coated Coupling Nut is Corrosion, Weld Slag Resistant
- Cable is Oil/Water/Abrasion Resistant
