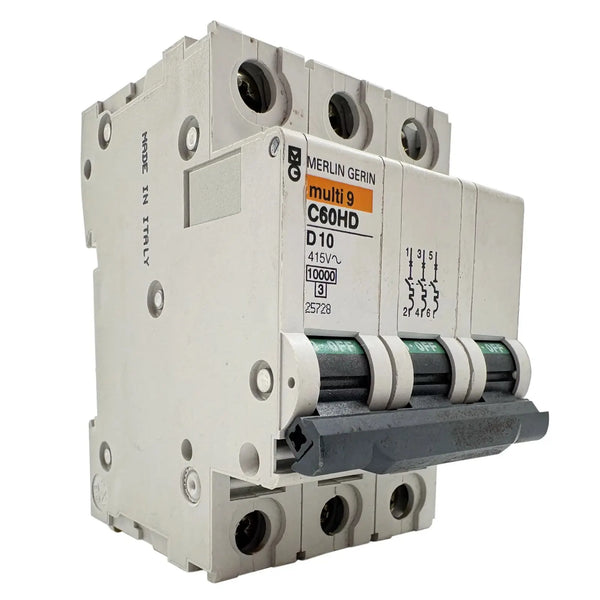

Circuit Breakers: Reliable Protection for Your Equipment Circuit breakers are an essential component in any electrical system. They play a crucial role in protecting your equipment from potential damage caused by electrical overloads, short circuits, and ground faults. Understanding the function and importance of circuit breakers is essential for ensuring the safety and reliability of your electrical setup. In this article, we will explore the basic function of circuit breakers, the different types available, key features to look for in reliable circuit breakers, considerations for selecting the right one for your equipment, and proper maintenance and testing procedures. Understanding the Role of Circuit Breakers Circuit breakers act as a safety device, designed to interrupt the flow of electrical current when certain conditions occur. These conditions may include excessive current flow, such as in the case of an overload, or a sudden surge of current due to a short circuit or ground fault. By interrupting the current flow, circuit breakers help prevent damage to your equipment and minimize the risk of electrical fires. The Basic Function of Circuit Breakers At its core, the basic function of a circuit breaker is to monitor the current flow in a circuit and trip, or open, the circuit when the current exceeds a predetermined threshold. This threshold is known as the circuit breaker's rated current or amperage. When the current exceeds this value, the mechanism within the circuit breaker is triggered, causing the contacts to rapidly open, thus breaking the circuit. But how does this mechanism work? Well, inside a circuit breaker, there is a bimetallic strip made of two different metals with different coefficients of thermal expansion. When the current exceeds the rated value, the strip heats up due to the resistance of the current passing through it. As it heats up, the metals expand at different rates, causing the strip to bend. This bending motion activates the trip mechanism, opening the contacts and breaking the circuit. Once the circuit breaker has tripped, it can be manually or automatically reset, restoring the flow of current. However, it is crucial to investigate and rectify the underlying issue that caused the circuit breaker to trip in the first place, as continuous tripping can indicate a more significant problem. Importance of Circuit Breakers in Electrical Systems Circuit breakers play a vital role in protecting your equipment and electrical system. They safeguard against overloads, which occur when too much current flows through a circuit, potentially causing overheating and equipment damage. Without a circuit breaker, the excessive current flow could lead to wires melting or equipment malfunction, posing a safety hazard. Furthermore, circuit breakers are crucial in preventing short circuits, which happen when a hot wire comes into contact with a neutral or ground wire. Short circuits can result in a sudden surge of current, potentially causing fires, damage to equipment, and even electrical shocks. By interrupting the circuit, the circuit breaker prevents the short circuit from causing further harm. Additionally, circuit breakers provide an added layer of safety by allowing for selective coordination. This means that in a complex electrical system with multiple circuit breakers, each breaker is designed to trip in a specific order, ensuring that only the faulty circuit is isolated while the rest of the system remains operational. This selective coordination helps to minimize downtime and allows for easier troubleshooting and maintenance. In conclusion, circuit breakers are not just simple switches that turn off the power. They are sophisticated devices that monitor and protect electrical circuits from potential dangers. By understanding their basic function and importance, you can appreciate the crucial role they play in keeping your equipment and electrical system safe. Types of Circuit Breakers and Their Uses There are several types of circuit breakers available, each with its specific characteristics and intended uses. Understanding these types can help you choose the most suitable circuit breaker for your equipment and electrical setup. But let's dive deeper into the world of circuit breakers and explore some additional details that can enhance your understanding. Thermal Circuit Breakers Thermal circuit breakers rely on a bimetallic strip that bends when exposed to excessive heat. The bending of the strip causes the circuit breaker to trip, interrupting the current flow. This mechanism is crucial in preventing overheating and potential fires. Furthermore, thermal circuit breakers are not only used in household applications but also in various industries. For instance, they play a vital role in protecting sensitive electronic equipment, such as computers and servers, from thermal overloads. Magnetic Circuit Breakers Magnetic circuit breakers operate based on electromagnetic forces. They use a solenoid coil to generate a magnetic field. When the current exceeds the rated value, the magnetic field pulls a lever, tripping the circuit breaker. This rapid response ensures the protection of electrical systems and prevents damage from excessive current. In addition to industrial settings, magnetic circuit breakers are commonly used in large-scale power distribution systems. Their ability to handle high current levels efficiently makes them indispensable in safeguarding critical infrastructure. Hybrid Circuit Breakers Hybrid circuit breakers combine the features of both thermal and magnetic circuit breakers. They provide reliable protection against both thermal overloads and short circuits, making them suitable for a wide range of applications. One notable advantage of hybrid circuit breakers is their versatility. They can adapt to changing electrical conditions, ensuring optimal protection for various equipment and systems. This adaptability makes them an excellent choice for applications where the electrical load may vary over time. By understanding the different types of circuit breakers and their uses, you can make informed decisions when selecting the most appropriate circuit breaker for your specific needs. Whether it's for your home, office, or industrial facility, choosing the right circuit breaker is crucial for maintaining electrical safety and preventing costly damages. Key Features of Reliable Circuit Breakers When selecting a circuit breaker for your equipment, several key features should be considered to ensure reliable protection. Overload Protection One of the essential features of a circuit breaker is overload protection. It should be able to handle the maximum current load of the equipment it is protecting without tripping excessively. Look for a circuit breaker with a suitable amperage rating and thermal trip characteristics that match your equipment's requirements. Short Circuit Protection Circuit breakers should also provide effective short circuit protection. They should be able to quickly interrupt the circuit in the event of a short circuit, preventing further damage to the equipment and electrical system. Magnetic circuit breakers or hybrid circuit breakers are often used for this purpose due to their fast response time. Ground Fault Protection In addition to overloads and short circuits, ground faults can also pose a significant risk to your equipment and electrical system. Ground fault protection is designed to detect and interrupt slight imbalances in current between the hot and neutral wires. Circuit breakers with ground fault protection can help minimize the risk of electrical shocks and faults, especially in areas where moisture or faulty wiring may be present. Furthermore, when it comes to selecting a reliable circuit breaker, it is important to consider the voltage rating. The voltage rating of a circuit breaker indicates the maximum voltage it can safely handle. It is crucial to choose a circuit breaker with a voltage rating that matches or exceeds the voltage of your electrical system to ensure optimal performance and safety. Another feature to consider is the interrupting rating of the circuit breaker. The interrupting rating refers to the maximum fault current that a circuit breaker can safely interrupt without causing damage. It is essential to select a circuit breaker with an interrupting rating that exceeds the potential fault current of your electrical system to prevent catastrophic failures and ensure the protection of your equipment. Selecting the Right Circuit Breaker for Your Equipment Choosing the right circuit breaker for your equipment involves considering several important factors. These factors include the appropriate amperage rating, the circuit breaker's interrupting capacity, and any specific requirements of your equipment. Considerations for Circuit Breaker Selection Firstly, determine the maximum current load of your equipment and select a circuit breaker with a suitable amperage rating. Oversized or undersized circuit breakers can compromise the safety and performance of your equipment. For example, if you have a piece of equipment that draws a maximum current of 20 amps, it is crucial to choose a circuit breaker with an amperage rating that can handle this load. Selecting a circuit breaker with a lower rating may result in frequent tripping, disrupting the operation of your equipment. On the other hand, opting for a circuit breaker with a higher rating than necessary may pose a safety risk, as it may not trip in the event of an overload or short circuit. Secondly, consider the interrupting capacity of the circuit breaker. This refers to the maximum short circuit current that the circuit breaker can safely interrupt without causing damage to itself. Ensure that the interrupting capacity of the circuit breaker meets or exceeds the potential short circuit currents in your electrical system. For instance, if your electrical system has a potential short circuit current of 10,000 amps, it is essential to choose a circuit breaker with an interrupting capacity that can handle this level of current. Selecting a circuit breaker with a lower interrupting capacity may lead to catastrophic failure, as it may not be able to safely interrupt the high fault currents. On the other hand, opting for a circuit breaker with a higher interrupting capacity provides an added safety margin, ensuring reliable protection for your equipment. Understanding Circuit Breaker Ratings Circuit breakers are assigned various ratings that indicate their performance and compatibility with different applications. Some common ratings include the voltage rating, current rating, and interrupting rating. Familiarize yourself with these ratings to make an informed decision when selecting a circuit breaker. The voltage rating of a circuit breaker specifies the maximum voltage at which it can safely operate. It is crucial to choose a circuit breaker with a voltage rating that matches or exceeds the voltage of your electrical system. Using a circuit breaker with a lower voltage rating can result in insulation breakdown and potential electrical hazards. Additionally, the current rating of a circuit breaker indicates the maximum continuous current it can carry without tripping. It is important to select a circuit breaker with a current rating that can handle the expected load of your equipment. Choosing a circuit breaker with a lower current rating may lead to frequent tripping, while selecting one with a higher current rating may compromise the protection of your equipment. Lastly, the interrupting rating of a circuit breaker specifies the maximum fault current it can safely interrupt. This rating is crucial in ensuring the circuit breaker can handle the potential fault currents in your electrical system. Choosing a circuit breaker with a lower interrupting rating may result in damage to the breaker and the electrical system, while selecting one with a higher interrupting rating provides an extra level of protection. Proper Maintenance and Testing of Circuit Breakers Maintaining and testing your circuit breakers is essential for ensuring their optimal performance and reliability. Regular inspections and professional servicing can help identify potential issues and prevent equipment failures. Routine Inspection and Maintenance Perform regular visual inspections of your circuit breakers to check for any signs of damage, such as loose connections, worn-out components, or corrosion. Ensure that the circuit breaker is clean and free from any debris. If you notice any abnormalities or suspect a problem, contact a qualified electrician to diagnose and address the issue promptly. Additionally, test the tripping mechanism of your circuit breakers periodically. Follow the manufacturer's guidelines and use appropriate equipment to simulate an overload or short circuit to ensure that the circuit breaker trips as expected. Professional Testing and Servicing While routine inspections are essential, it is recommended to have your circuit breakers professionally tested and serviced at regular intervals. Professional technicians can conduct more comprehensive tests, such as insulation resistance tests and circuit breaker timing tests, to determine the overall condition and performance of your circuit breakers. Take proactive steps to maintain and service your circuit breakers to avoid unexpected failures and ensure the ongoing protection of your equipment. In Conclusion Circuit breakers play a crucial role in providing reliable protection for your equipment and electrical systems. Understanding their function, types, features, and maintenance procedures is essential for ensuring their optimal performance and safety. By selecting the right circuit breaker, adhering to proper maintenance practices, and conducting periodic inspections, you can minimize the risk of equipment damage, electrical hazards, and costly downtime. Invest in reliable circuit breakers to safeguard your equipment and enjoy peace of mind knowing that your electrical system is protected.
