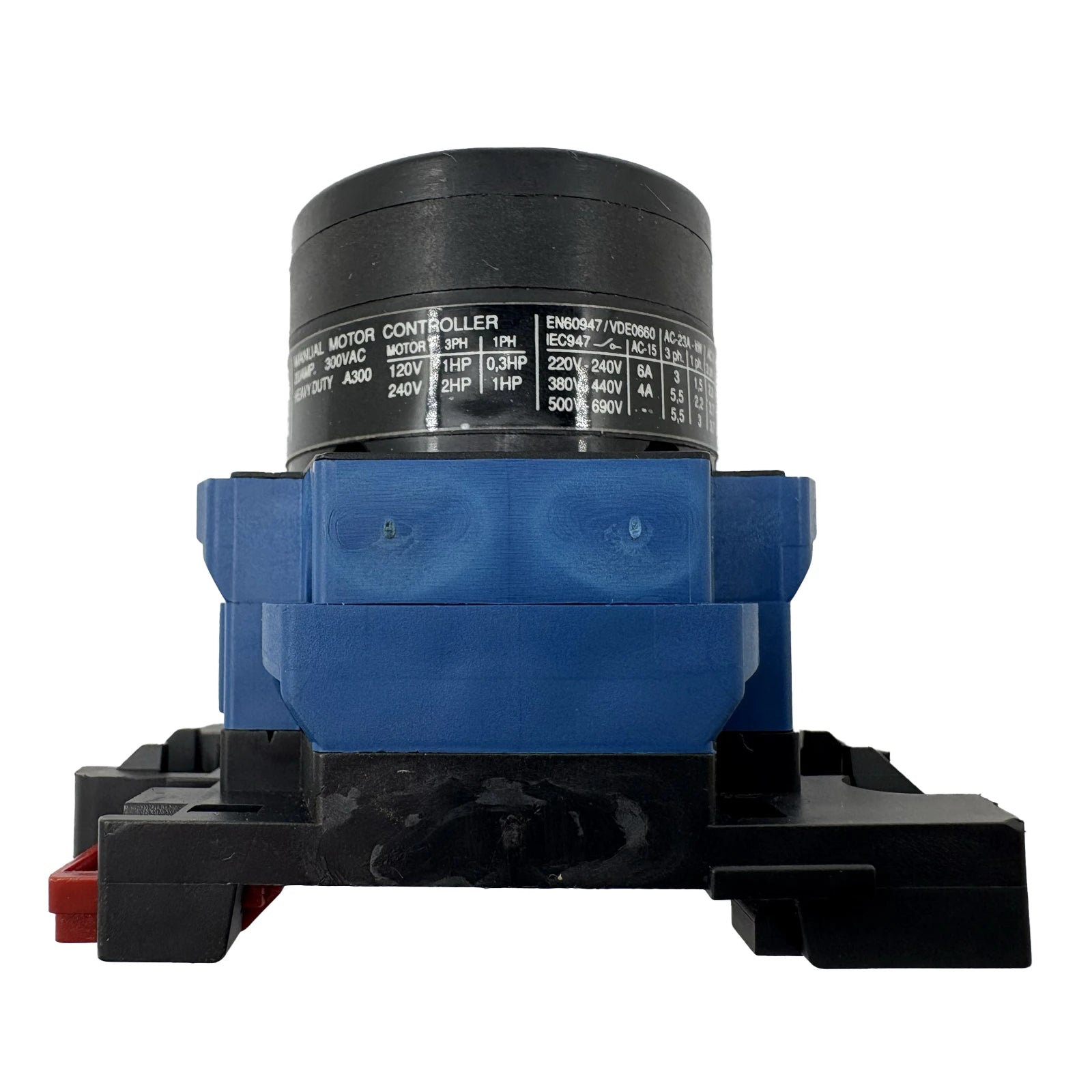

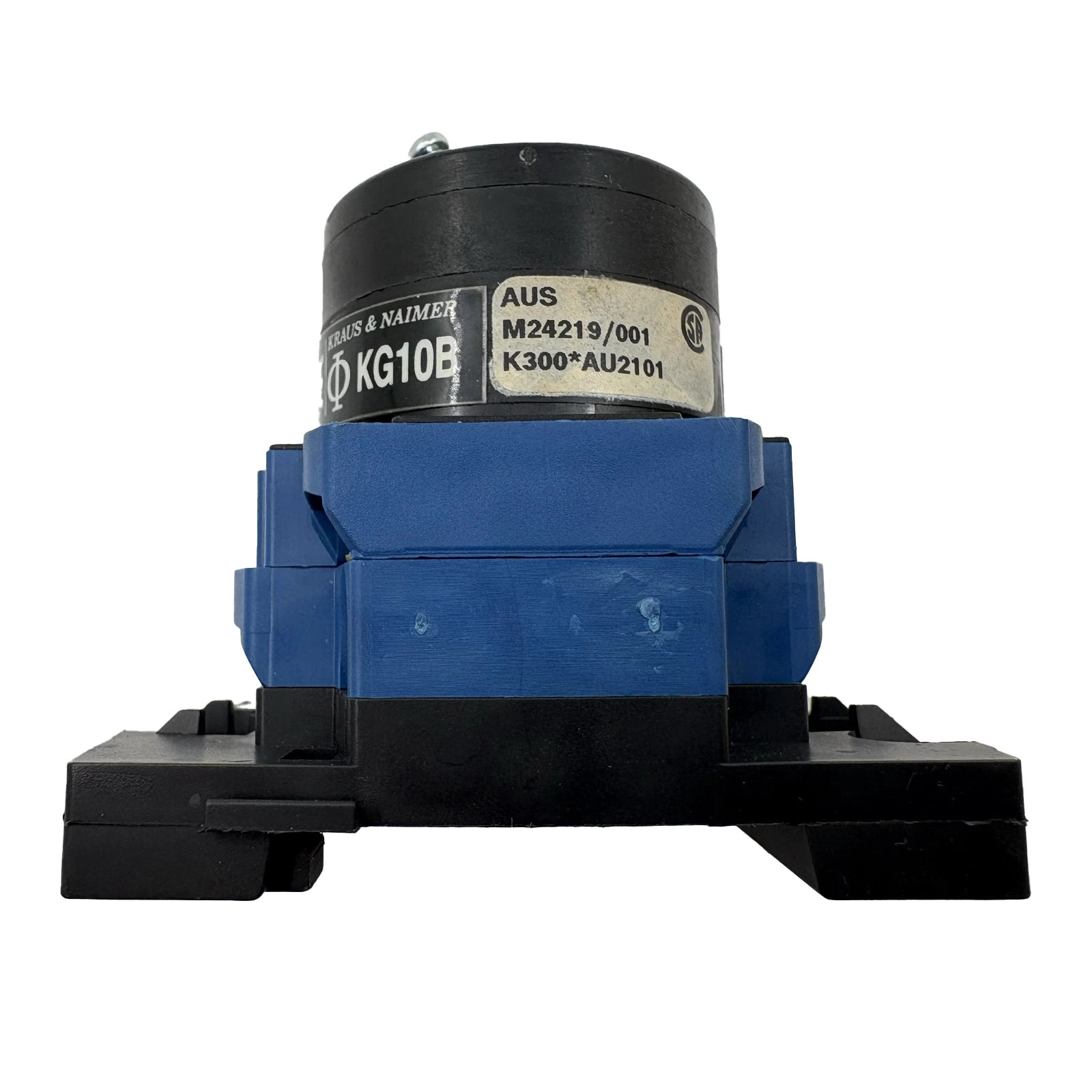

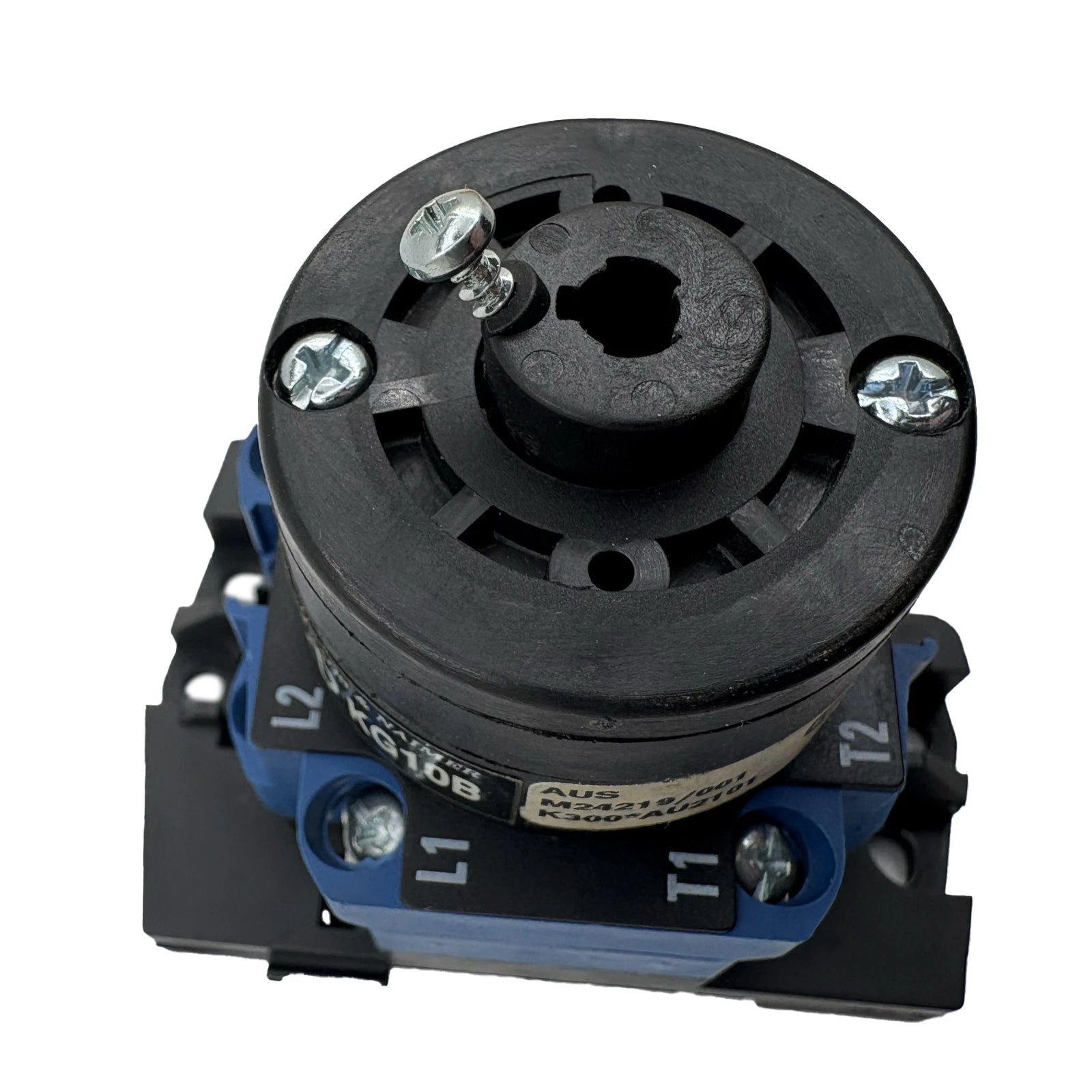

Kraus & Naimer On/Off Isolation Switch 690V 20A Red/Yellow KG10B K300*AU2101

The Kraus & Naimer On/Off Isolation Switch Panel KG10B K300*AU2101 is a robust and reliable solution designed for safely isolating electrical circuits in industrial and commercial applications. With its high-quality construction, the panel offers superior performance and durability, making it an ideal choice for environments that demand both efficiency and safety while being rated at 690V and 20A.

The Kraus & Naimer switch panel's design ensures a secure and straightforward method of disconnecting power to specific sections of a system, providing essential protection for equipment and personnel. This isolation switch panel is engineered to operate effectively under challenging conditions, offering a reliable means of controlling electrical systems up to 690V and 20A.

The KG10B K300*AU2101 model is specifically designed to meet rigorous standards, ensuring that it can withstand the demands of various applications in industries such as manufacturing, energy, and automation. Whether used for routine maintenance or emergency shutdowns, this isolation switch panel delivers dependable performance, contributing to the overall safety and reliability of electrical installations.

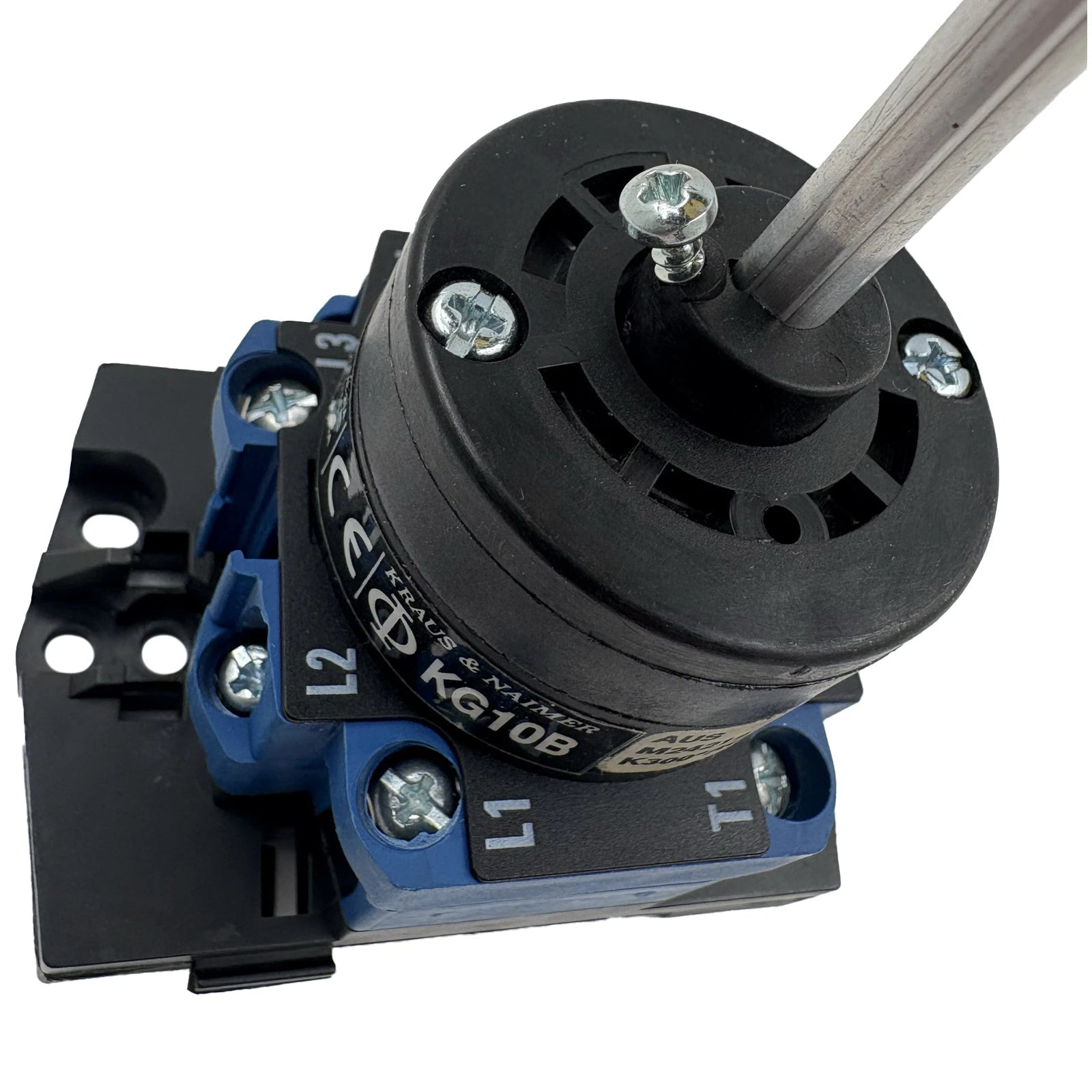

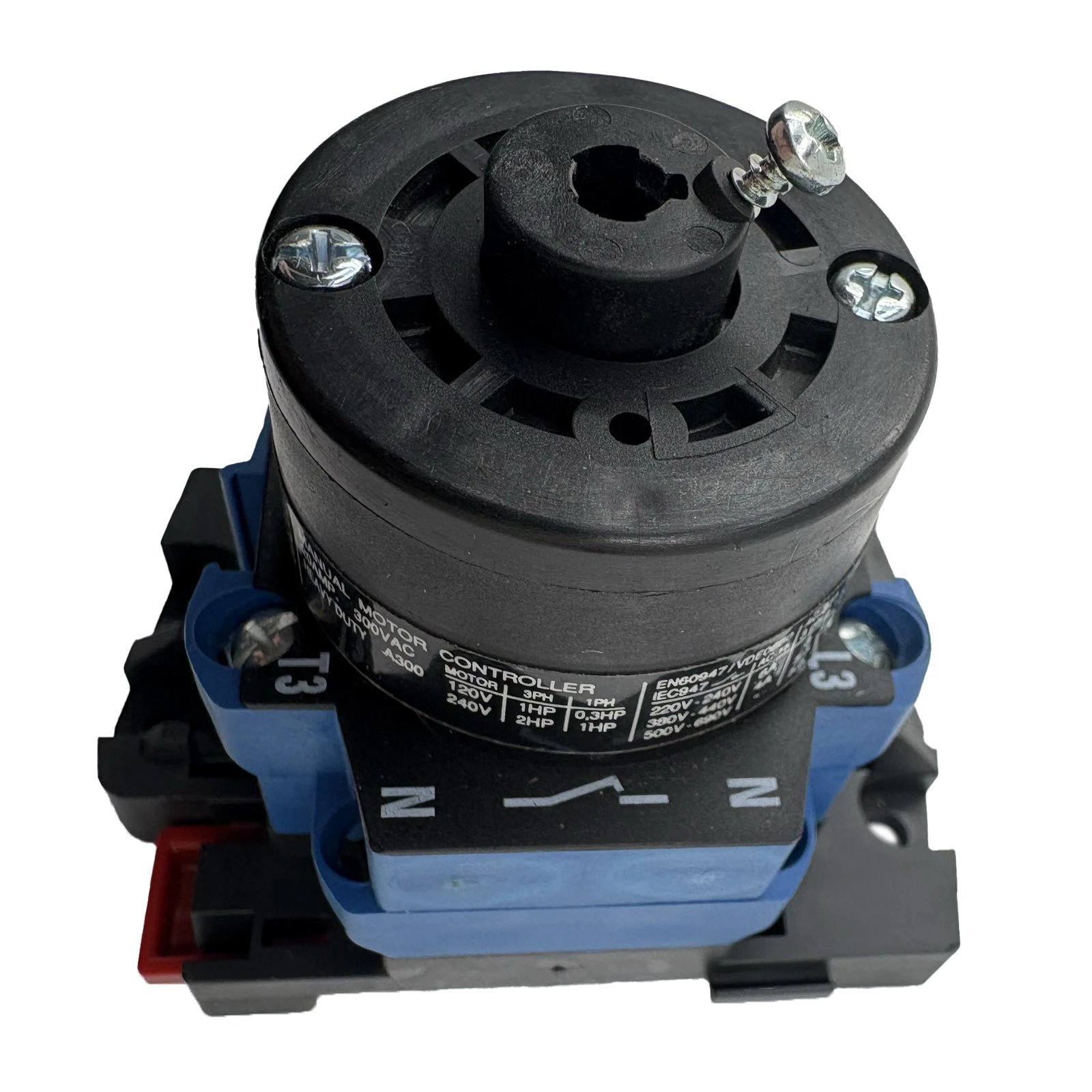

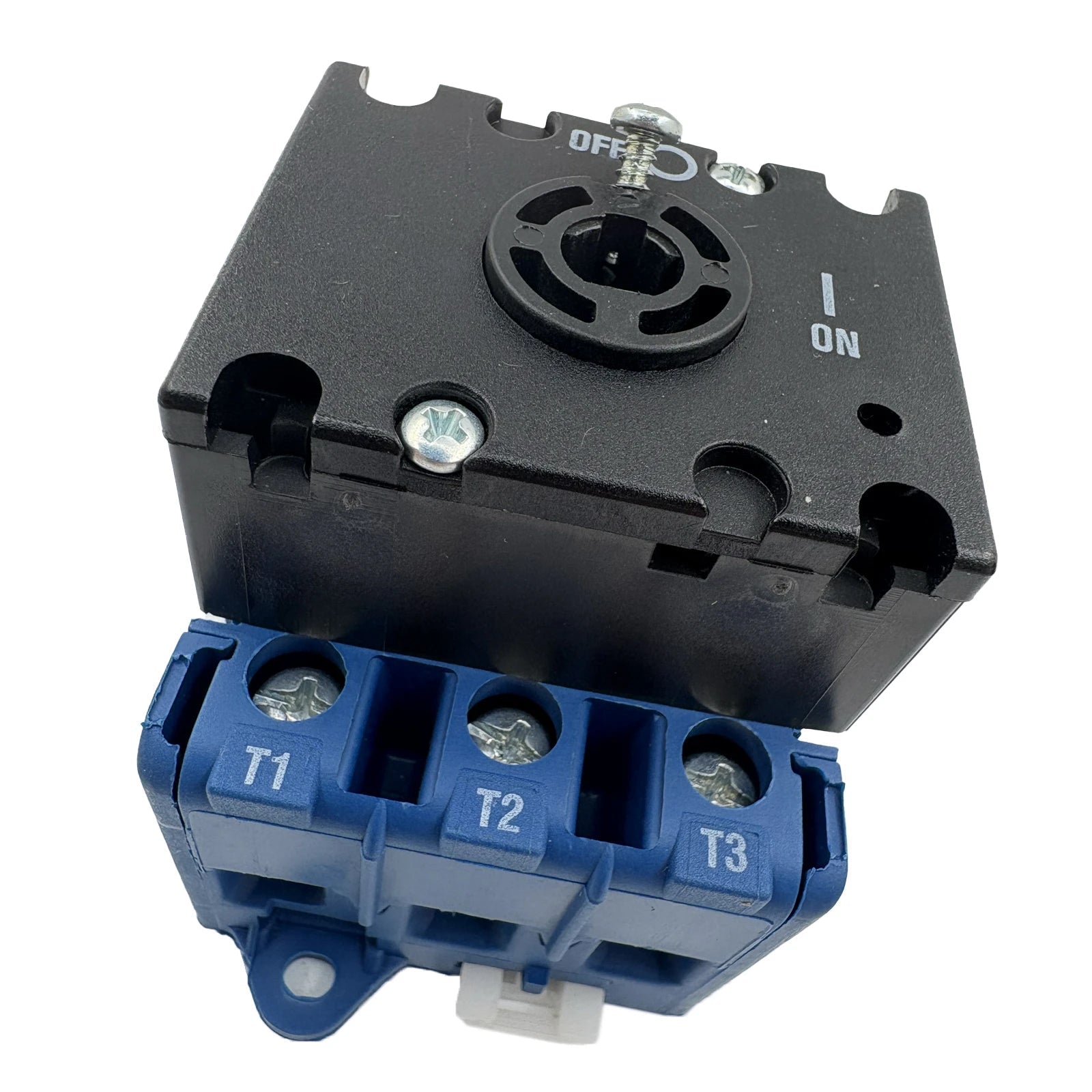

Base Snap-on

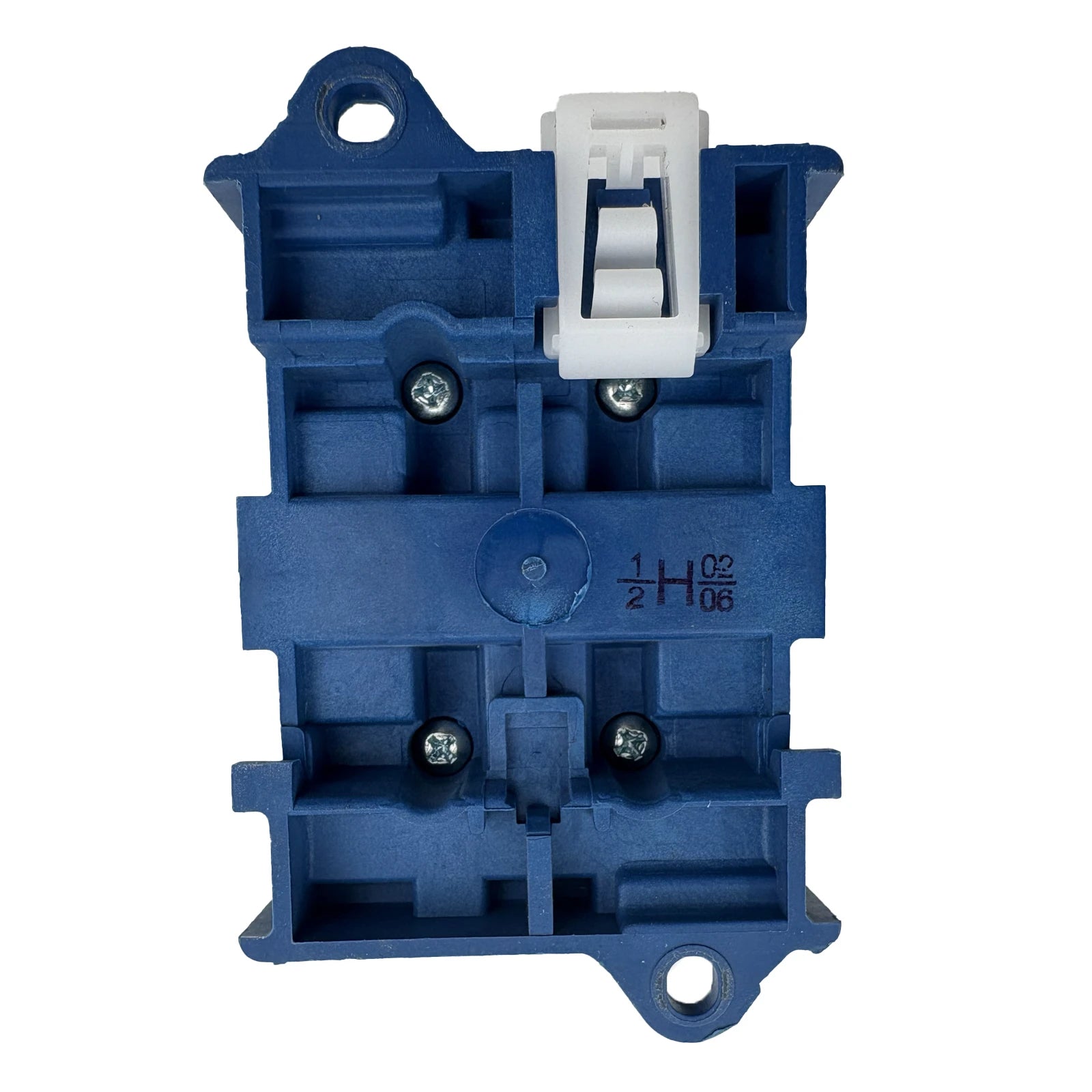

Base mounting for track EN 50022
Both the face plate for 45 mm standard
Knock-out and the handle are adjustable in height
Protection IP 40

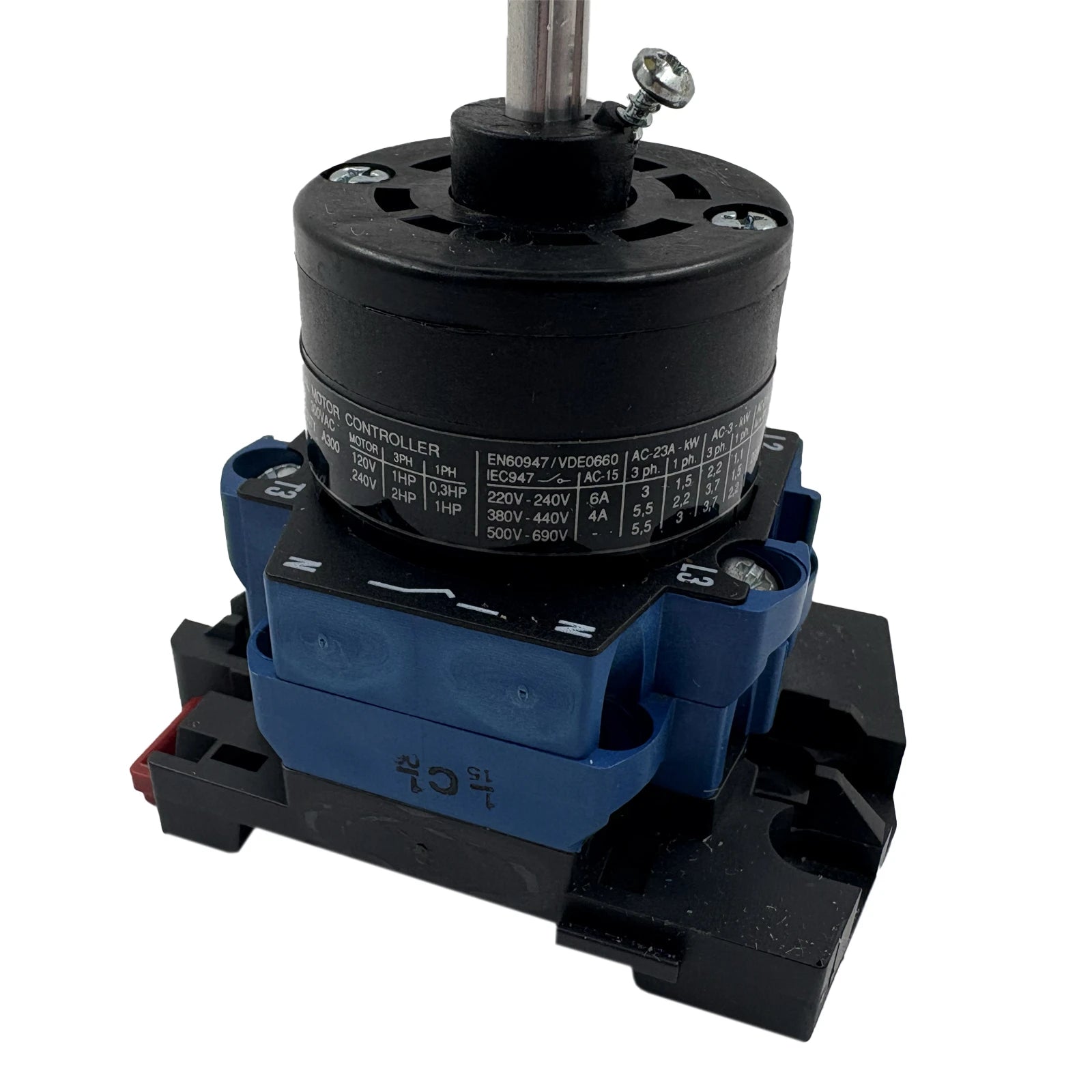

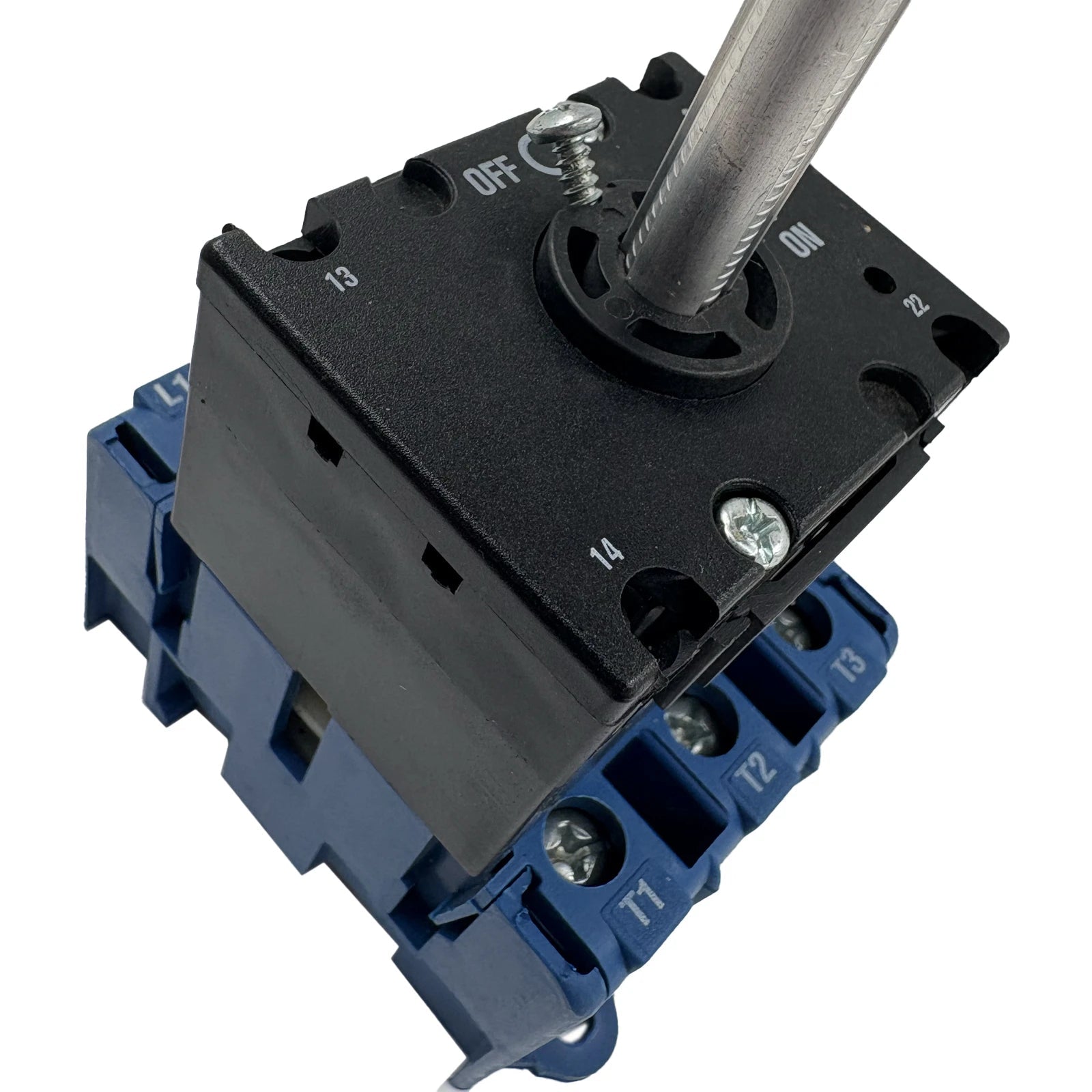

Shaft Extensions - Secure by Screw M280E -
Length 110mm excluding yellow mounted for handle
Shaft extentions asymmetric profile

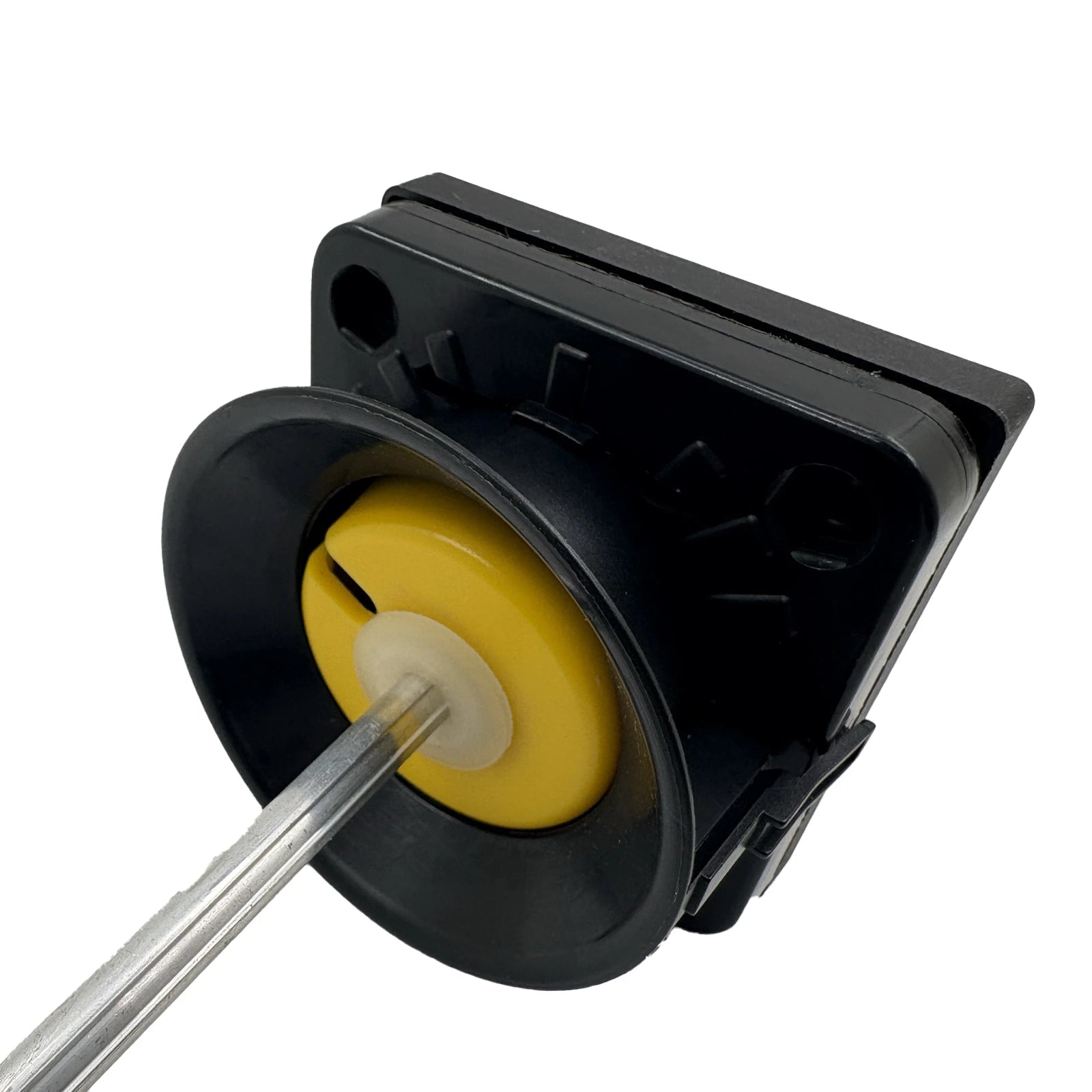

Single hole 22mm door clutch
Door clutch with shaft extension Interlocked

Simplified Door Clutch
The simplified door clutches are utilized primarily when the switch is mounted to the bottom of the enclosure and the handle and face plate are mounted on the cover.

Specifications:
Nominal Voltage - 690V
Thermal Current - 20A
Enclosed Thermal Current - 20A
Operational Current - 20A
Utilisation Category - 5.5KW
Max Wire Gauge To suit terminal size and rating - 2.5mm2
Without auxiliary contacts

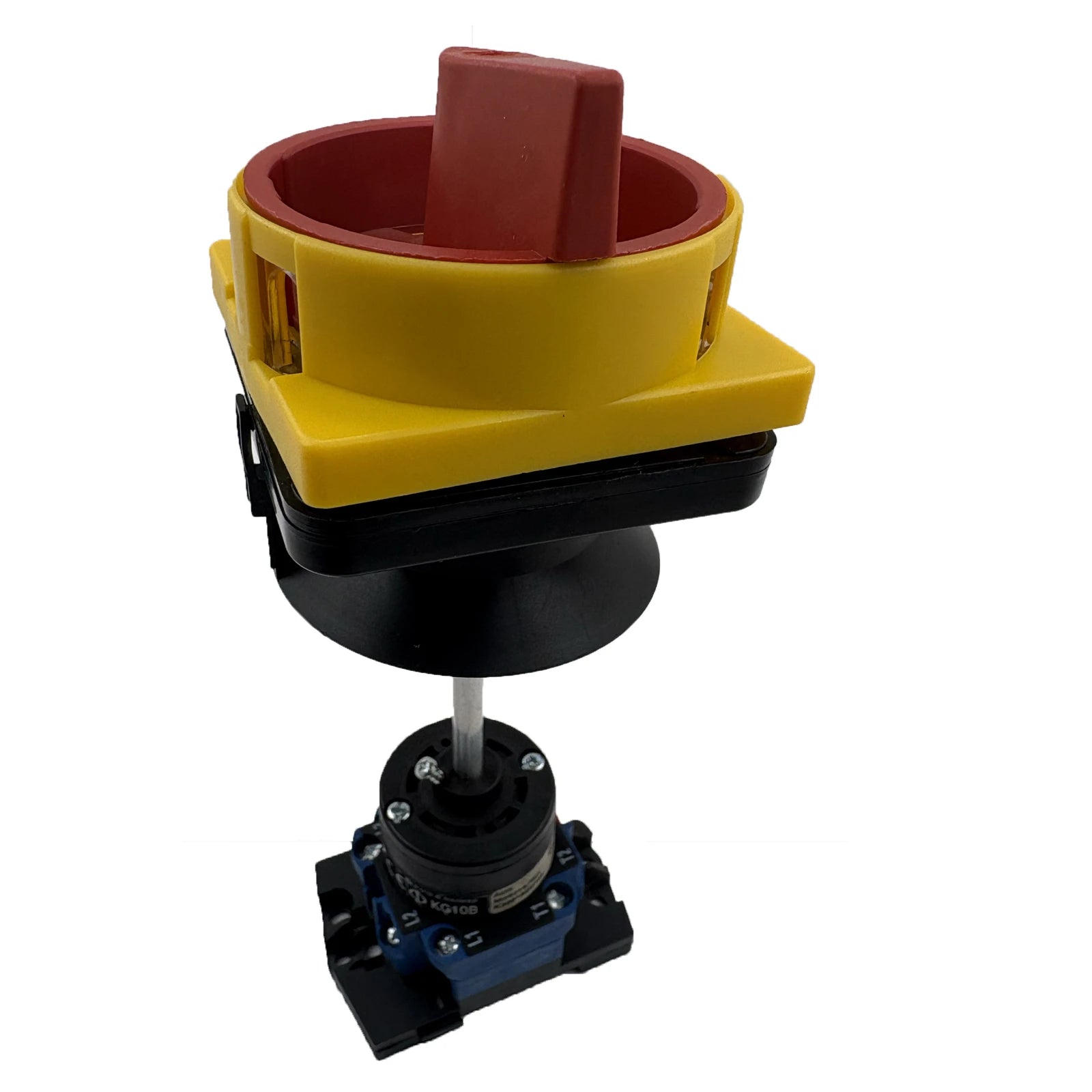

Switch / Handle Operation V840G:
Padlockable Handle
Base Mount IP65
Size 1 = 64 x 64
48 mm sq. Fixation
Red / Yellow Padlock Handle - V840G C/W Off / On
Padlock with integral flat or raised handle - 4 padlock
Mount Type = VE21
Panel Mount. (5 hole mount)

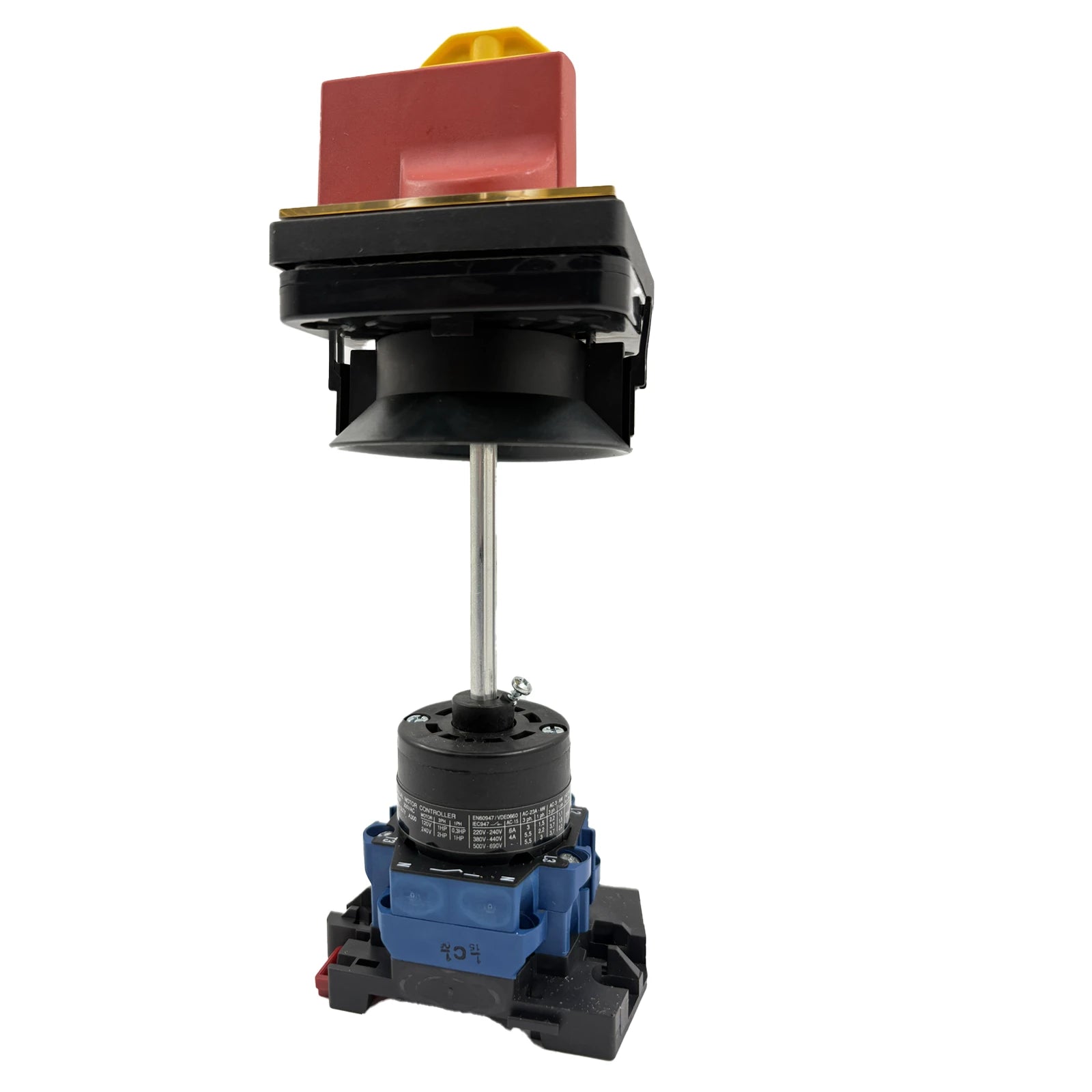

Switch / Handle Operation for V845:
Padlockable Handle
Base Mount IP65
Size 1 = 64 x 64
48 mm sq. Fixation

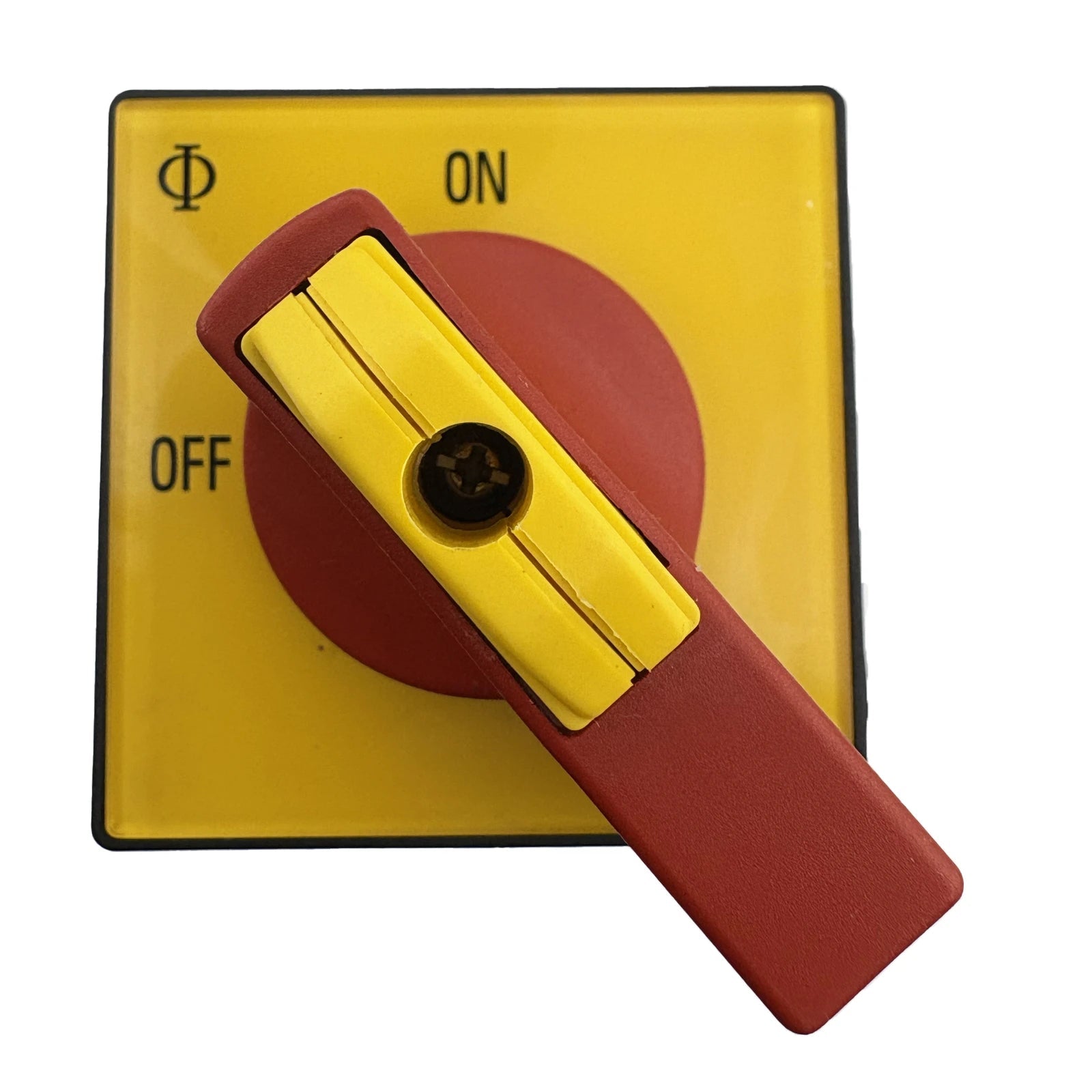

Red / Yellow Padlock Handle - V845 Padlock Handle. (c/w esc.plate)
OFF/ON F208 Yellow face plate
Mount Type = VE21
Panel Mount. (5 hole mount)

Kraus & Naimer On/Off Isolation Switch 690V 20A Red/Yellow KG10B K300*AU2101 Features:

• Mount Suitable for Enclosed Plastic or Stainless Steel Panels
• Red / Yellow Padlock Handle - V840G C/W Off On
• Red / Yellow Padlock Handle - V840G C/W Off / On
• Rated IP65 V840G
