Description
Relais de surcharge LR2D3353
Gamme de produits
TeSys D
Nom abrégé de l'appareil
LR2D
Type de produit ou de composant
Relais de surcharge thermique
Demande de relais
Protection moteur
Type de protection
Fusible BS 5 A - pour circuit de commande
Disjoncteur GB2 5 A - pour circuit de commande
Fusible GG 5 A - pour circuit de commande
Fréquence du réseau
50/60Hz
Support de montage
Plaque, avec bornier d'alimentation EverLink
Rail, avec bornier d'alimentation EverLink
seuil de déclenchement
1,14 +/-0,06 In A se conformer à IEC 60947-4-1
tenue aux surtensions
6 kV se conformer à IEC 60801-5
tension assignée d'emploi
690 V CA 50/60 Hz pour circuit de puissance se conformer à IEC 60947-4-1
sensibilité à l'absence de phase
Courant de déclenchement I 30 % de Ir sur une phase, les autres à Ir se conformer à IEC 60947-4-1
Couple de serrage
Circuit de commande : 1,7 Nm sur bornes à vis-étrier
Relais de surcharge LRD3353
Plage de courant : 23,0 à 32,0 A
Profondeur : 4,76"
Hauteur : 4,84"
Nombre de pôles : 3
Méthode de détection : Thermique
Type de démarreur : CEI
Classe de voyage : 10
Tension : 690 VCA
Largeur : 2,95"

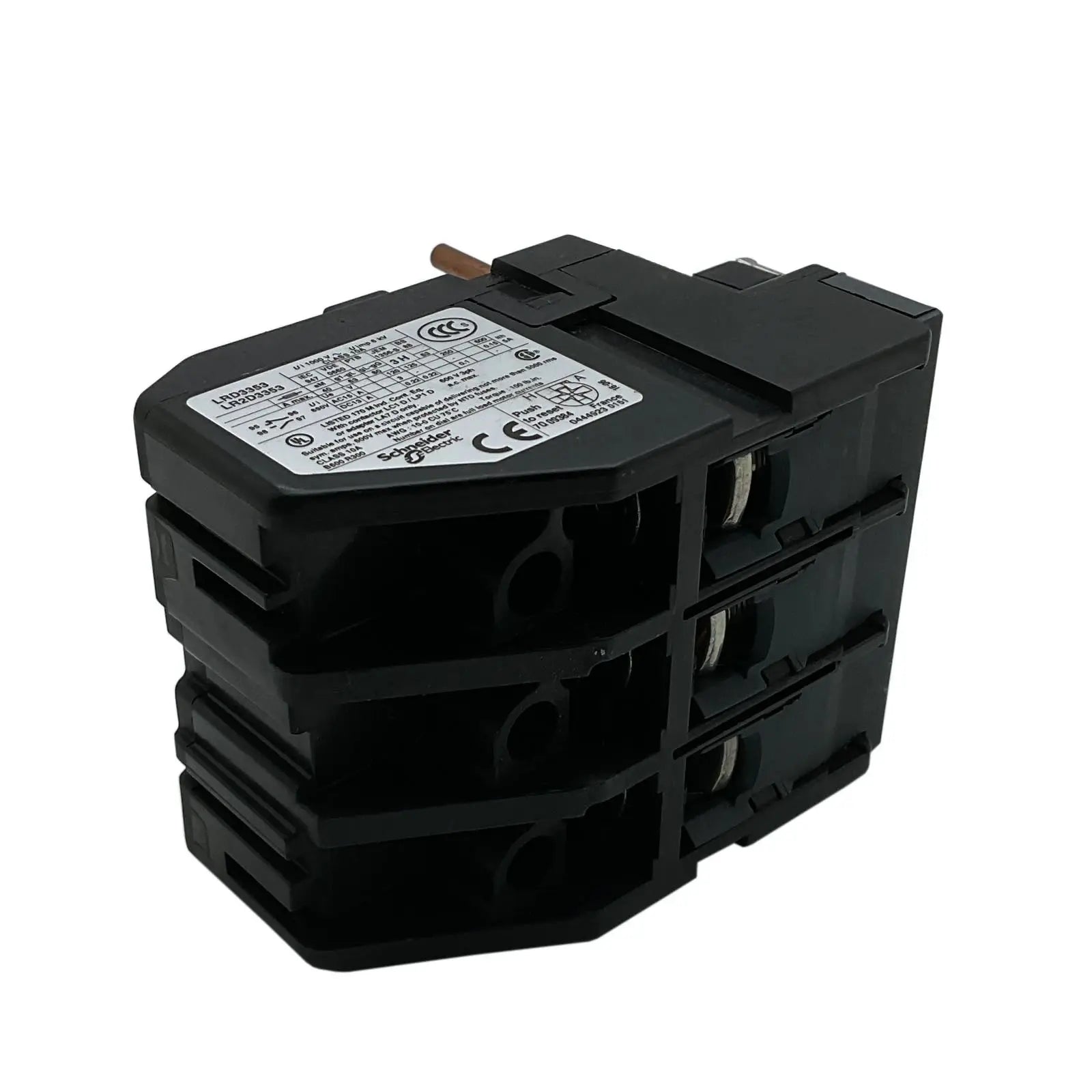

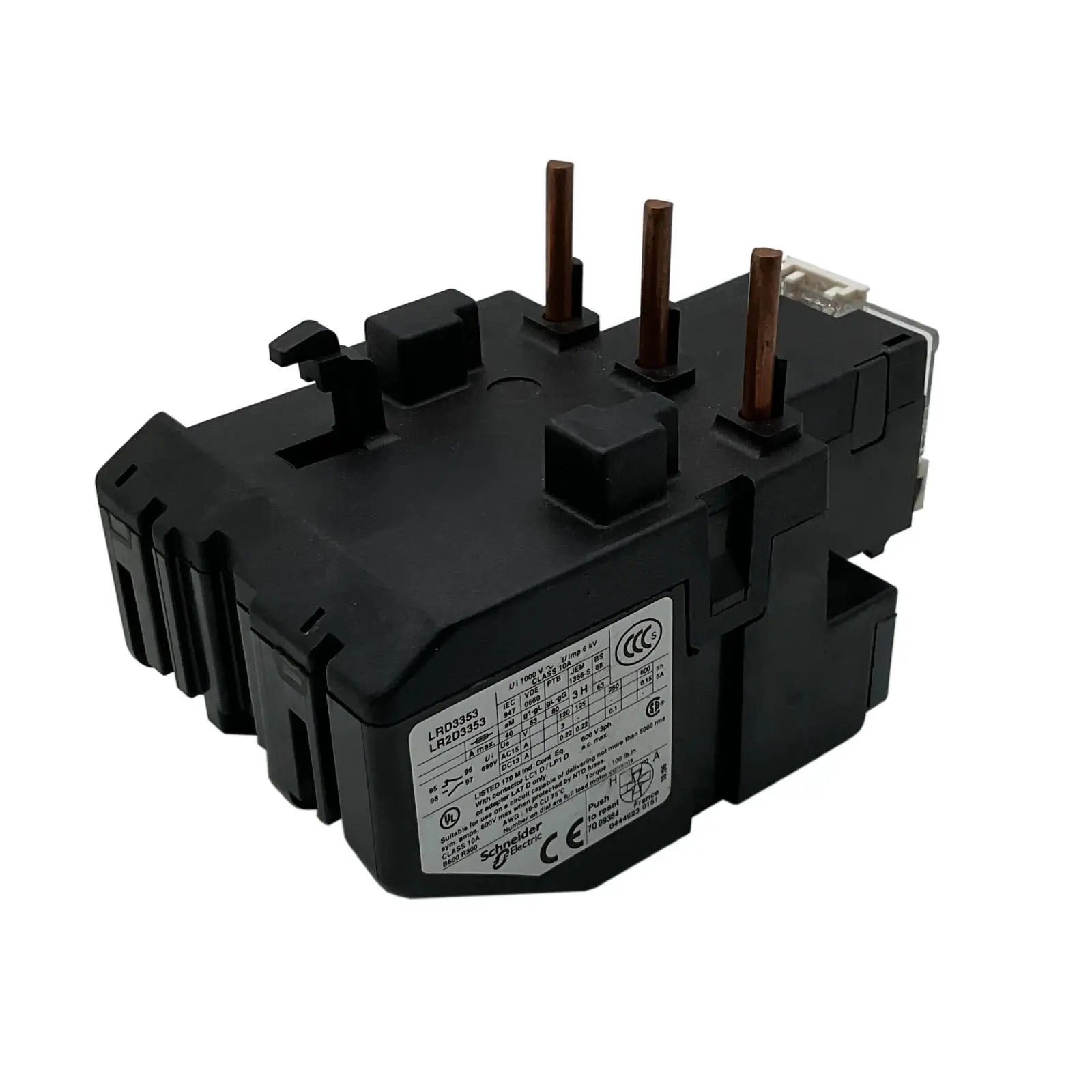

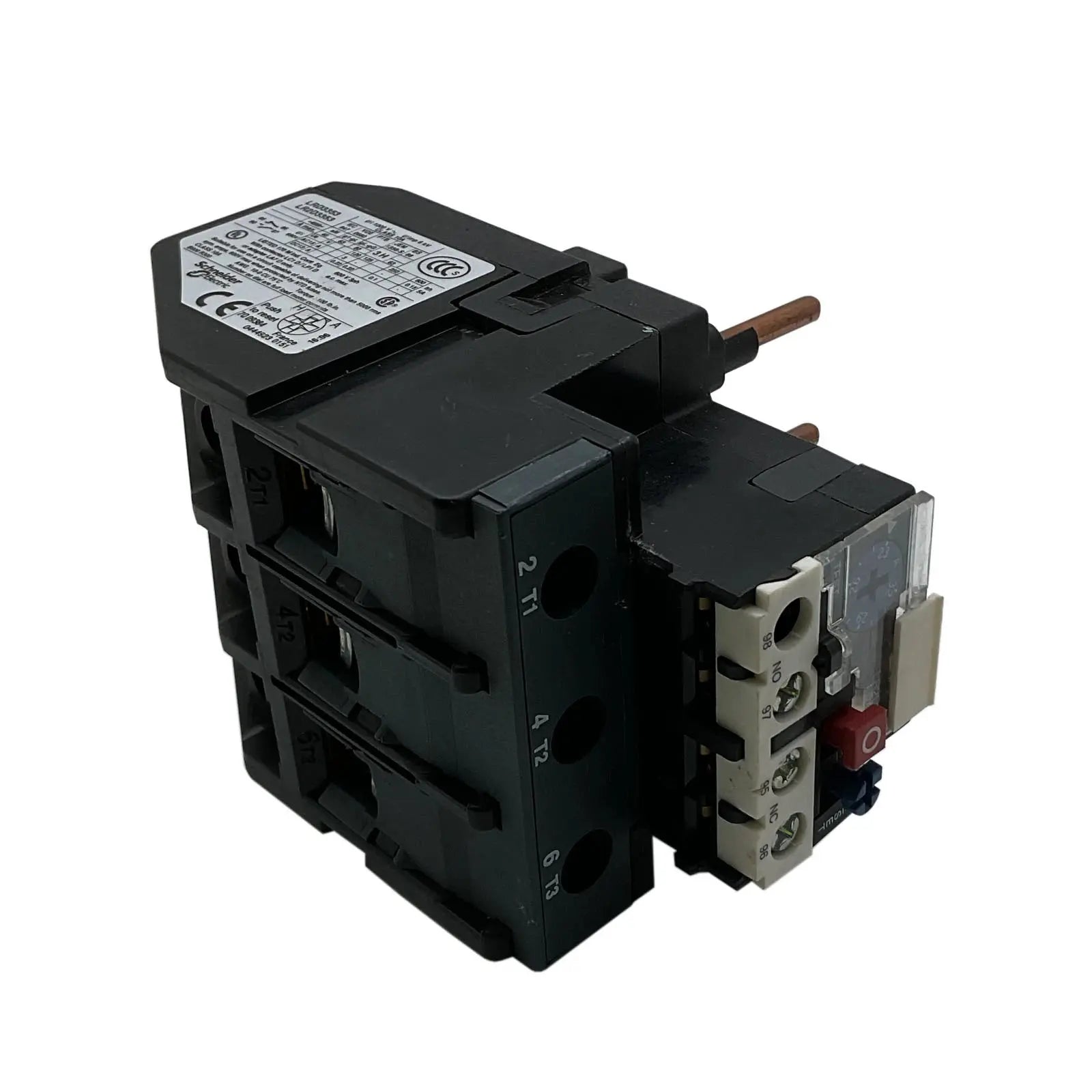

La liste comprend LR2D33 et LRD33 comme on le voit sur l'image.
