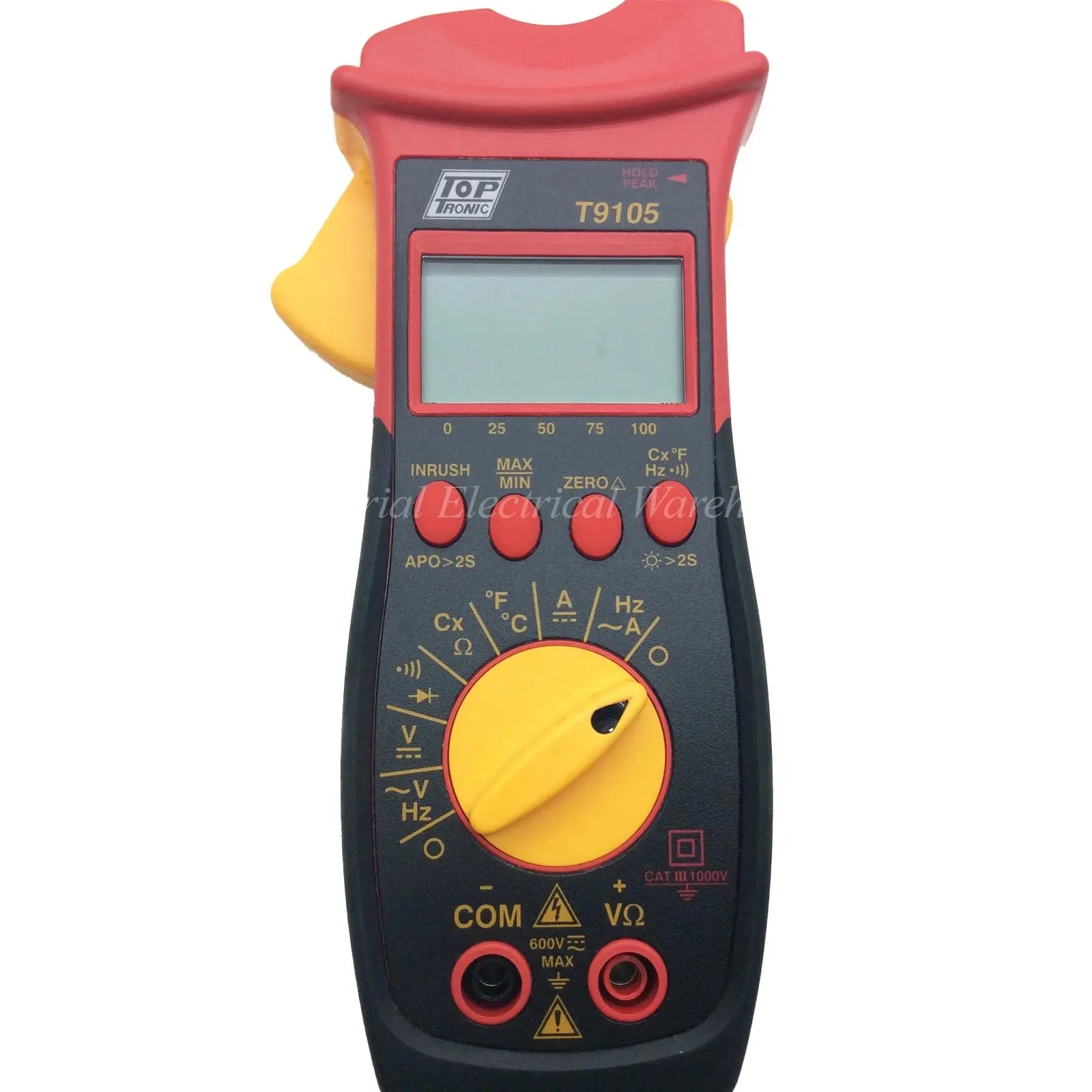

Toptronic Clamp Meter 1000AC/DC True RMS T9105

The Toptronic clamp meter 1000AC/DC True RMS T9105 represents a state-of-the-art measurement solution meticulously engineered for industrial electrical professionals who demand accurate and reliable readings in both alternating current (AC) and direct current (DC) circuits. Engineered with a strong emphasis on precision and long-term reliability, this advanced clamp meter ensures highly accurate measurements for both current and voltage parameters, significantly facilitating efficient troubleshooting procedures, proactive maintenance tasks, and comprehensive electrical system diagnostics. The integrated True RMS capability of this clamp meter enables exceptionally accurate measurements of even distorted and non-sinusoidal waveforms, making it an indispensable tool for a diverse range of complex industrial applications where signal integrity is critical. Its robust physical design and durable internal construction ensure that this clamp meter is a dependable and long-lasting tool for electricians, skilled technicians, and diligent maintenance personnel working in demanding and often challenging industrial environments.

Featuring cutting-edge measurement technology, the Toptronic T9105 clamp meter is specifically designed to effectively handle a wide spectrum of essential electrical tasks, ranging from routine preventative maintenance checks and comprehensive system verifications to intricate and complex diagnostic procedures aimed at identifying and resolving electrical faults. The inherent versatility of this advanced clamp meter, when combined with its crucial True RMS functionality, guarantees highly accurate and trustworthy results across a multitude of diverse electrical scenarios encountered in industrial settings. With its intuitive and user-friendly interface, coupled with its rugged and durable physical build, the Toptronic 1000AC/DC True RMS T9105 clamp meter stands as an absolutely essential tool for electrical professionals who prioritize precision, long-term reliability, and overall efficiency in their demanding industrial electrical measurements, ensuring accurate readings and streamlined workflows for optimal performance.

Toptronic Clamp Meter 1000AC/DC True RMS T9105 Features:

• Display: 4 digit liquid crystal display (LCD) with a maximum reading of 9999.
• Overrange: “OL.” mark indication.
• Low battery indication: The “ ” is displayed when the
• battery voltage drops below the operating level.
• Measurement rate: 2 times per second, nominal.
• Operating Environment: 0°C to 50°C at <70% R.H.
• Storage Temperature: -20°C to 60°C at <80% R.H. with
• battery removed from meter.
• Accuracy: Stated at ambient temperature 18°C to 28°C
• (65°F to 82°F), <70% R.H.
• Temperature Coefficient: 10% of applicable accuracy
• per °C(5% per °F) out side the range of 18 to 28°C(65°F
• to 82°F)
• Altitude up to 2000m.
• MAX. Cable size: 34Ømm.
• Safety Conformance:
• All input are protected to EN61010-1, 1000V CAT III.
• Pollution ° II.
• EMC-instrument unspecified for use in EMC field
• > 0.5V/m.

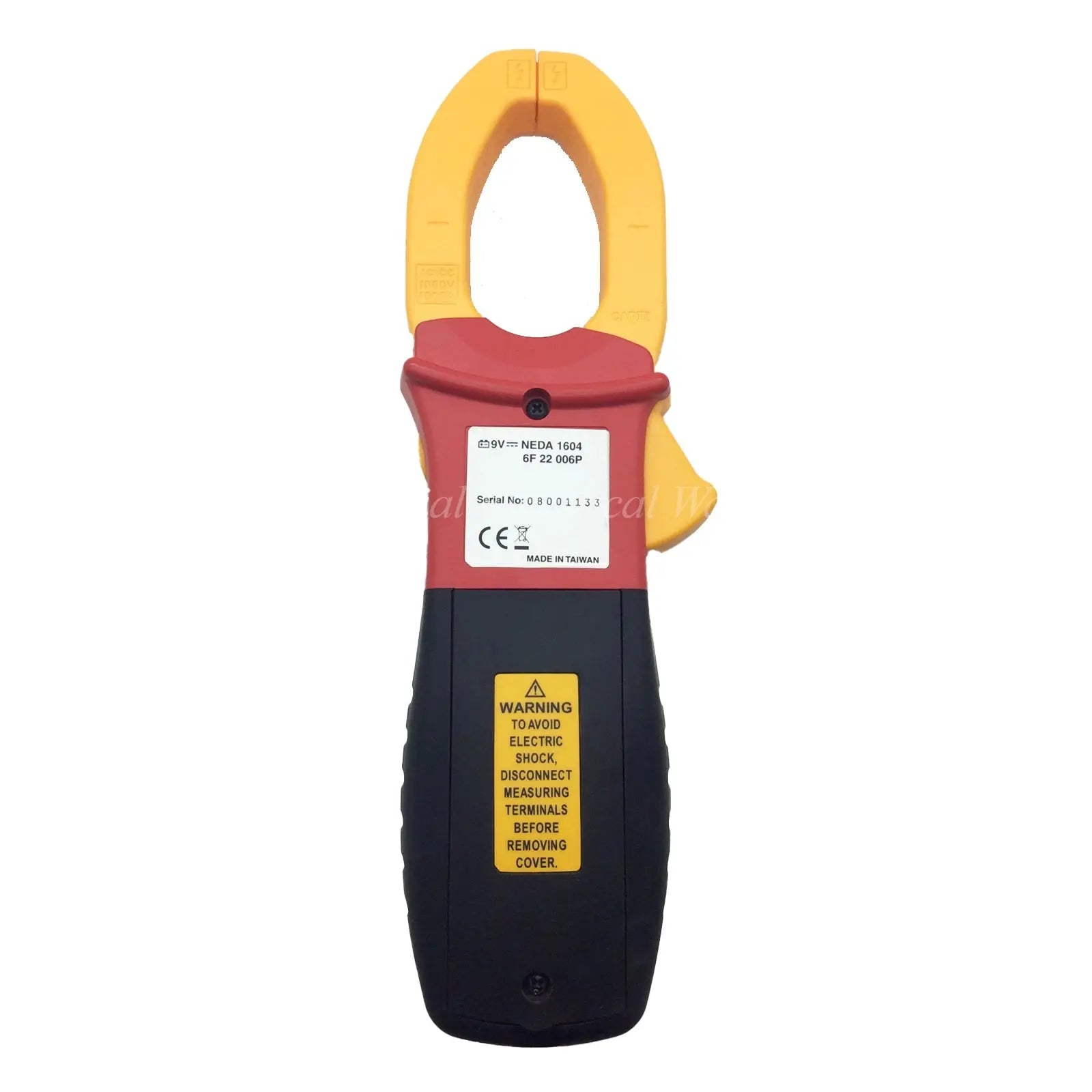

• Power: Single standard 9-volt battery, NEDA 1604, JIS
• 006P, IEC 6F22.
• Battery life: 50 hours typical with carbon-zinc.
• Dimensions: 246mm (H) x 80mm (W) x 43mm (D).

DC Volts

• Ranges: 0 to 600.0V
• Resolution: 0.1V
• Accuracy: ±(1% rdg + 5dgts)
• Input impedance: 1MΩ
• Overload protection: 600V DC/AC rms

AC Volts

• Ranges: 0 to 600.0V
• Resolution: 0.1V
• Accuracy:
• ±(1% rdg + 5dgts) on 20 to 100Hz
• ±(6% rdg + 5dgts) on 100 to 400Hz
• Crest Factor <3 at 0 to 300V
• <1.5 at 300 to 600V
• Input impedance: 1MΩ
• Overload protection: 600V DC/AC rms

Frequency

• Range: 20 to 400.0Hz
• Resolution: 0.1Hz
• Sensitivity: 5Vrms. TTL signal
• ≥5A at 20 to 100Hz
• ≥10A at 100 to 400Hz
• Accuracy: ±(0.5% rdg + 5dgts)
• Overload protection: 600V DC/AC rms

AC Current (Accuracy: At the center of CT)

• Range: 0 to 999.9A
• Accuracy:
• ±(2% rdg + 5dgts) on 20 to 100Hz
• ±(6% rdg + 5dgts) on 100 to 400Hz
• Resolution: 0.1A

DC Current (Accuracy: At the center of CT)

• Range: 0 to 999.9A
• Accuracy: ±(2% rdg + 5dgts)
• Resolution: 0.1A
• Overload protection: 1200A DC max for 1 minute

Continuity

• Audible indication: Less than 30Ω
• Overload protection: 600V DC/AC rms.

Resistance (Auto range)

• Ranges: 0 to 999.9Ω, 1000 to 9999Ω
• Accuracy: ±(1.5% rdg + 5dgts)
• Resolution: 0.1Ω/1Ω
• Overload protection: 600V DC/AC rms

Diode Test

• Accuracy: ±(3.0% rdg + 3dgts)
• Resolution: 0.001V
• Test current: 0.2mA±0.1mA
• Test Voltage: <3.0V DC
• Overload protection: 600V DC/AC rms

Capacitance

• Range: 0 to 999.9μF
• Resolution: 0.1μF
• Accuracy: ±(5% rdg + 10dgts)
• Overload protection: 600V DC/AC rms
